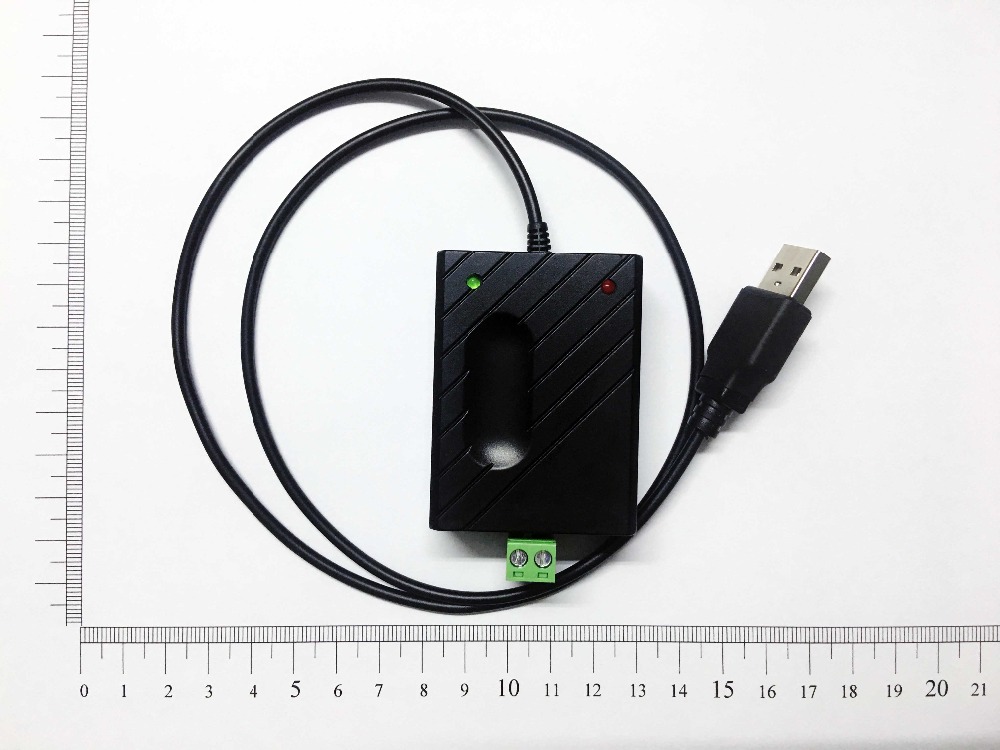

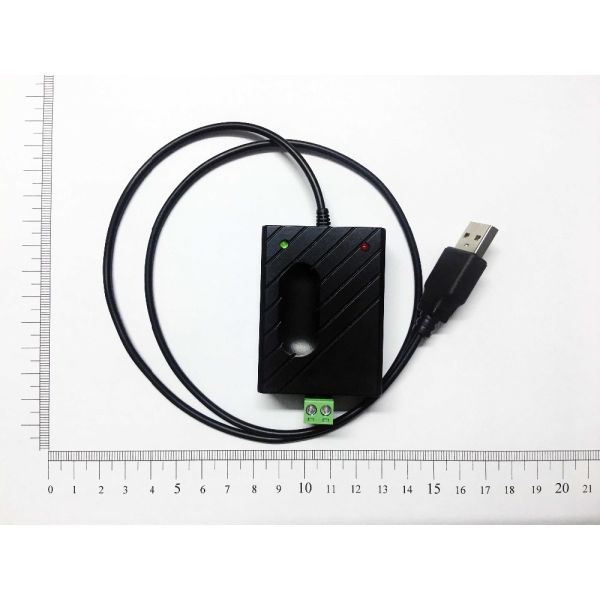

Monday Kids MBUS to USB converter USB-MBUS meter reading communication USB power-supply debugging dedicated

$25.00
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

USB to MBUS converter is able to buy from https://www.mondaykids.com/usb-to-mbus-slave-module-discrete-component-non-tss721-circuit-m-bus-bus-monitor.html

Technical parameter:
Power supply: USB power, no external power supply
Communication baud rate: 300-9600 BPS adaptive
Load current: 20 mA, about 10 loads
MBUS null voltage: 32-36V
MBUS signal voltage: 16-20VDC
Dimensions: 43*60*25mm
Operating temperature and humidity: -10℃~+70℃, 5%-95% no gel

Connection mode description:
1.The module will be connected with the USB line interface module USB end, the USB line is connected to the computer at the other end, then the indicator light (green) bright 2 seconds after the extinction.
2. connect the module's MBUS+ to the MBUS-, the two core of the bus, regardless of the positive and negative poles
