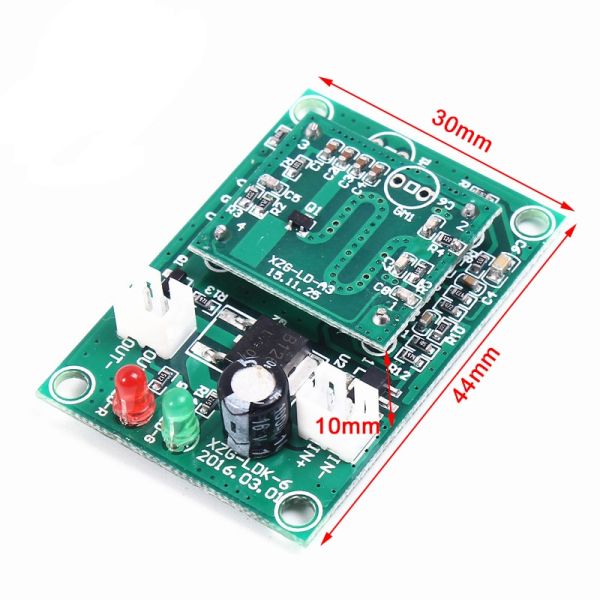

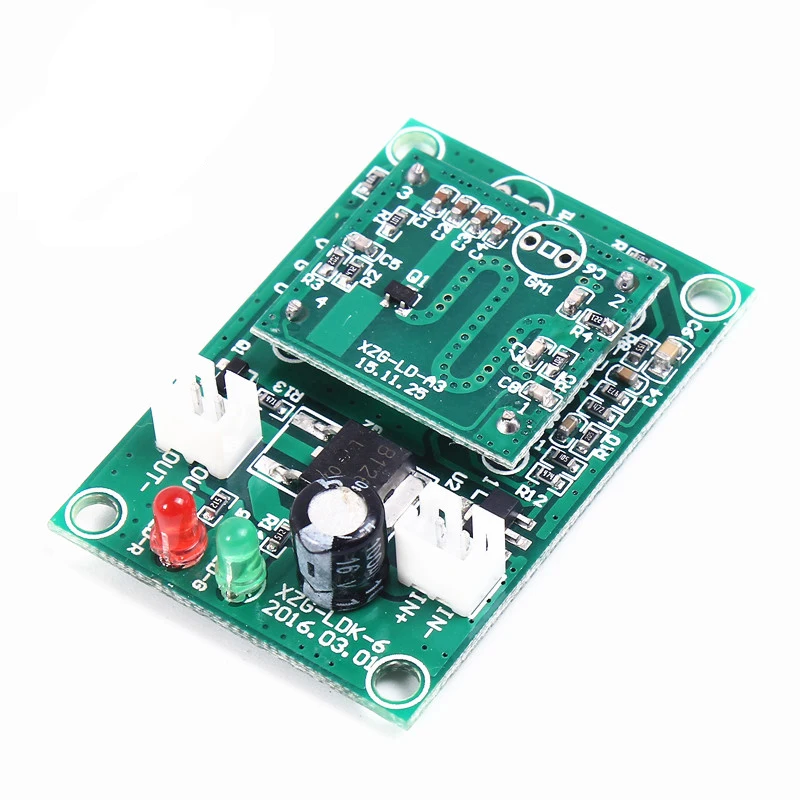

Monday Kids DC-SSR DC Digital Microwave Sensor Switch Radar Switch Module Human Body Induction Radar Sensor Inductive Sensor Indutivo
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Material: Polymer
- Model Number: Microwave Sensor
- Type: Biosensor
- Output: Digital Sensor
- is_customized: Yes
- Usage: Microwave Sensor
- Theory: Microwave Sensor
- Model: XZG-LDK-6
- Input Voltage: 3.7-12V
- Output Voltage: 3.7-12V
- Feature: human body sensor
Parameter:
1.Model:XZG-LDK-6
2.Input Voltage:3.7-12V
3.Output Voltage:3.7-12V
4.Maximum Load Current:3A
5.Maximum Load Power:30W (driving LED should less than 20W)
6.Sensing Distance:5m (customizable, the longest distance is 10m)
7.Delay Time:default 10 seconds (customizable)
8.Accessible to install photoresistance (need to customize,default no photoresistance)
Notice:
1.Don't operate during the power on;don't connect the wrong wire;don't overload and short circuit;please read the instruction carefully before using
2.Don't use it to overload power
3.When the wall thickness is smaller than 10cm,this switch may sensor throughout the wall
4.Don;t put any objects that may affect its detection or keep on moving
5.Don't take shakable object as install basement
6.Short-distance microwave signal and other superstrong magnetic radiation source may influence the normal operation og radar switch
7.Owing to the difference of sensoring distance,the matching antenna model may be different when customization
The effect video are in video discription , you can watch it !!!
- Unit Type: piece
- Package Weight: 0.02kg (0.04lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
