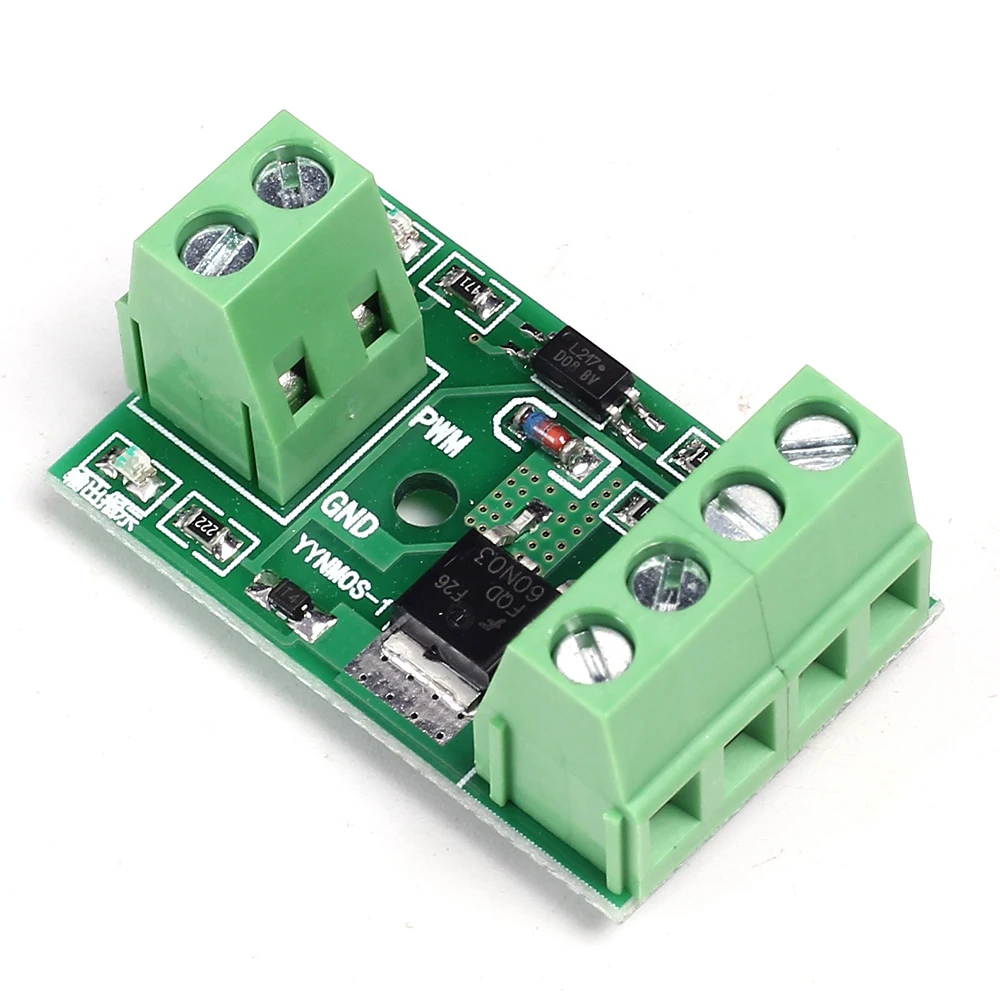

Monday Kids Mosfet MOS Optocoupler Isolation Driver Module Field Effect Transistor Trigger Switch PWM Control Board 3-20V

$2.62

Product name is Mosfet MOS Optocoupler Isolation Driver Module Field Effect Transistor Trigger Switch PWM Control Board 3-20V...

Product origin name is Monday Kids Mosfet MOS Optocoupler Isolation Driver Module Field Effect Transistor Trigger Switch PWM Control Board 3-20V

Availability: In stock
SKU
EK287

Payment Security

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

  • Brand Name: Monday Kids
  • Supply Voltage: Output Capacity: DC 3.7-27V
  • Model Number: MOS Transistor Module
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • is_customized: Yes
  • Operating Temperature: -30~85 Celsius
  • Application: Motors, lamps
  • Model: YYNMOS-1 (input and output are completely isolated)
  • Input Signal: 3-20V PWM signal
  • Output Capacity: DC 3.7-27V, and the current is within 10A
  • PWM Frequency: 0-20KHz
Product Introduction:
1.Model: YYNMOS-1 (input and output are completely isolated)
2.Input Signal: 3-20V PWM signal
3.Output Capacity: DC 3.7-27V, and the current is within 10A
4.PWM Frequency: 0-20KHz

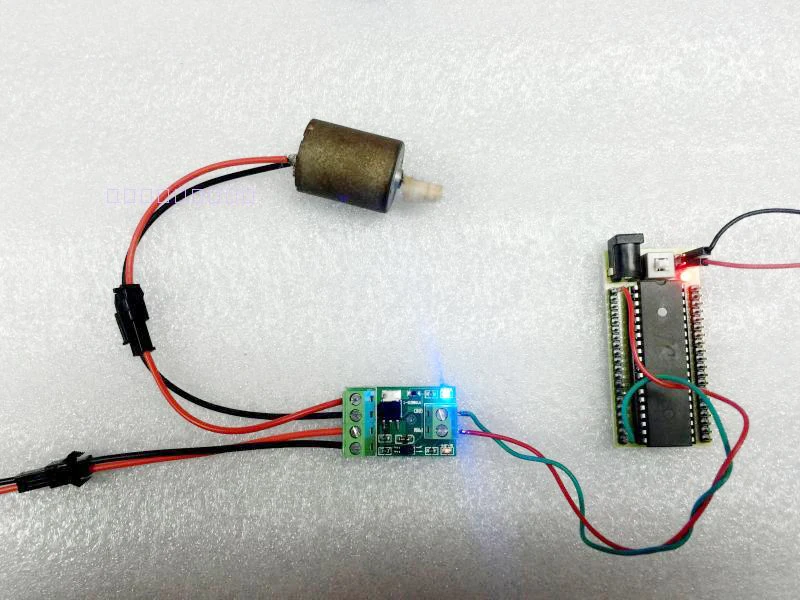

5.Application: output port can control high power devices, such as motors, lamps, LED lamp strings, DC motors, micro water pumps, electromagnet valves; it can input PWM to control motor rotate speed and the brightness of lamp

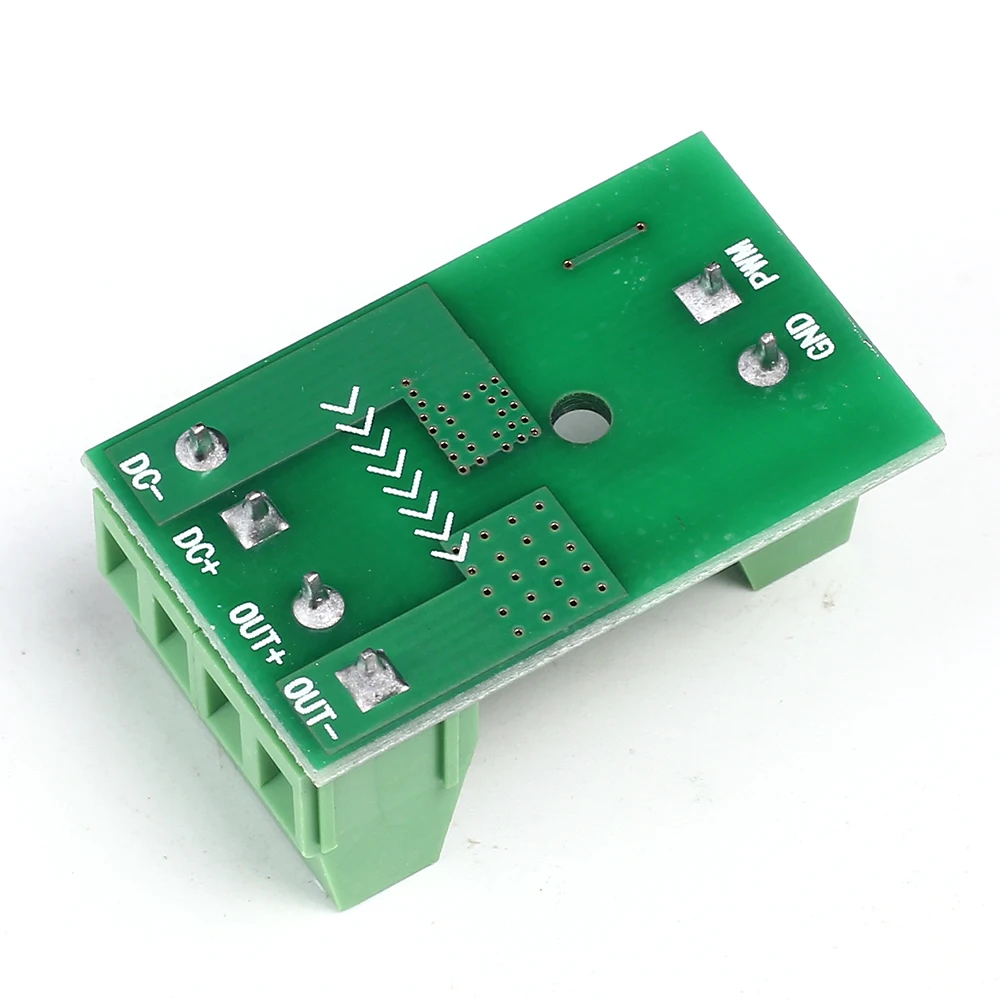

Interface Introduction:
1.DC+: device DC power positive
2.DC-: device DC power negative
3.PWM: signal input port (connects MCU IO ports, PLC interface, DC power)
4.GND: signal negative port
5.OUT+: output port positive (connects device positive)
6.OUT-: output port negative (connects device negative)

  • Unit Type: piece
  • Package Weight: 0.025kg (0.06lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
