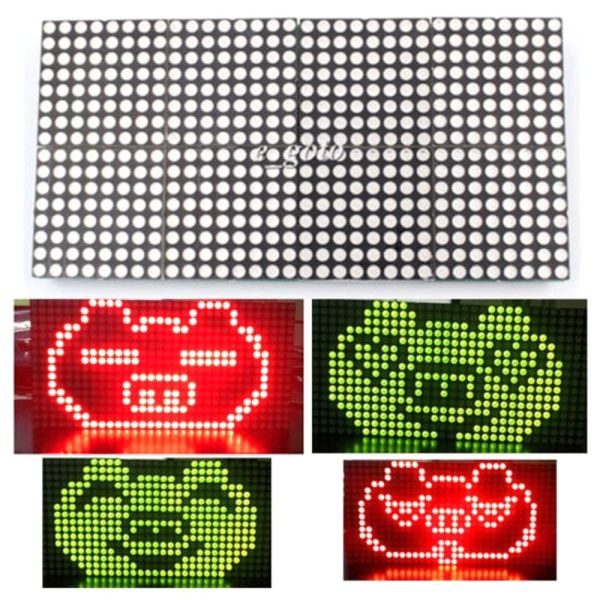

Monday Kids 16x32 Dot Matrix Control Display Module DIY Kit Dual-Color Red Green Electronic Fun Kit
$9.29
Availability:
In stock
SKU
EK506
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Display Function: Graphics
- Tube Chip Color: Red
- Model Number: Dot Matrix Display
- Usage: Indoor
- is_customized: Yes

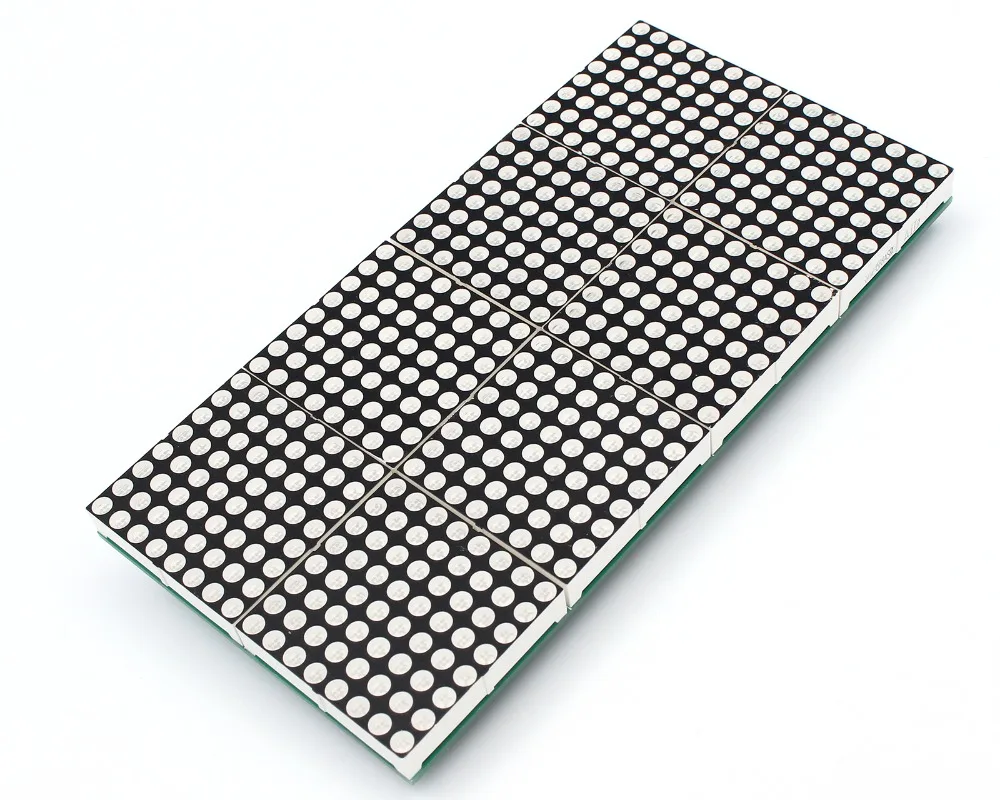

DIY Kit 16x32 Red Green Dual-Color Dot Matrix Control Display Module
1. Description
1>. It is DIY kit. User need to weld it.
2>. It is just a dot matrix module. There is no controller on PCB.User need controller to control it such as C51,AVR,STM32,MSP430,PIC,ARM.

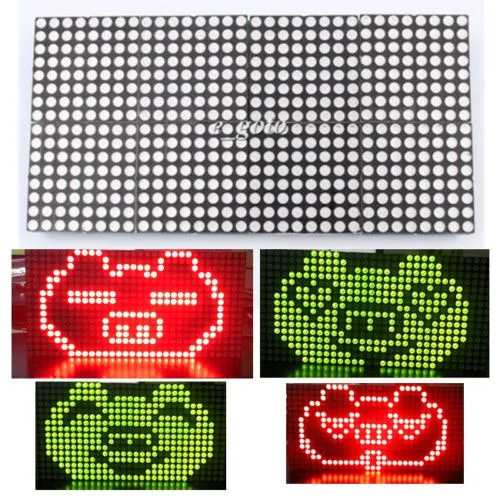

3>. It can display green and red.

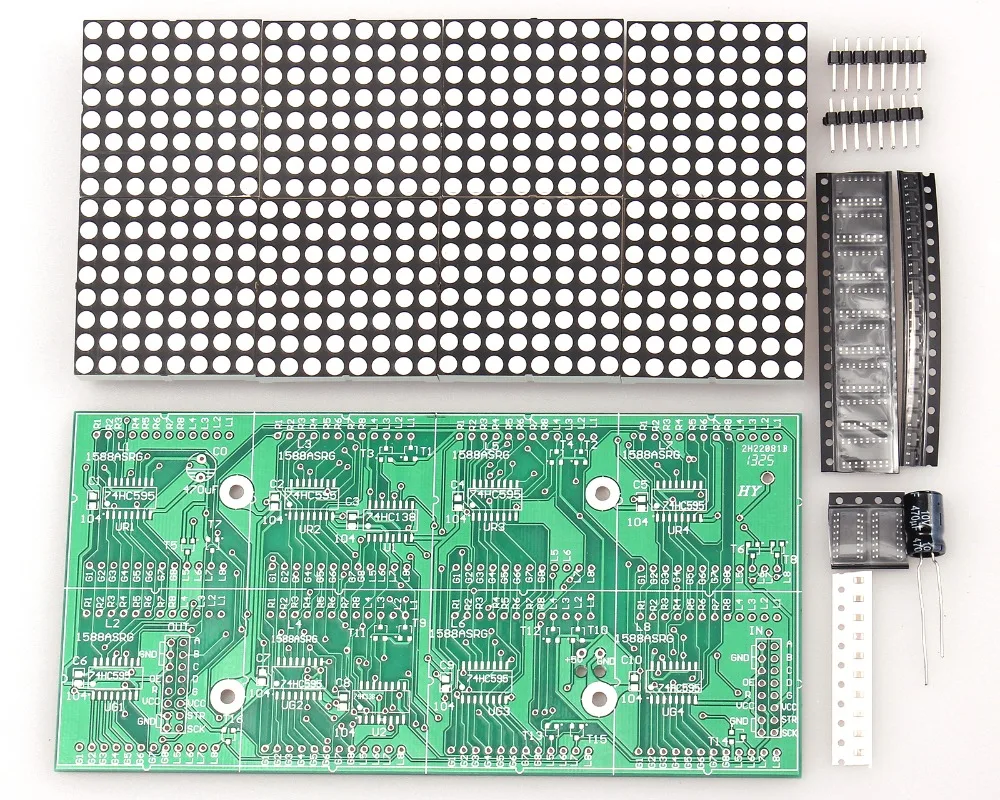

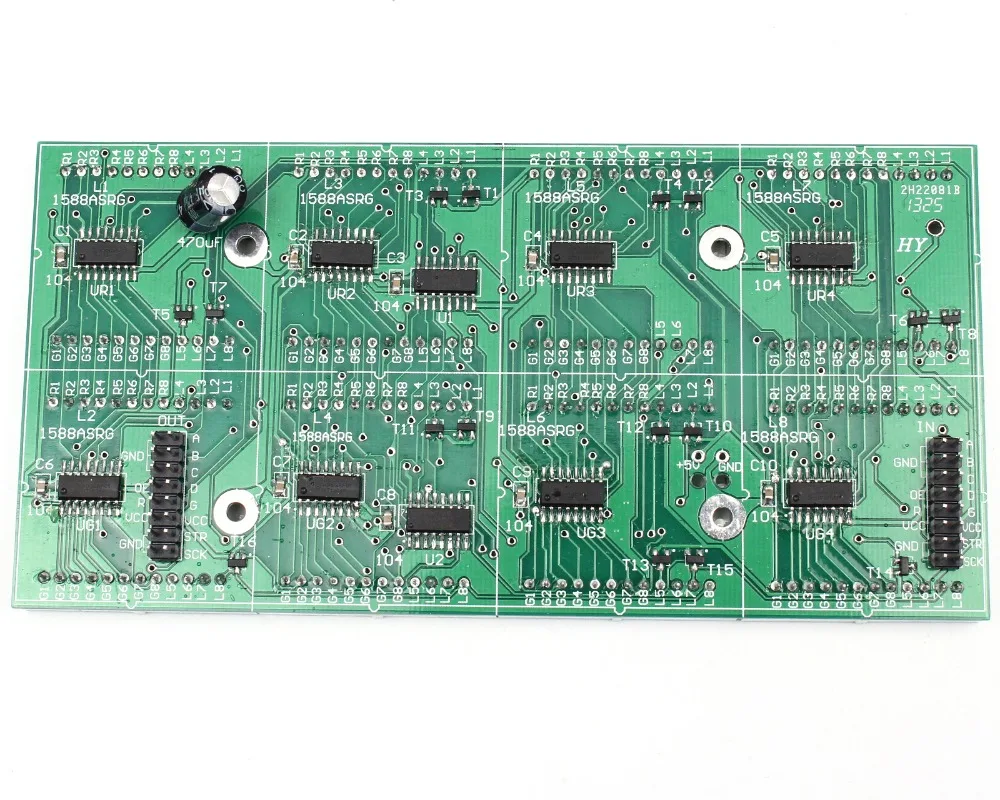

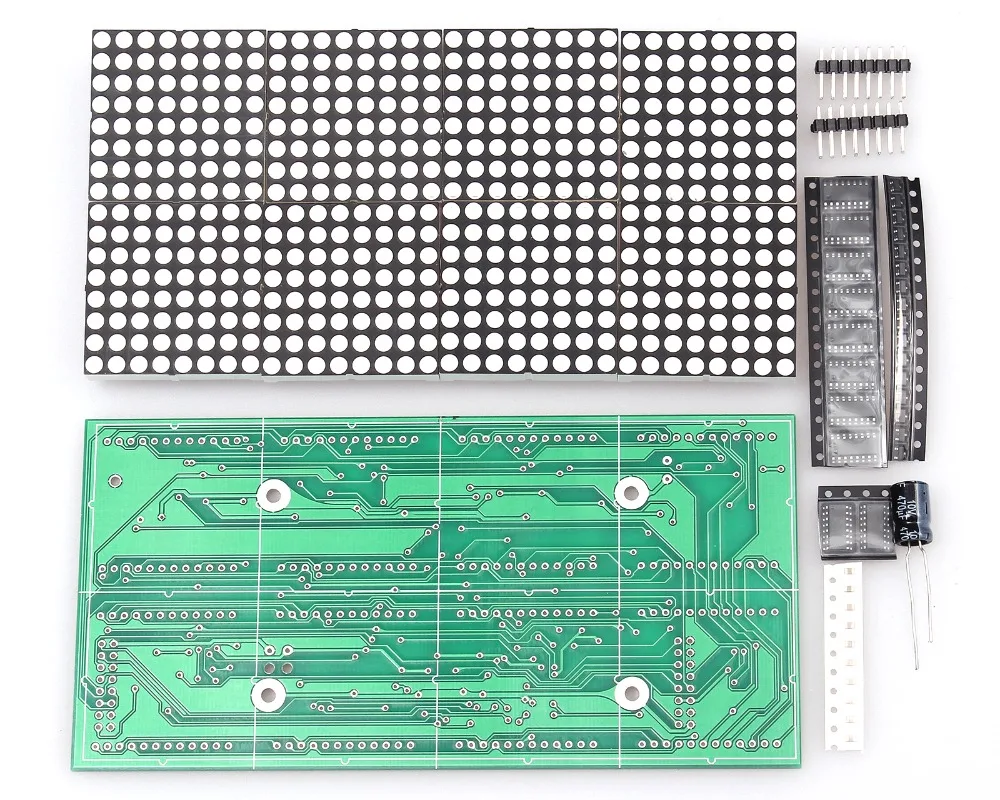

2. Component listing
Component | Number | Parameter | Quantity |
Electrolytic capacitor | C0 | 470uF 10V | 1 |
0805 capacitor | C1-C10 | 0.1uf 104 | 10 |
74HC138 | U1,U2 | SOP-16 | 2 |
74HC595 | UG1-UG4,UR1-UR4 | SOP-16 | 8 |
S8550 | T1-T16 | SOT-32 | 16 |
Male pin | IN,OUT | 2*8P 2.54mm | 2 |

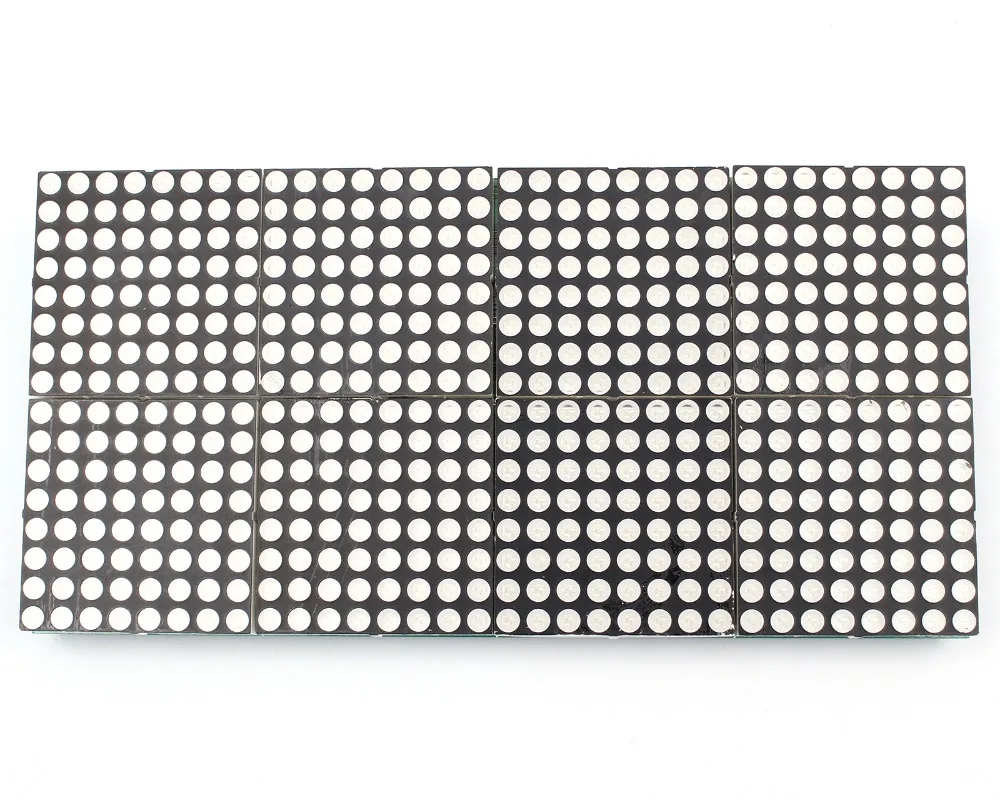

8*8 dot matrix | Red/Green | 8 | |
PCB | 1 |

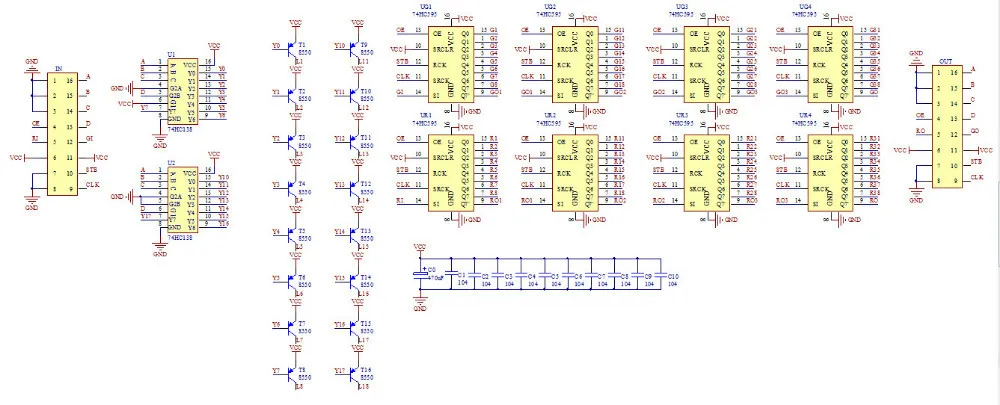

3. Schematic.
- Unit Type: piece
- Package Weight: 0.14kg (0.31lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
