Monday Kids DIY Kit CD4511BE Digital LED Tester Meter Logic Pen Kit for Sensor Amplifier DC Gain Electronic DIY Kit IC Tester DIY Electronic
$1.85
Availability:
In stock
SKU
EK251
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- Type: Logic ICs
- Dissipation Power: NONE
- is_customized: Yes
- Supply Voltage: DIY Kits
- Model Number: Electronic Production Suite
- Operating Temperature: -30~85 celsius
- Application: Electronic Production Suite

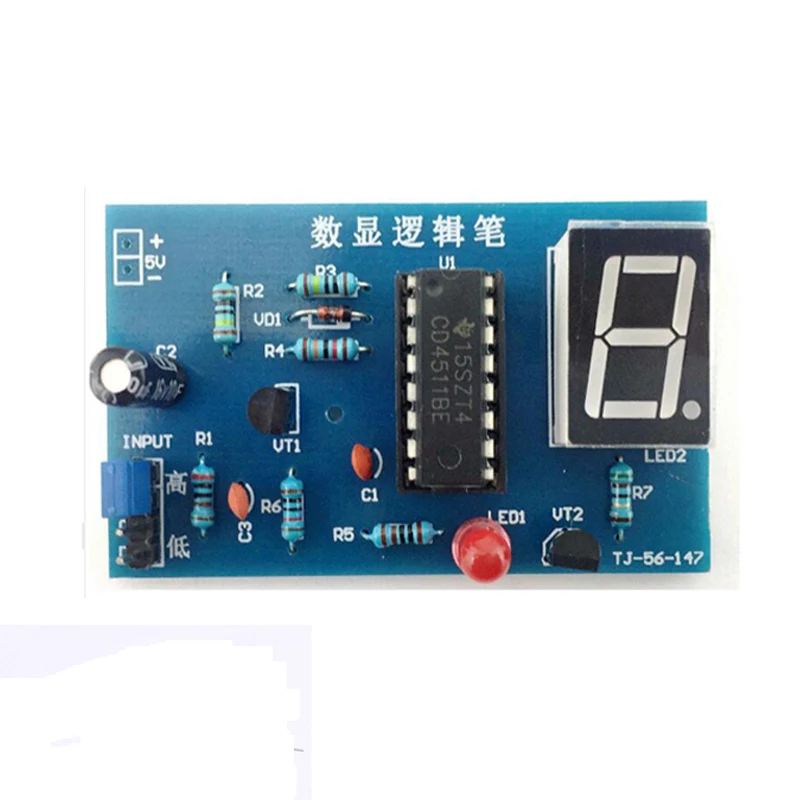

The logic test pen production kit, mainly used for the introduction of a CD4511BE to control a digital tube display logic pen, CD4511BE internal includes two independent, high gain, internal frequency compensation of the double operation Amplifier, suitable for a wide range of power supply voltage range of single power supply, but also for dual power mode, the recommended operating conditions, the supply current and power supply voltage has nothing to do.
It uses areas such as sense amplifiers, DC gain modules, audio amplifiers, industrial controls, DC gain components, and all other commercially available single-supply operational amplifiers.
Operating Introduction:

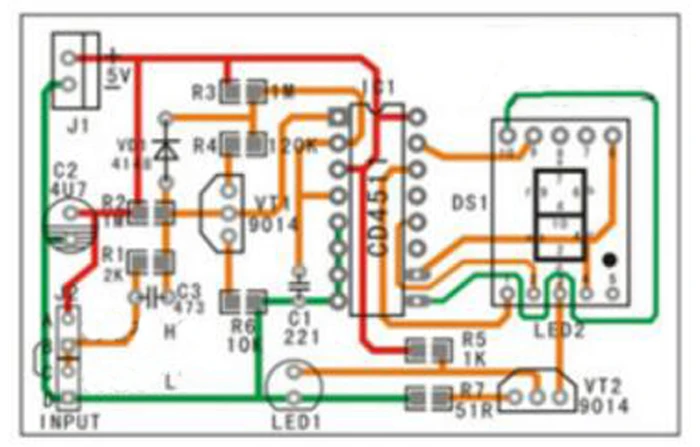

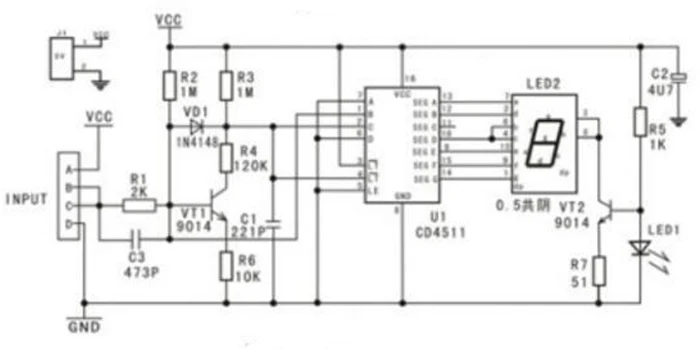

1.When INPUT port hasn't input voltage,that is when A-B/C-D both disconnect,VIN is connected,CD4511 2-pin,4-pin are low level;since IC1 the fourth pin is blanking input control port;when BI=0,no matter what other input ports' state are,its output port A-G are all 0;and 7 segment digital tube are all off and not display number
2.When INPUT port inputs low level which is lower than 0.47V,that is short circuit INPUT C-D port,VT1 cut off,and its collector output high level;IC1 BCD code input DCBA=0100,after decoding,IC1 output port B/C/F/E is high level,and others are low level.So digital tube display "L" representing logic low level
3.INPUT port input 3.13-5V high level,that is short circuit INPUT A-B port,VT1 is connected;its base and collector are both high level,IC1 BCD code input DCBA=0110;after decoding,IC1 output port A/C/D/E/F/G output high level;and others are low level;digital tube display "H" representing logic high level

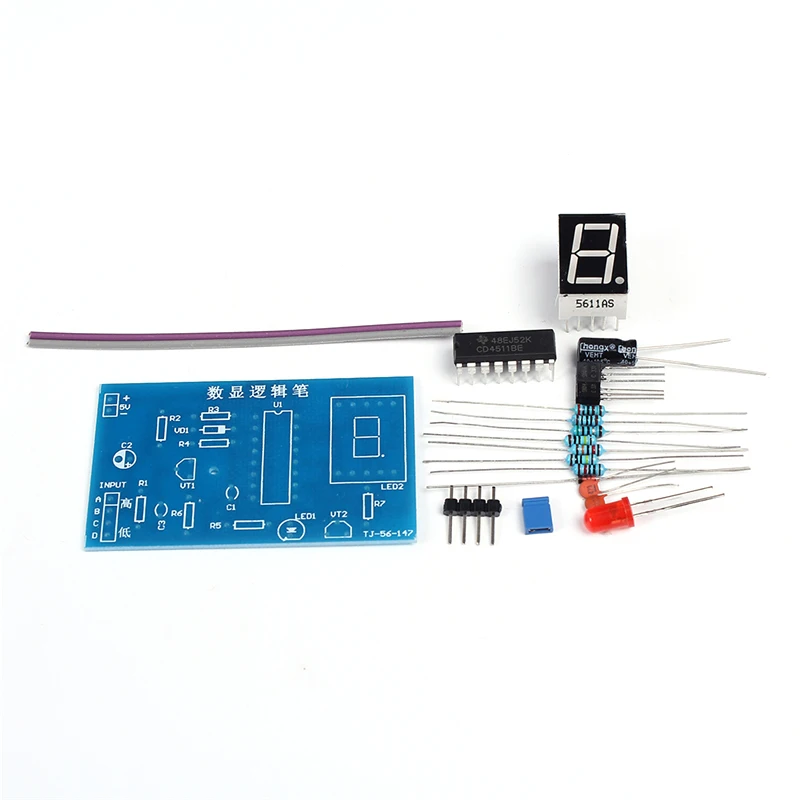

Packing List:
Number | Name | Specification | Quantity |
R1 | Resistor | 2K ohm | 1 |
R2,R3 | Resistor | 1M ohm | 2 |
R4 | Resistor | 120K ohm | 1 |
R5 | Resistor | 1K ohm | 1 |
R6 | Resistor | 10K ohm | 1 |
R7 | Resistor | 51 ohm | 1 |
VT1,VT2 | Triode | 9014 | 2 |
VD1 | Diode | 1N4148 | 1 |
C1 | Ceramic Capacitor | 220pF | 1 |
C2 | Electrolytic Capacitor | 10uF | 1 |
C3 | Ceramic Capacitor | 0.047uF | 1 |
LED1 | LED | 5MM Red | 1 |
LED2 | 1-Bit Digital Tube | Common Cathode 0.56 | 1 |
INPUT | Single Pin | 4P | 1 |
U1 | IC | CD4511 | 1 |
Short Circuit Cap | 1 | ||
Wire | 2 | ||

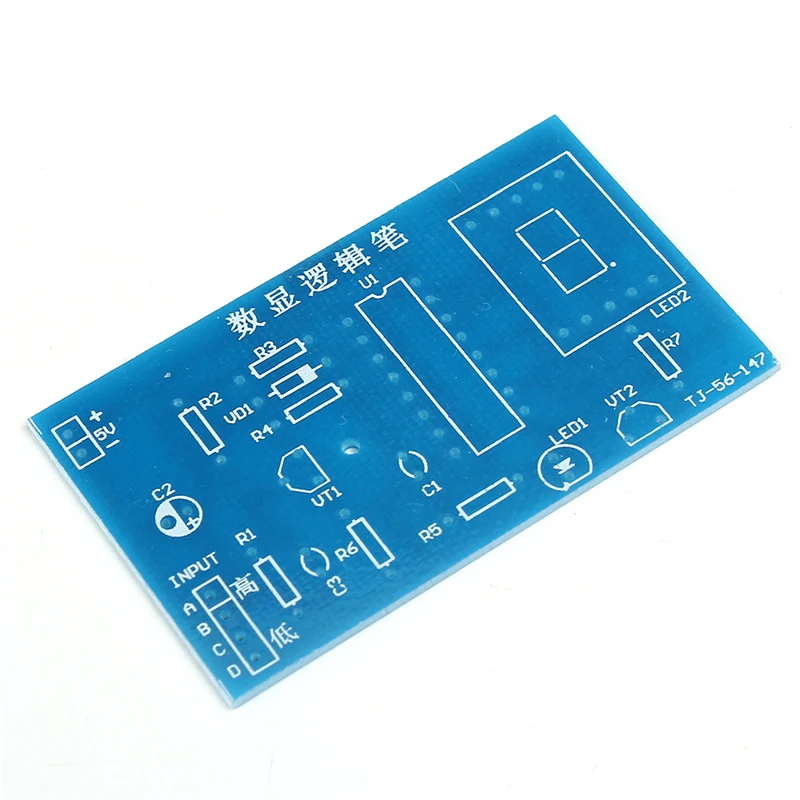

PCB | 1 |
- Unit Type: piece
- Package Weight: 0.06kg (0.13lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
