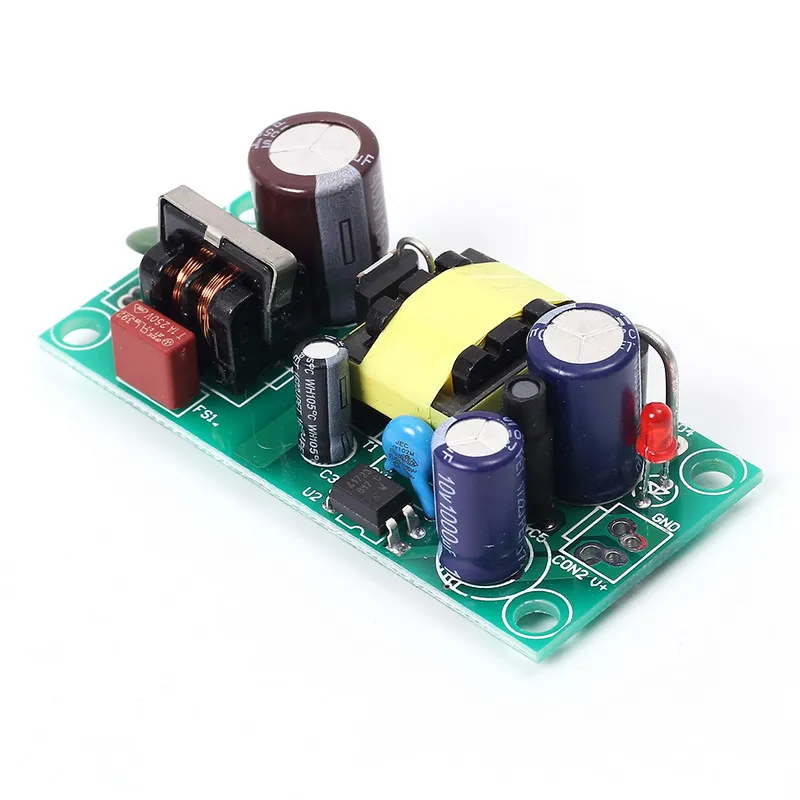

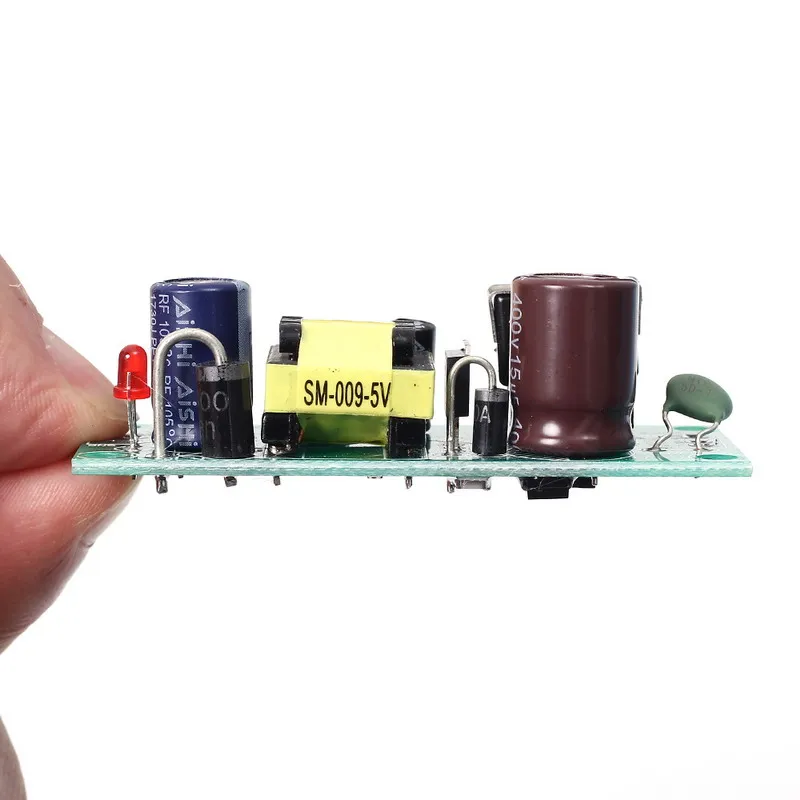

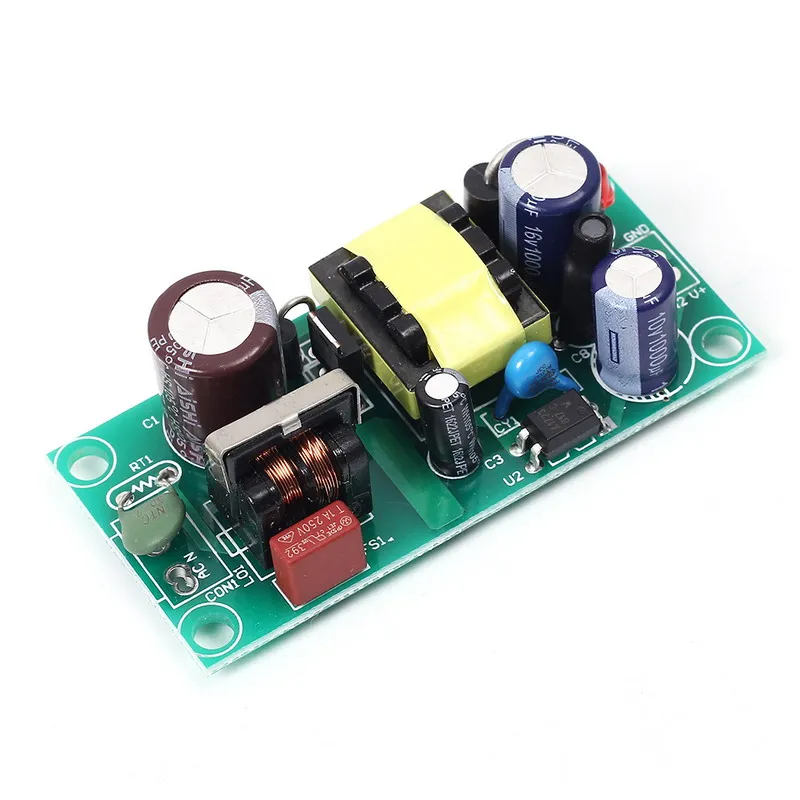

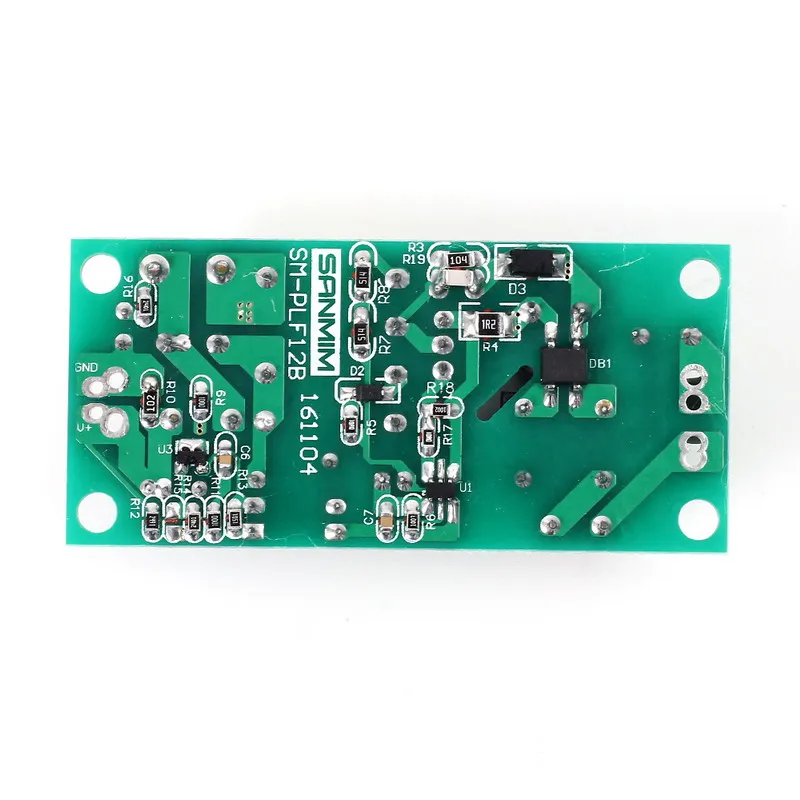

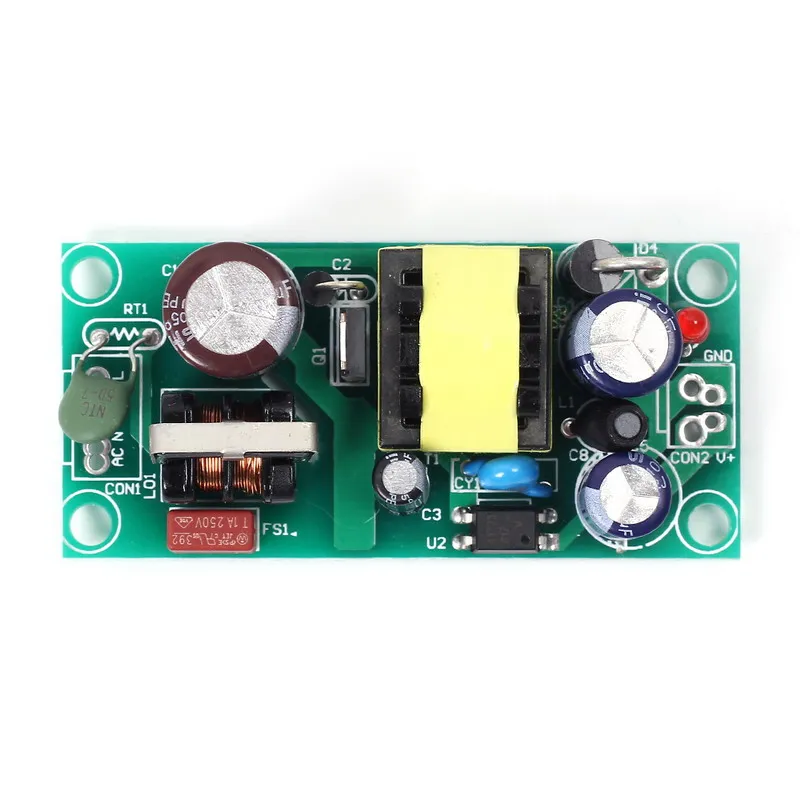

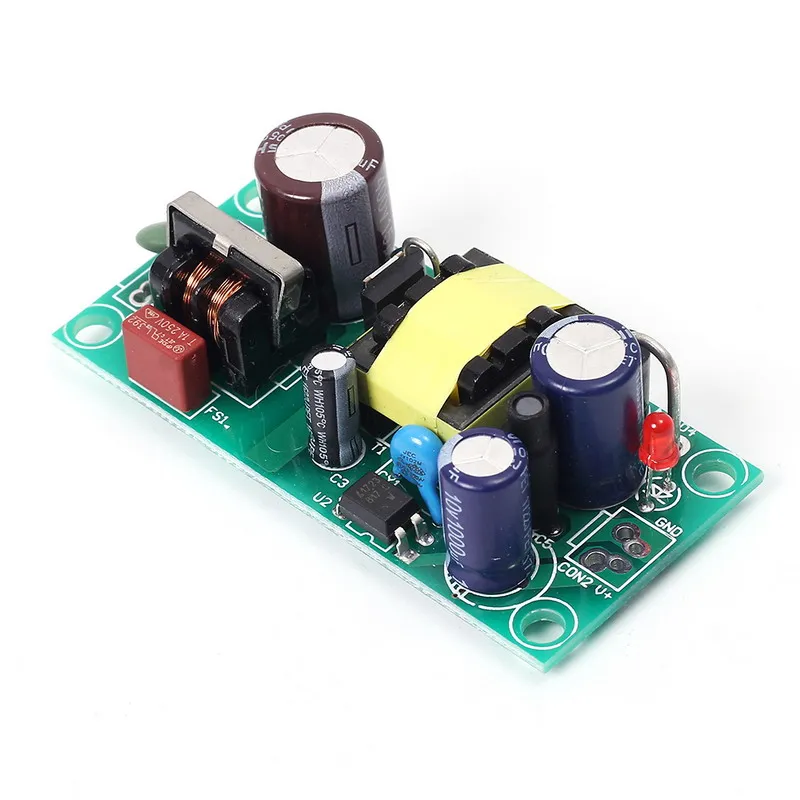

Monday Kids 5V 2A AC-DC Switching Power Module Isolated Power 220V to 5V Switch Step Down Buck Converter Bare Circuit Board
$3.25
Availability:
In stock
SKU
EK210
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- Model Number: AC-DC Buck Converter Module
- is_customized: Yes
- Type: Voltage Regulator
- Operating Temperature: -20 - 60 celsius
- Dissipation Power: 10W
- Supply Voltage: AC 85~265V
- Application: Power Module
- Output voltage range: 4.8 ~ 5.2V
- Output Current Range: 0 - 2000mA
- Output efficiency: 80%
- Switching Overshoot: 10%
- Feature 1: Voltage 220v 5v Converter,220v regulator
- Feature 2: buck converter,step down,220v to 5v module
Description:
1. Input voltage:AC85 ~ 265v 50 / 60HZ or DC100v-370v
2. Output voltage:DC5V (± 0.2V)
3. Output current:2000mA
4. Power:10W
5. PCB size:6.6*3.0*2.0cm
Use environment:
1. Working temperature: -20 to 60 Centigrade
2. Relative humidity: 40 to 90% RH
Input characteristics
1. Input voltage range: 85VAC-265VAC / 100VDC-370VDC
2. Input Current: 0.0273 (AC110V) 0.014 (AC220V)
3. Input surge current: 20A (full load)
Output Characteristics
1. Output voltage range: 4.8 ~ 5.2V
2. Output Current Range: 0A to 2000mA, the peak current of 2200mA
3. Output power: 10w maximum 11W.
4. Output efficiency: 80%
5. Switching Overshoot: 10%
6. Output Rise Time: 100ms
Protection:
1. Output Over Power protection: YES. Recovery characteristics: lock, after re-starting recovery
2. Short circuit protection: YES. Recovery characteristics: lock, after re-starting recovery
3. Temperature protection: YES. Recovery characteristics: lock, after re-starting recovery
4. Overcurrent protection: YES. Recovery features: lock, after re-starting recovery
- Unit Type: piece
- Package Weight: 0.045kg (0.10lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
