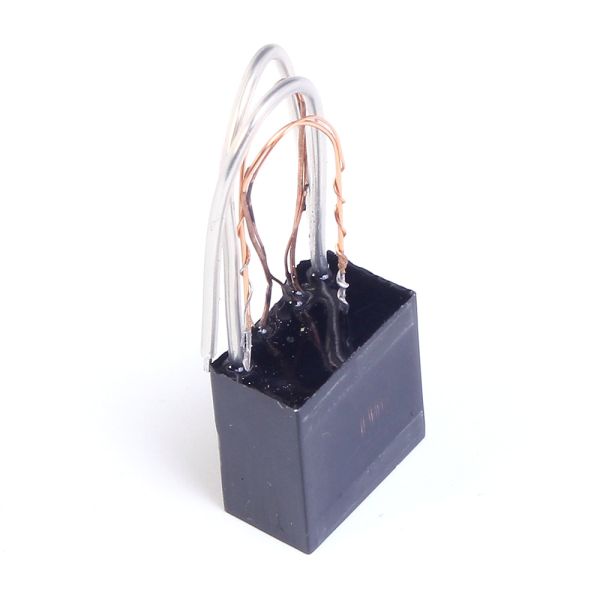

Monday Kids 15KV Arc Ignition High Voltage Inverter Step Up Boost Coil Transformer Pulse Ignition 1.4x1.4x0.7cm Lighter Accessories

$1.31
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Operating Temperature: none
  • Condition: New
  • Dissipation Power: none
  • Model Number: 15KV Inverter
  • is_customized: Yes
  • Type: Timer
  • Supply Voltage: adapts to 12V
  • Application: 15KV Inverter
  • Size: 1.4*1.4*0.7cm

Product Introduction:


Size:1.4*1.4*0.7cm


Notice:

this product adapts to 12V,but it needs adding base feedback resistor to 150 ohm-1.5K ohm;its resistance should be adjusted from high to low but cannot be too low,or it will burn triode or the product;it also cannot be too high,or it will influence output effect or make triode overheating in non-operation state (15kV is max output,and limit output shouldn't be over 15kV,that is 1.5cm arc,or it will destroy the product)

The transformer secondary high voltage output is not connected to high voltage rectifier diodes and capacitors, the output is high frequency high voltage, in the air when the breakdown is a light purple arc, no crackling, but the temperature is very high, you can easily ignite the paper plastic, Very fine wire (such as junior high school chemistry when the fine wire in the oxygen burning scene, but not so violent in the oxygen.)

If the output access to several high-voltage capacitors and high-voltage rectifier composed of voltage doubler circuit, you can produce DC high voltage, you can make anion generator.
High-voltage coil has been insulated and sealed, more convenient to use, do not worry about breakdown of conductive friends ~
Uses:
cigarette lighter ignition production, secondary science experiment, electronic equipment, anion generator production, science and other small production. This product is produced after the success of the work of a stable high-frequency arc, the temperature is extremely high, can easily ignite the combustible, so it was called a plasma lighter (* endnote).

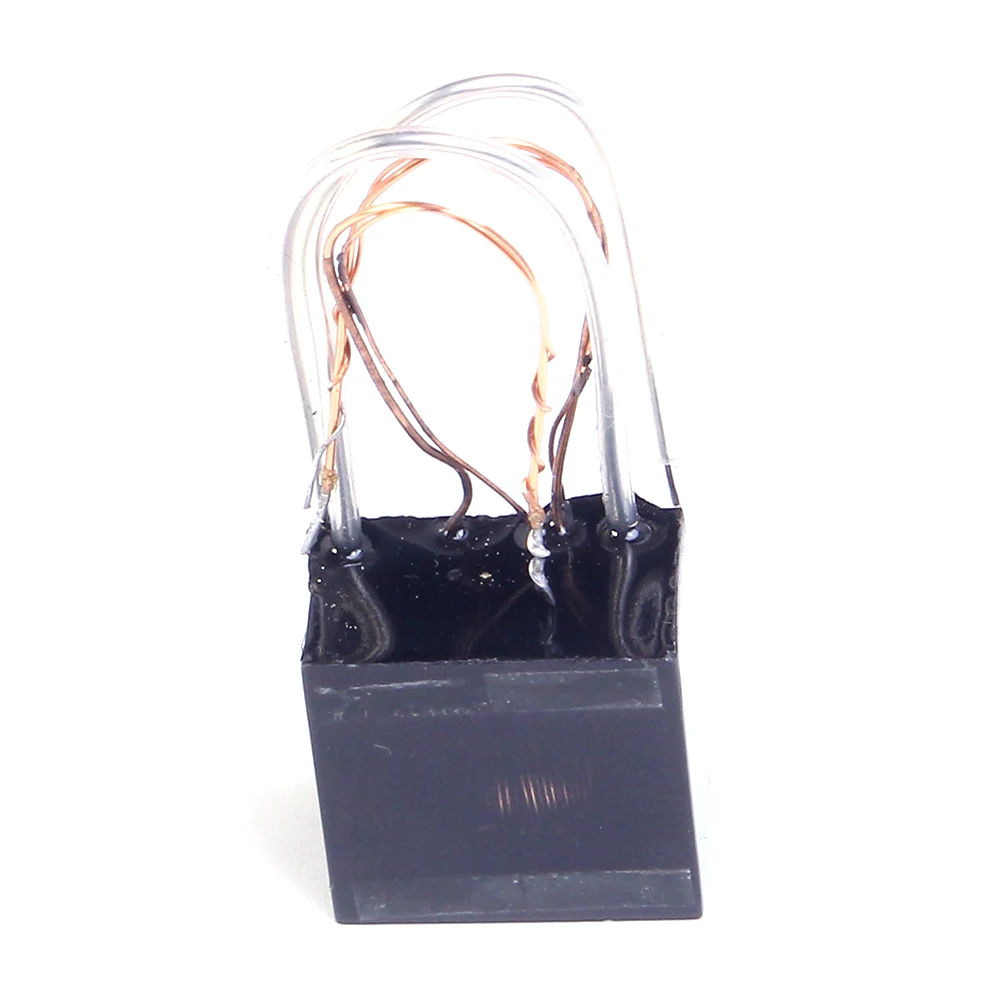

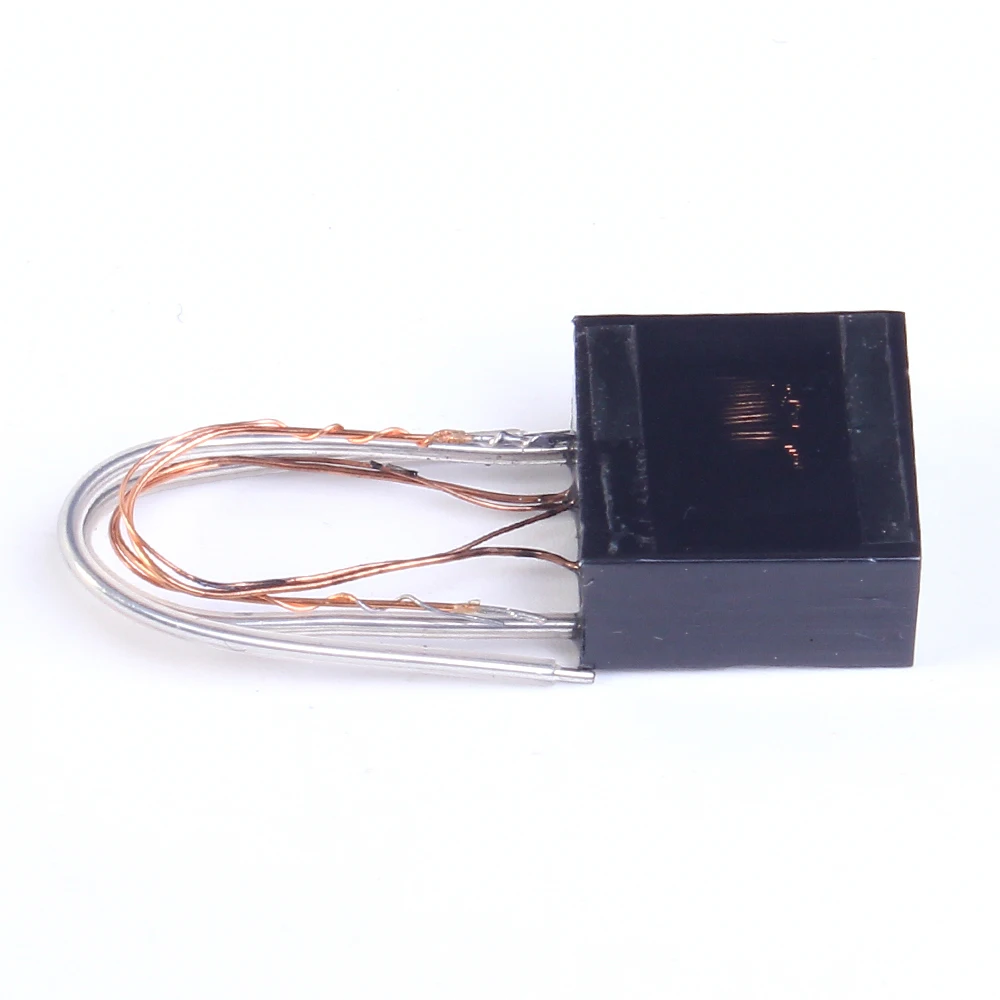

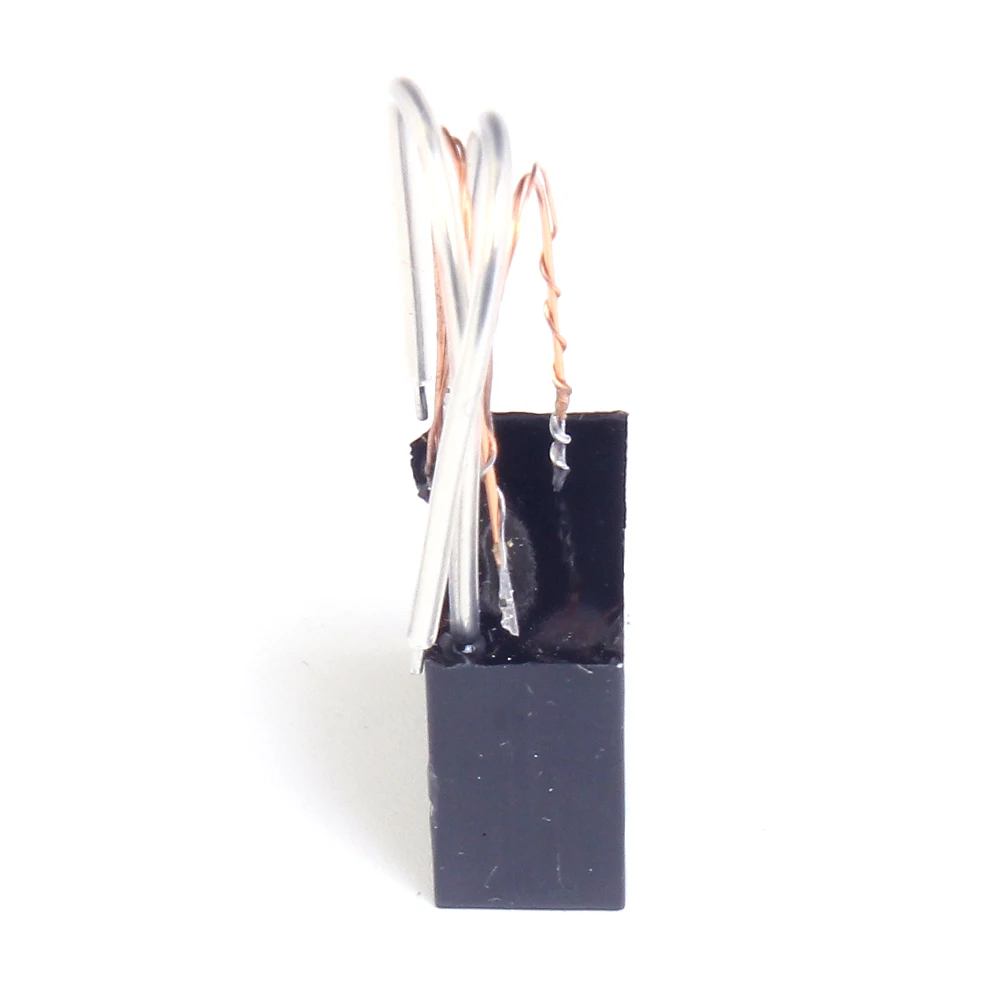

Transformer primary has two windings: one main winding (thick copper wire) One feedback winding (group of thin copper wire) Secondary output for high voltage (transparent single core wire)

  • Unit Type: piece
  • Package Weight: 0.016kg (0.04lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
