Monday Kids DIY Kits 15KV 15000V High Voltage Pressure Generator Igniter Kit Step-Up Boost Module Coil Transformer Driver Plate Suite 2A

Be the first to review this product

$2.18

Availability: In stock

SKU

EK282

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Operating Temperature: -35~85 Celsius
Supply Voltage: 3.7-4.2V
Condition: New
Type: Logic ICs
Model Number: High Voltage Generator Kit
Dissipation Power: None
is_customized: Yes
Application: Scientific Experiment
Current: <=2A
Output Voltage: <=+15KV
Output Current: <=+0.4A

Product Introduction:

1.Input Voltage: 3.7-4.2V

2.Current: <=2A

3.Output Voltage: <=+15KV

4.Output Current: <=+0.4A

5.High Pressure Ignition Distance: <=0.5cm

6.Size: 27*16*21mm

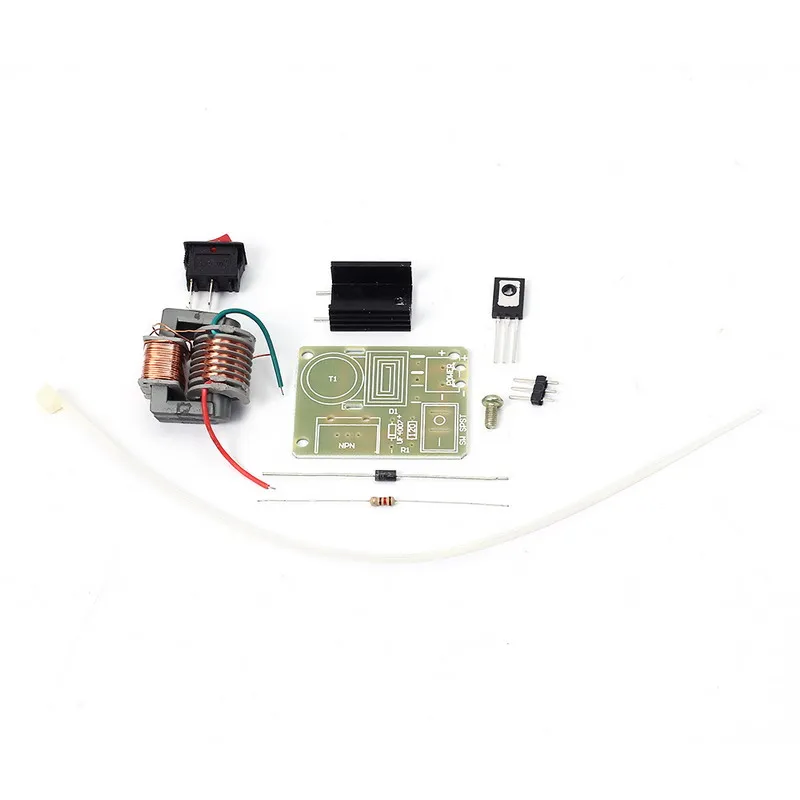

Packing List:

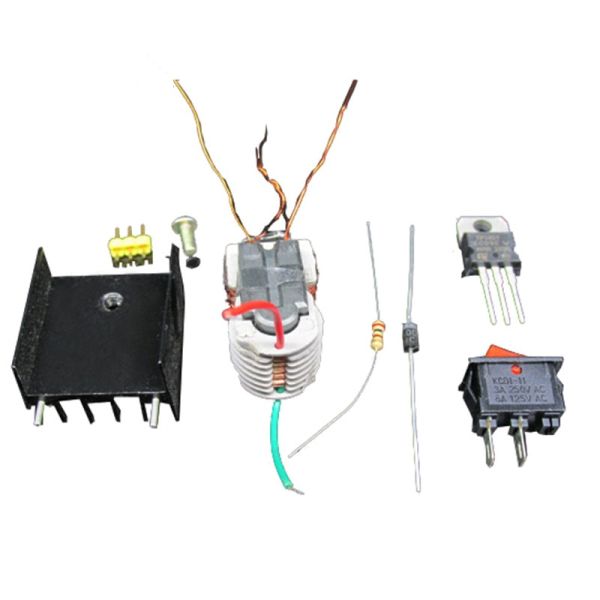

1.15VKE = 1 type boost converter x1pc

2.120 ohm resistor x1pc

3.UF4007 diode x1pc

4.N20 triode x1pc

5.Heat sink x1pc

6.M3*6 screw x1pc

7.Switch x1pc

8.3Pin

Notice:

1.After operating, the converter should be encapsulated via epoxy resin or insulated wax so that it can be used for a long period of time. When it operates without load, it will not get damaged

2.The input voltage is 3.7V, thst is 18650 battery voltage. If you want to increase the input voltage (increase to 12V), you need to increase the resistance value of feedback resistor, or the triode will be burnt. The feedback resistance increases to 150 ohm-1.5K ohm., its value should be adjusted from high to low

3.The converter 15KV is the highest output, so its limit output should be not more than 15KV, that is 1.5cm arc

4.Before soldering, please remove the paint on the enameled wire soldering part
