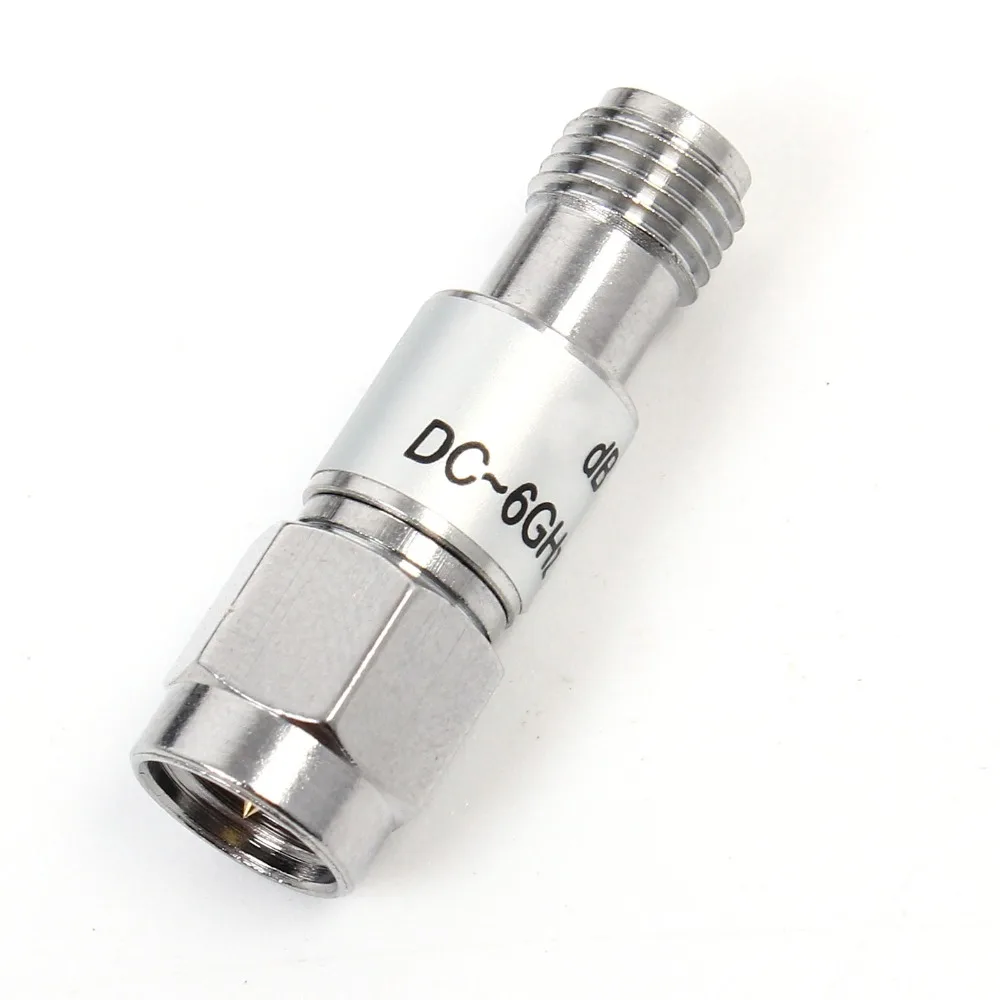

Monday Kids 2W 50ohm SMA Coaxial Fixed Attenuators DC-6 GHz 20dB SMA JK Frequency Fixed Connectors
$3.69
In stock
Email
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- Type: Logic ICs
- Operating Temperature: -20~115 Celsius
- is_customized: Yes
- Model Number: 20dB Fixed Attenuator
- Attenuation: 20dB
- Attenuation Accuracy: +/-0.5dB
- VSWR(MAX.): <1:1.3
- Power: 2W
- Nominal Impedance: 50ohm
- Connector Type: SMA-J ~ SMA-K

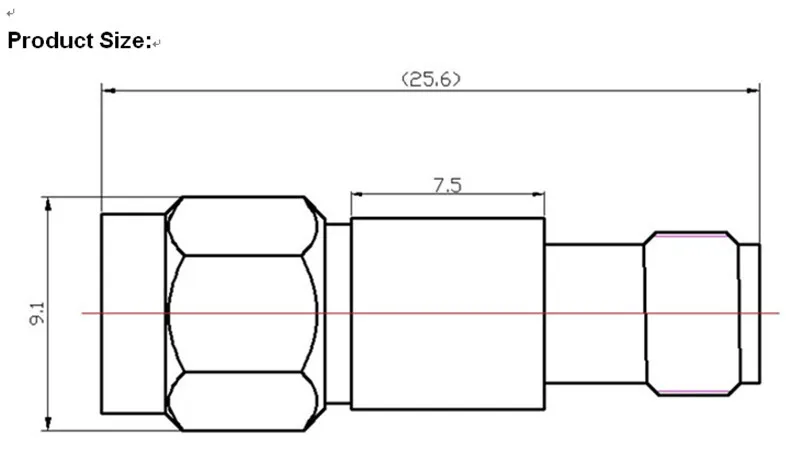

- Size: 7.5mm*26mm
Product Features :
|
Frequency Range |
DC-6G(Including 433M,900M,1800M,2.4G,5.8G）,DC-13G(Including 900M,1800M,2.4G,5.8G,12.4G) |
|
Attenuation |
1dB to 40dB |
|
Attenuation Accuracy |
+/-0.5dB，30dB+/-0.7dB，40dB+/-1dB |
|
VSWR(MAX.) |
<1:1.3 |
|
Power |
2W |
|
Nominal Impedance |
50ohm |
|
Connector Type |
SMA-J ~ SMA-K |
|
Size |
Φ7.5mm×26mm |
|
Operating Temperature |
-20~115℃ |
- Unit Type: piece
- Package Weight: 0.02kg (0.04lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
