Monday Kids 5pcs/lot Mini DC-DC 12-24V To 5V 3A Step Down Power Supply Module Voltage Buck Converter Adjustable 1.8V 2.5V 3.3V 5V 9V 12V
$3.34
Availability:
In stock
SKU
EK268
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Model Number: Stabilivolt Module
- Condition: New
- Operating Temperature: -40 Celsius-85 Celsius
- Type: Logic ICs
- Supply Voltage: DC 4.5-24V
- Dissipation Power: none
- is_customized: Yes
- Application: Stabilivolt Module
- Static Current: 0.85MA
- Soldering Hole Space: 2.54mm
NOTE : we have documents of most of products in our store If you need it , contact us :) | |
|
Product Introduction:
1.Input Voltage:DC 4.5-24V

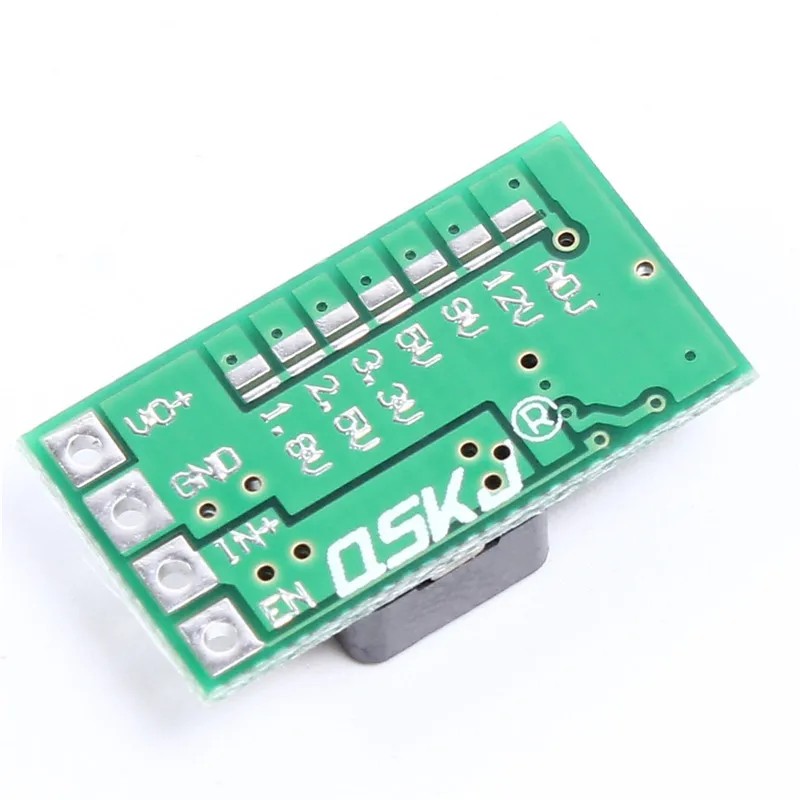

2.Output Voltage:integration adjustable and fixed output,back side can choose fiexd output voltage
3.Adjustable Range:0.8-17V,fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
4.Output Current:3A (max),actual testing input 12V output 1.5A

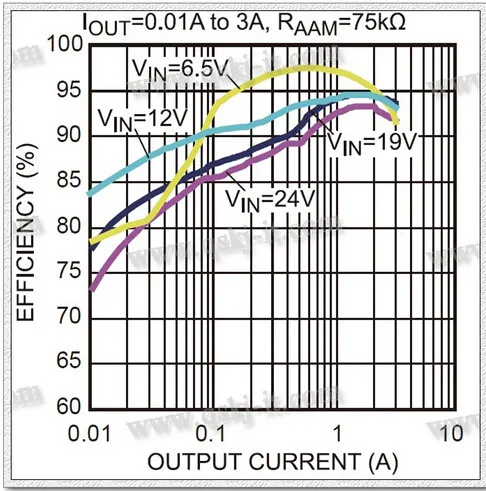

5.Transform Efficiency:97.5%(max) (6.5 to 5V 0.7A)
6.Switch Frequency:500KHz
7.Output Ripple Wave:20mV (12V to 5V 3A) 20m band width
8.Operating Voltage:-40 Celsius-85 Celsius
9.Output Overvoltage Protection:no
10.Static Current:0.85MA
11.Load Adjust Rate:±1%
12.Voltage Adjust Rate:±0.5%
13.Dynamic Response Speed:5% 200uS
14.Output Short Circuit Protection:yes
15.Input Transposition Protection:no
16.Enable Control:yes
17.Connecting Type:soldering
18.Input Way:soldering
19.Output Way:soldering/pin
20.Soldering Hole Space:2.54mm
- Unit Type: lot (5 pieces/lot)
- Package Weight: 0.021kg (0.05lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
