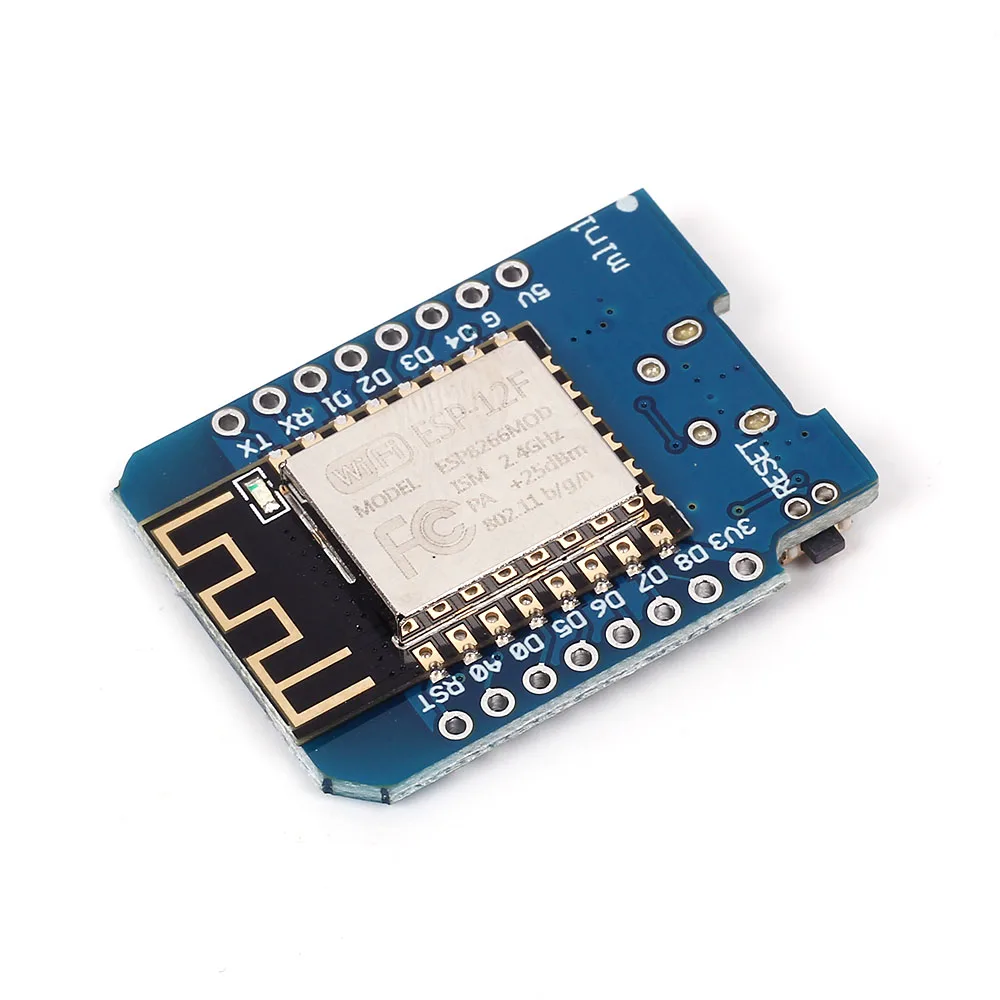

Monday Kids ESP8266 ESP-12 ESP-12F CH340G CH340 V2 USB WeMos Mini D1 4M WIFI Development Board D1 Mini NodeMCU Lua IOT Board 3.3V With Pins
$1.93
Availability:
In stock
SKU
EK224
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Application: Computer
- Condition: New
- Type: Logic ICs
- Supply Voltage: 3.3V
- Model Number: D1 mini NodeMCU
- Operating Temperature: -30~85 celsius
- is_customized: Yes
- Microcontroller: ESP-8266
- Operating Voltage: 3.3V
- Digital I/O Pins: 11
- Analog Input Pins: 1(Max input: 3.2V)
- Length: 34.6mm
- Width: 25.7mm
- Feature : Open-source,Interactive,Programmable,WI-FI enabled
NOTE : we have documents of most of products in our store If you need it , contact us :) | |
|
1.Description:
An open-source firmware and development kit that helps you to prototype your IOT product within a few Lua script lines.
D1 mini NodeMCU is an eLua based firmware for the ESP8266 WiFi SOC from Espressif. The firmware is based on the Espressif NON-OS SDK and uses a file system based on spiffs. The code repository consists of 98.1% C-code that glues the thin Lua veneer to the SDK.
The D1 mini NodeMCU firmware is a companion project to the popular NodeMCU dev kits, ready-made open source development boards with ESP8266 chips
2.Features:
1>.Open-source
2>.Interactive
3>.Programmable
4>.Low cost
5>.Simple
6>.Smart
7>.WI-FI enabled
8>.USB-TTL included
9>.11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0)
10>.1 analog input(3.2V max input)
11>.All of the IO pins run at 3.3V.

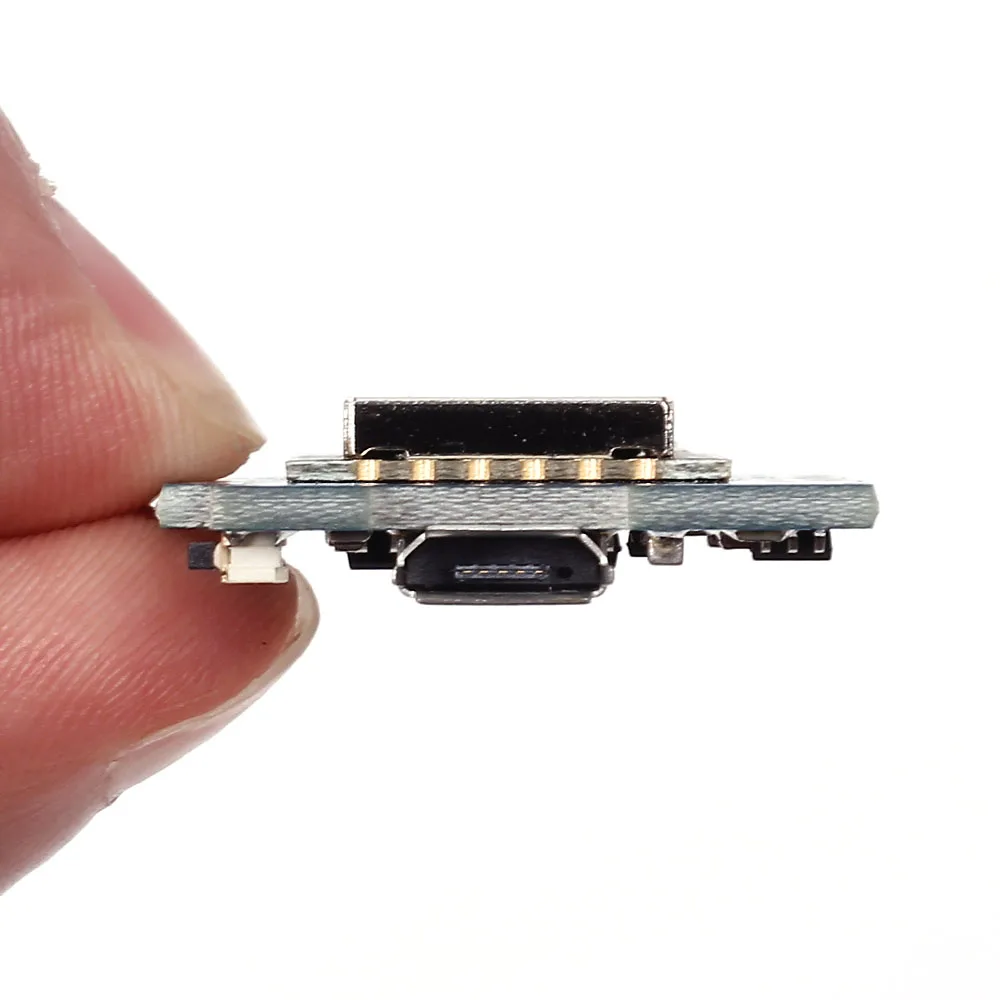

12>.A Micro USB connection
13>.Compatible for Arduino
14>.Compatible with nodemcu
15>.Compatible with MicroPython
3.Parameters :
1>.Microcontroller:ESP-8266
2>.Operating Voltage:3.3V
3>.Digital I/O Pins:11
4>.Analog Input Pins:1(Max input: 3.2V)
5>.Clock Speed:80MHz/160MHz
6>.Flash:4M bytes
7>.Length:34.6mm
8>.Width:25.7mm

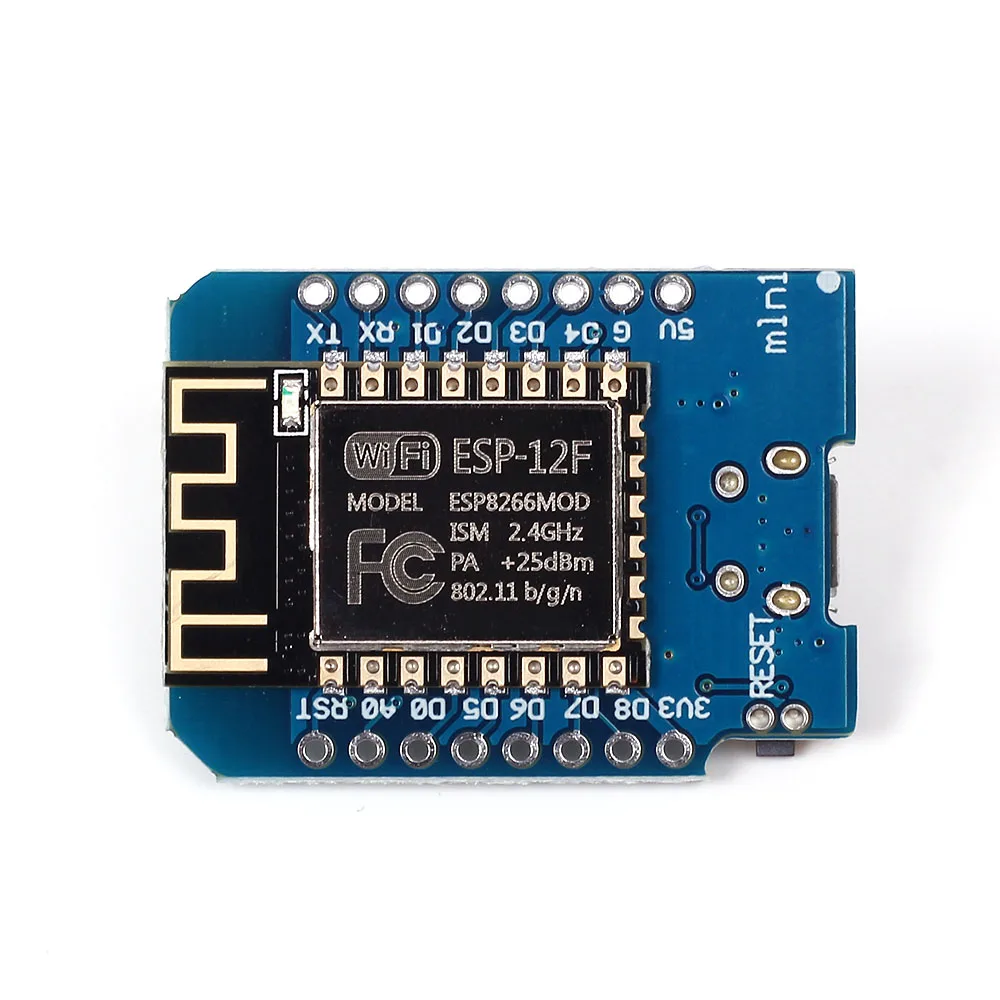

4.Pin definition:
Pin | Function | ESP-8266 Pin |
TX | TXD | TXD |
RX | RXD | RXD |
A0 | Analog input, max 3.3V input | A0 |
D0 | IO | GPIO16 |
D1 | IO, SCL | GPIO5 |
D2 | IO, SDA | GPIO4 |
D3 | IO, 10k Pull-up | GPIO0 |
D4 | IO, 10k Pull-up, BUILTIN_LED | GPIO2 |
D5 | IO, SCK | GPIO14 |
D6 | IO, MMonday KidsO | GPIO12 |
D7 | IO, MOSI | GPIO13 |
D8 | IO, 10k Pull-down, SS | GPIO15 |
G | Ground | GND |
5V | 5V | - |
3V3 | 3.3V | 3.3V |
RST | Reset | RST |

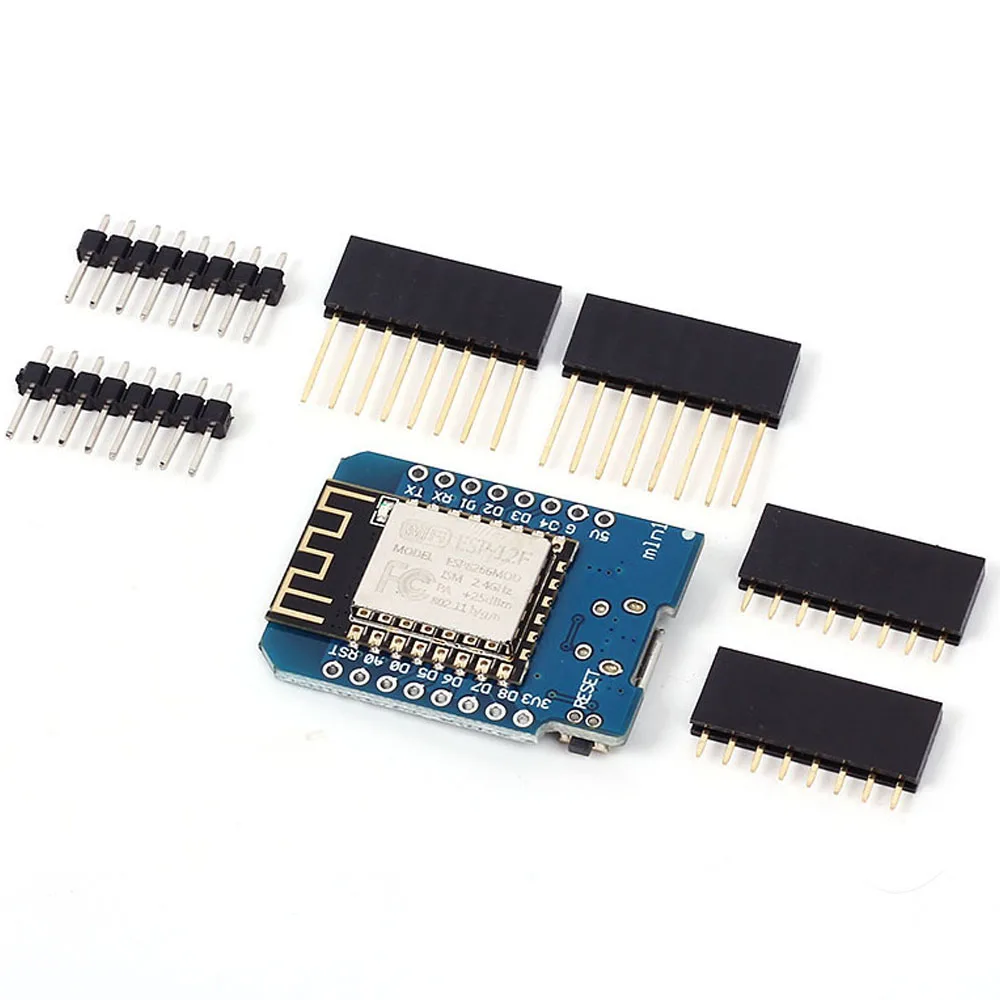

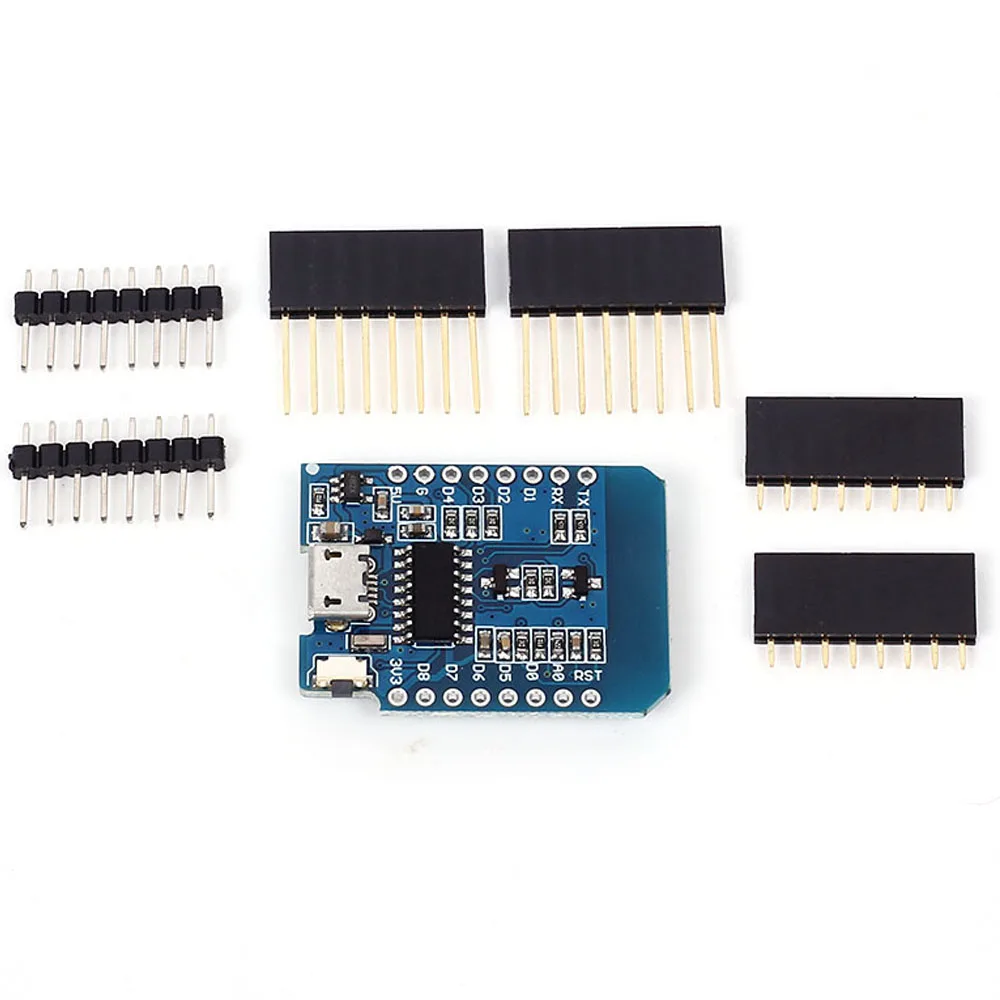

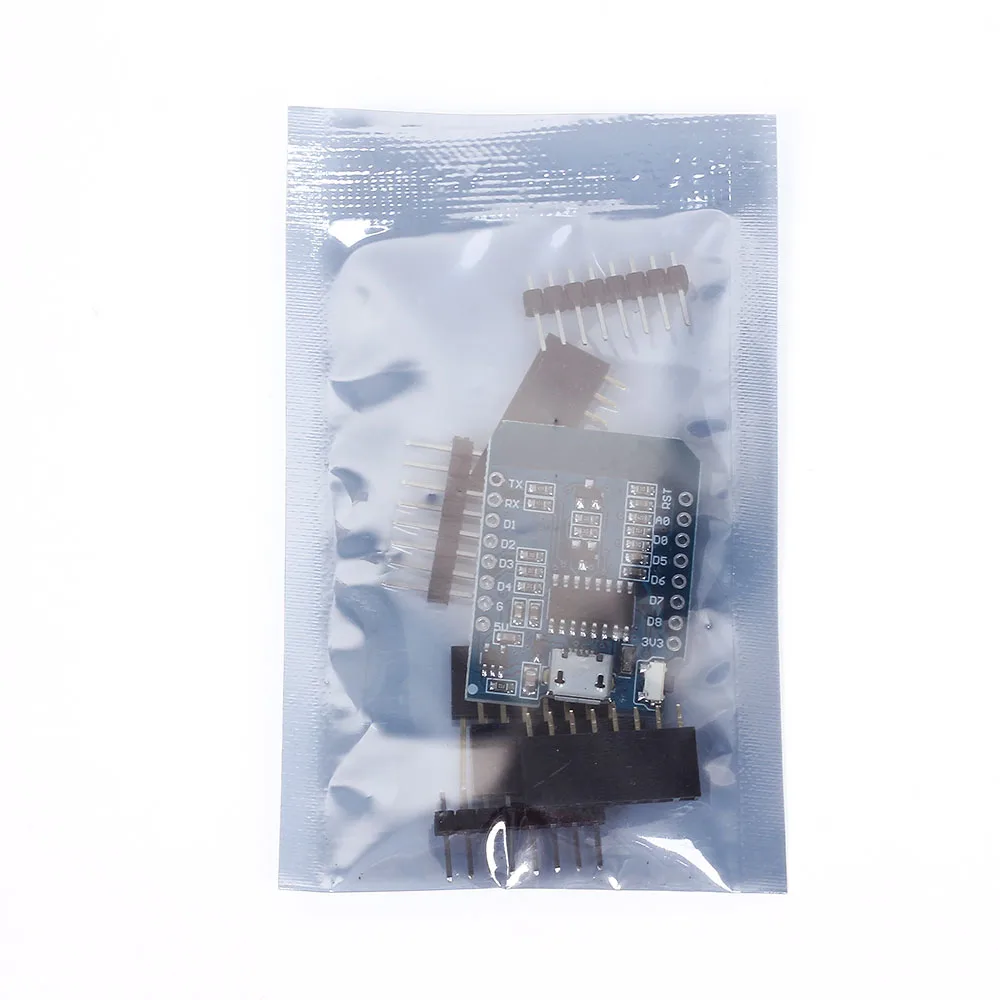

5.Package:
1>.1pc D1 mini module
2>.2pcs 1*7P Long female Pin
3>.2pcs 1*7P female Pin
4>.2pcs 1*7P male Pin
- Unit Type: piece
- Package Weight: 0.03kg (0.07lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
