Monday Kids 2pcs DIY Kit SMD Rotating Flashing LED Components Eletronicos Soldering Board Skill Electronic DIY Kit Circuit Training Suite

$3.64
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Supply Voltage: 3~12V
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • is_customized: Yes
  • Model Number: DIY Kit SMD LED
  • Operating Temperature: -30~85 celsius
  • Application: DIY Kit SMD LED
  • Name: diy electronic

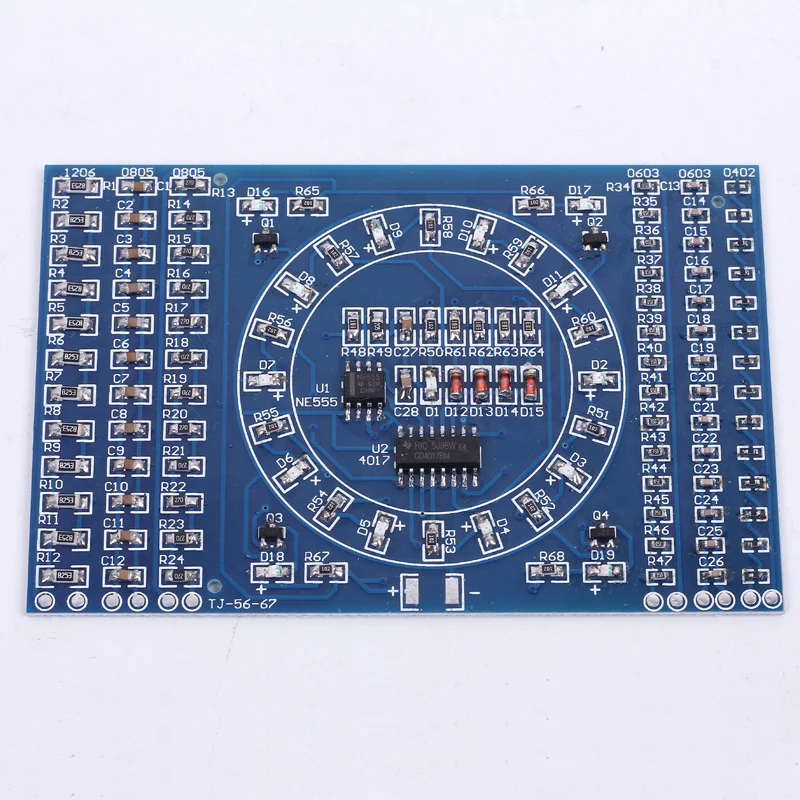

1, the board size: 90 * 60MM
2, the board thickness: 1.6mm
3, board material: international standard sheet, all tin pad, high strength fire drop material, can be repeated disassembly.
4, PCB board design is reasonable, are commonly used in the SMD components.
5, the left and right of the three components are used to practice welding, each column with a test point.

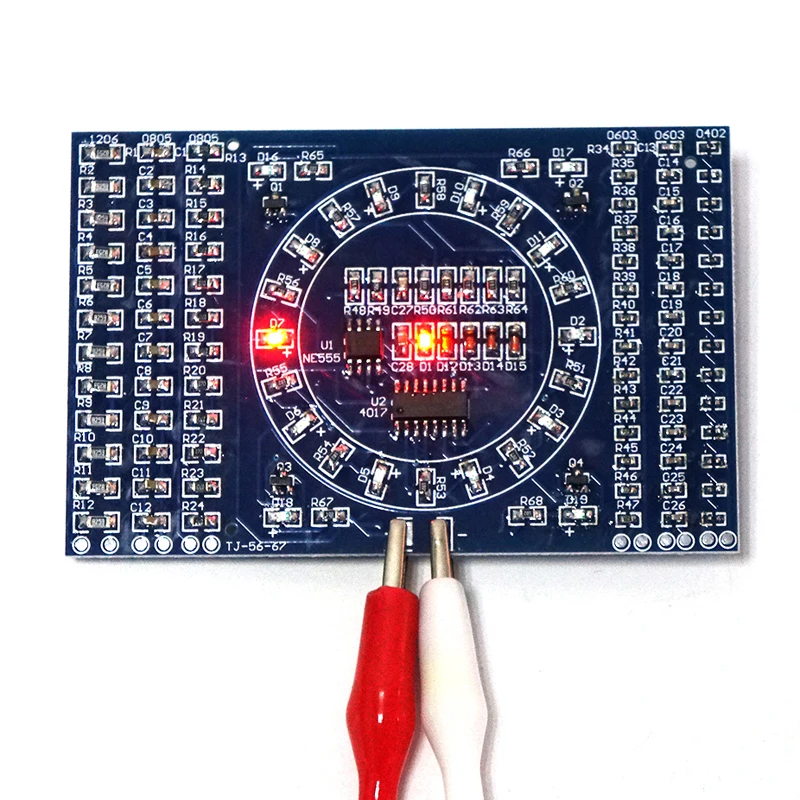

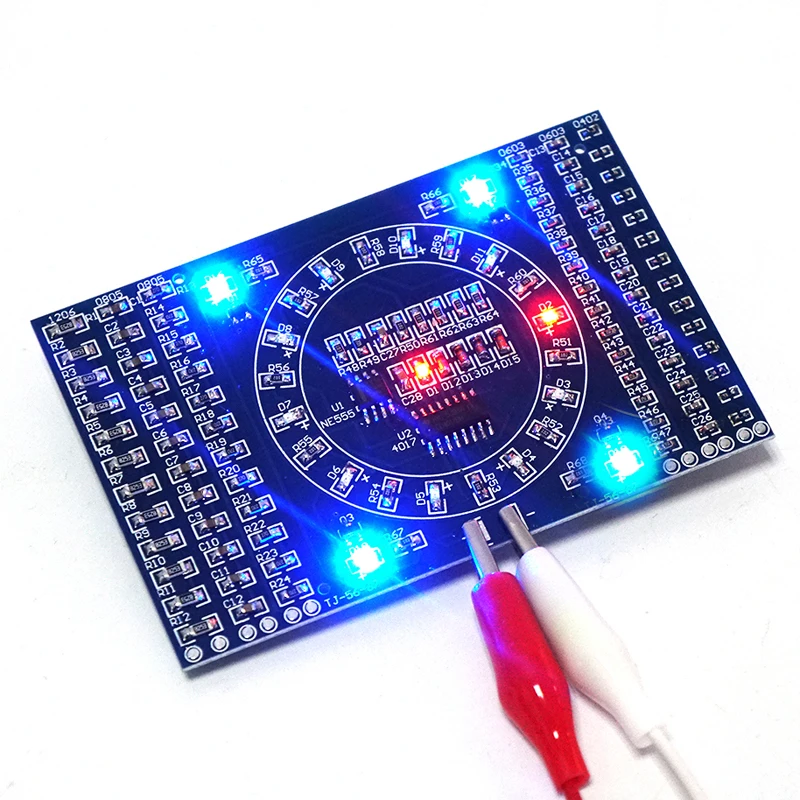

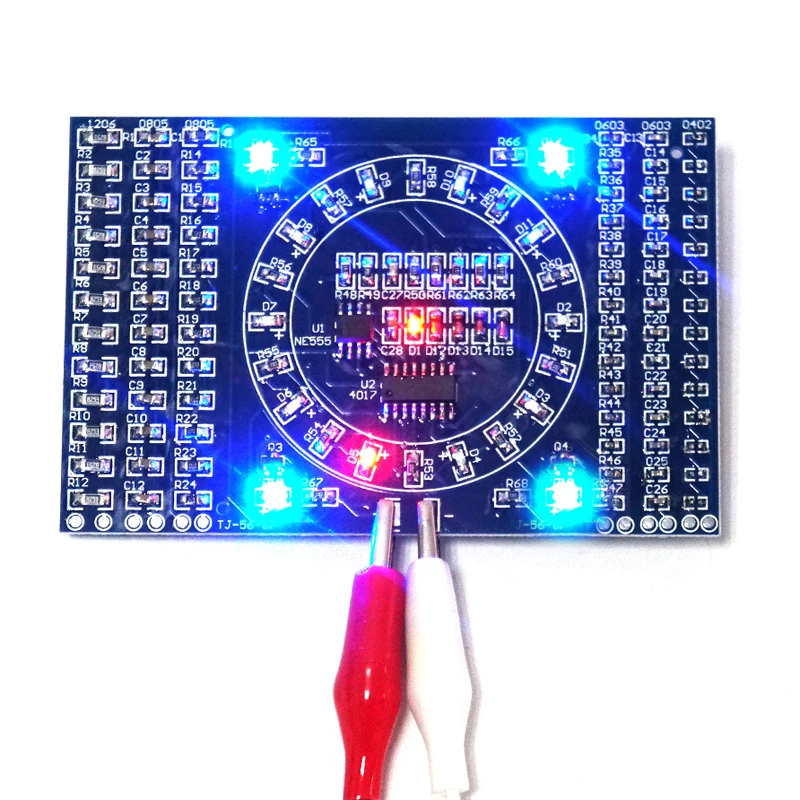

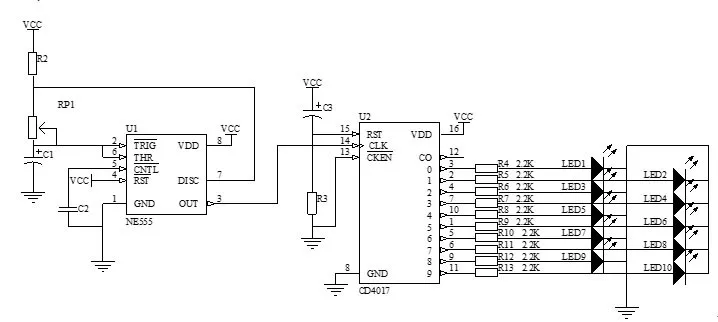

6, the middle of the circular circuit for the water lamp circuit, by the CD4017, NE555, light-emitting diodes, welding power can work.
7, the circuit is also used on the back, a ruler to facilitate the measurement of components. There are examples of PCB conductors to facilitate the use of PCB design.
8, the circuit voltage 3 ~ 12V

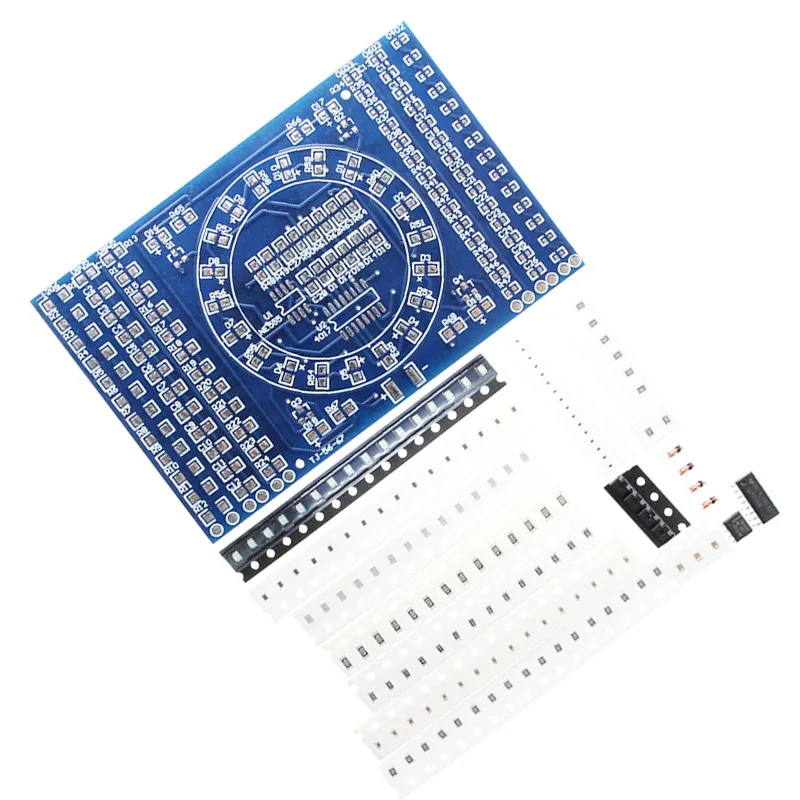

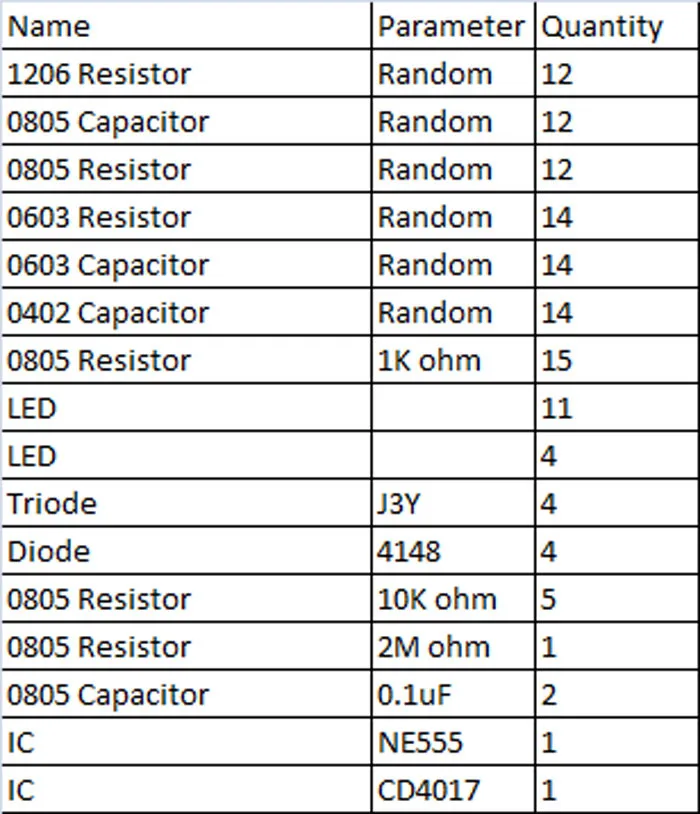

8, this kit contains all the elements of the following photos.

Number of components: 125
Number of solder joints: 274
Use solder length: 35CM (diameter: 0.6mm)
Sample soldering time: 35 minutes

  • Unit Type: lot (2 pieces/lot)
  • Package Weight: 0.07kg (0.15lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
