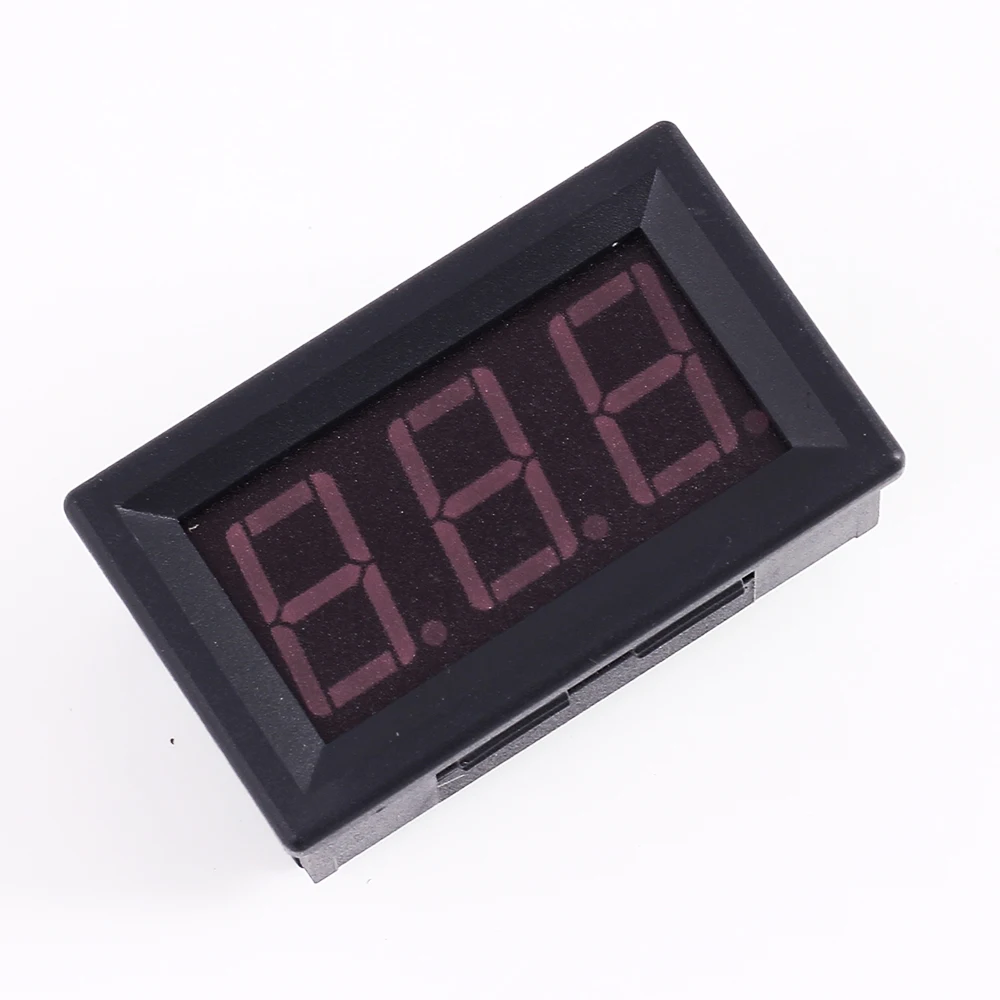

Monday Kids DC 4.0V-28V Thermometer High Temperature Meter K-Type M6 Thermocouple Tester Single Digital LED Display

$3.79
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Model Number: None
  • Operating Temperature: -60~999 Celsius
  • Condition: New
  • Type: Logic ICs
  • Supply Voltage: DC 4.0V-28V
  • Dissipation Power: none
  • is_customized: Yes
  • Dimensions: 48*29*26mm
  • Weight: 28.86g
  • Material: Semiconductor+RF-4+Plastic
  • Color: Black
  • Work Voltage: DC 4.0V-28V
  • Feature 1: LED display;Use industrial grade K-Type sensor;
  • Feature 2: Measuring temperature range is wide;High precision detection

1.Description:

Sensing the ambient temperature with a K-type thermocouple and displaying it on the display.

2.Features:

1>.Use industrial grade K-Type sensor;

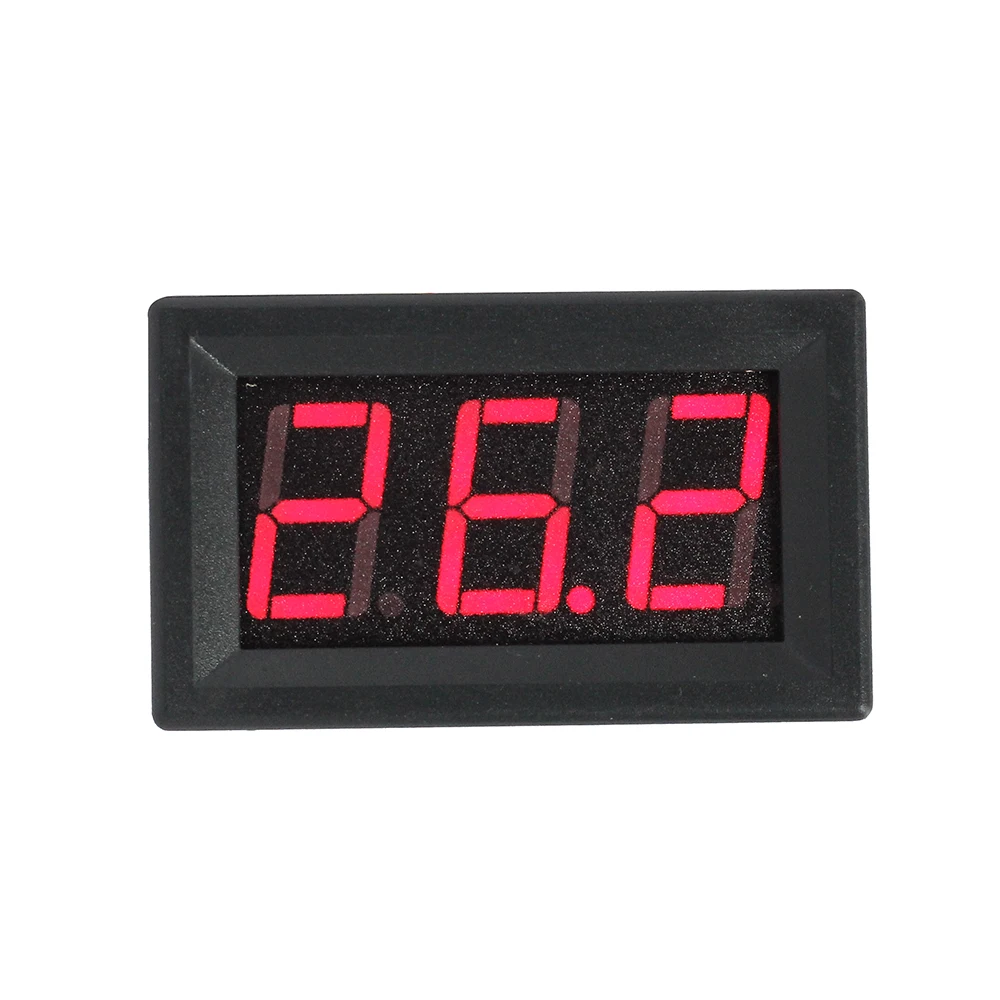

2>.LED display;

3>.Measuring temperature range is wide;

4>.With temperature compensation function.Effectively avoids the influence of ambient temperature on the sensor, and the temperature measurement is more accurate.

5>.High precision detection;

3.Parameters:

1>.Product name: K-Type High Temperature Thermometer;

2>.Work voltage:DC 4.0V-28V;

3>.Temperature type:Celsius;

4>.Measure range:-60℃~999℃;

5>.LED Display:Red 3Bit;

6>.Length of sensor:0.5meter;

7>.Measurement accuracy:1℃(It is 0.1℃ when temperature is -9.9~9.9℃);

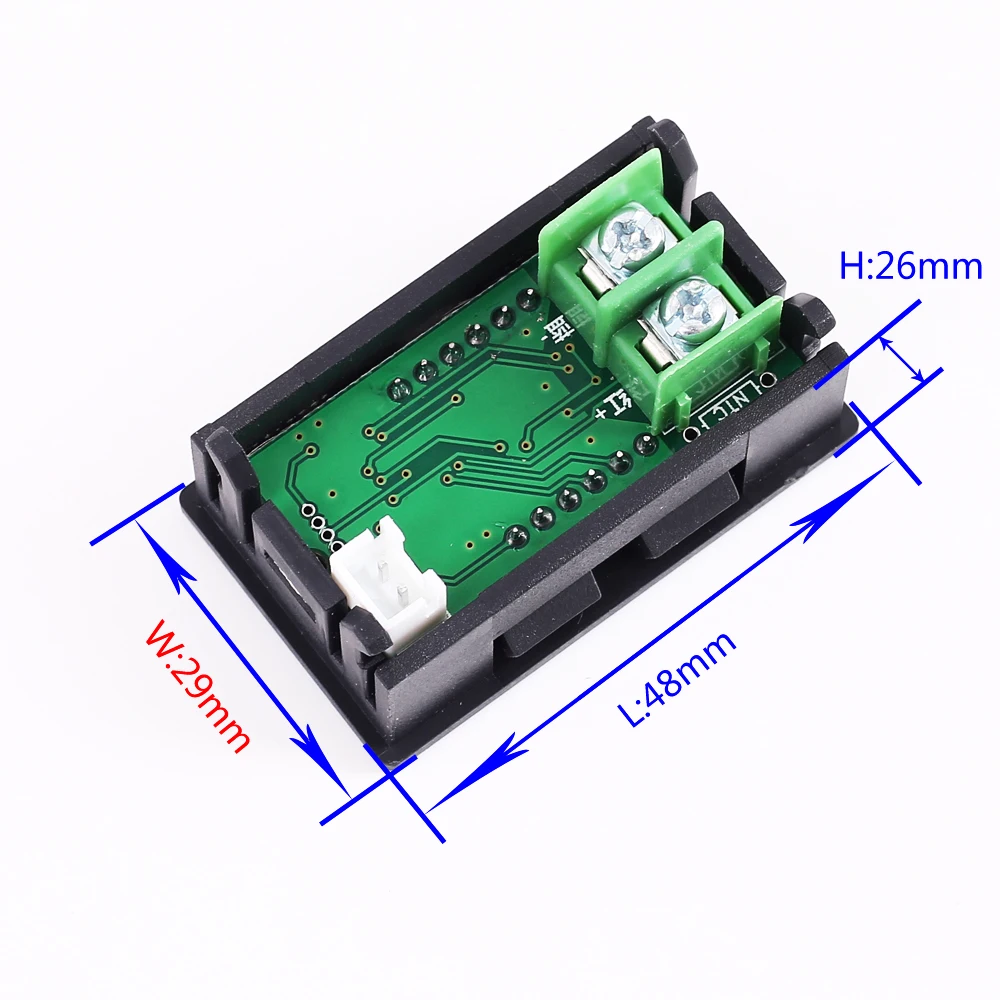

8>.Size for display:48*29*26mm;

4.Use steps:

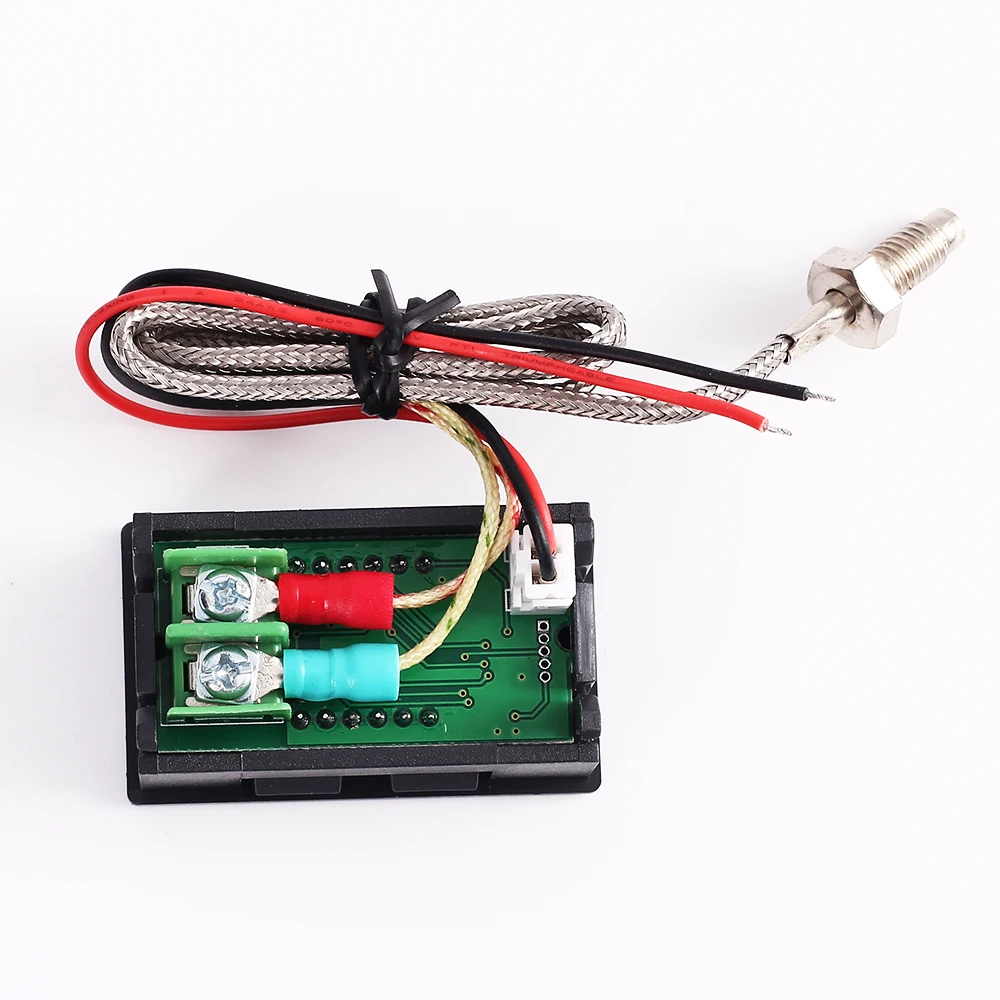

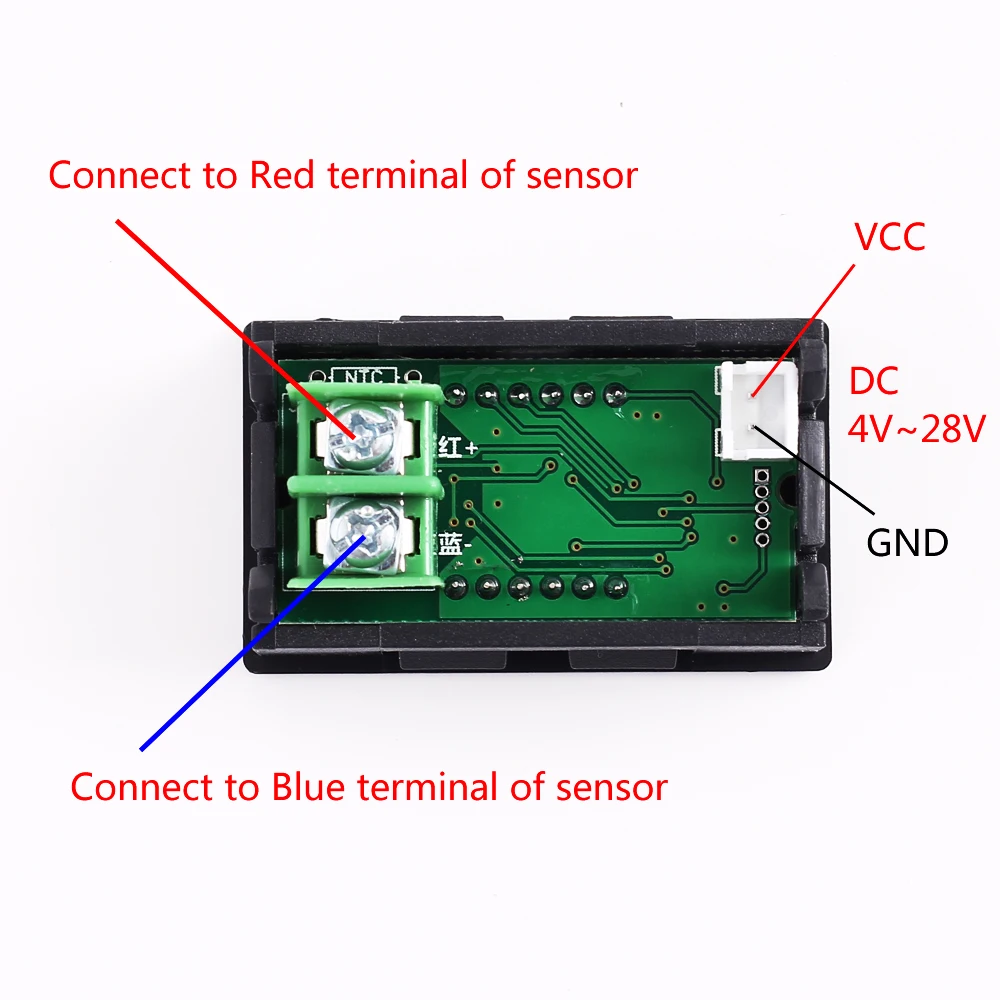

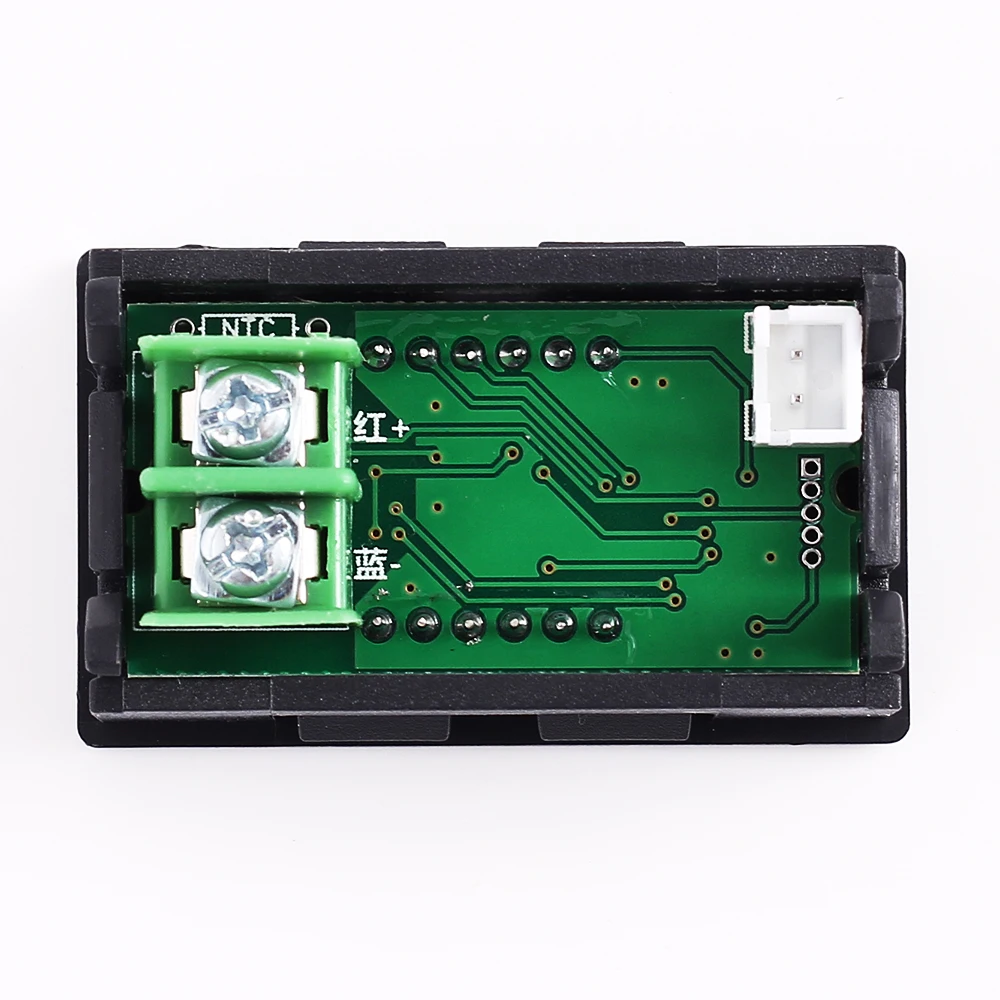

1>.Connect sensor to display screen in right terminal;

2>.Place the sensor in the correct position;

3>.Connect to power supply white socket.Pay attention to the connect direction;

5.Application:

1>.Industrial temperature measurement;

2>.Measurement of temperature in the life;

3>.It can be embedded in an instrument to measure certain specific temperatures;

4>.Applied to the measurement of boilers, air, liquids, etc;

5>.Production workshop;

6>.Vegetable cultivation.

6.Please Note:

1>.Sensor wire should not be connected incorrectly.

2>.Power wire attention direction

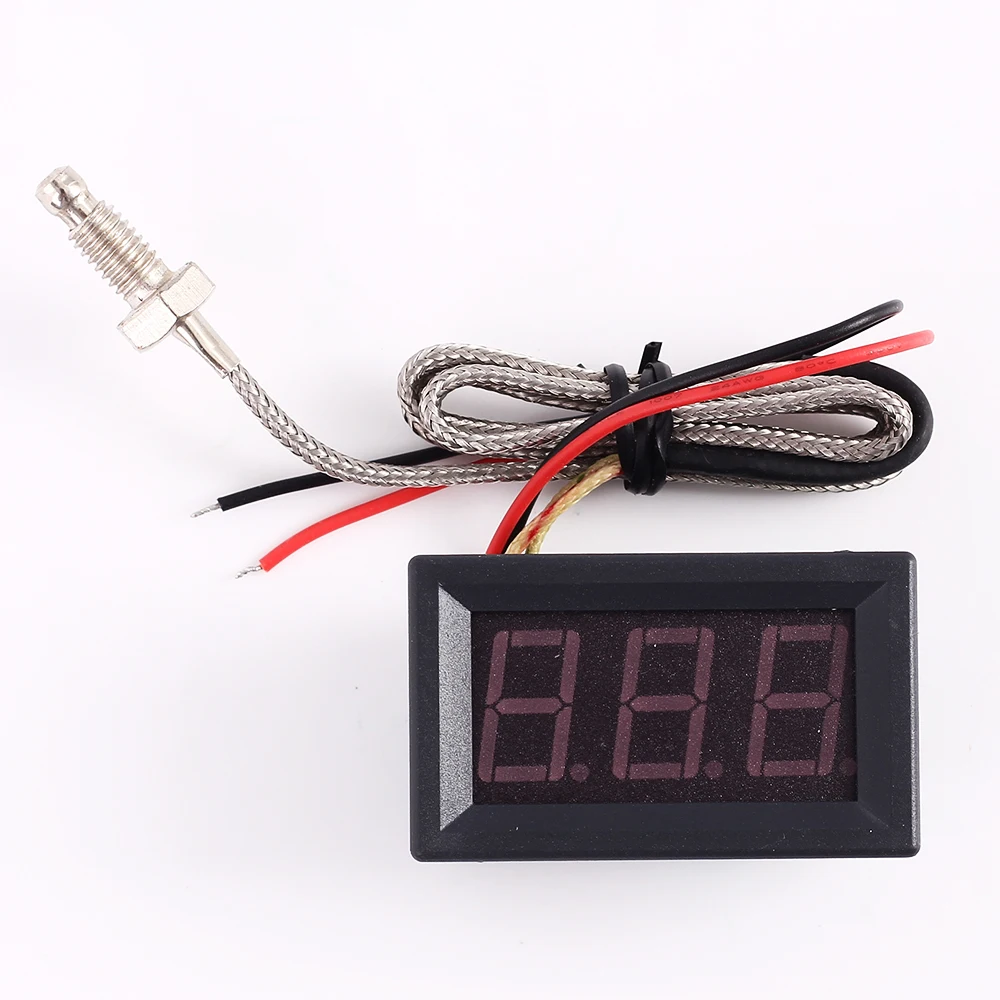

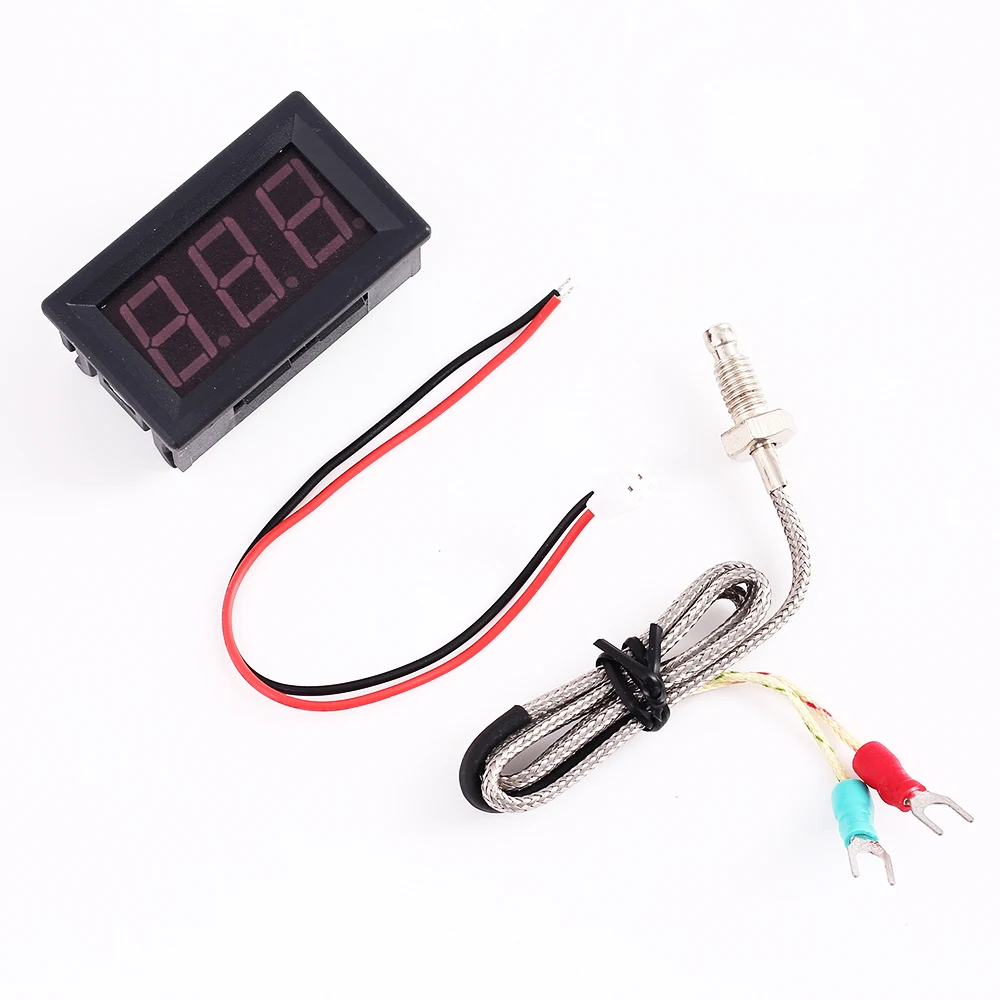

7.Package:

1>.1pcs K-Type High Temperature Thermometer;

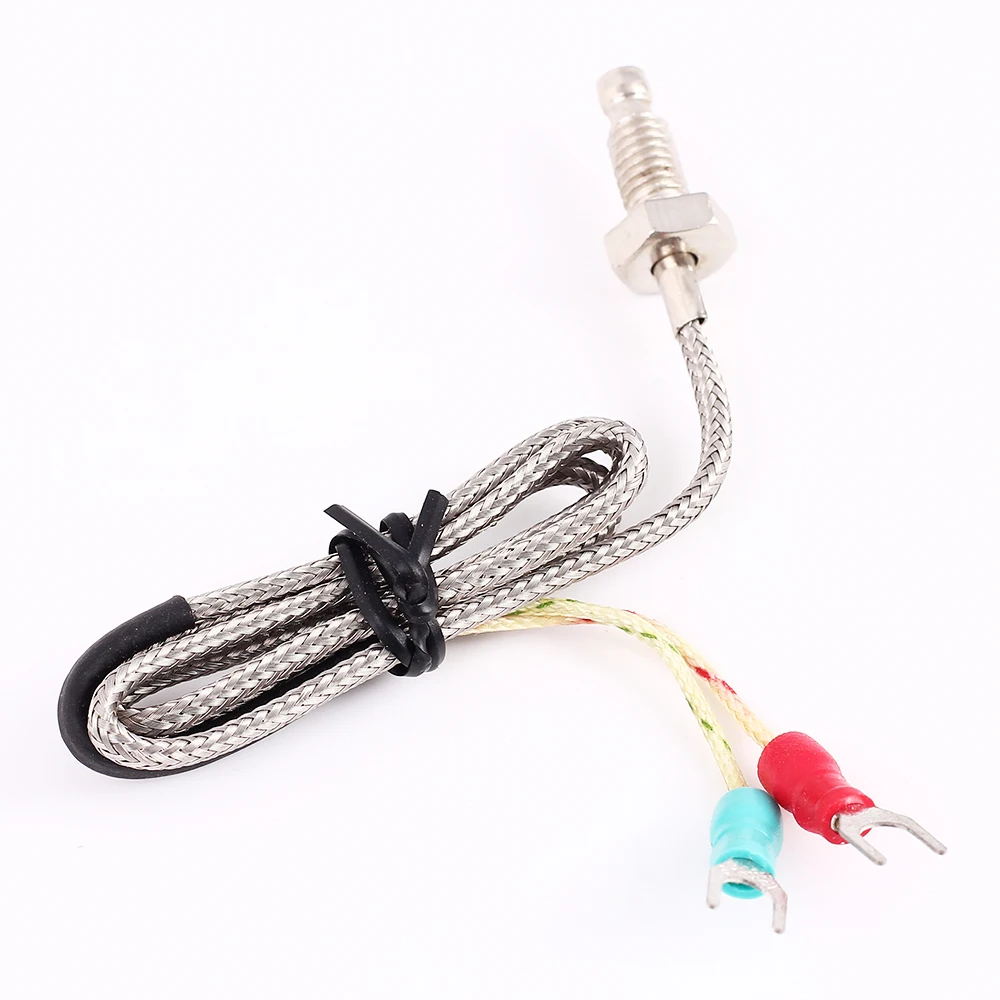

2>.1pcs K-Type Thermocouple ;

3>.1pcs 15cm 2P XH2.54-2P Cable;

  • Unit Type: piece
  • Package Weight: 0.015kg (0.03lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
