Monday Kids 5Pcs/lot Mobile Phone Signal Flash LED Light Kit Radiation Power Supply DIY Kit GSM Mobile NO Need Power ICSK032A

$6.48
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Supply Voltage: none
  • Model Number: Signal Flash LED Light Kit
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • is_customized: Yes
  • Operating Temperature: -20 ~ 60 Celsius
  • Application: Electronic Circuit
  • Range of application: Electronic DIY. Cell phone radiation detection
  • Working voltage: without power supply
  • PCB size: 23 * 18 mm

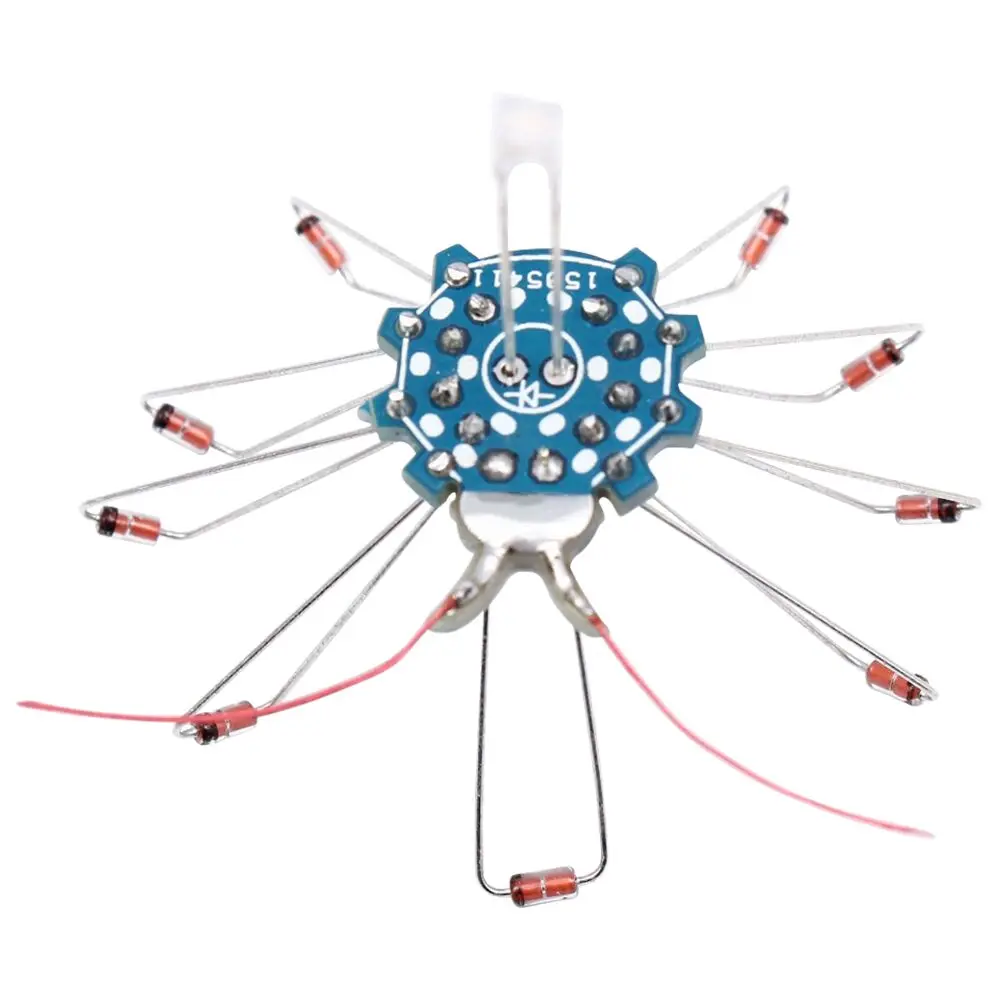

DIY Kit Mobile Phone Signal Flash Light Radiation Power Kit GSM Mobiale Phone

1. Features


1). Moistureproof prevent seepage material, durable.
2). The appearance of new, more suitable for your DIY
3). Without power, flashing light


2. Range of application


1). Electronic DIY.
2). Cell phone radiation detection


3. Specification


Working voltage: without power supply
PCB size: 23 * 18 mm;
Scope of application: mobile GSM mobile phone signal, for PHS, fixed and telecom CDMA mobile phone is no effect;
Applicable time: call or conversation.

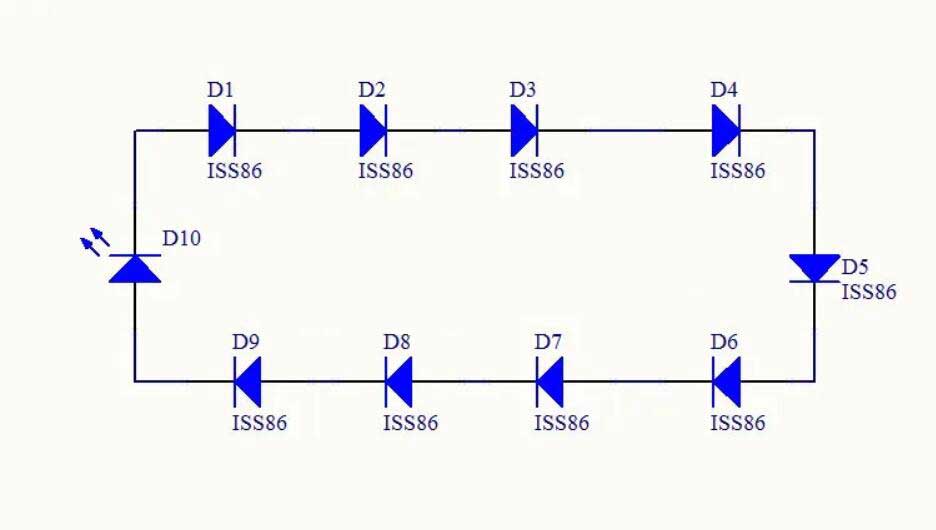

4. Schematic diagram

5. Method of use


Place the DIY module on the button below, as shown. When there is a call, LED is flashing.

6. The machine drawing

7. Matters needing attention

1). Welding matters needing attention ( ) Two bonding pad said a red label in components of the two solder joints, it says on the PCB components are negative).

2). Monday KidsS86 diode pin not to cut

3). "The beetles (PCB)" pin need welding 2 section 5 cm antenna

4). Place the location of the best in the cell phone button, the induction of radiation, the strongest effect is best

5). " beetles " only for GSM mobile phone have induction signal, other signals (CDMA …) is of no effect
