Monday Kids DC 3.6-5V RGBW Bluetooth LED 4.0 BLE PWM Lamps Light Module Lighting Source White Red Blue Green Phone Control APP IOS Android

$8.58
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • Operating Temperature: -30~80 celsius
  • is_customized: Yes
  • Model Number: LED Lamp Module
  • Supply Voltage: 3.6-5V
  • Application: LED Lamp Module
  • Current Consumption: 15mA
  • Radio Frequency: 2.4GHz
  • Size: 50*50mm

Product Introduction:


1.Bluetooth Version:Bluetooth V4.0 BLE
2.Power Supply Voltage:3.6-5V
3.Current Consumption:15mA;sleep mode 2uA
4.Operating Temperature:-30~80 celsius
5.Radio Frequency:2.4GHz
6.Support 250kbps,500kbps,1Mbps data transmission rate
7.Size:50*50mm
8.PWM Operating Frequency:20KHz
9.Applications:for driving PWM LED lamp

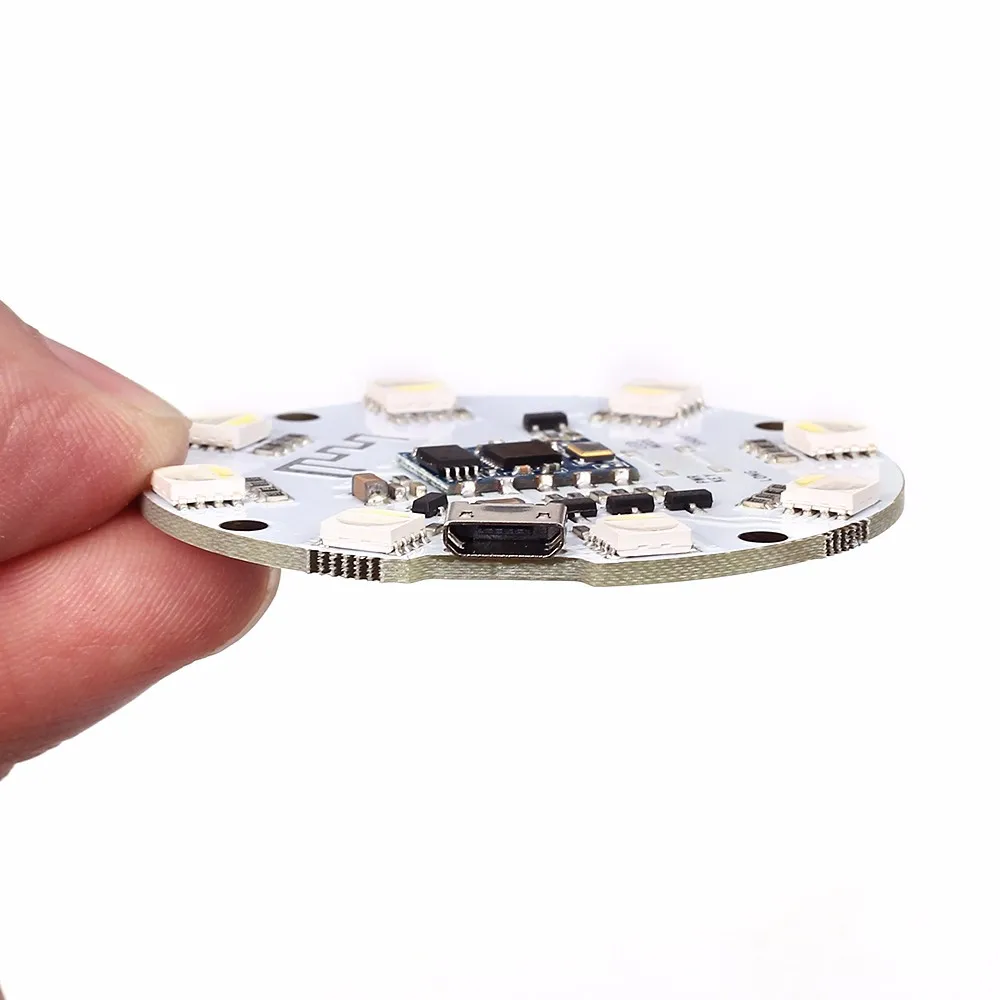

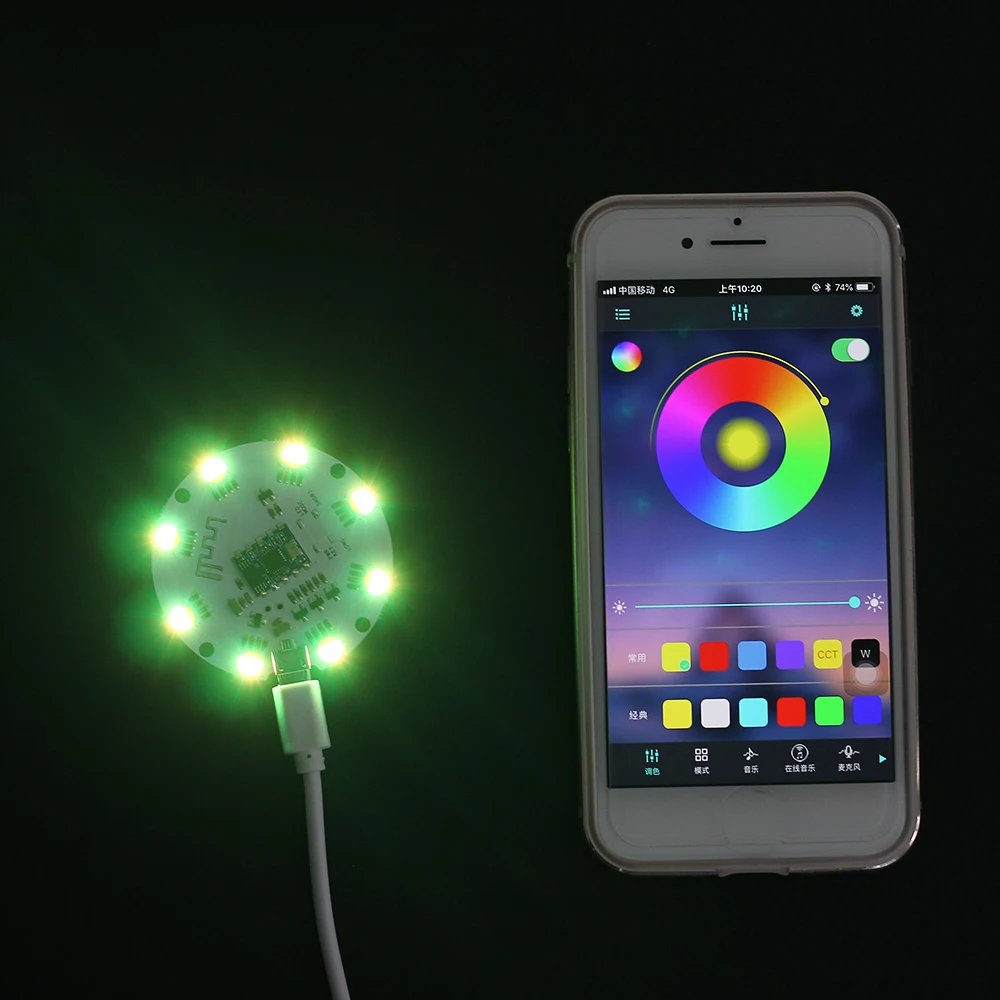

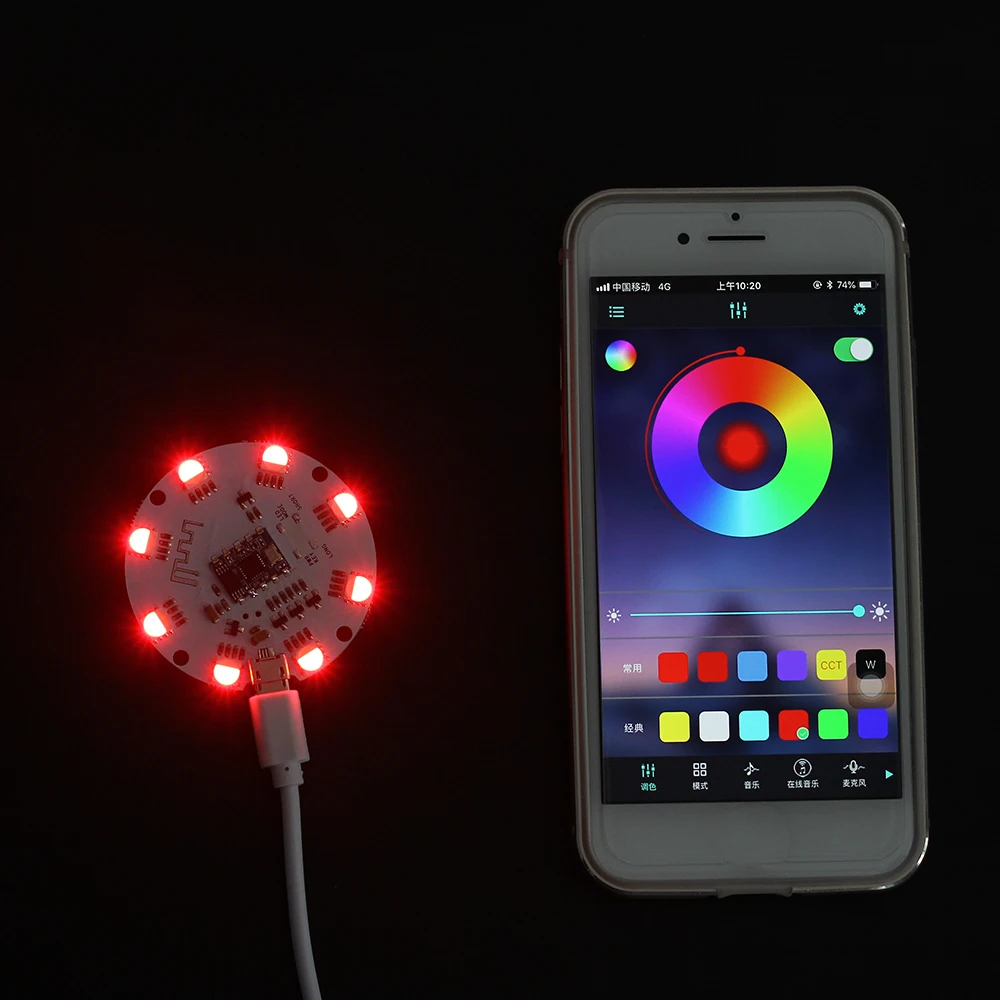

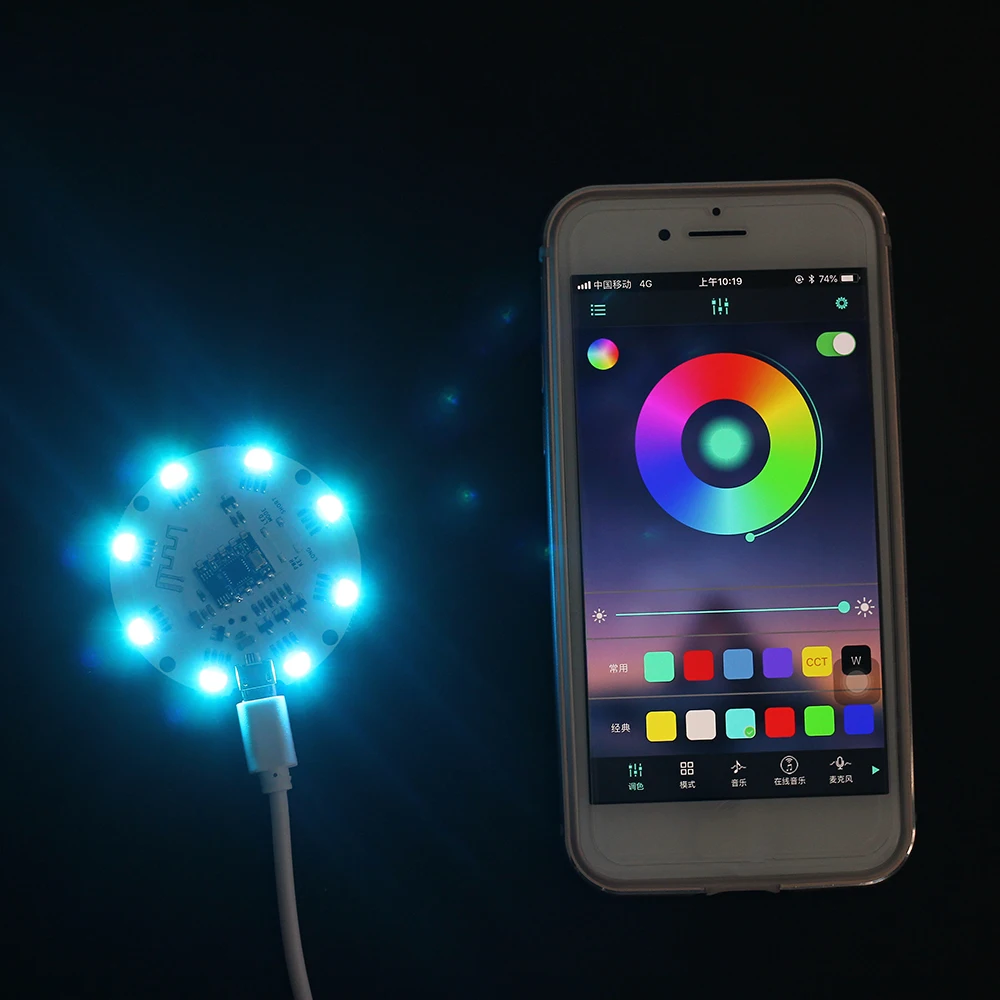

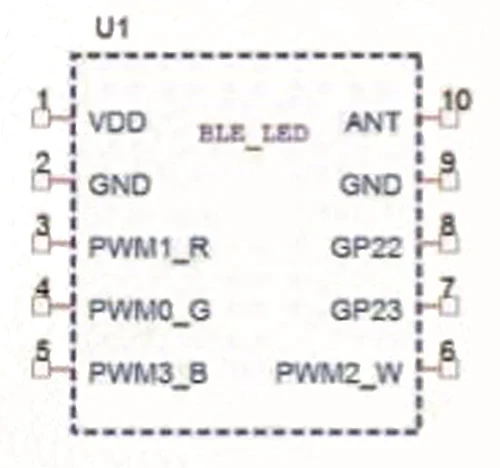

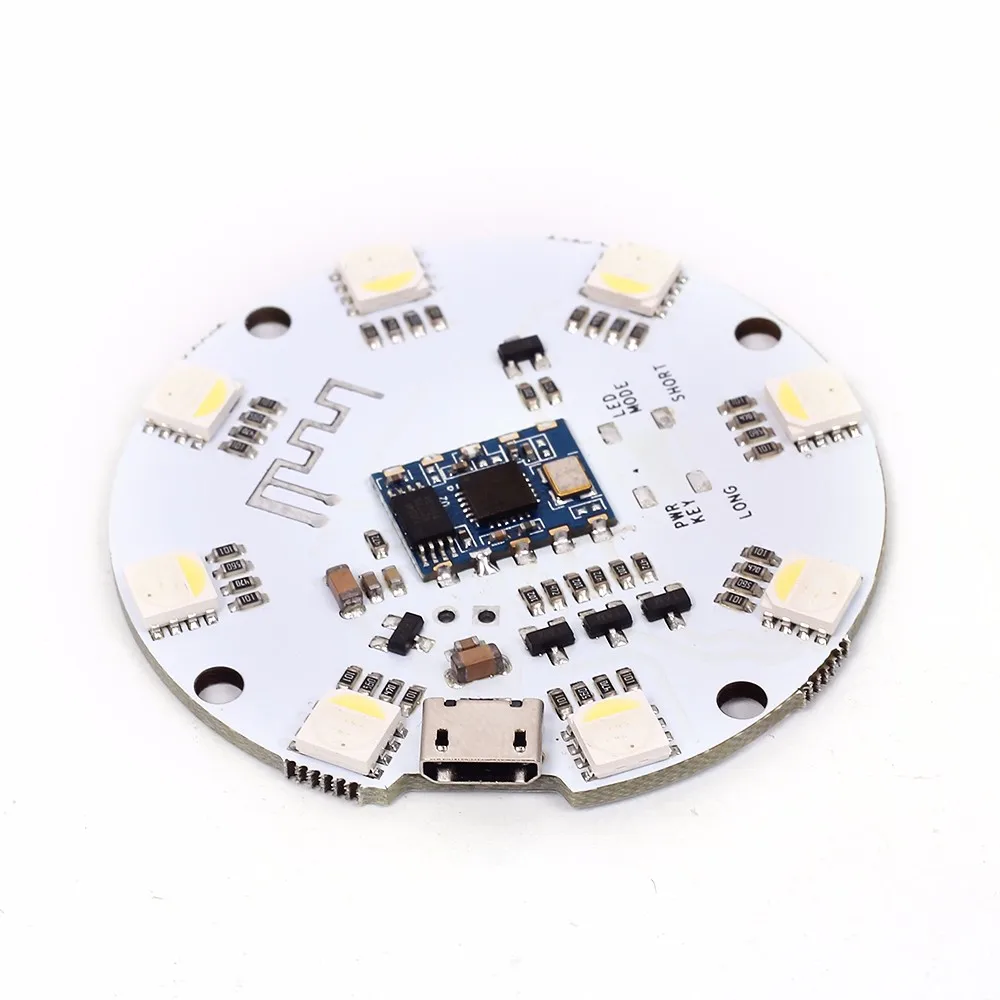

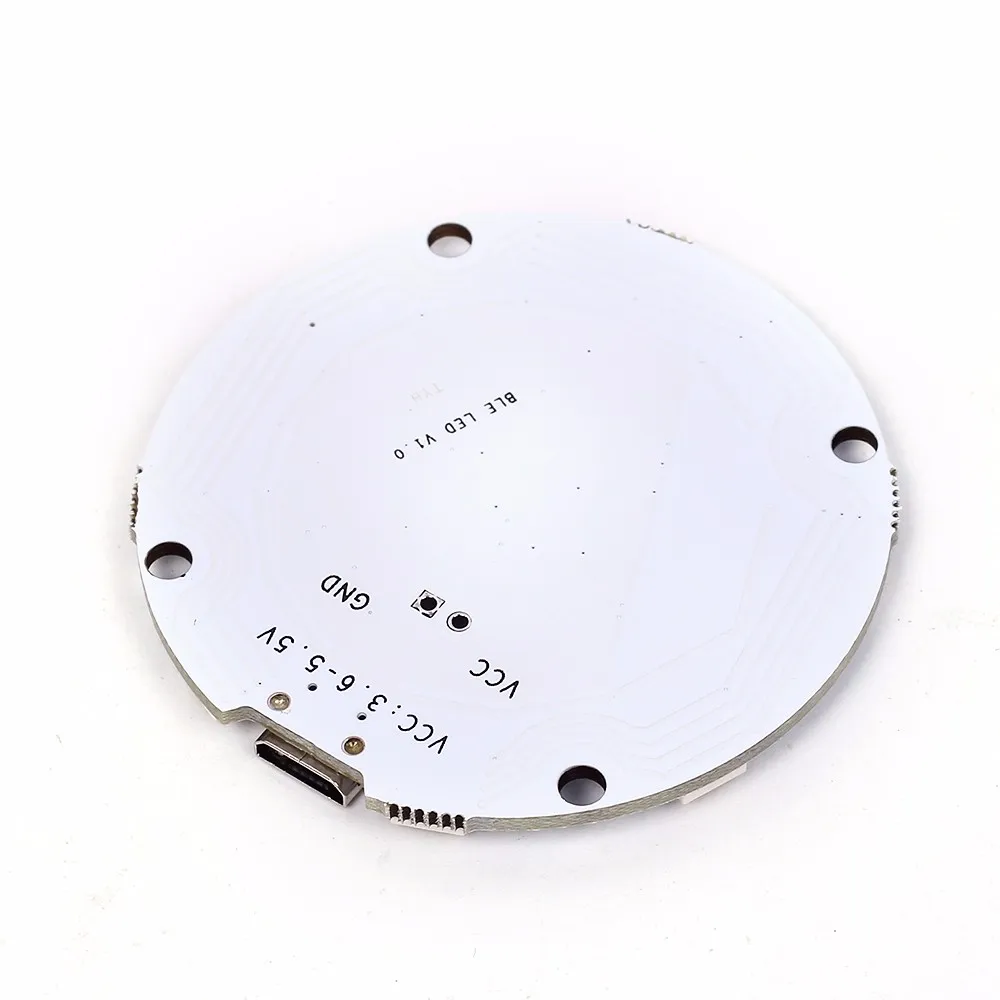

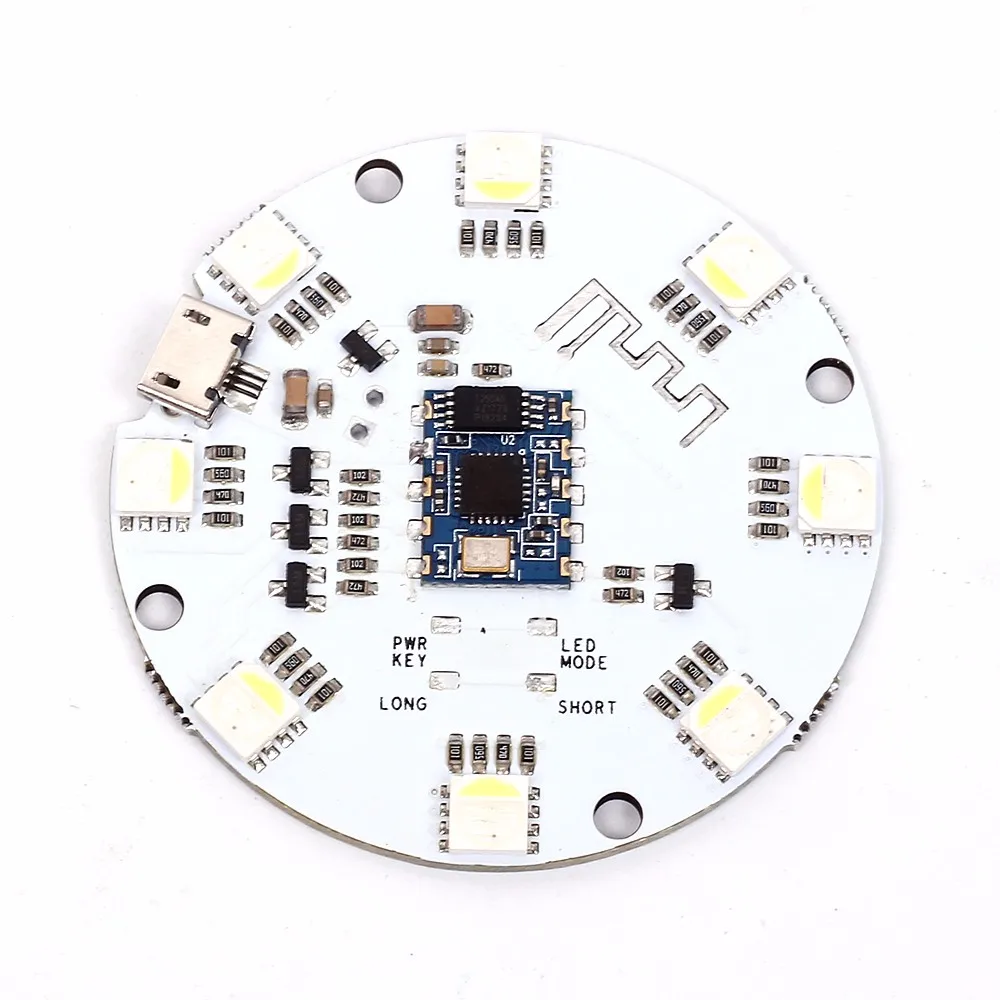

Pin Definition:


1.VDD:power interface (3.6-5V)
2.GND:power ground
3.PWM1:PWM1 output port,correspond Red
4.PWM0:PWM0 output port,correspond Green
5.PWM3:PWM3 output port,correspond Blue
6.PWM2:PWM2 output port,correspond White
7.GP23:GPIO23,preserve IO port,has no function
8.GP22:power on/off interface;long press the power on or power off;low level valid
9.GND:power ground
10.ANT:antenna interface

Notice:


1.Port level is TTL level,and output high level is VDD
2.Input voltage is 3.6-5V
3.Please add a pull-down resistor when PWM output drive triode
