Monday Kids 5pcs/lot DC-DC 2-24V to 2-28V Step Up Power Supply Module Adjustable Boost Converter 2A SX1308 Smart Electronics

$2.80

Product name is 5pcs/lot DC-DC 2-24V to 2-28V Step Up Power Supply Module Adjustable Boost Converter 2A SX1308 Smart Electronics...

Product origin name is Monday Kids 5pcs/lot DC-DC 2-24V to 2-28V Step Up Power Supply Module Adjustable Boost Converter 2A SX1308 Smart Electronics

Availability: In stock
SKU
EK826

Payment Security

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

  • Brand Name: Monday Kids
  • Condition: New
  • Supply Voltage: DC 2-24V
  • Model Number: SX1308 Boost Converter
  • Type: Voltage Regulator
  • is_customized: Yes
  • Operating Temperature: -20 ~ 60 celsius
  • Application: Electronic Circuit
  • Input Voltage: DC 2-24V
  • Output Voltage: DC 2-28V
  • Switching Frequency: 1.2MHz
  • Maximum Current Output: 2A

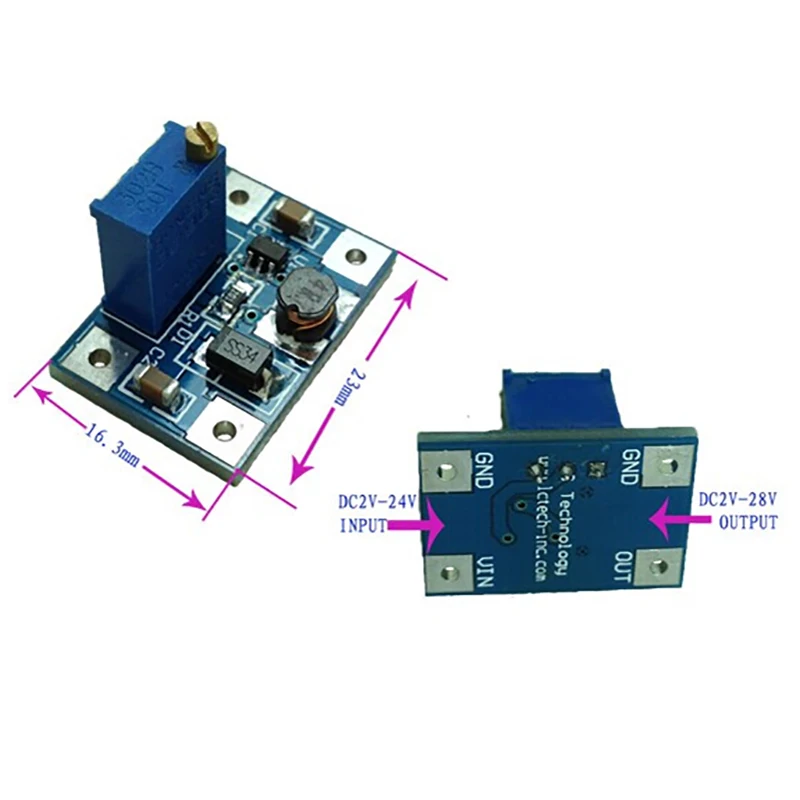

  • Size: 16.3mm*23mm

Description:

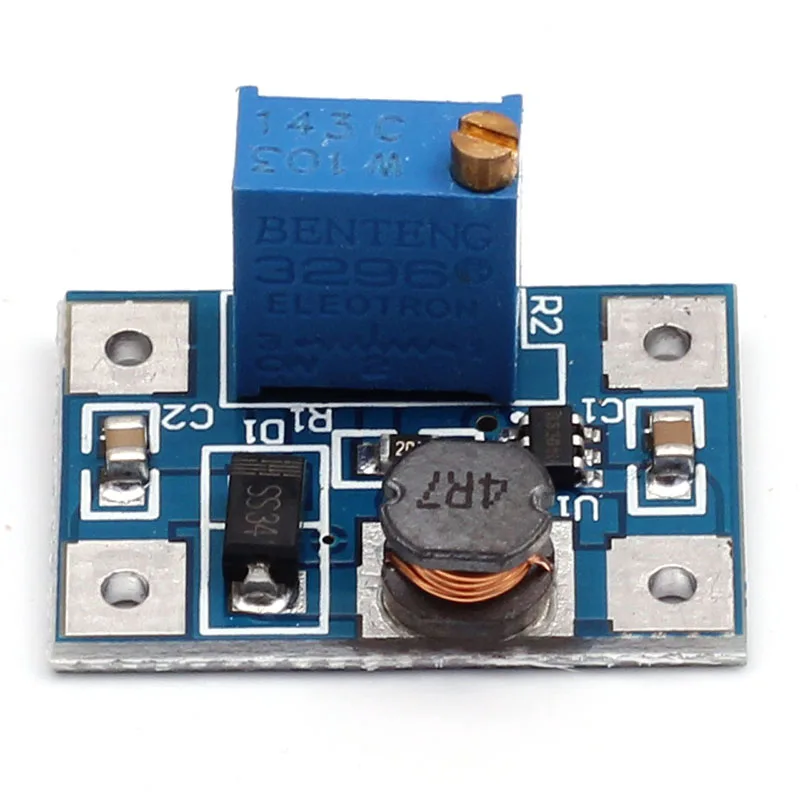

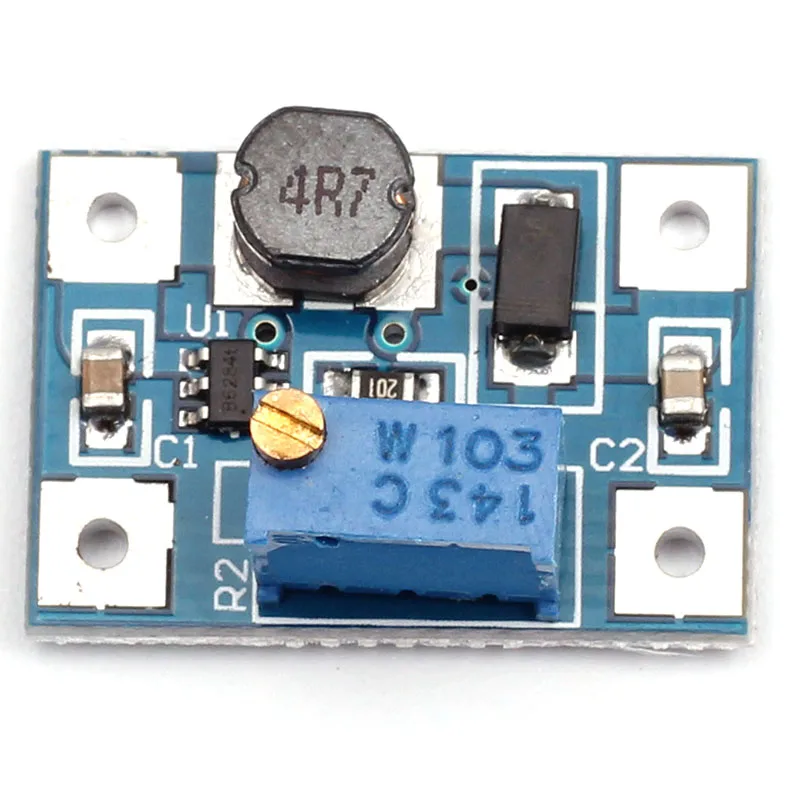

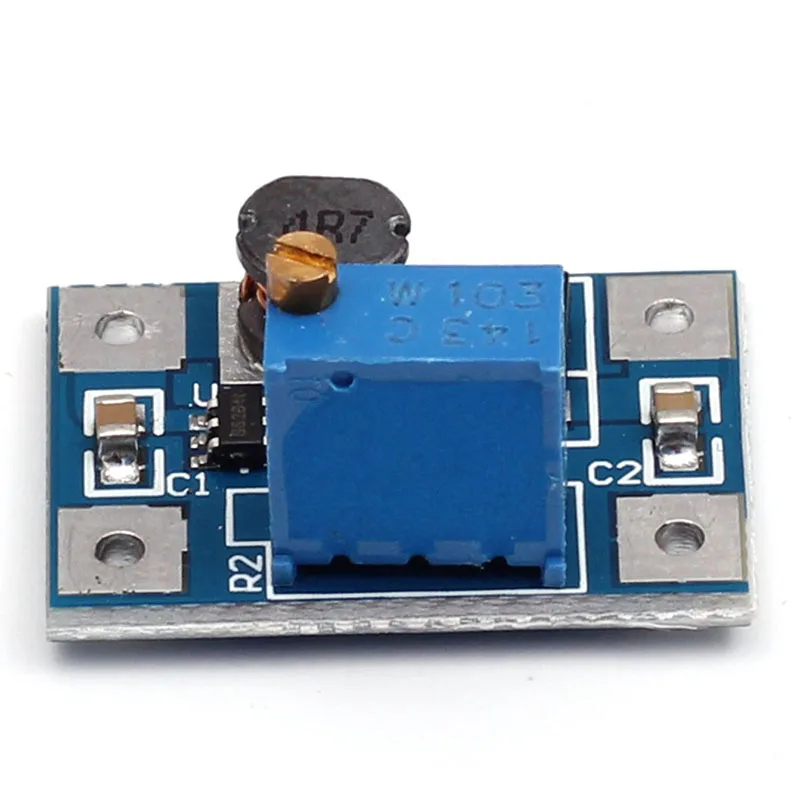

LC SX1308 booster module carrying SX1308 chip, its packagnig is small, and high efficiency. The output power can be adjust, maximum can arrive 28V and its interior integrate the lowest RDS internal resistance 100mΩ metal oxide semiconductor field effect transistor (mosfet), which can realize large current output of up to 2A. It widely used in 3G network products, digital products, mobile power supply,battery power supply, equipment, etc.

Features:

Oscillation frequency 1.2MHz
efficiency is as high as 95%
Circuit has short circuit protection, overheating protection function

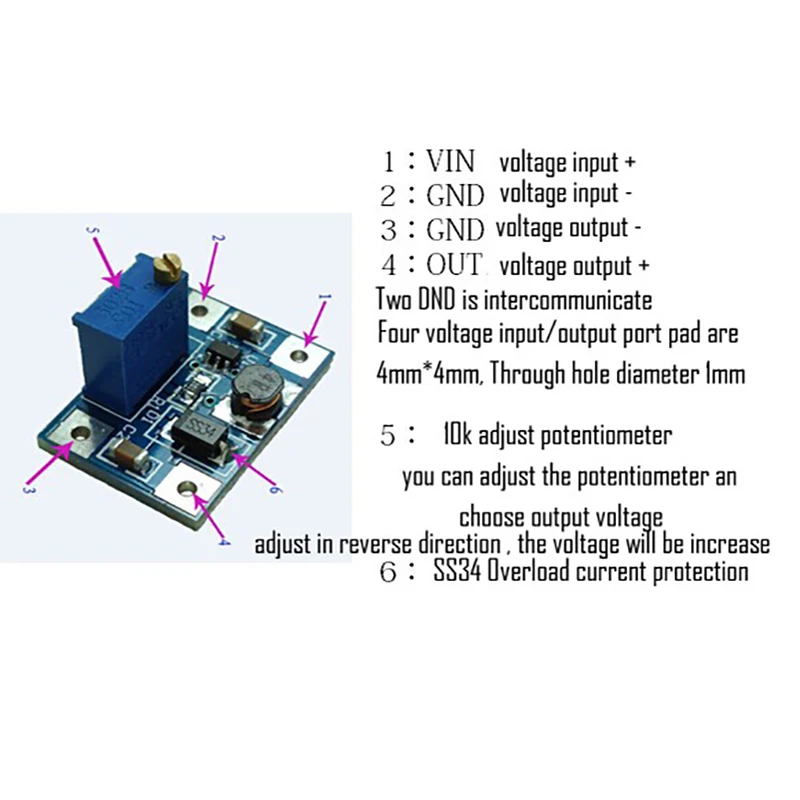

10k to adjust potentiometer, adjust the output voltage

Parameters:

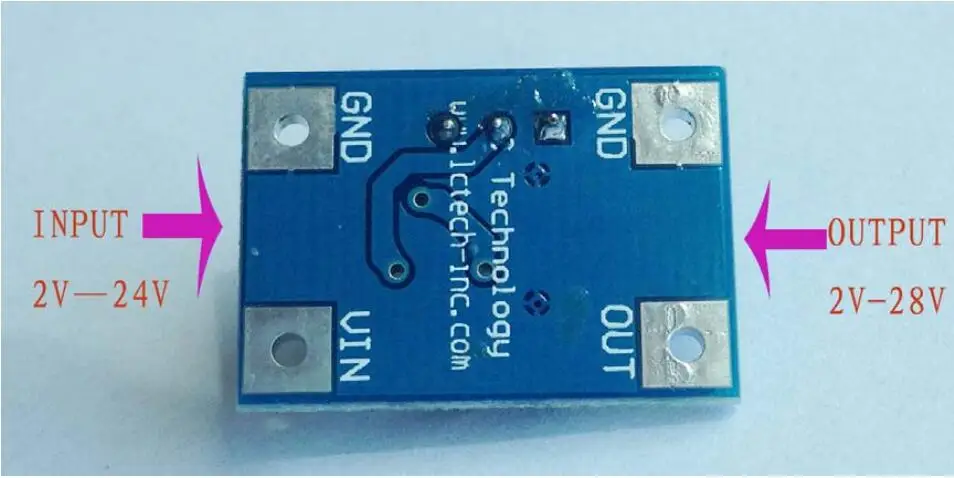

Maximum input voltage: DC 2-24V
Maximum output voltage: DC 2-28V
Switching frequency: 1.2MHz
Maximum current output: 2A

Note : Any questions, turn the potentiometer in one direction more than 10 rotations for try

  • Unit Type: lot (5 pieces/lot)
  • Package Weight: 0.03kg (0.07lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
