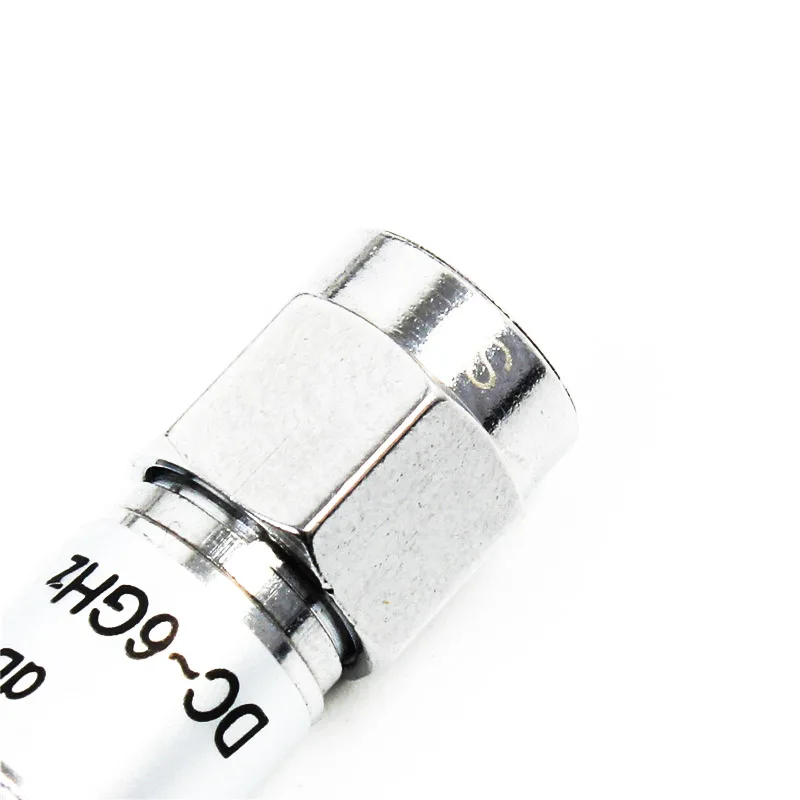

Monday Kids 10dB DC-6 GHz SMA 50ohm 2W Male to Female Fixed Attenuator Precise
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Model Number: Fixed Attenuator
- is_customized: Yes
- Attenuation: 1dB to 40dB
- Power: 2W
NOTE : we have documents of most of products in our store
If you need it , contact us :)
Product Features :
Frequency Range | DC-6G(Including 433M,900M,1800M,2.4G,5.8G）,DC-13G(Including 900M,1800M,2.4G,5.8G,12.4G) |
Attenuation | 1dB to 40dB |
Attenuation Accuracy | +/-0.5dB，30dB+/-0.7dB，40dB+/-1dB |
VSWR(MAX.) | <1:1.3 |
Power | 2W |
Nominal Impedance | 50ohm |
Connector Type | SMA-J ~ SMA-K |
Size | Φ7.5mm×26mm |
Operating Temperature | -20~115 Celsius |
Product Size:
Testing Results:
- Unit Type: piece
- Package Weight: 0.016kg (0.04lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
