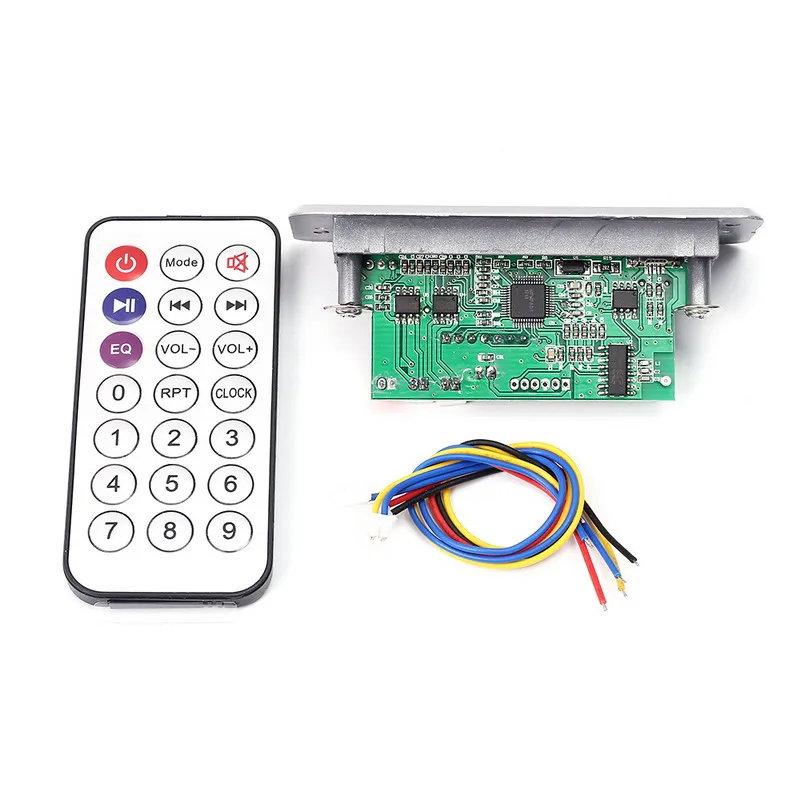

Monday Kids 3.7-5V MP3 Decoder Audio Decoding Board Time Display Power Off Memory Support U-Disk TF Card USB FM

Be the first to review this product
$3.29

Product name is 3.7-5V MP3 Decoder Audio Decoding Board Time Display Power Off Memory Support U-Disk TF Card USB FM...

Product origin name is Monday Kids 3.7-5V MP3 Decoder Audio Decoding Board Time Display Power Off Memory Support U-Disk TF Card USB FM

Availability: In stock
SKU
EK572
Add to Compare

Payment Security

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

  • Brand Name: Monday Kids
  • Supply Voltage: 3.7-5V
  • Condition: New
  • Type: Logic ICs
  • Model Number: MP3 Decoder Board
  • Dissipation Power: none
  • Operating Temperature: -30~85 celsius
  • is_customized: Yes
  • Application: MP3 Decoder Board
  • Support : AUX function/FM radio function

Product Introduction:
1.Power Supply Voltage:3.7-5V
2.Support AUX function
3.Support FM radio function
4.Power output 3W
Notice:

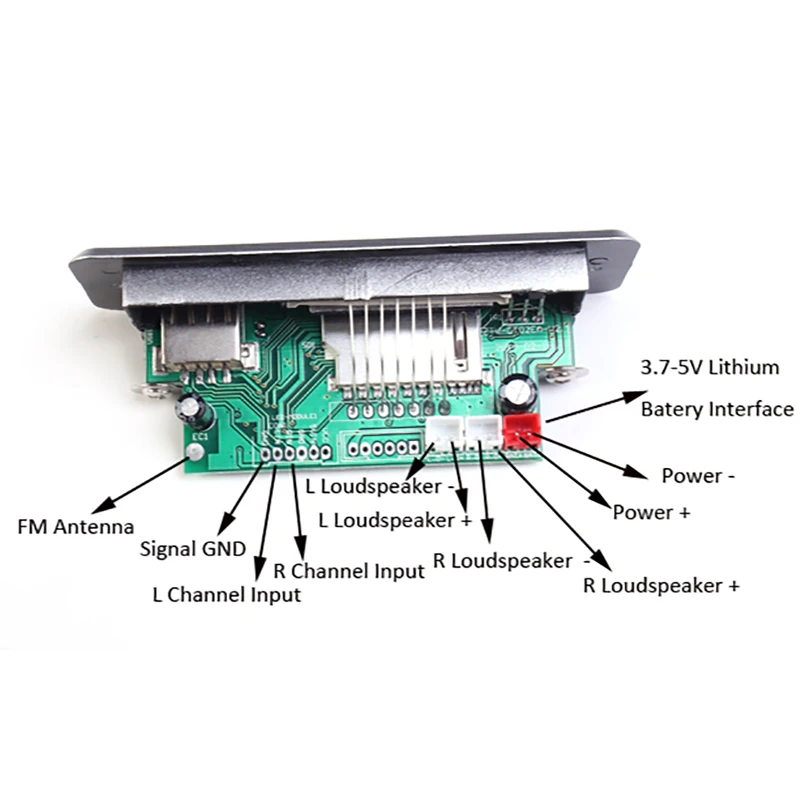

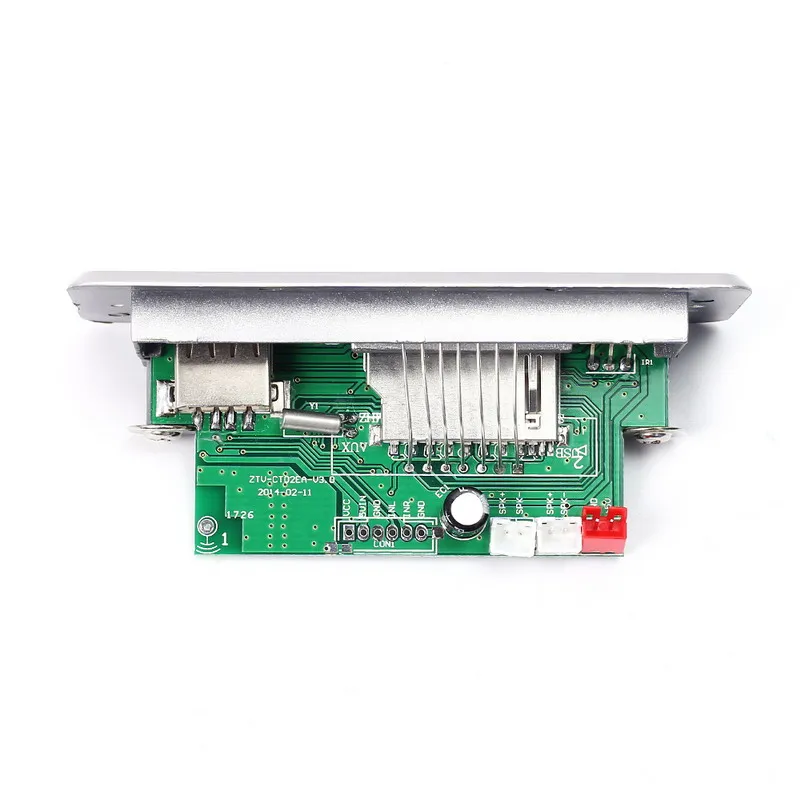

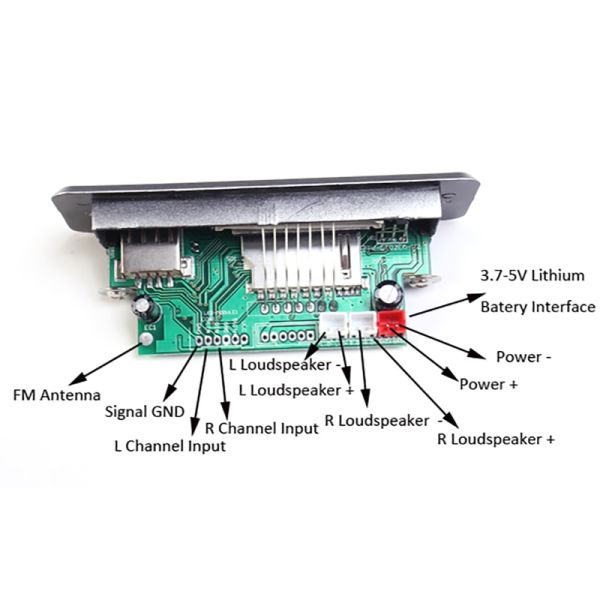

1.2P Socket BAT+ connects with 5V+,BAT- connects with GND;2P socket L-0-/L-0+ connect with loudspeaker 1,2P socket R-0-/R-0+ connect with loudspaeker 2;FM signal connects with antenna symbol position;IN is for 5V charging port input and external connection voice source input (AUX);you can choose USB and charging wire AM+3.5/mini5pin
2.Operating voltage is lithium 3.7V,or stabilivolt power 4.5-5V,current (if connects with one loudspeaker,600-700mA;if connects with two,1.3-1.5A.Loudspeaker:4 ohm 3W;if the current is not enough,then it will appear jumping song or the malfunction of the remote control);voltage should not be higher than 5V,or it will destroy main chip or power amplifier IC or other relevant components
Function Introduction:

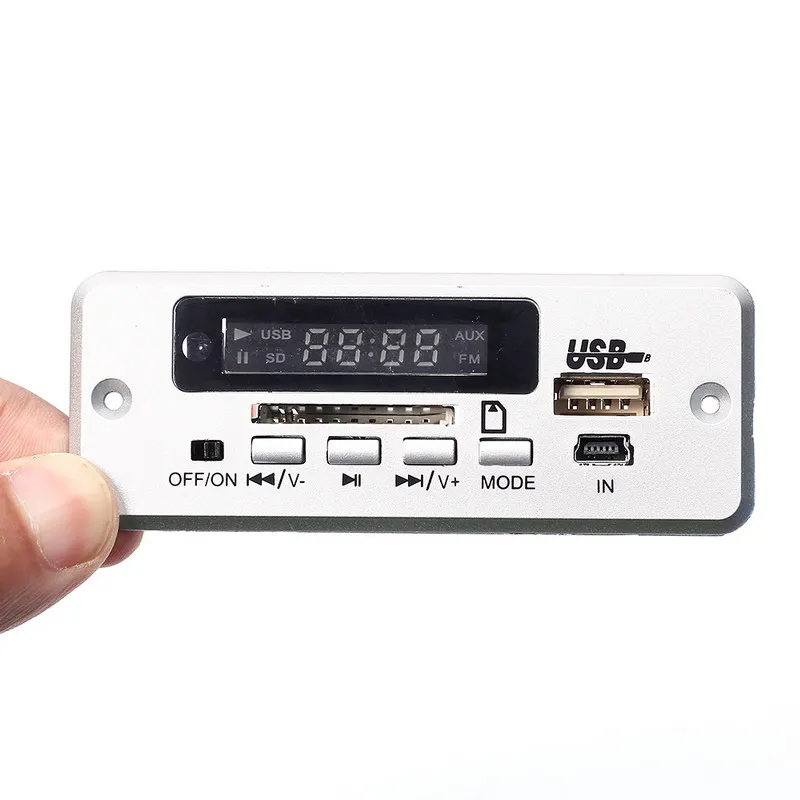

1.Power on/off:
1)Power on:remove the power switch into "ON" position
2)Power off:remove the power switch into "OFF" position
2.MP3 Play Operation:
1)When power on,plug the U-disk or SD card which copied MP3 songs,and the machine will automatically recognize and play
2)"PREV":short press will play the previous song;long press will decrease the volume
3)"NEXT":short press will play the next song;long press will increase the volume
4)"MODE" mode selection:cycle FM,AUX,MP3 by turn
5)"Play/Pause":short press will jump into next saved radio;long press for 3s will automatically search and store radio AUX function operation
6)Press the "MODE" key and let the machine switch into "AUX" state,then other modes are invalid;only "MODE" key is valid
7)Voice source is input by MINI USB,volume is controlled by external connection device
8)"MP3" state:display current playing song from U-disk or SD card,and display play time progress
9)Adjusting volume:display volume line
10)"AUX" state:display current operating state
11)"FM" state:display current radio frequency

  • Unit Type: piece
  • Package Weight: 0.06kg (0.13lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
