Monday Kids MS-500G DIY Magnetic Levitation Kit Furnishing Articles Kit 220V Black Shell Magnetic Suspension for Suspended Potted Plants
$46.46
Availability:
In stock
SKU
EK529
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Model Number: Magnetic suspension
- Application: Computer
- Condition: New
- Type: Logic ICs
- Operating Temperature: none
- Dissipation Power: none
- is_customized: Yes
- Supply Voltage: DC12V
- Working voltage: DC12V
- Working current: =<200mA automatic adjustment
- Indicators of power supply: 5mm colorful LED
- Suspension load bearing: =<500g
- Feature 1: High total carrying capacity,Low power consumption
- Feature 2: Colorful indicator,Custom assembly,Automatic adjustment of operating c
- Feature 3: Automatic shutdown without load
Please kindly NOTE that the order placed on this listing will be shipped with its upgraded version of 500g Levitation Module from https://www.mondaykids.com/upgraded-version-magnetic-levitation-module-500g-3-sets-of-without-box-version-including-air-freight-cost.html, this older version no more for sale, the reason why we didn't deactivate this listing was that some customers who have bought this products in the past might need these information for reference.
1.Description:

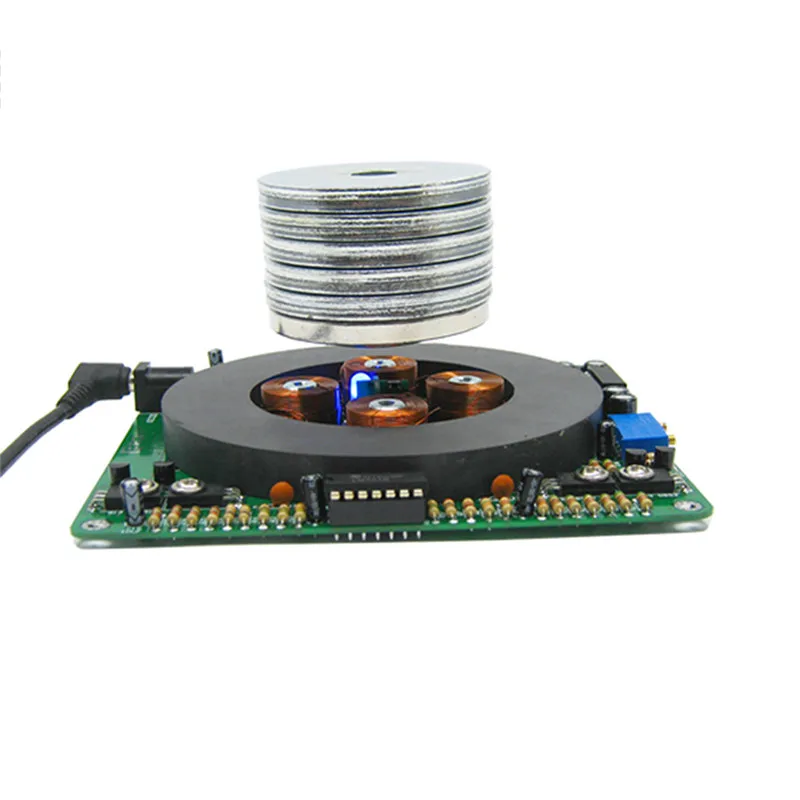

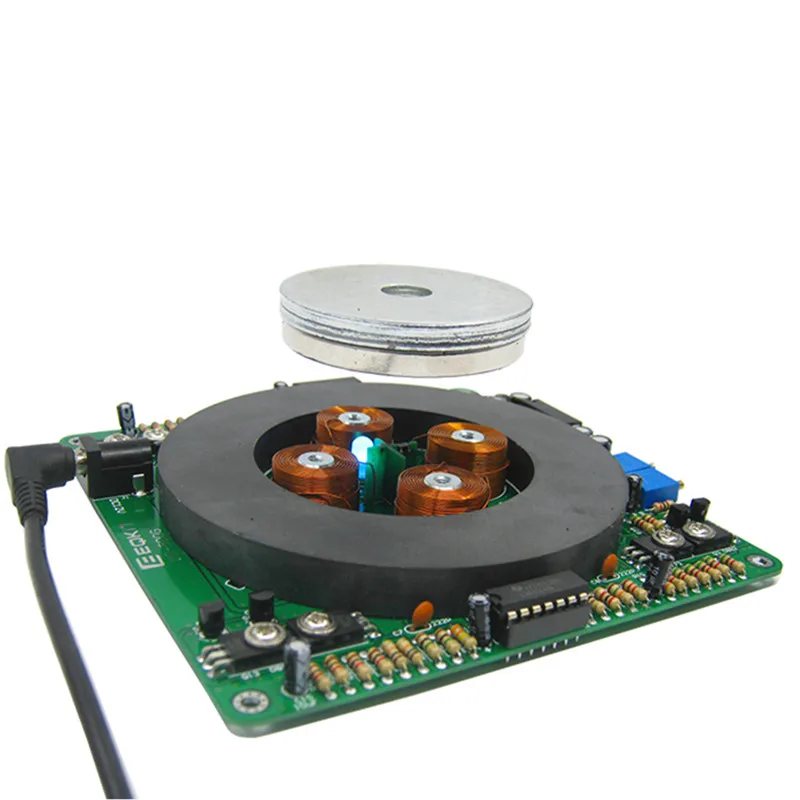

Magnetic Levitation Display Stand Application Maglev Technology Principle.A new type of display stand that suspends the products to be displayed in the air, the appearance is more beautiful than the traditional display frame, and it is easier to attract the attention of customers and increase the publicity effect of the products
2.Features:
1>.High total carrying capacity.
2>.Low power consumption.
3>.Colorful indicator.

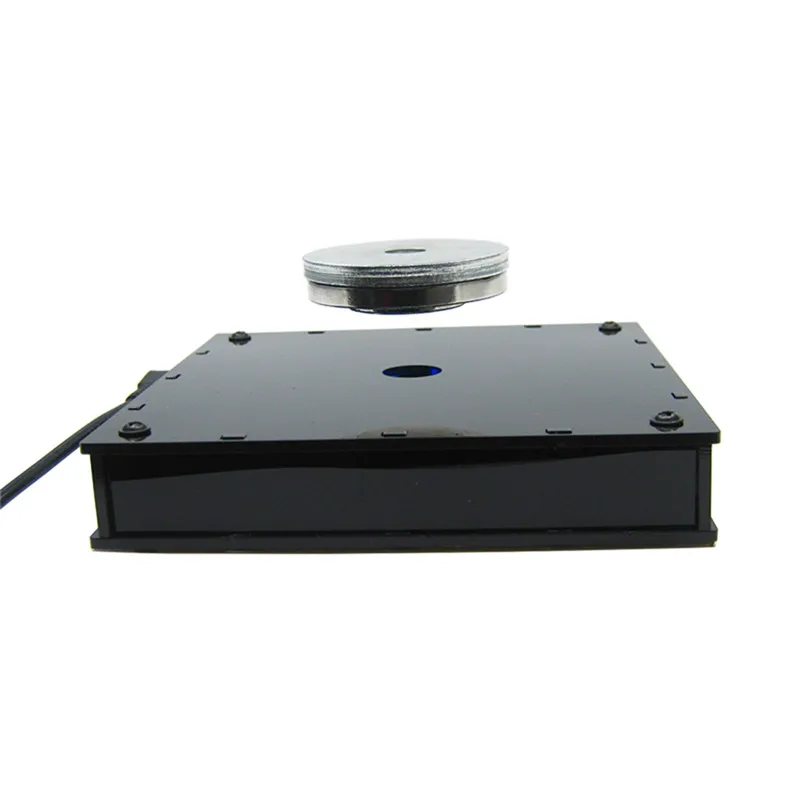

4>.High quality acrylic shell.
5>.Custom assembly.
6>.Automatic adjustment of operating current.
7>.Automatic shutdown without load.
3.Parameters :
1>.Name:Magnetic suspension
2>.Model:MS-500G
3>.Stand by current:=<35mA
4>.Working voltage:DC12V
5>.Working current:=<200mA automatic adjustment
6>.X,Y axis adjustment:Manual adjustment
7>.Indicators of power supply:5mm colorful LED
8>.Suspension load bearing:=<500g
9>.Set size:131*131*28mm

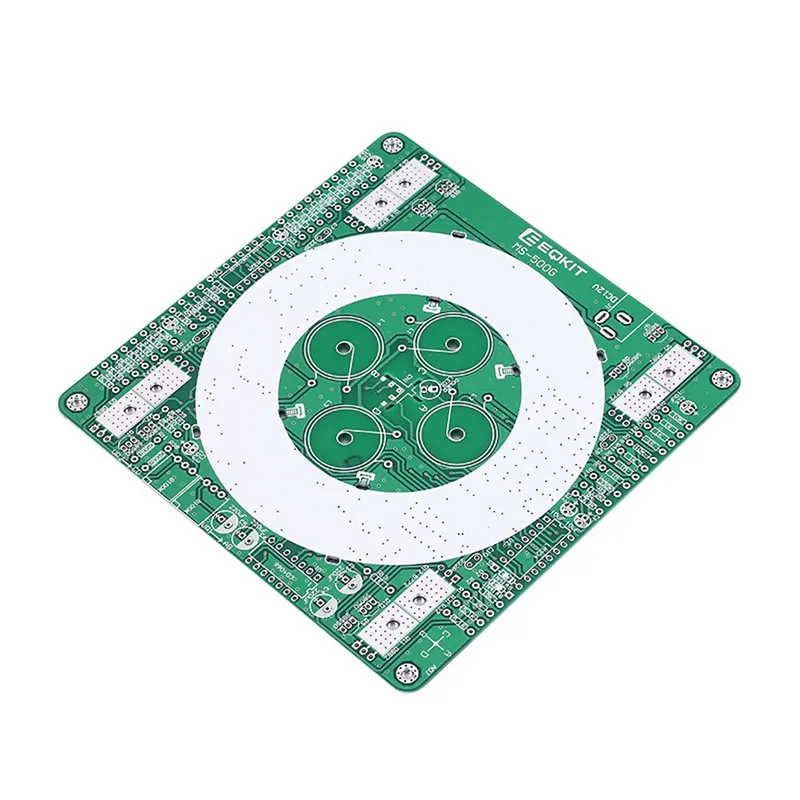

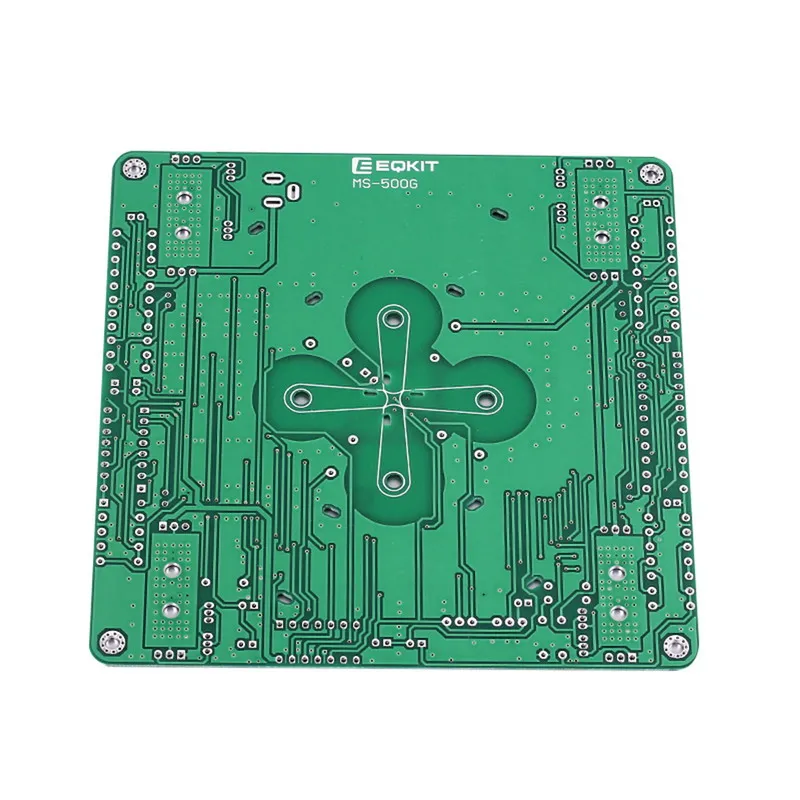

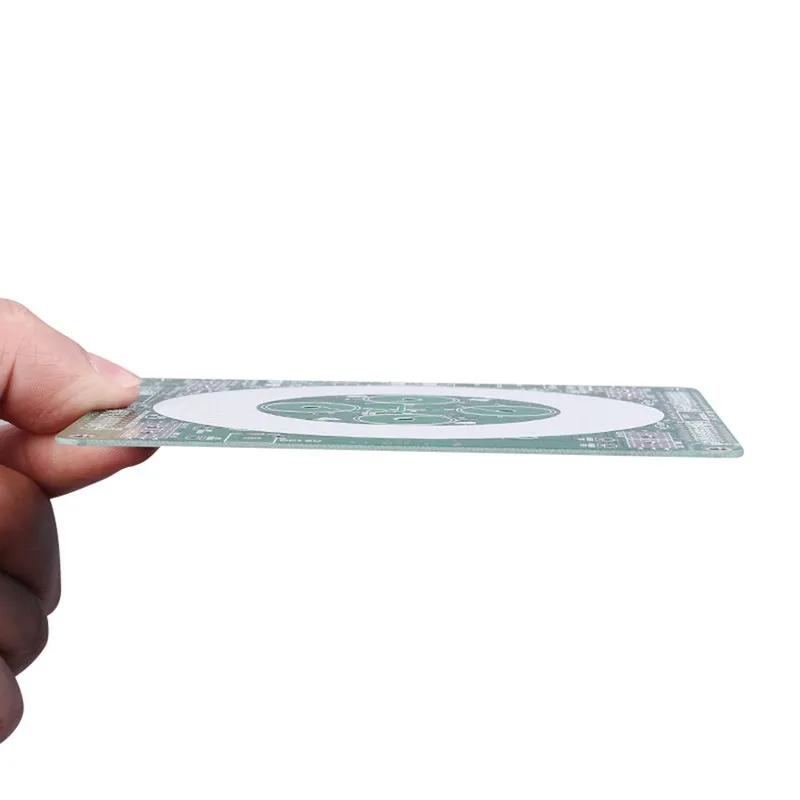

10>.PCB size:120*120mm
11>.Soldering difficulty:General
4.Application:
1>.Desktop decoration.
2>.Suspended potted plants.
3>.Counter display: Glasses, Mobile phones, Diamond rings, Necklaces, Watches, Earrings.
5.Component Listing:
|
NO. |
Component Name |
PCB Marker |
Parameter |
QTY |
|
1 |
Metal Film Resistor |
R11,R37,R38 |
200R |
3 |
|
2 |
Metal Film Resistor |
R13,R20-R22,R28-R30,R41,R42 |
1K |
9 |
|
3 |
Metal Film Resistor |
R3,R9 |
1.2K |
2 |
|
4 |
Metal Film Resistor |
R1,R7 |
2K |
2 |
|
5 |
Metal Film Resistor |
R4,R10 |
3.3K |
2 |
|
6 |
Metal Film Resistor |
R23,R24,R31-R36,R39,R40 |
5.1K |
10 |
|
7 |
Metal Film Resistor |
R18,R19,R26,R27 |
10K |
4 |
|
8 |
Metal Film Resistor |
R2,R8 |
15K |
2 |
|
9 |
Metal Film Resistor |
R17,R25 |
330K |
2 |
|
10 |
Metal Film Resistor |
R5,R6,R12,R14,R16 |
1M |
5 |
|
11 |
Ceramic Capacitors |
C7,C8,C9,C10 |
222P |
4 |
|
12 |
Electrolytic capacitor |
C1,C2,C11,C12,C13,C15,C16 |
10uF |
7 |
|
13 |
Electrolytic capacitor |
C3-C6 |
220uF |
4 |
|
14 |
Inductor Coil |
L1-L4 |
D18*H12mm |
4 |
|
15 |
Diode |
D1,D2 |
1N4148 |
2 |
|
16 |
LED |
LED1 |
5mm RGB |
1 |
|
17 |
Triode 2SD882 |
Q3,Q5,Q11,Q13 |
TO-126 |
4 |
|
18 |
Triode 2SB772 |
Q4,Q6,Q12,Q14 |
TO-126 |
4 |
|
19 |
Triode S8050 |
Q2,Q8,Q10,Q16 |
TO-92 |
4 |
|
20 |
Triode S8550 |
Q1,Q7,Q9,Q15 |
TO-92 |
4 |
|
21 |
Potentiometer |
VR1,VR2 |
100K |
2 |
|
22 |
LM324 |
U2,U3 |
DIP-14 |
2 |
|
23 |
CD4066 |
U1 |
DIP-14 |
1 |
|
24 |
IC Socket |
U1,U2,U3 |
DIP-14 |
3 |
|
25 |
DC Socket |
J1 |
5.5*2.1mm |
1 |
|
26 |
Hall Sensor |
H1,H2,H3 |
G |
3 |
|
27 |
Ring magnet |
—— |
100mm*10mm |
1 |
|
28 |
PCB 500G-CNX |
—— |
12.1*13.4*1.2mm |
1 |
|
29 |
PCB 500G-CNY |
—— |
13.4*12.1*1.2mm |
1 |
|
30 |
PCB 500G-MAIN |
—— |
121.5*121.5*1.2mm |
1 |
|
31 |
Conductive iron |
—— |
21*6*1mm |
4 |
|
32 |
Round magnet |
—— |
50*14mm |
1 |
|
33 |
Screw |
—— |
M3*8 |
12 |
|
34 |
Nut |
—— |
M3 |
8 |
|
35 |
Plastic Shell |
—— |
Black 131*131*2.6mm |
2 |
|
36 |
Plastic Shell |
—— |
Black 131*24*2.6mm |
4 |
|
37 |
Plastic Spacer |
—— |
M3*4 |
4 |
|
38 |
Plastic Spacer |
—— |
M3*13 |
4 |
|
39 |
Screw |
—— |
M3*12 |
4 |
|
40 |
Screw |
—— |
M3*8 |
4 |
|
41 |
Power Adapter |
US regulations plug |
AC100V-240V to 12V 1A |
1 |
Note:More detailed installation manual, please contact us!!!We send PDF documents to you.
6.Note:
1>.Please make sure all components in right dirction and right place.
2>.Please check whether pseudo welding.
3>.The soldering iron cannot contact the components for a long time, otherwise it is easy to damage the components due to high temperature.
7.Frequency asked questions:
1>.Why didn't send a instruction?
Q :We have a instruction.But we can only send to your email and cannot be sent with item.
2>.Need to prepare power separately?
Q :No,it includes a US regulations Power Adapter.
3>.Is it already installed??
Q :No,it is kits.Need the user to assemble.
- Unit Type: piece
- Package Weight: 0.03kg (0.07lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
