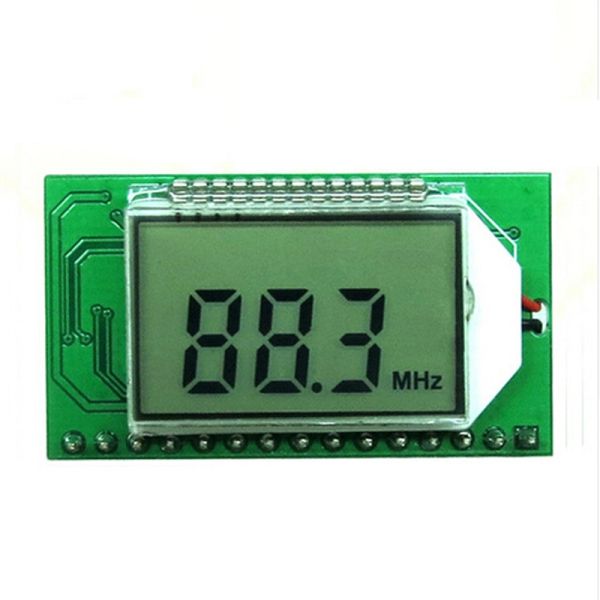

Monday Kids FM Radio Module Serial Port Frequency Modulation Wireless Audio Receiver Board 3-5V 40mA UART Stereo 500mW 87.0MHz-108.0MHz
$5.79
Availability:
In stock
SKU
EK521
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Supply Voltage: 3.0V-5.0V
- Model Number: FM Radio Module
- Condition: New
- Operating Temperature: -20~70 celsius
- Type: Logic ICs
- Dissipation Power: none
- is_customized: Yes
- Application: FM Radio Module
- Frequency Response: 50Hz-18KHz
- Output Power: 500mW
- Feature 1: Automatic Radio Station Searching And Storage
- Feature 2: .Adopt DSP And FM PLL Technique
NOTE : we have documents of most of products in our store If you need it , contact us :) | |
|
Product Introduction:
1.Output Power:500mW (driving earphone)
2.Frequency Response Range:50Hz-18KHz
3.Sound Track:stereo
4.Receiving Frequency Adjustment Range:87.0MHz-108.0MHz (campus broadcast power off);76.0MHz-108.0MHz (campus broadcast power on)
5.Equivalent Noise:>=30dB
6.Power Supply Voltage:3.0V-5.0V
7.Current:40mA
8.Application:for FM stereo radio
Features:
1.Adopt DSP And FM PLL Technique

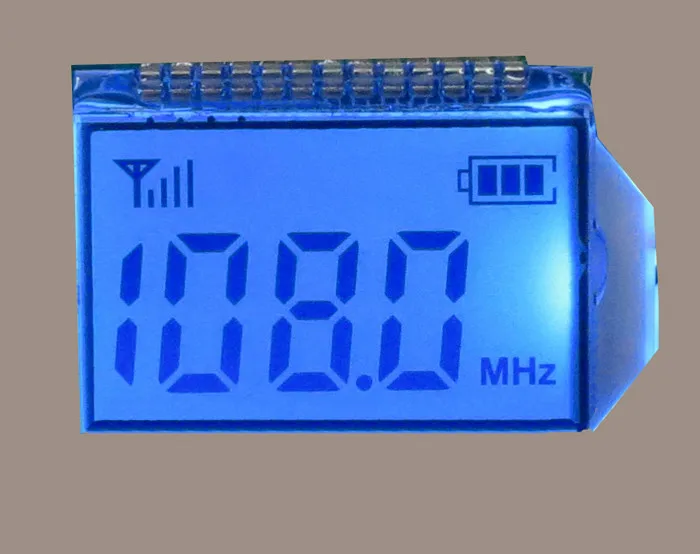

2.LCD Display
3.Automatic Radio Station Searching And Storage
4.Built-In 30 Levels Digital Volume Adjustment
5.Power Off Automatic Memory Previous Data

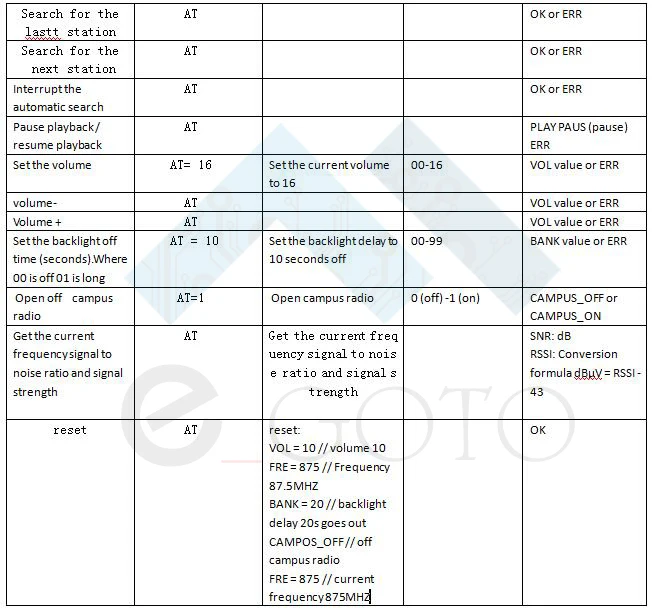

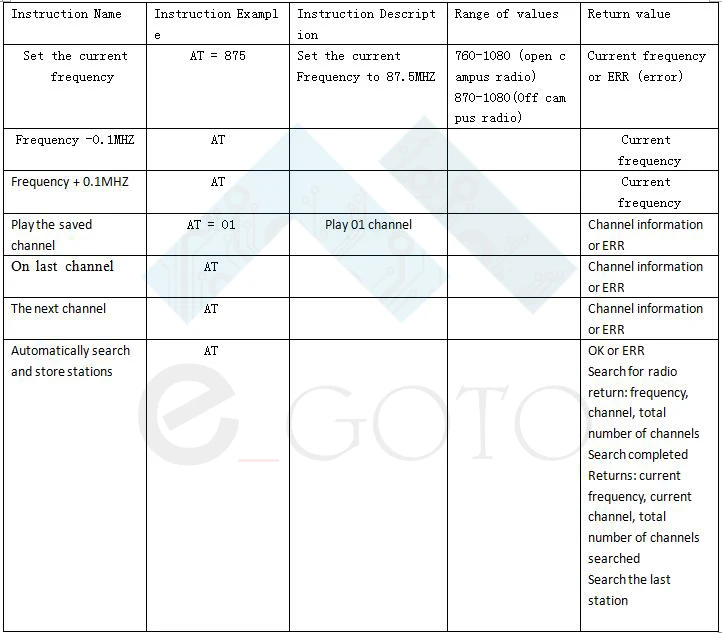

6.Support Serial Port AT Instruction Control
7.Adopt Quartz Crystal Stabilizing Frequency
8.Full-Frequency Band Automatic Searching Signal Frequency Band And Memory
- Unit Type: piece
- Package Weight: 0.02kg (0.04lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
