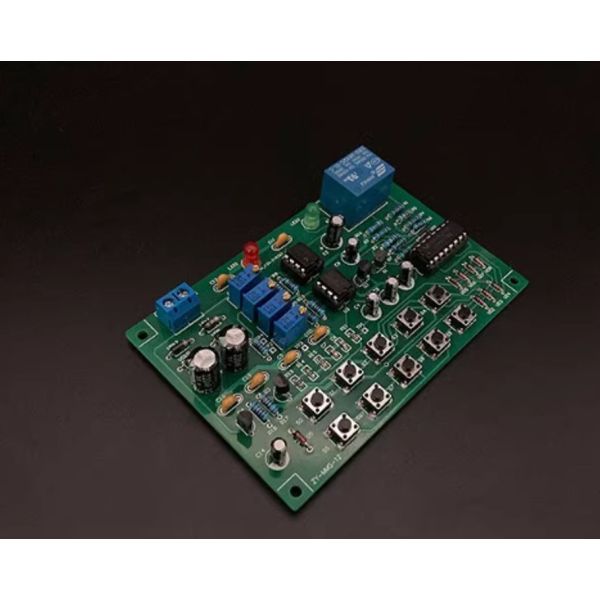

Electronic Combination Lock Competition Kit - Student Soldering Assembly and Debugging Skills Contest DIY Training Kit

This product is an Electronic Combination Lock Competition Kit designed for electronic skills competitions and DIY projects. The kit includes all necessary electronic components and circuit board, allowing users to assemble and solder a complete electronic combination lock. It is ideal for students for electronic skills training and for electronic enthusiasts for DIY projects.

Product Parameters:

Model: JS-56-17
Power Supply Voltage: DC 5-9V
Board Size: 106 x 70mm

Function Explanation: This kit can be used as a competition kit for vocational skills competitions in electronic assembly and debugging skills (suitable for training middle school and college students, enhancing installation and debugging skills, and experiencing the skill requirements of national competitions firsthand. It can also be used for pre-competition training).

Circuit Principle: The electronic combination lock controls the lock's status by entering the correct password. The circuit includes a password input module, password storage module, comparison module, and control module. Users enter the password via the keypad, the password storage module saves the preset correct password, the comparison module compares the entered password with the stored password, and the control module controls the lock based on the comparison results.

Product Features:

Educational Value: Suitable for students to conduct electronic skills training, helping them grasp basic knowledge of electronic components and soldering techniques.
DIY Project: Perfect for electronic enthusiasts to carry out DIY projects, enhancing hands-on skills and innovative thinking.
High-Quality Components: Uses high-quality electronic components to ensure circuit stability and reliability.
Detailed Manual: Comes with a detailed assembly and soldering manual to help users complete the project smoothly.
Practical Function: The finished electronic combination lock can be used for practical applications such as door locks and safes.


Combination of Education and Entertainment: Students can learn electronic knowledge through hands-on creation, increasing their interest in learning.
Easy Assembly: Detailed manual and high-quality components make the assembly process simple and easy to understand.

Usage Instructions:

Preparation: Gather soldering tools (soldering iron, solder wire, etc.) and power supply.
Assemble Circuit: Follow the manual to solder the electronic components onto the circuit board.
Connect Power: Connect the circuit board to a 5-9V DC power supply.
Test Function: Test the electronic combination lock's functionality by entering the password to ensure it works properly.
Circuit Diagram: A detailed circuit diagram is provided with the kit. Users can follow the circuit diagram to assemble and solder, ensuring the accuracy of the circuit.

Purchase Information:

Applicable Range: The kit is suitable for students' electronic skills training and electronic enthusiasts' DIY projects.
