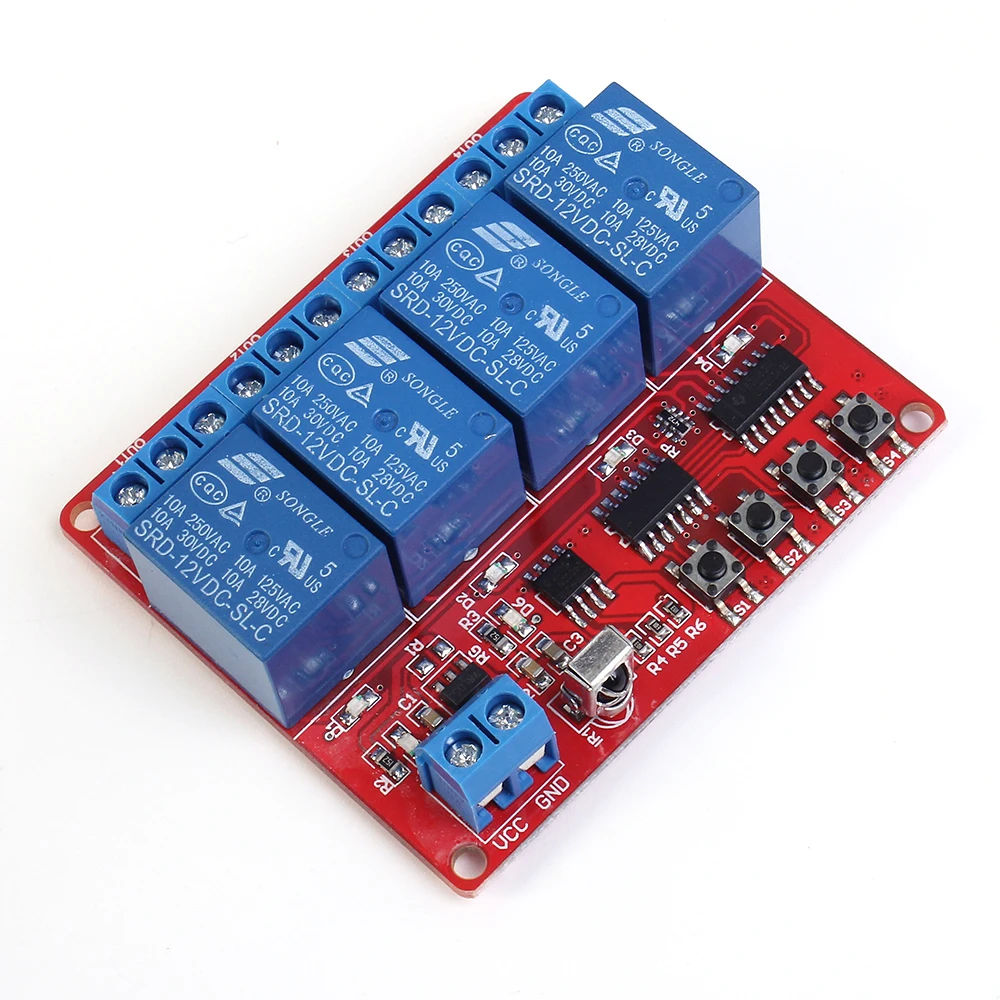

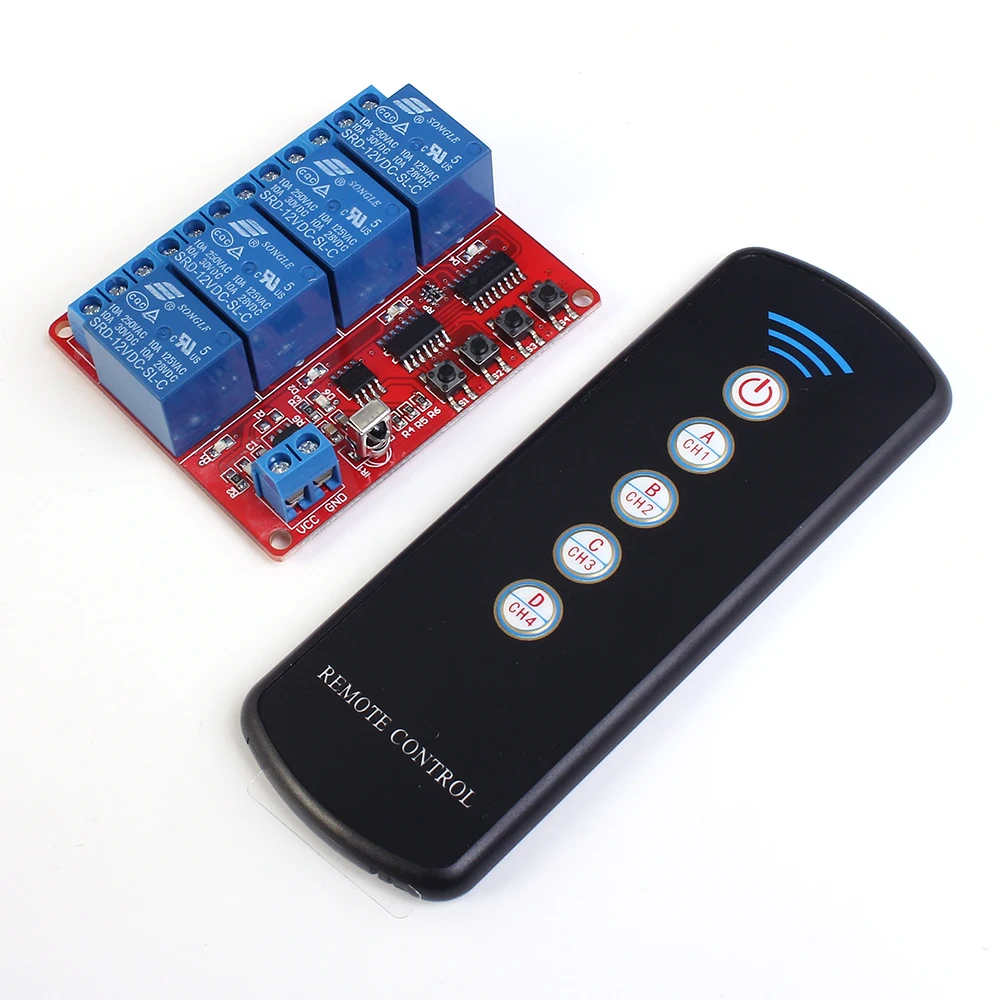

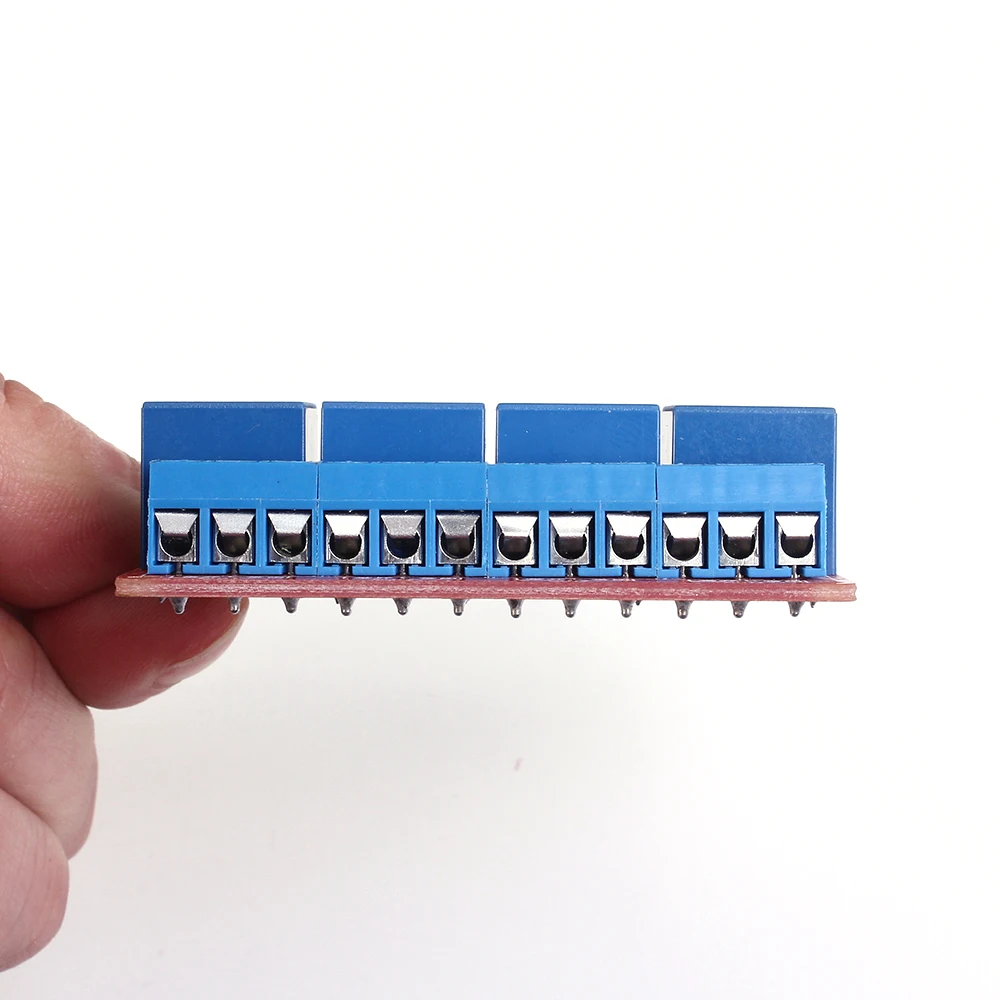

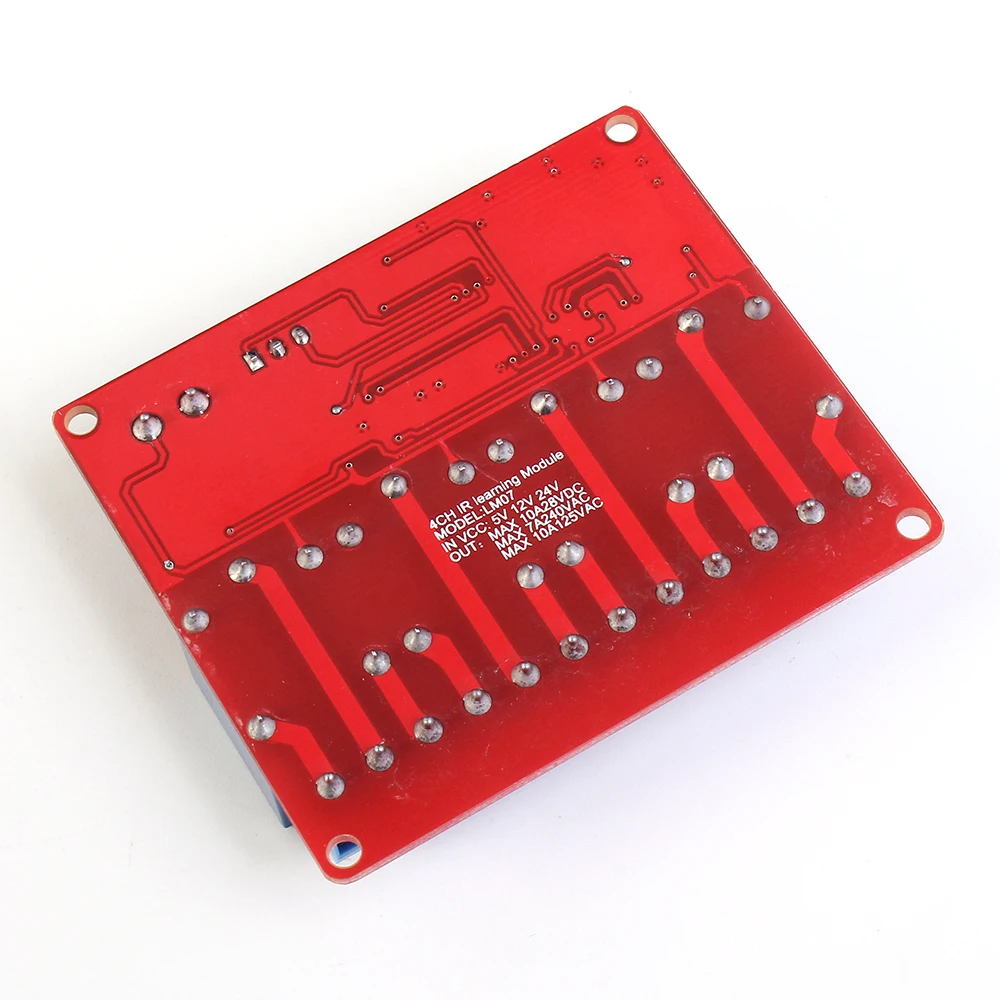

Monday Kids 12V 4 Channel IR Infrared Receiver Board Delay Relay Driving Module + 5-Key Remote Controller Self-Lock Interlock Inching Switch

Be the first to review this product

$9.20

Availability: In stock

SKU

EK217

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Supply Voltage: 11-12.5V
Condition: New
Type: Logic ICs
Dissipation Power: none
Model Number: Infrared Remote Control Switch
Operating Temperature: -30~85 celsius
is_customized: Yes
Application: Infrared Remote Control Switch

Product Introduction:

1.Operating Voltage:11-12.5V (VCC connects with power positive;GND connects with power negative;NC,COM,NO connect with output)

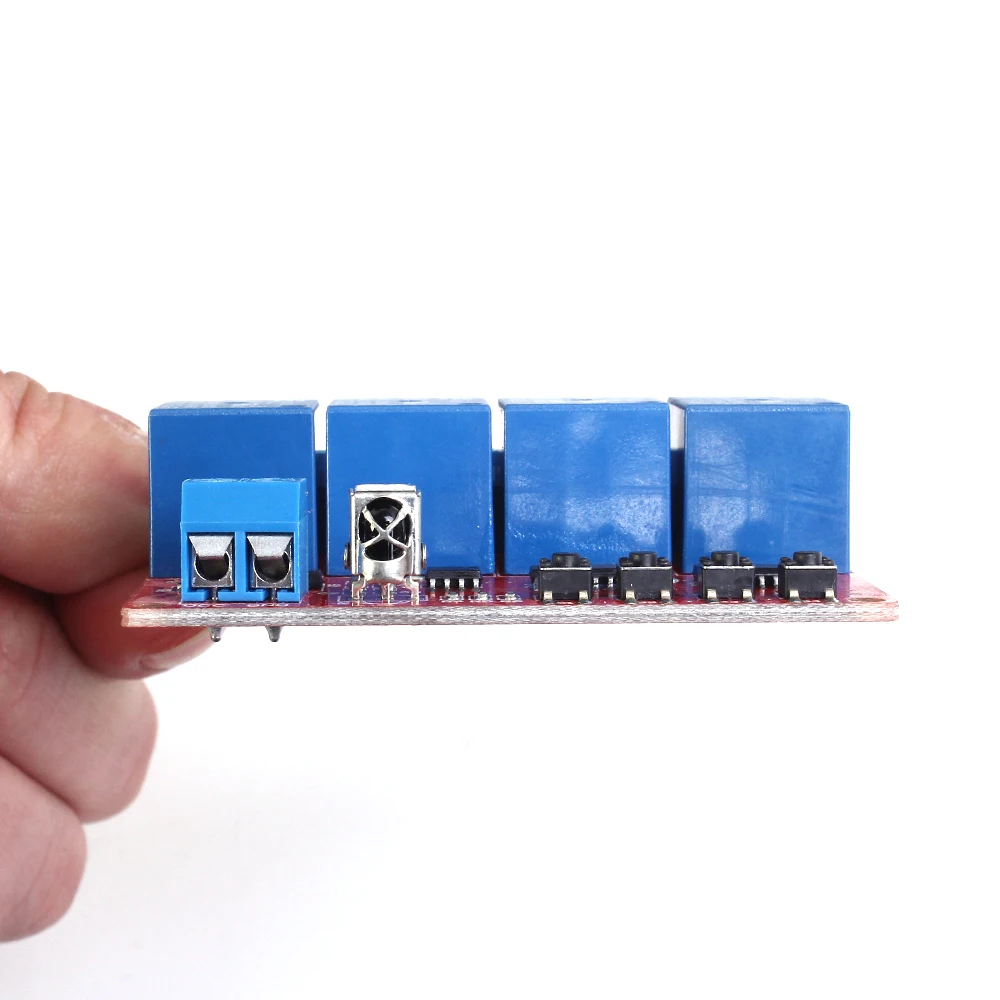

2.Module Specification:L65*W56*H21mm

3.Module Type:learning type (support NEC format infrared remote control)

4.Operating Current:<=160mA

5.Operating Mode:self-lock,inching,interlock random switch

6.Operating Indication:D5 (power indicator lamp),D6 (learning indicator lamp),D1-D4 (relay switch indicator lamp)

Using Method:

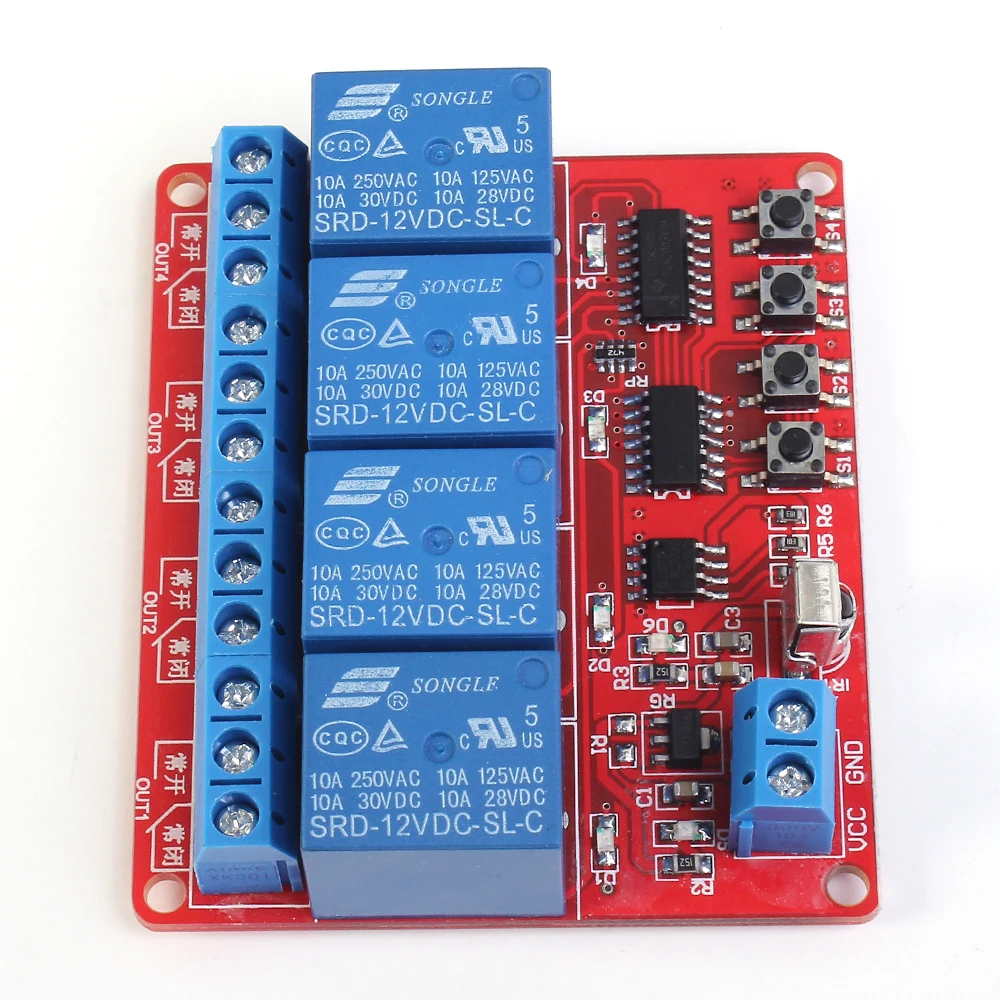

There are 4 keys in total:S1,S2,S3,S4 infrared remote control receiving board 4 channels can be independently learned (defaults low level)

1.The First Channel Learning:after power on,press the S1 key and then loosen it;the learning indicator lamp will flash for once.Press the CH1 key all the time,and the learning indicator lamp will flash quickly for three times and then off;it represents CH1 key is matching successfully with the first channel

2.The Second Channel Learning:after power on,press the S2 key and then loosen it;the learning indicator lamp will flash for once.Press the CH2 key all the time,and the learning indicator lamp will flash quickly for three times and then off;it represents CH2 key is matching successfully with the second channel

3.The Third Channel Learning:after power on,press the S3 key and then loosen it;the learning indicator lamp will flash for once.Press the CH3 key all the time,and the learning indicator lamp will flash quickly for three times and then off;it represents CH3 key is matching successfully with the third channel

4.The Fourth Channel Learning:after power on,press the S4 key and then loosen it;the learning indicator lamp will flash for once.Press the CH4 key all the time,and the learning indicator lamp will flash quickly for three times and then off;it represents CH4 key is matching successfully with the fourth channel

5.Full Off Learning:after power on,press S3 and S4 at the same time;then loosen the two keys,the learning indicator lamp will flash for twice.Press the power key on remote control,and the learning indicator lamp will flash quickly for three times then off.It represents power full off is matching successfully

Self-lock,Interlock,Inching Mutual Switch Operation Steps:

1.Interlock:when power off,press the learning key S2 and power on;the indicator lamp will flash quickly for three times,set as interlock output (press the remote control key,the corresponding output channel will output while other channels are all closed and no output)

2.Self-Lock:when power off,press the learning key S3 and power on;the indicator lamp will flash quickly for three times,set as self-lock output (press the remote control key,the corresponding output channel negation will not affect the state of other channels;if loosen the key,output state will remain)

3.Inching:when power off,press the learning key S4 and poewr on;the indicator lamp will flash quickly for three times,set as inching output (press the remote control key,the corresponding channel will output;if loosen the key,the output will be stopped)
