Monday Kids 3-5V 8 Channel IR Infrared Receiver Board Delay Relay Driving Module + 9 Keys Remote Control Transmitter Self-Locking Controller

$3.83
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Supply Voltage: 3-5V
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • is_customized: Yes
  • Operating Temperature: -30~85 celsius
  • Model Number: Delay Relay Driving Module
  • Application: Delay Relay Driving Module

Product Introduction:

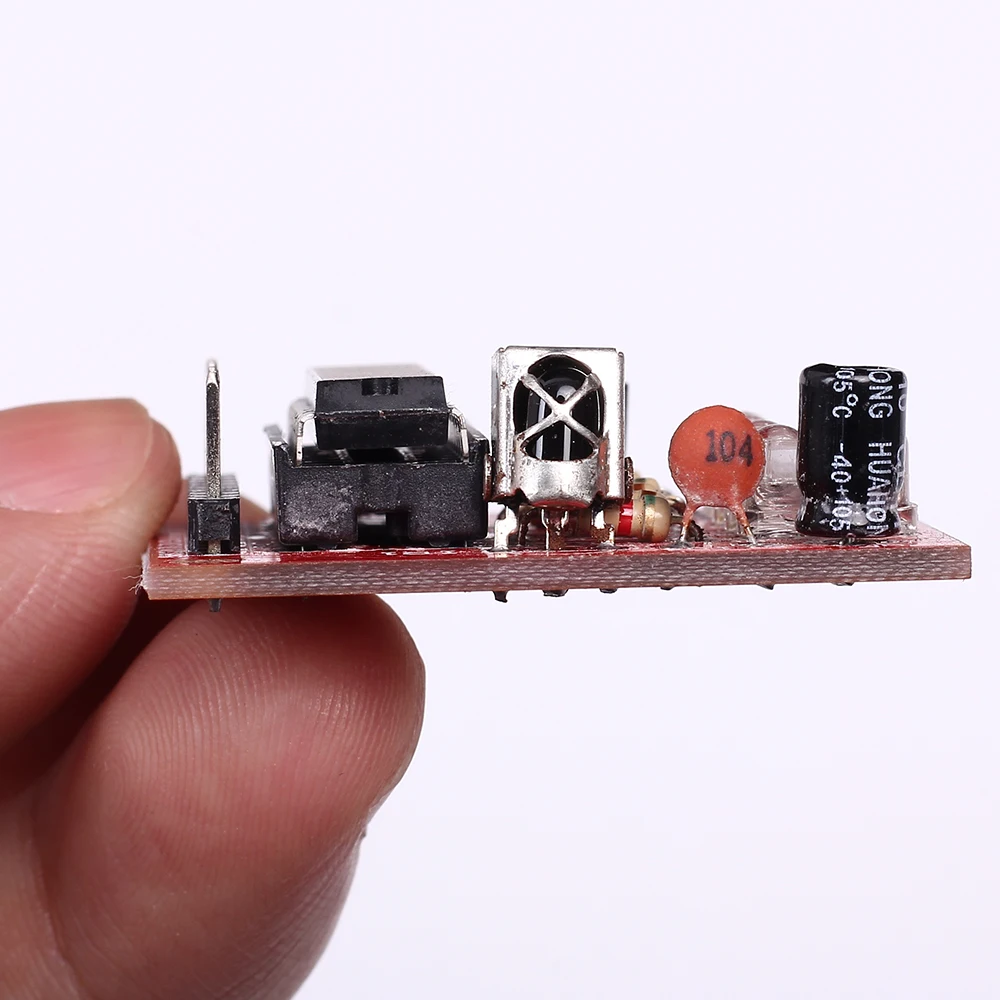

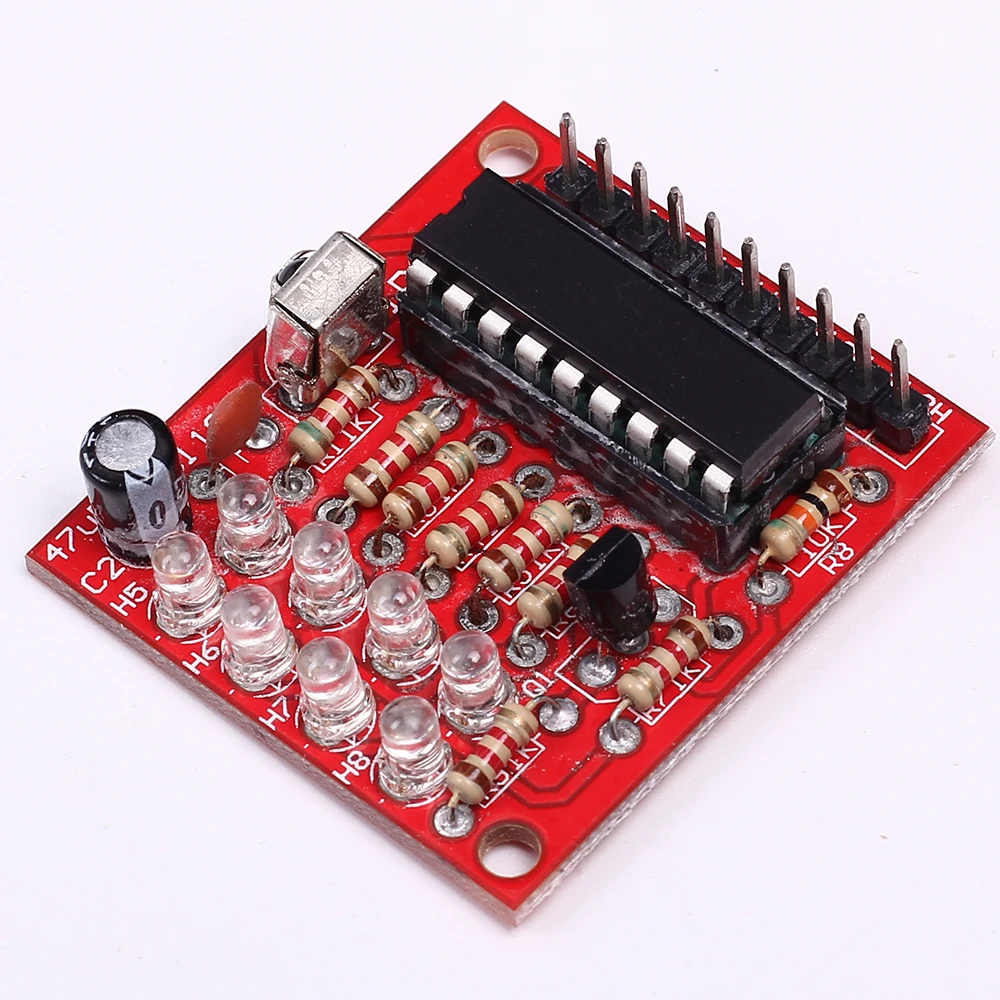

1.Name:8-channel infrared remote control receiver module (self-lock type)
2.Receiver Board Size:3.8*3.4cm with two fixing holes
3.Operating Voltage Range:3-5V
4.Receiving Distance:5-8m
5.Interface Output:PIN1 (power negative),PIN2 (power positive);H1,H2,H3,H4,H5,H6,H7,H8 respectively represent 8-channel output interface indicator lamps

9-Key Remote Control:
a:receiver module power on output defaults low level;press the power key,H1,H2,H3,H4,H5,H6,H7,H8 will output high level at the same time,and the corresponding indicator lamps H1,H2,H3,H4,H5,H6,H7,H8 will be on;if press again,output will become low level at once,and the indicator lamps will be off


b:press the CH1 key on the remote control,H1 output will become high level,and H1 indicator lamp will be on;if press again,output will become low level,and indicator lamp will be off


c:press the CH2 key on the remote control,H2 output will become high level,and H2 indicator lamp will be on;if press again,output will become low level,and indicator lamp will be off


d:press the CH3 key on the remote control,H3 output will become high level,and H3 indicator lamp will be on;if press again,output will become low level,and indicator lamp will be off


e:press the CH4 key on the remote control,H4 output will become high level,and H4 indicator lamp will be on;if press again,output will become low level,and indicator lamp will be off


f:press the CH5 key on the remote control,H5 output will become high level,and H5 indicator lamp will be on;if press again,output will become low level,and indicator lamp will be off


g:press the CH6 key on the remote control,H6 output will become high level,and H6 indicator lamp will be on;if press again,output will become low level,and indicator lamp will be off


h:press the CH7 key on the remote control,H7 output will become high level,and H7 indicator lamp will be on;if press again,output will become low level,and indicator lamp will be off


i:press the CH8 key on the remote control,H8 output will become high level,and H8 indicator lamp will be on;if press again,output will become low level,and indicator lamp will be off

  • Unit Type: piece
  • Package Weight: 0.04kg (0.09lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
