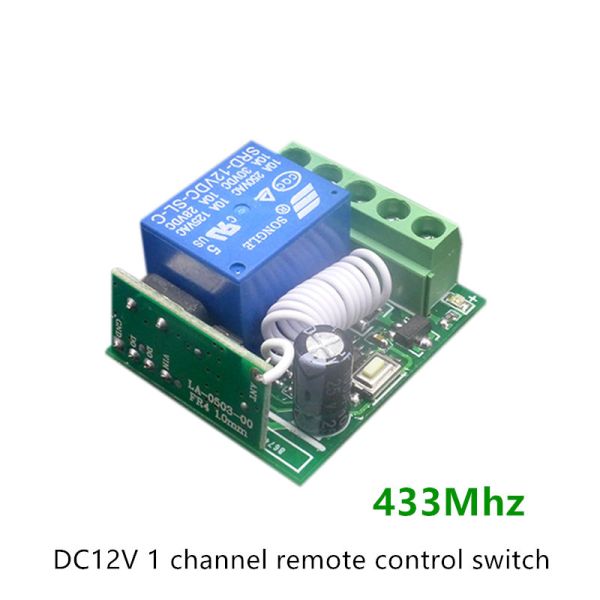

Monday Kids 12V 40mA 1 Channel Self-Lock Wireless Receiver Relay Module + 2 Key RF 433MHz Wireless Remote Control Switch 15-30m

$4.64
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Model Number: Wireless Relay Module
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: None
  • Operating Temperature: -30~85 celsius
  • is_customized: Yes
  • Supply Voltage: 11.5-12.5V
  • Application: Wireless Relay Module
  • Receiving Distance: 15-30m
  • Relay Loading Capacity: 250V AC-10A,125V AC-10A;30V DC-10A;28V DC-10A
  • Operating Current: 40mA (relay operating state)
  • Feature: rf module,rf switch ic,remote controlled relay

Product Introduction:

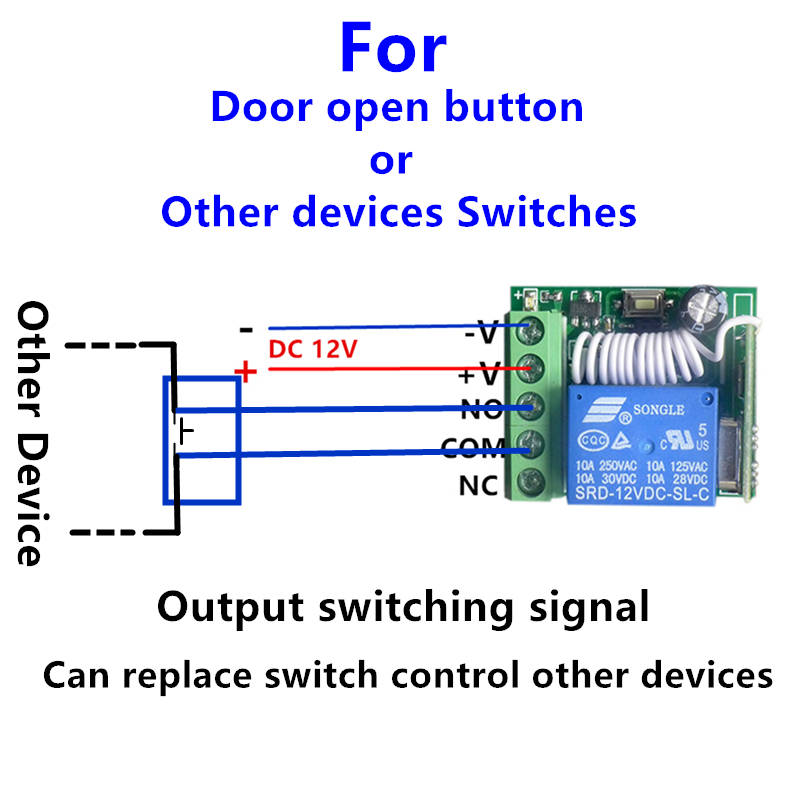

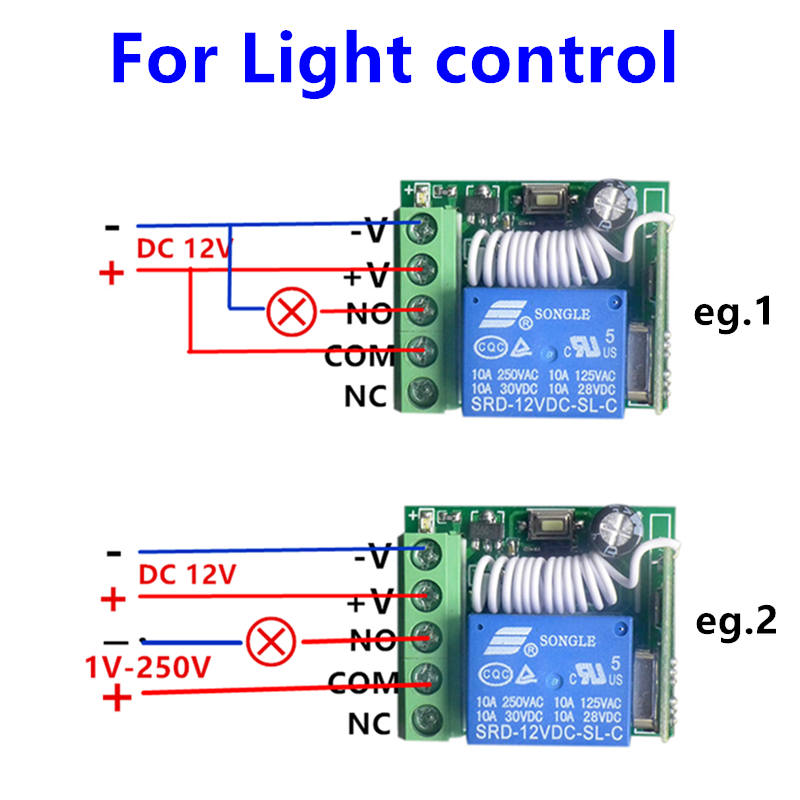

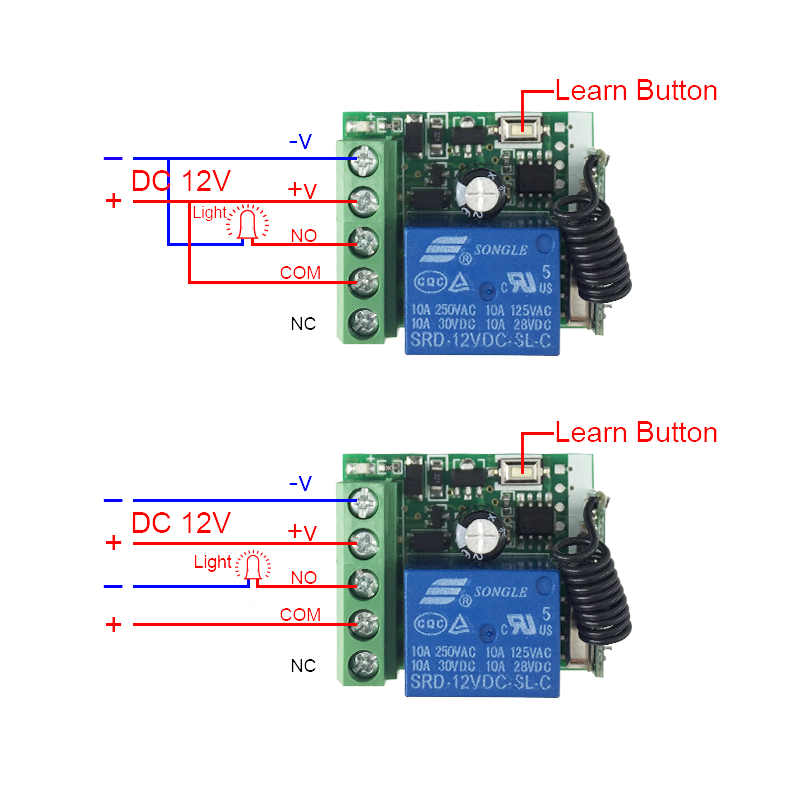

1.Operating Voltage:11.5-12.5V;VCC connects with power positive;GND connects with power negative;NC,COM,NO connect with output


2.Operating Current:40mA (relay operating state)


3.Quiescent Operating Current:6mA (relay release state)


4.Size:35*48mm with 4 pieces fixing screw holes


5.Type:433M RF wireless receiving


6.Receiving Distance:15-30m


7.Operating Mode:self-lock


8.Operating Indication:LED1 (power indicator lamp),LED2 (relay switch indicator lamp)


9.Operating Introduction:after power on,press the ON key on the remote control,the relay will operate (COM port and NO are connected);press the OFF key again,the relay will be released (restore to initial state,COM port and NC port are connected);later operations can repeat above (ON if for controlling on,OFF is for controlling off)


10.Relay Loading Capacity:250V AC-10A,125V AC-10A;30V DC-10A;28V DC-10A

  • Unit Type: piece
  • Package Weight: 0.06kg (0.13lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
