Monday Kids Three-Dimensional 3D Tree LED DIY Kit Red/Green/Yellow LED Flash Circuit Parts Electronic Fun Suite Gift

$4.50

Product name is Three-Dimensional 3D Tree LED DIY Kit Red/Green/Yellow LED Flash Circuit Parts Electronic Fun Suite Gift...

Product origin name is Monday Kids Three-Dimensional 3D Tree LED DIY Kit Red/Green/Yellow LED Flash Circuit Parts Electronic Fun Suite Gift

Availability: In stock
SKU
EK330

Payment Security

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

  • Brand Name: Monday Kids
  • Supply Voltage: DC 9V
  • Operating Temperature: - 30 ~ 85 celsius
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • Model Number: 3D Christmas Tree LED Kit
  • is_customized: Yes
  • Application: Electronic Circuit
  • Color: Red/Green/Yellow

Please note: For the installation steps, Please check this link: http://attach01.oss-us-west-1.aliyuncs.com/IC/DIY-Manual/7212.pdf

1. Introduction

CTR-30 flash Christmas tree kit consists of three circuit board, allows 36 LED flash alternately,showing a Christmas tree in the space of three-dimensional profile (the night environment has better viewing).

2.Parameter

NO.

Parameter

Value

1

Model

CTR-30C

2

Work Voltage

DC4.5-5V

3

Power Type

AA*3 battery or USB Cable

4

Installation Size

60mm*136mm*60mm

3. Component listing

NO.

Component Name

PCB Marker

Parameter

QTY

CTR-30A

1

Metal Film Resistor

R6

330ohm

1

2

Metal Film Resistor

R4

1K

1

3

Metal Film Resistor

R2

2K

1

4

Metal Film Resistor

R1,R3,R5,R7

10K

4

5

Electrolytic Capacitor

C1-C3

47uF 16V

3

6

Red LED

D1-D6,D19

3mm

7

7

Yellow LED

D7-D12

3mm

6

8

Green LED

D13-D18

3mm

6

9

S9014 Transistor

Q1-Q3

TO-92

3

10

PCB

CTR-30A

1

CTR-30B

11

Metal Film Resistor

R6

330ohm

1

12

Metal Film Resistor

R4

1K

1

13

Metal Film Resistor

R2

2K

1

14

Metal Film Resistor

R1,R3,R5

10K

3

15

Electrolytic Capacitor

C1-C3

47uF 16V

3

16

Green

D1-D6

3mm

6

17

Yellow LED

D7-D12

3mm

6

18

Red LED

D13-D18

3mm

6

19

S9014 Transistor

Q1-Q3

TO-92

3

20

PCB

CTR-30B

1

CTR-30C

21

Self-Locking Switch

S1

5.8mm

1

22

DC Power Socket

J1

3.5mm

1

23

Battery Box

AA*3

1

24

USB to DC 3.5mm Cable

80cm

1

25

Screw

M2*8mm

2

26

Nut

M2

2

27

PCB

CTR-30C

1

Please NOTE :Users can complete the installation by PCB silk screen and component listing.

4. Component Description

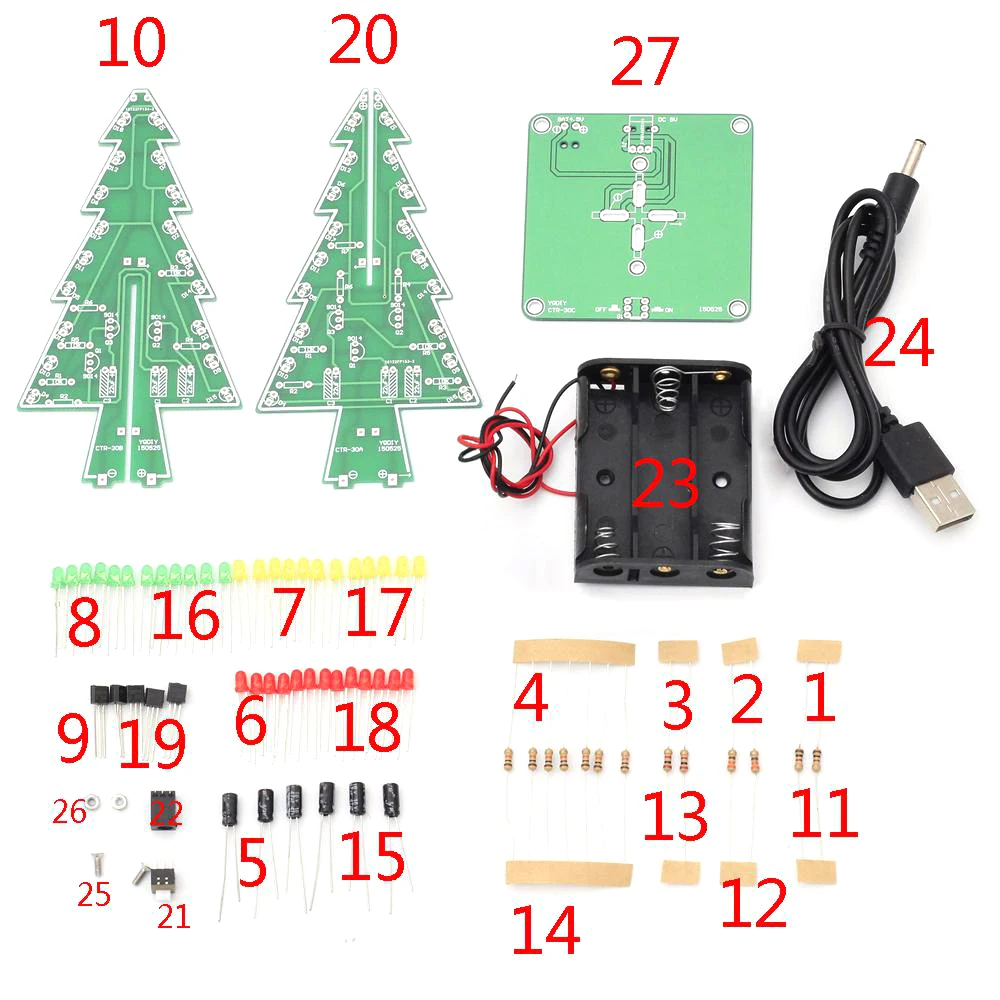

1>. 1pc 330ohm Metal Film Resistor

2>. 1pc 1K Metal Film Resistor

3>. 1pc 2K Metal Film Resistor

4>. 4pcs 10K Metal Film Resistor

5>. 3pcs 47uF 16V Electrolytic Capacitor

6>. 7pcs 3mm Red LED

7>. 6pcs 3mm Yellow LED

8>. 6pcs 3mm Green LED

9>. 3pcs S9014 Transistor

10>. 1pc PCB CTR-30A

11>. 1pc 330ohm Metal Film Resistor

12>. 1pc 1K Metal Film Resistor

13>. 1pc 2K Metal Film Resistor

14>. 3pcs 10K Metal Film Resistor

15>. 3pcs 47uF 16V Electrolytic Capacitor

16>. 6pcs 3mm Green LED

17>. 6pcs 3mm Yellow LED

18>. 6pcs 3mm Red LED

19>. 3pcs S9014 Transistor

20>. 1pc PCB CTR-30B

21>. 1pc Self-Locking Switch

22>. 1pc 3.5mm DC Power Socket

23>. 1pc AA*3 Battery Box

24>. 1pc USB to DC 3.5mm Cable

25>. 2pcs Screw M2*8mm

26>. 2pcs Nut M2

27>. 1pc PCB CTR-30C
