Monday Kids 5-12V DIY Kits 555 Pulse Width Modulation Speed Regulator Controller Suite Electronic Production Skills Training Parts
$1.51
Availability:
In stock
SKU
EK325
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Supply Voltage: 5-12V
- Model Number: Speed Regulator Suite
- Condition: New
- Type: Logic ICs
- Operating Temperature: -30-85 celsius
- Dissipation Power: none
- is_customized: Yes
- Application: Speed Regulator Suite
NOTE : we have documents of most of products in our store If you need it , contact us :) | |
|
1.Packing List:
555 pulse width control controller kit, electronic assembly kit, can be used for school electronic production training, electronic enthusiasts assembly use.
Principle: D1 is used to prevent the power supply from reversing the NE555, D2, C1, R1, R2, W1, IC1 pulse width adjustable pulse generator, adjust the potentiometer W1 U1 NE555 output pulse frequency and pulse width change The The output pulse is driven by R3, R4, R5, Q1, Q2 to adjust the speed of the motor. D3, C5 to eliminate the motor generated by the back electromotive force to protect the transistor. C2, C4 for power supply filtering, C3 for the stability of the reference voltage to eliminate interference.

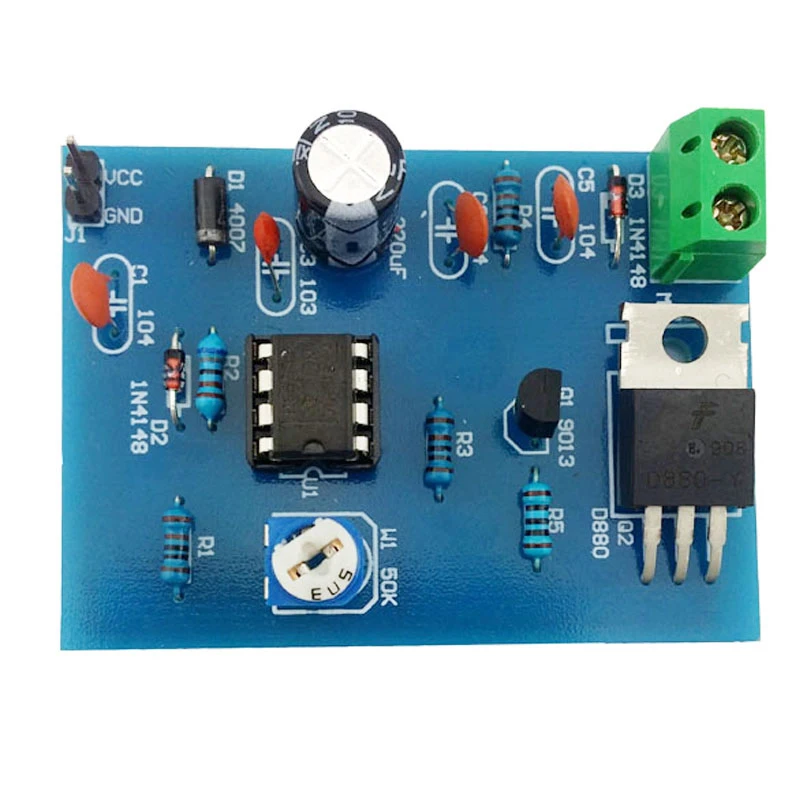

2.Finished Product Picture:
- Unit Type: piece
- Package Weight: 0.022kg (0.05lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
