Monday Kids DIY Kit RGB Flash LED Circuit Kit Colorful 3D Christmas Trees Kit MP3 Music Box with Shell Christmas Gift Electronic Fun Suite
$21.50
Availability:
In stock
SKU
EK322
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Supply Voltage: DC 4.5V-5V
- Operating Temperature: none
- Model Number: Christmas tree music DIY suite
- Condition: New
- Type: Logic ICs
- Dissipation Power: none
- is_customized: Yes
- Application: Decor
- Power supply mode: 3S AA battery, mobile phone charger, computer, mobile power
- Circuit board material: double sided 1.6mm RF-4 PCB

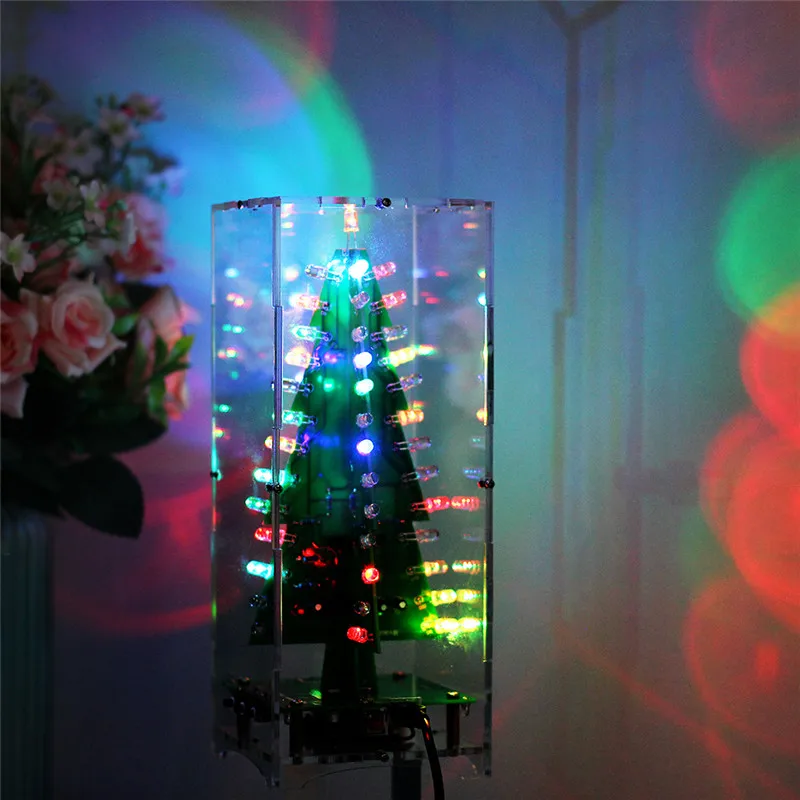

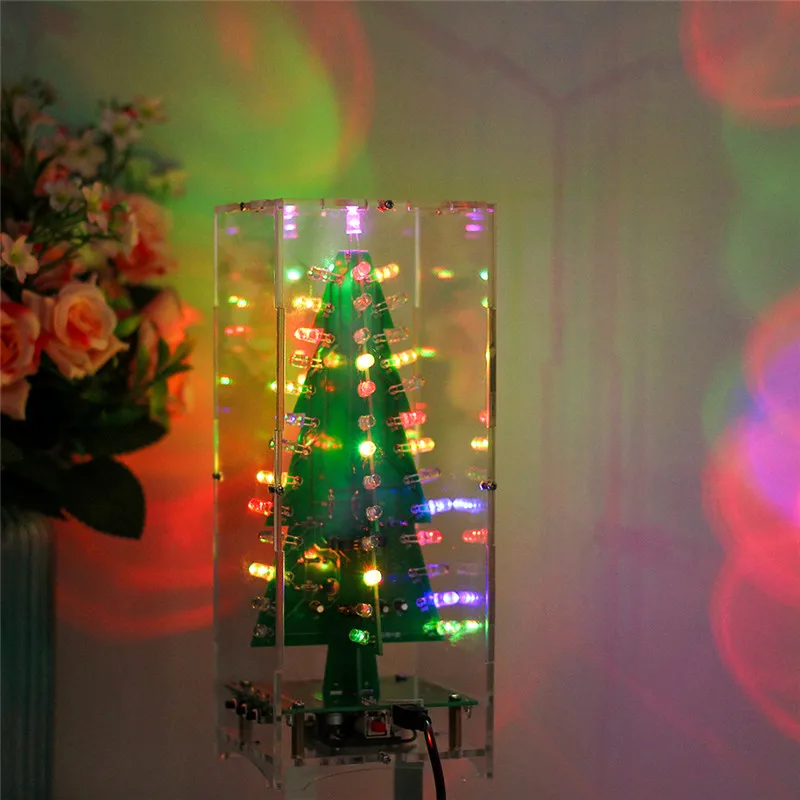

1. Introduction

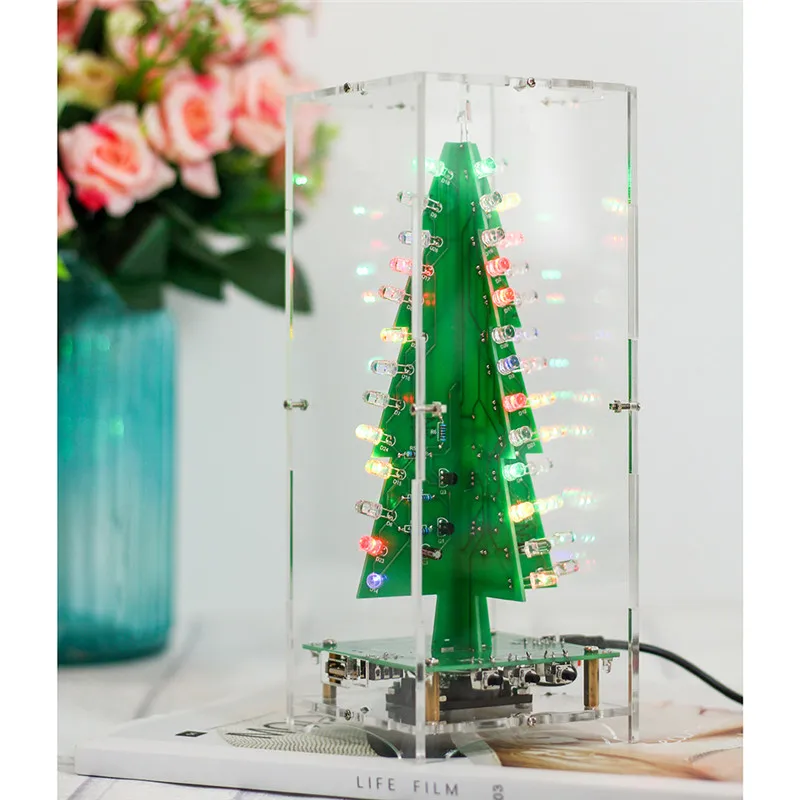

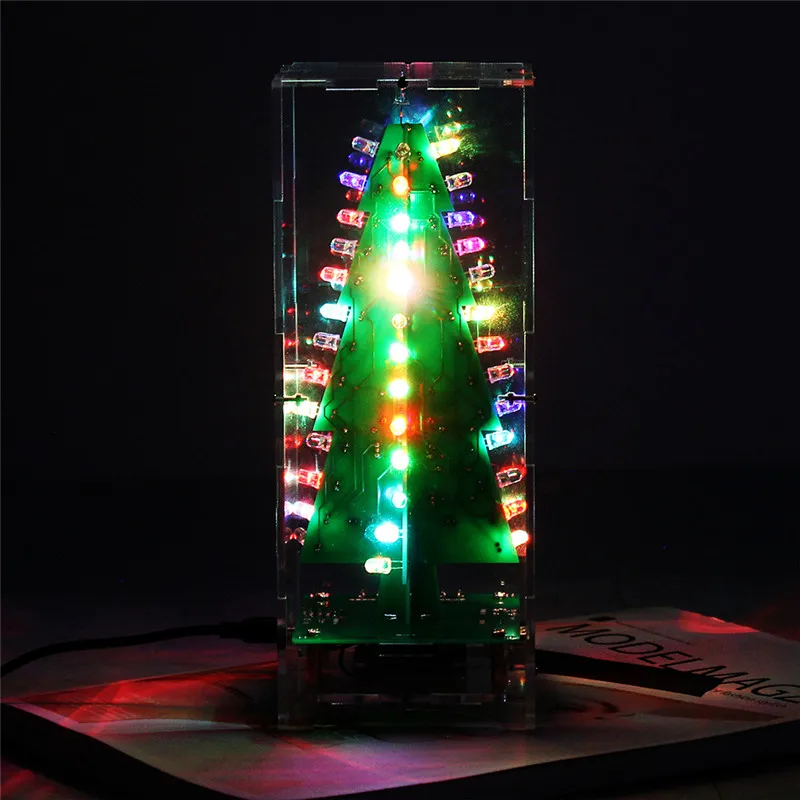

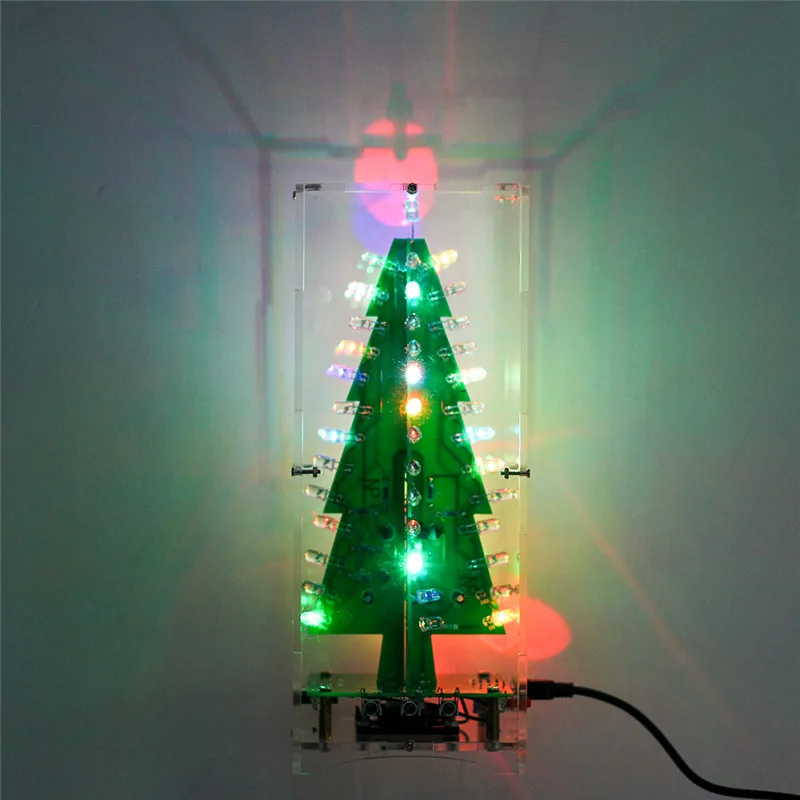

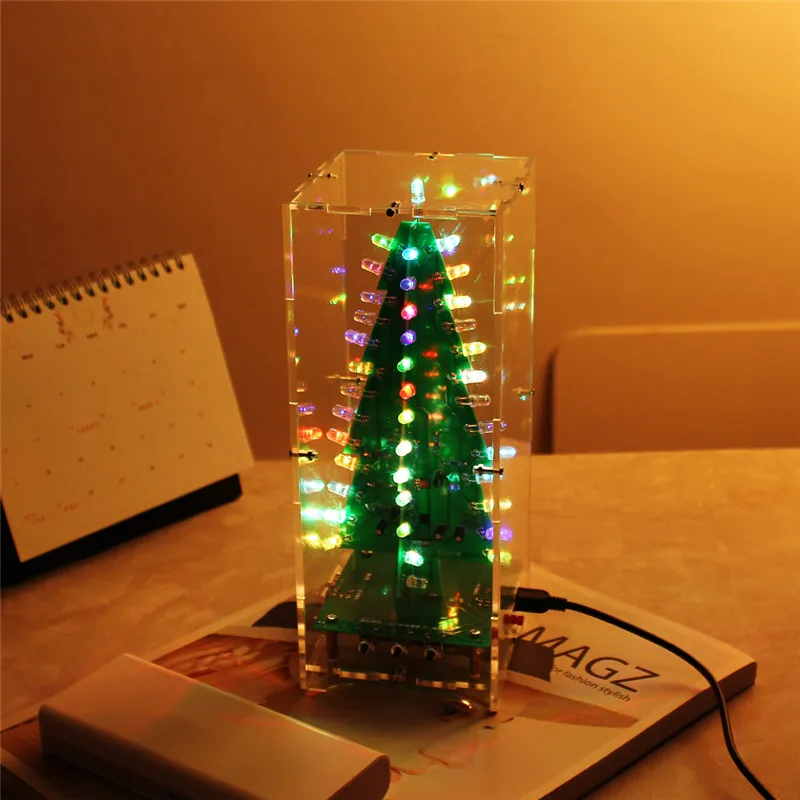

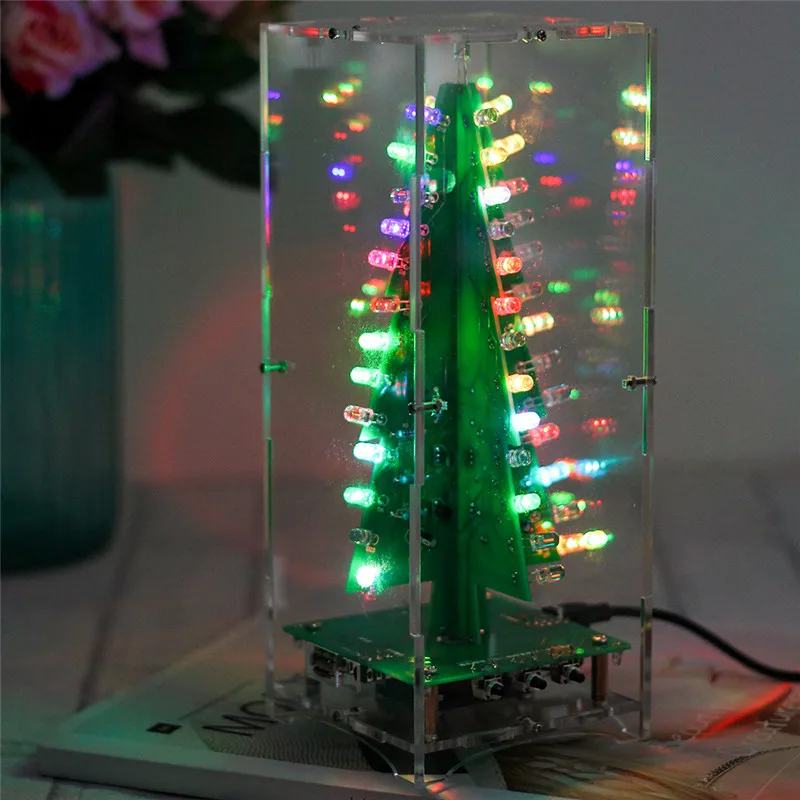

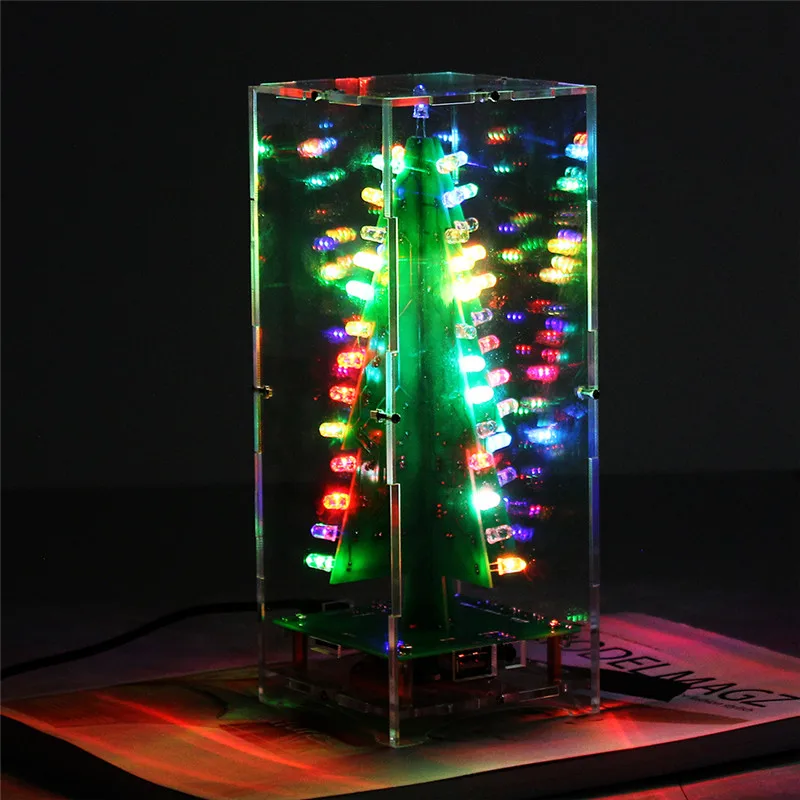

Flash Christmas tree kit consists of three circuit board, allows 55pcs LED flash alternately,showing a Christmas tree in the space of three-dimensional profile (the night environment has better viewing). And flash with music.
2. Parameter
|
3. Function
1>. Automatically flashing after power on;
2>. Support MP3 format music;
3>. Support TF card;
4>. Support U disk;
5>. Built-in 2W amplifier function;
6>. Comes with 4ohm 3W speaker;
7>. Support music output;
8>. Support volume adjustment;
9>. Support voice control: Previous,Next,Start/Pause.

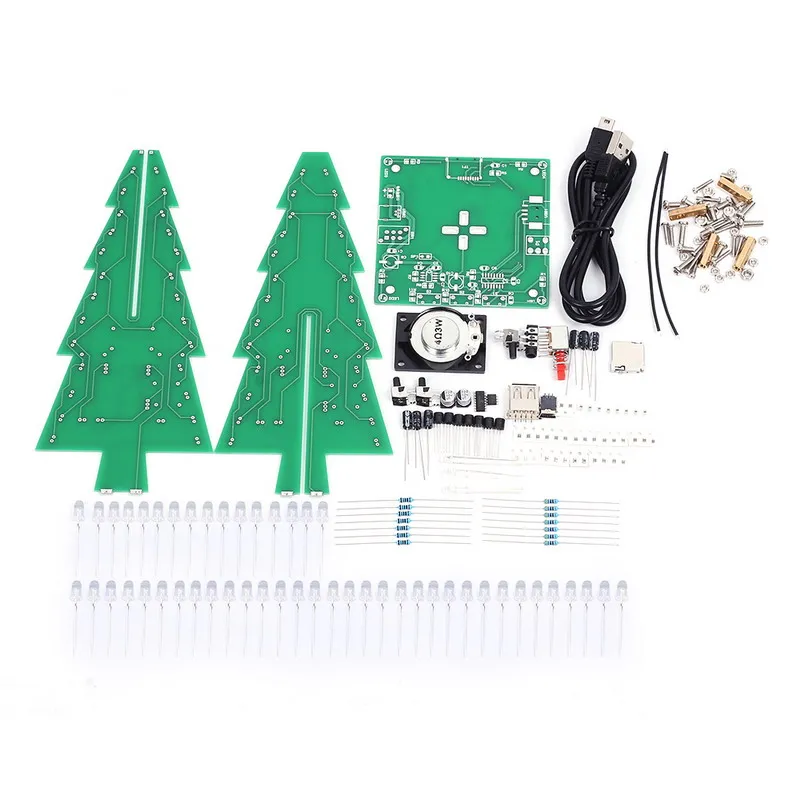

4. Component listing

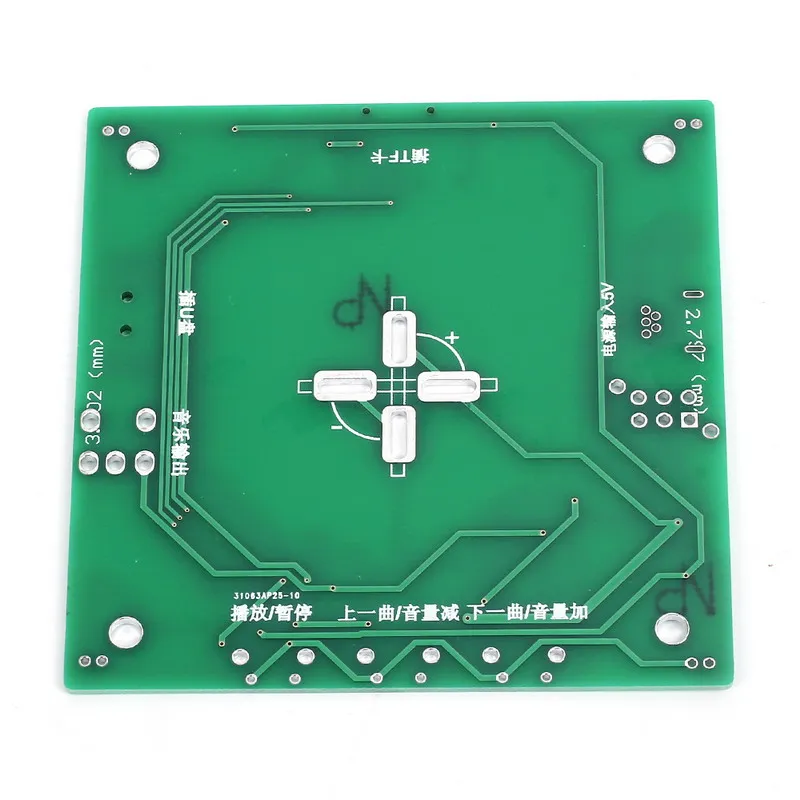

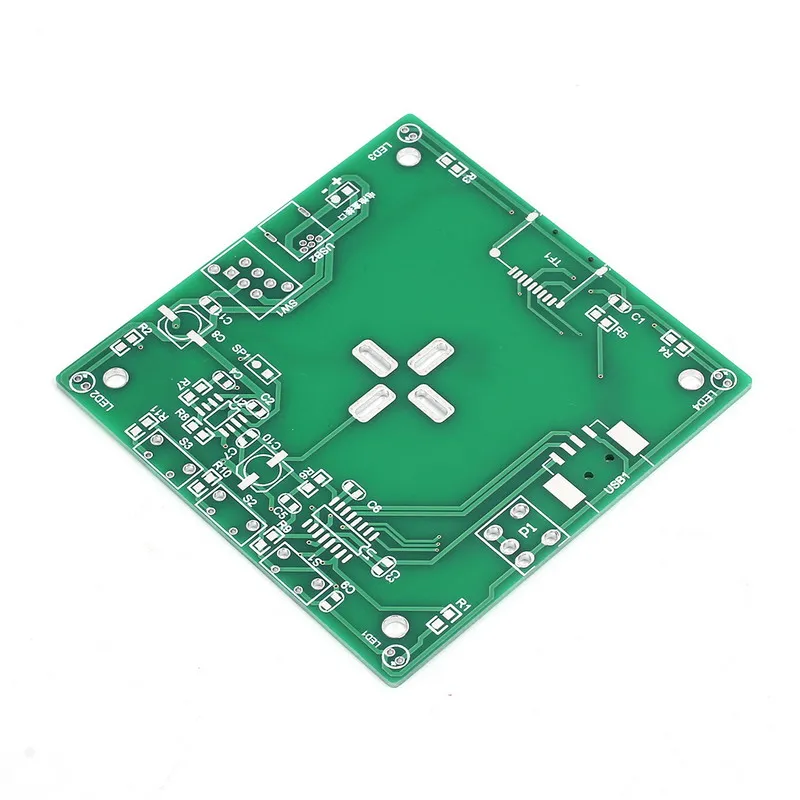

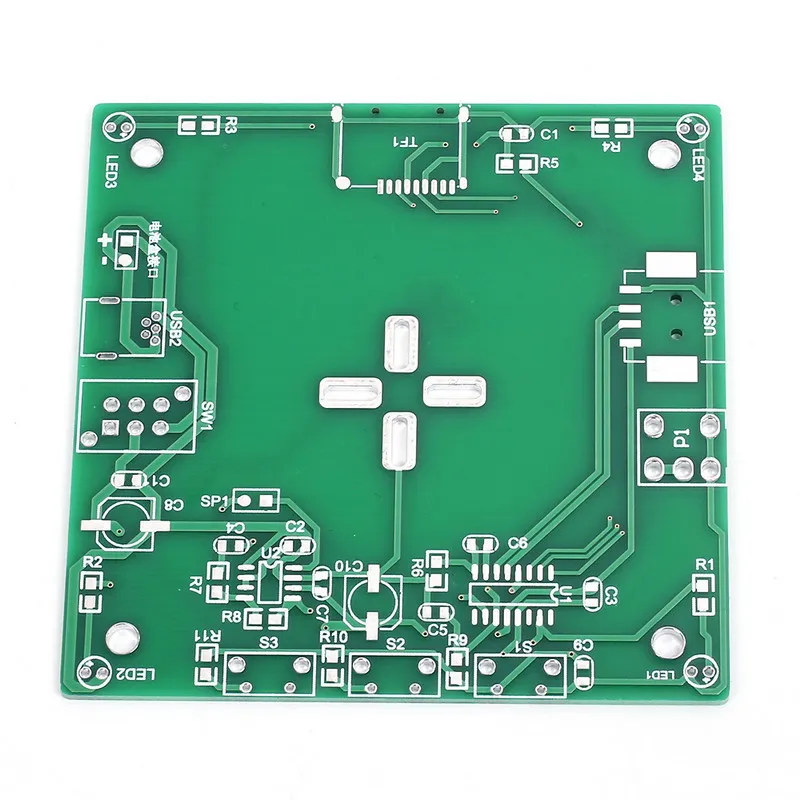

NO. | Component Name | PCB Marker | Parameter | QTY |
PCB-A&PCB-B | ||||
1 | Metal Film Resistor | A/B:R2,R4,R6 | 100ohm | 6 |
2 | Metal Film Resistor | A/B:R1,R3,R5 | 4.7K | 6 |
3 | S9014 Transistor | A/B:Q1-Q3 | TO-92 | 6 |
4 | Electrolytic Capacitor | A/B:C1-C3 | 47uF 16V | 6 |
5 | RGB LED | A:D1-D27;BD1-26 | 5mm | 53 |
6 | PCB | PCB-A&PCB-B | 2 | |
PCB-C | ||||
7 | 0805 SMD Capacitor | C1-C3,C5-C7 | 1uf 105 | 6 |
8 | 0805 SMD Capacitor | C4,C11 | 0.1uf 104 | 2 |
9 | 0805 SMD Capacitor | C9 | 100pf | 1 |
10 | 0805 SMD Capacitor | C1-C3 | 47uF 16V | 3 |
11 | 0805 SMD Resistor | R1-R4 | 1K | 4 |
12 | 0805 SMD Resistor | R5 | 4.7R | 1 |
13 | 0805 SMD Resistor | R6 | 0R | 1 |
14 | 0805 SMD Resistor | R7 | 20K | 1 |
15 | 0805 SMD Resistor | R8 | 47K | 1 |
16 | 0805 SMD Resistor | R9 | 22K | 1 |
17 | 0805 SMD Resistor | R10 | 33K | 1 |
18 | 0805 SMD Resistor | R11 | 51K | 1 |
19 | IC | U1 | SOP-16 | 1 |
20 | MD8002B | U2 | SOP-8 | 1 |
21 | TF Card Socket | TF | SMD | 1 |
22 | Standard USB Female Socket | USB1 | 1 | |
23 | MINI USB Female Socket | USB2 | 1 | |
24 | SMD Electrolytic Capacitor | C8,C10 | 220uF 16V | 2 |
25 | Switch | S1-S3 | 6*6*10mm | 3 |
26 | LED | LED1-LED4 | 3mm | 4 |
27 | Audio Socket | P1 | 1 | |
28 | Self-locking Switch | SW1 | 1 | |
29 | PCB-C | 1 | ||
30 | Speaker | SP1 | 3W 4ohm | 1 |
31 | Cable | SP1 | 10cm | 2 |
32 | MINI USB Cable | 80mm | 1 | |
33 | Copper pillars | M3*12mm | 4 | |
34 | M3 Screw | M3*5mm | 8 | |
35 | M3 Screw | M3*9mm | 4 | |
36 | M3 Nut | 4 | ||
37 | M2 Screw | M2*10mm | 12 | |
38 | M2 Nut | 12 | ||

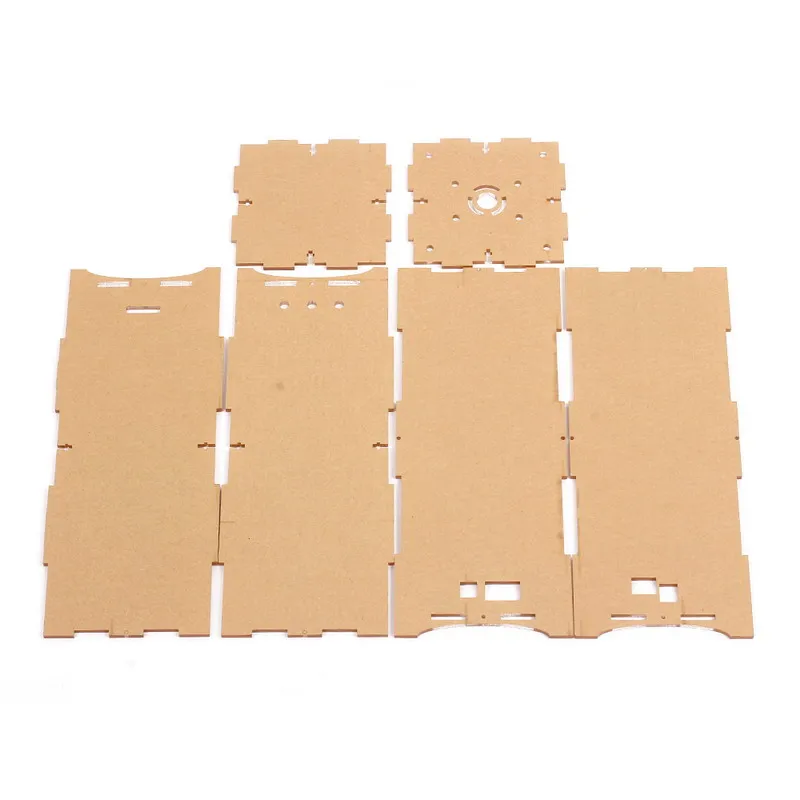

39 | Acrylic shell | 6 |
NOTE:Users can complete the installation by PCB silk screen and component listing
5. Basic instruction
1>. MINI USB:Power interface(It is recommended to use USB power supply);
2>. Power interface 2:Another way of power supply,such as battery box(Not recommended);
3>. Self-locking Switch:Power Switch;
4>. Speaker:Connect to speaker.Note the direction;
5>. Standard USB:U disk interface;
6>. TF Socket:TF card interface;
7>. Audio Output:Output audio from U disk or TF card.It can connect to Other speakers;
8>. Music Indicator:LED will flash when playing music;
9>. Start/Pause:Start or pause playing music;
10>. Prev/Volume-:Short press to play previous music;Long press to decrease the volume;
11>. Next/Volume+:Short press to play next music;Long press to increase the volume;
6. Operating instruction
1>. Power on and switch on power.LED will automatically flash.
2>. Insert U disk or TF card within MP3 music and wait for a few seconds.
3>. Press Start button to play music.
4>. Switch music or adjust volume.
5>. Press Pause button to stop music.
6>. Switch OFF power;
7>. Unplug U disk or TF Card.
NOTE:Users can complete the installation by PCB silk screen and component listing
