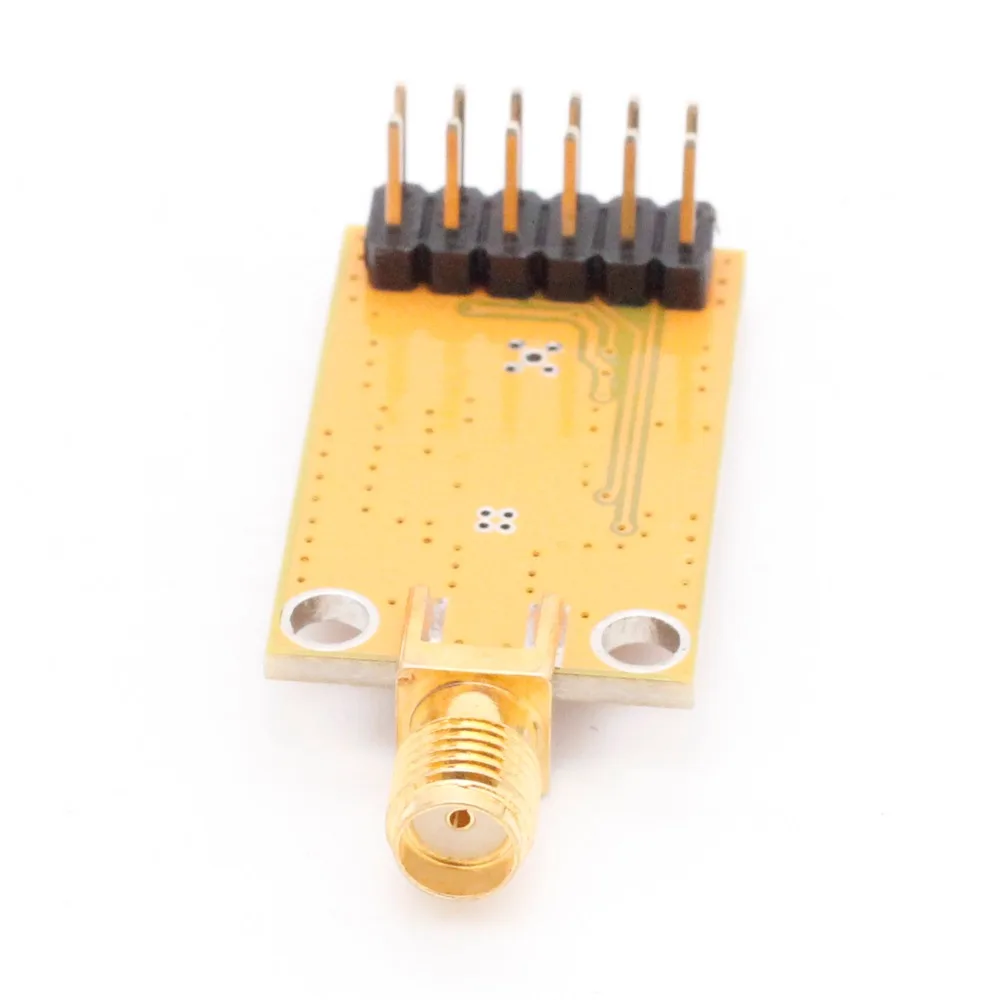

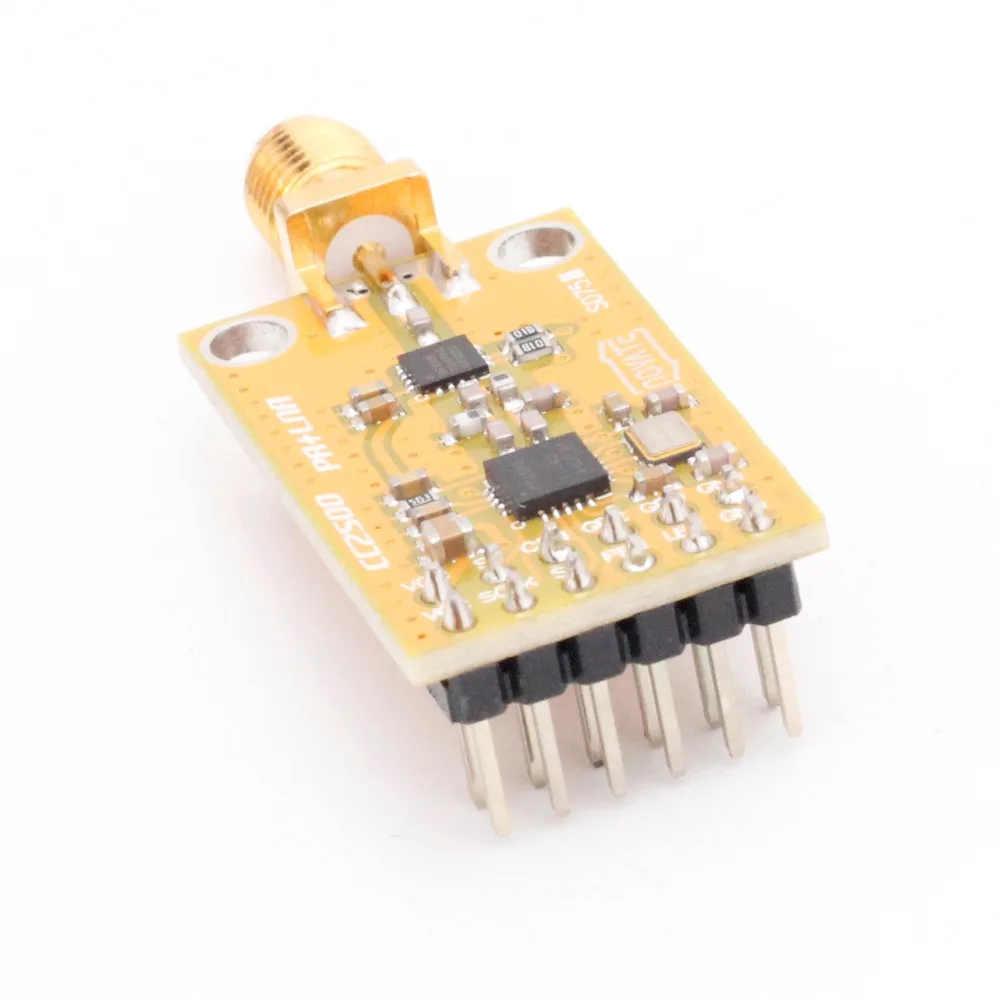

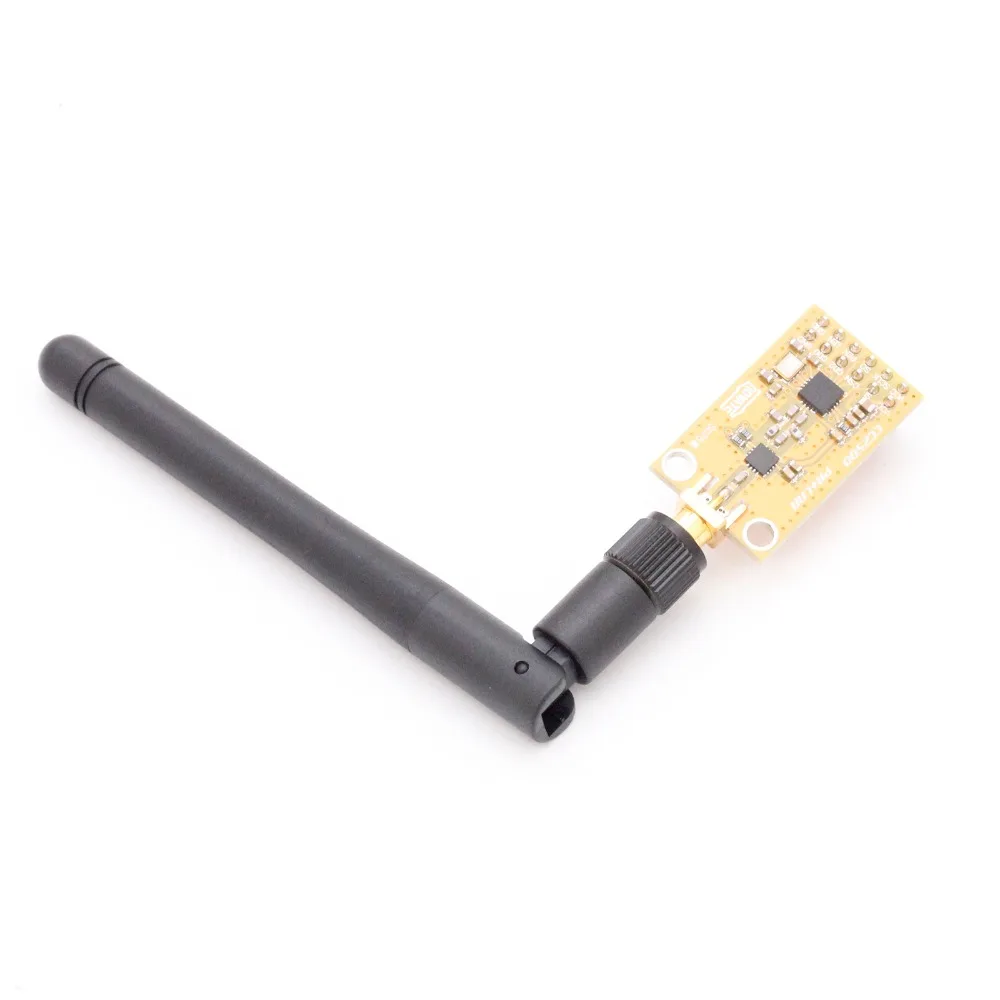

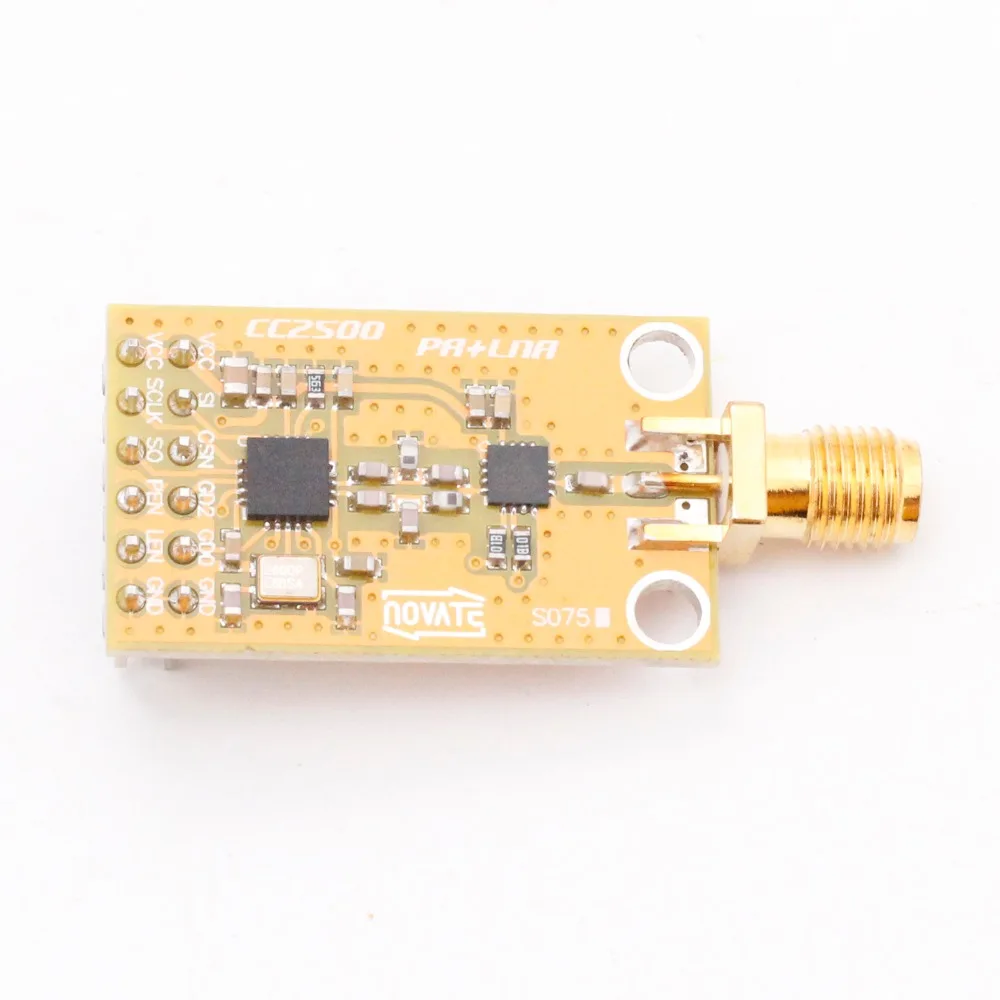

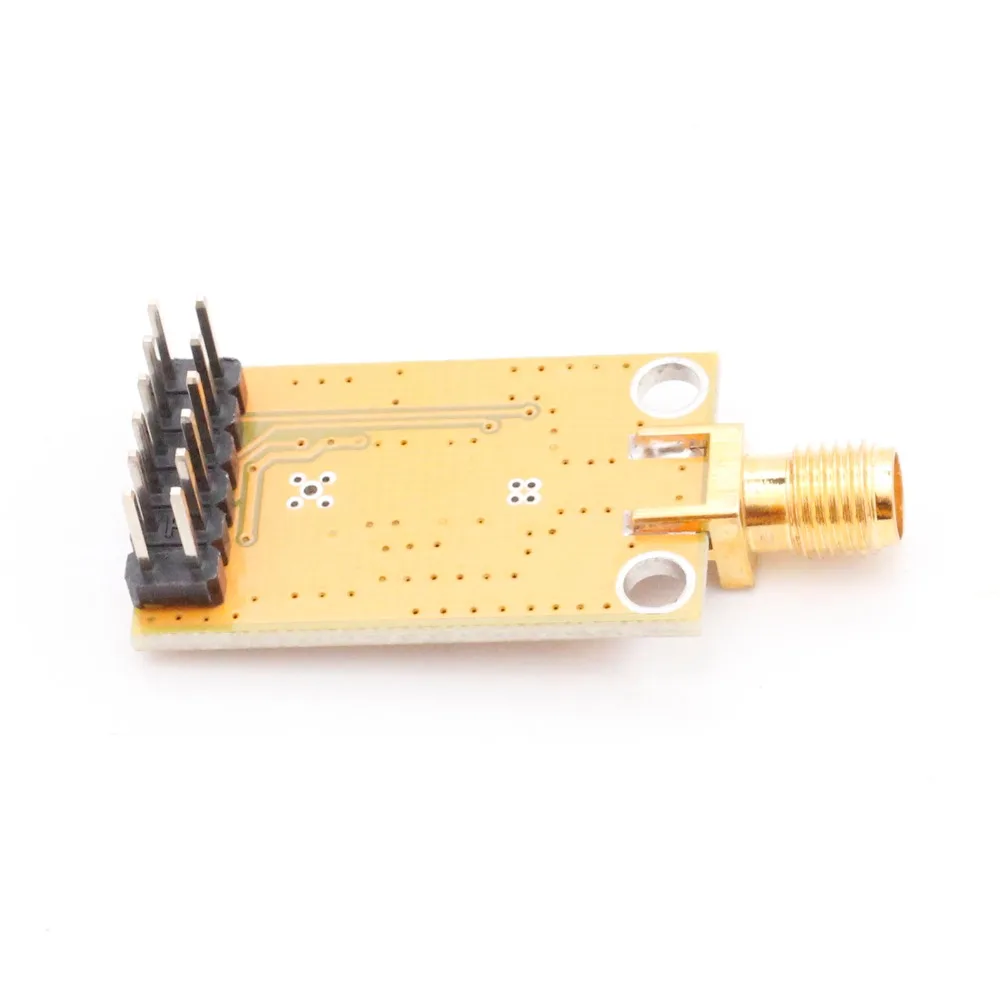

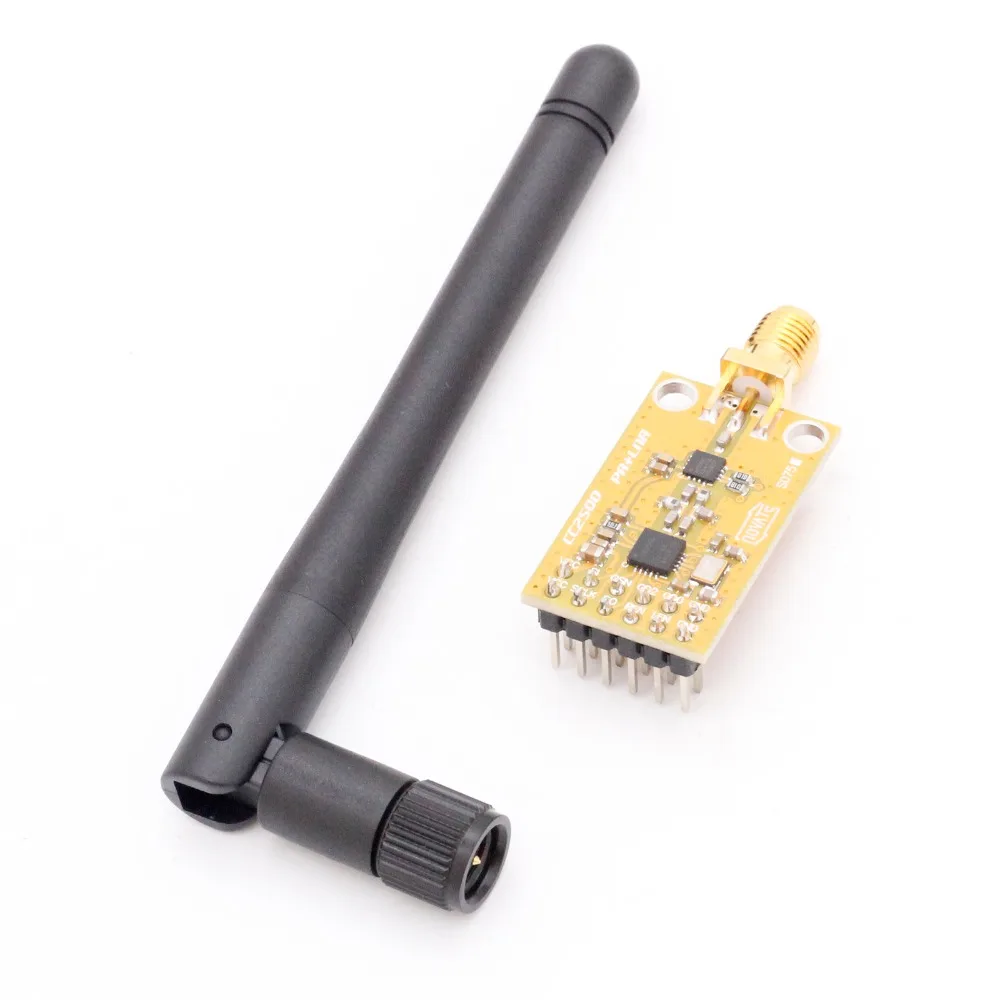

Monday Kids 1800 M Found Distance CC2500+PA+LNA 2.4G SPI 22dBm Wireless Data Transceiver Module CC2500 Module
$9.31
Availability:
In stock
SKU
EK362
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- Type: Logic ICs
- Operating Temperature: -40 ~ 85 celsius
- Dissipation Power: none
- is_customized: Yes
- Supply Voltage: 2.0V-3.6V DC
- Model Number: CC2500 Wireless Transceiver Module
- Application: Electronic Circuit
- Module size: 18*30mm
- Operating frequency: 2400-2483.5MHz
- Interface pins: 2*6*2.54mm
- Operating voltage: 2.0V-3.6VDC
- Name: wireless data transceiver
Parameters:
1. Module size: 18*30mm
2. Operating frequency: 2400-2483.5MHz
3. Interface pins: 2*6*2.54mm
4. Operating voltage: 2.0V-3.6VDC
5. Transmit power: 22dBm
6. Found Distance: 1800 m (max)
7. Air velocity: 1.2Kbps-500Kbps
8. Emission current: 150mA @ 22dBm
9. Receiving Current: 25mA
10. Working temperature: -40 ~ 85 Degree
11. Humidity: 10% to 90%
12. Storage temperature: -40 ~ 125 Degree
- Unit Type: piece
- Package Weight: 0.03kg (0.07lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
