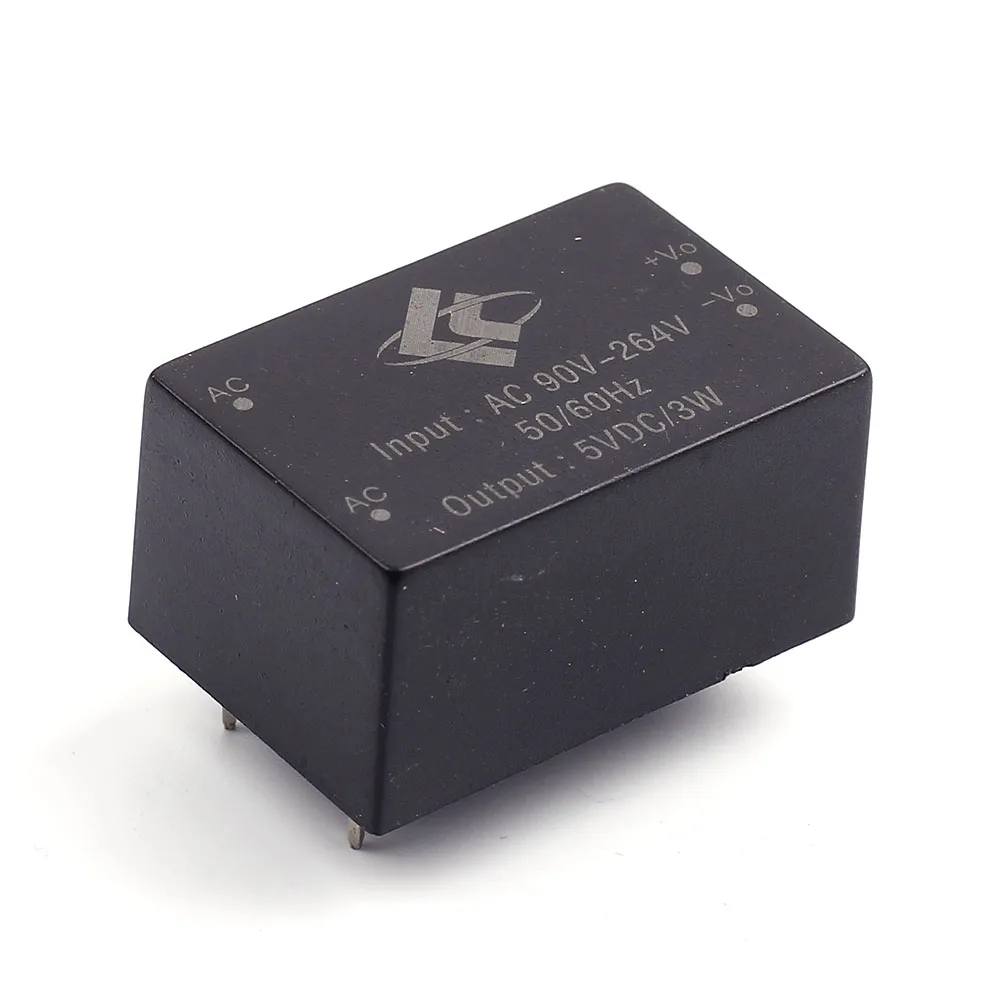

Monday Kids AC-DC Isolated Power AC 220V to 5V 600mA 3W Switch Power Supply Module Switch Step Down Buck Power Module

1.Description:

Isolating the switching power supply, isolating the input and output, reducing the mutual influence and providing a safer output.

2.Features:

1>.Support over-voltage protection;

2>.Support over-current protection;

3>.Support over-temperature protection;

4>.Support short circuit protection;

5>.Isolated output;

6>.Dust-proof;

7>.Moisture proof;

8>.Shockproof;

9>.Flame retardant;

10>.Small size;

11>.High efficiency;

12>.High performance;

13>.Multiple protection;

14>.Stable.

3.Parameters:

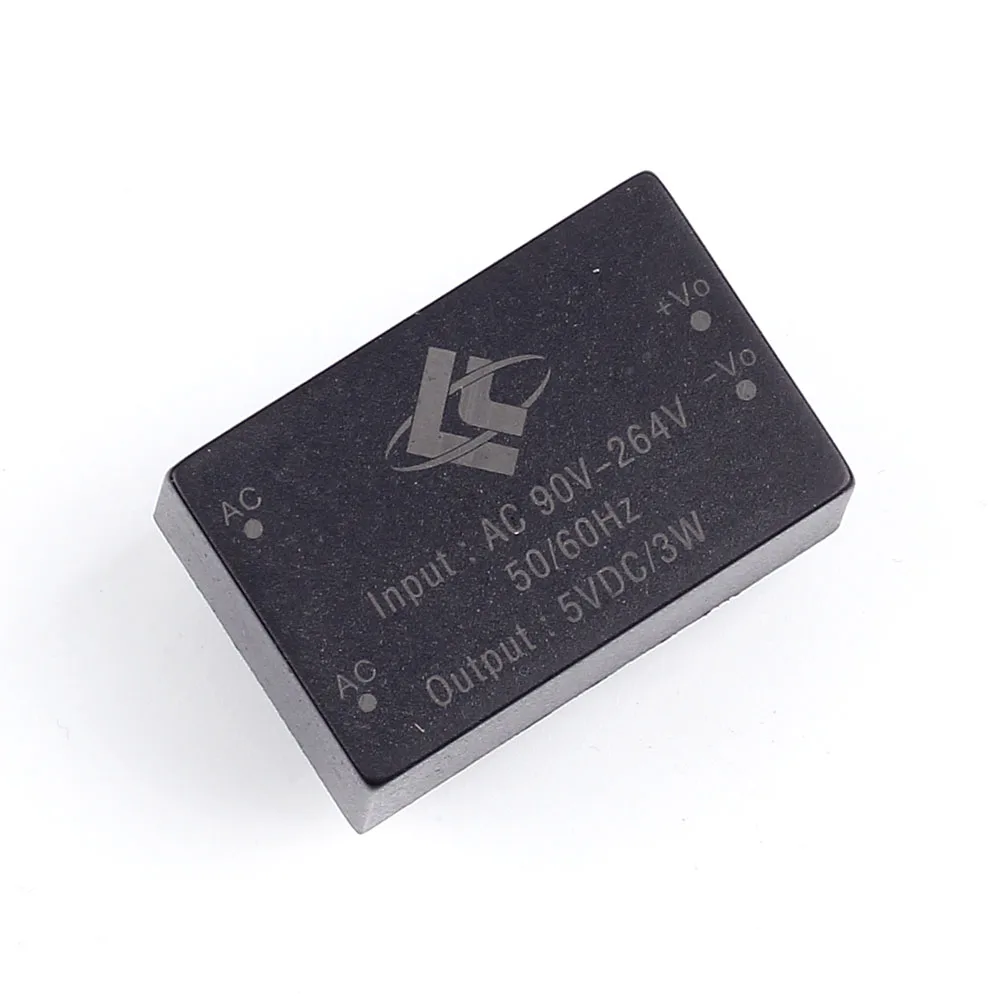

1>.Input voltage: AC 90~264V;

2>.Output voltage: DC 4.8V~5.1V(Typical value 5V);

3>.Output power:3W(max);

4>.Color:Black;

5>.Service life:300000 hours;

6>.Operating Temperature:-20℃~70℃;

7>.Operating Humidity:5%-90%RH;

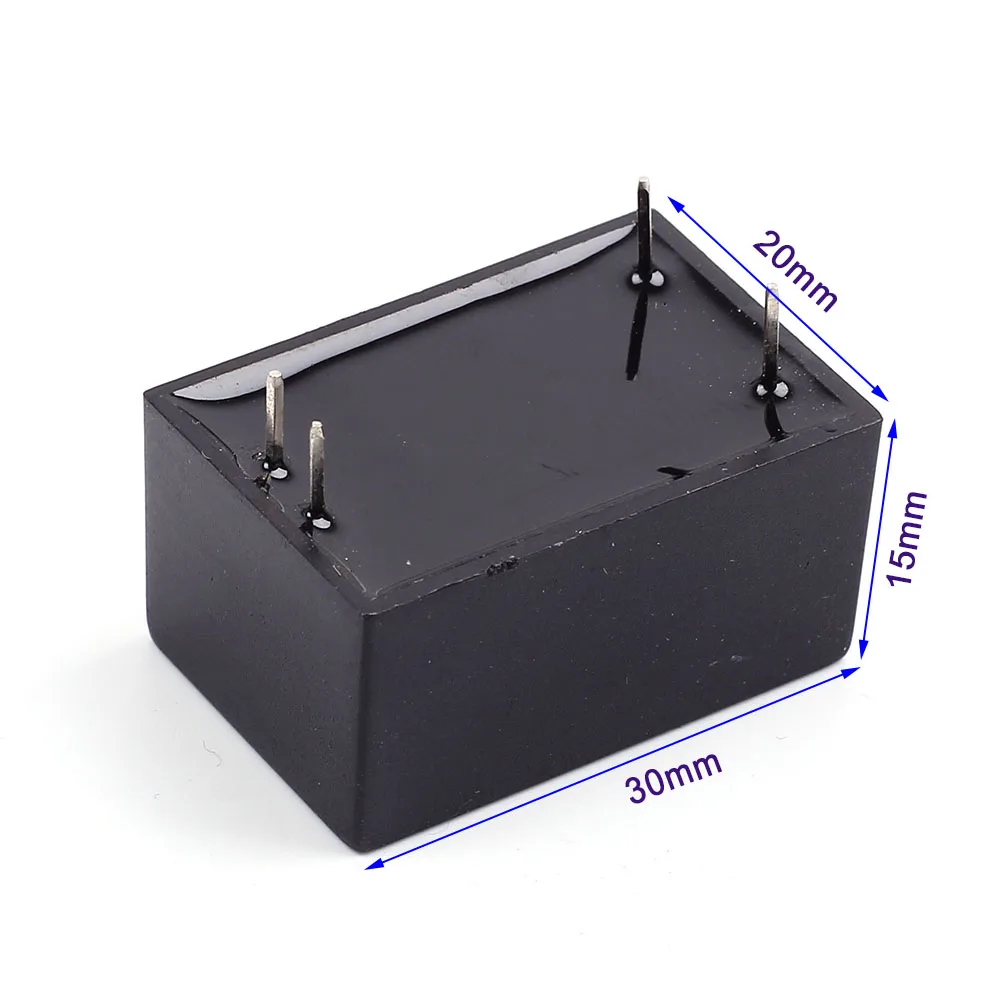

8>.Size:30*20*15mm;

4.Function:

1>.Converter AC to DC;

2>.Converter high voltage to low voltage.

5.Use Steps:

1>.Step 1:Connect load at two output terminal;

2>.Step 2:Connect input power supply at two input terminal.

Note: Please pay attention to operation safety when use high voltage!

6.Application:

1>.Ordinary power supply;

2>.Battery charger;

3>.LED drive power;

4>.Instrument voltage display;

5>.Test meter;

6>.Circuit test;

7>.Power conversion.

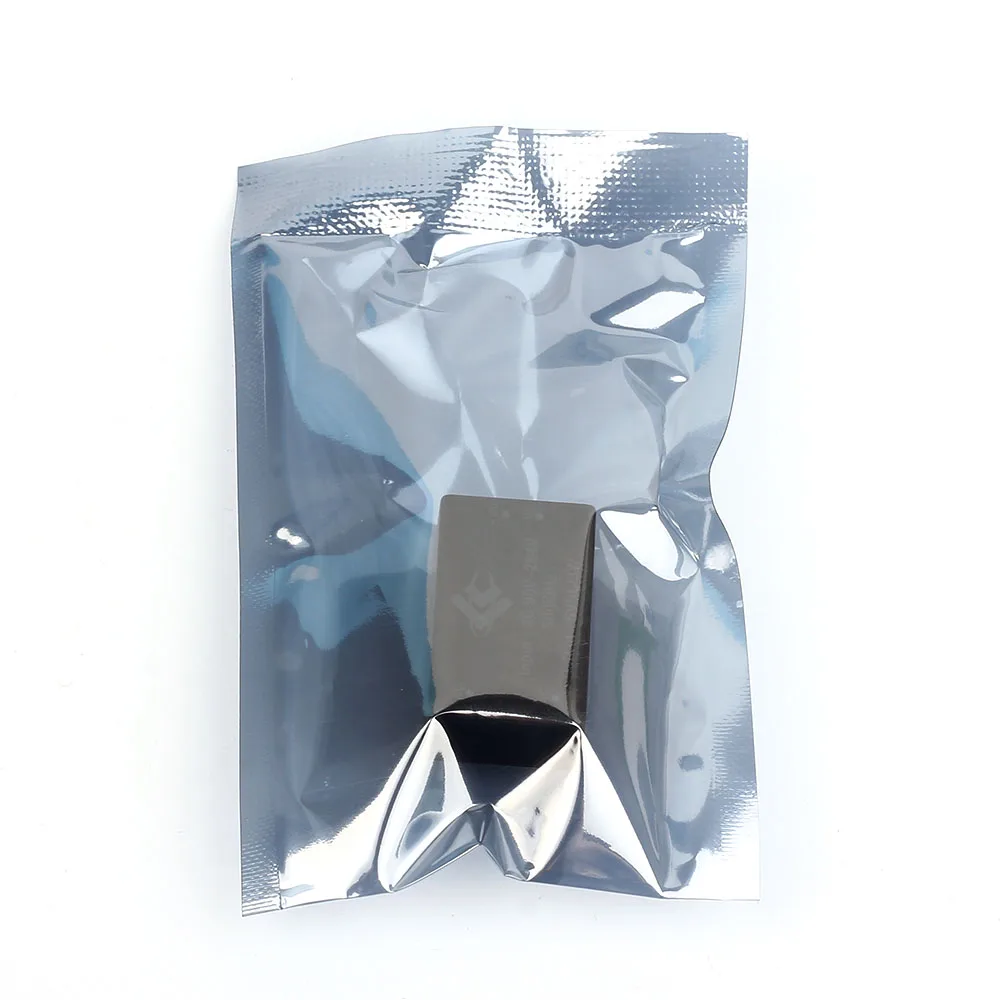

7.Package:

1>.1pcs AC-DC Isolation Power Supply;
