Monday Kids DC-DC 7-28V To 5V Step Down Power Supply Module Buck Converter 3A Long High-current 5V Fixed Output Module

$1.57
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Condition: New
  • Type: Logic ICs
  • Operating Temperature: -40~85 Celsius
  • Model Number: Step Down Module
  • Supply Voltage: DC 7-28V
  • is_customized: Yes
  • Application: Step Down Module
  • Output Current: 3000mA max
  • Output Voltage: Fixed DC 5V
  • Full Load Output Ripple Vpp: <50mV
  • No Load Current: 0.5mA
  • Relative Humidity: 20-90%

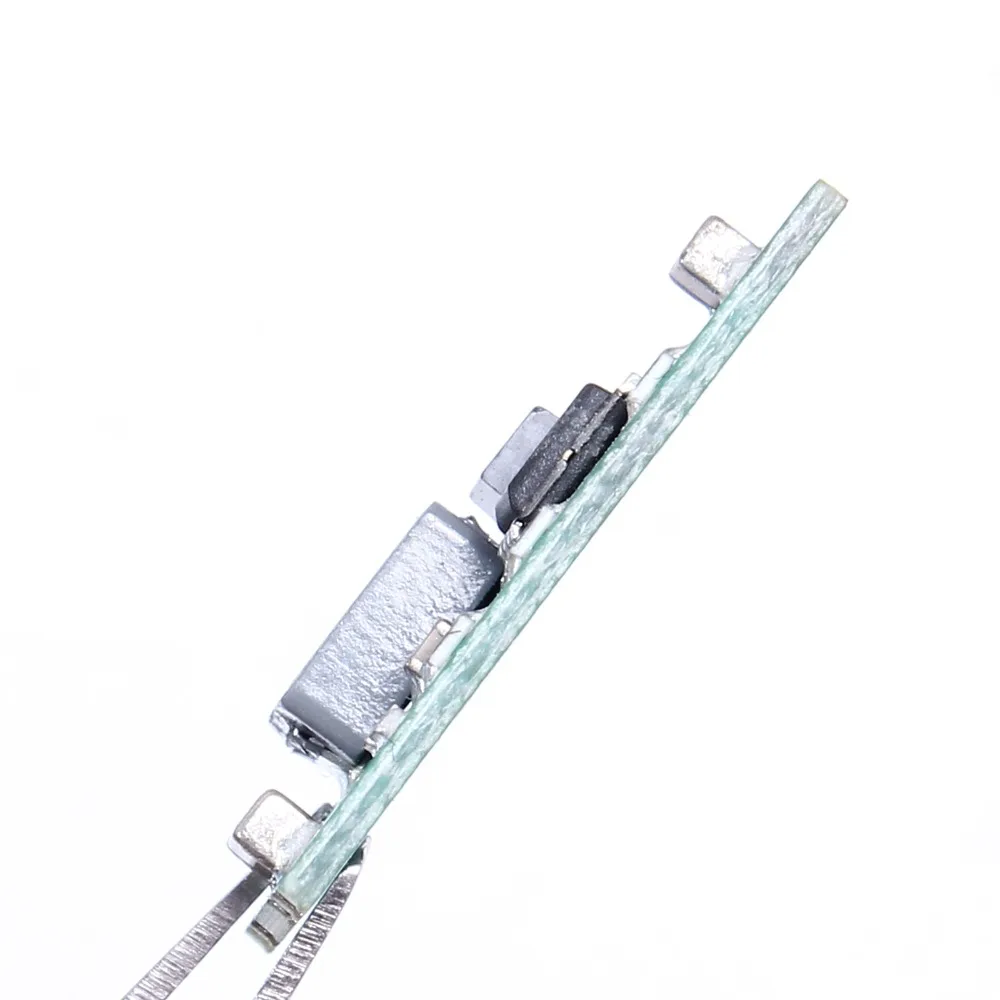

  • Module Size: 16.5*22*4mm
  • Installation Type: SMD or 2.54 pin plug-in

Product Introduction:


1.Input Voltage Range:DC 7-28V
2.Output Voltage:fixed DC 5V
3.Output Current:3000mA max
4.Conversion Efficiency:92%
5.Full Load Output Ripple Vpp:<50mV
6.Output Precision:+/-0.1V
7.No Load Current:0.5mA
8.Power Off Current:cannot
9.Heat Dissipation Type:natural cooling
10.Operating Temperature:-40 Celsius -+85 Celsius
11.Storage Temperature:-40 Celsius -+125 Celsius
12.Relative Humidity:20-90%
13.Module Size:16.5*22*4mm
14.PCB:double side
15.Installation Type:SMD or 2.54 pin plug-in
16.Isolation:no

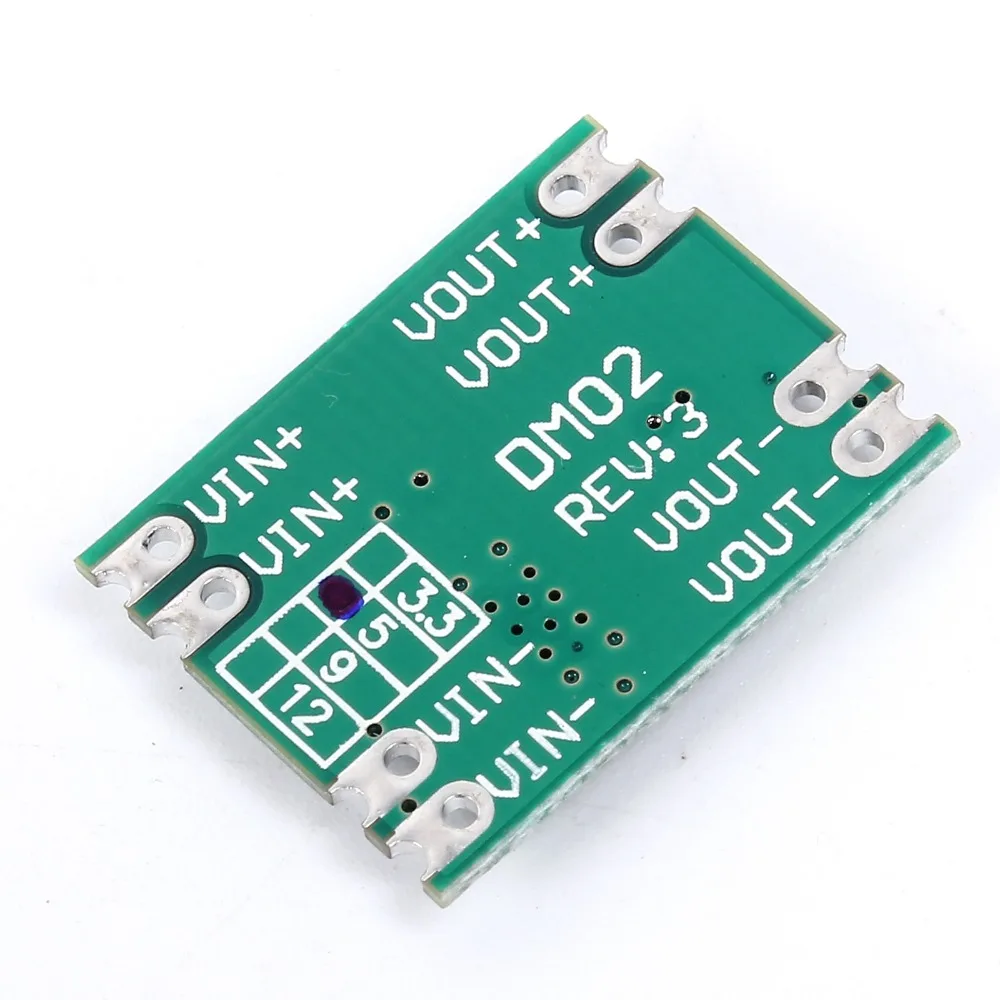

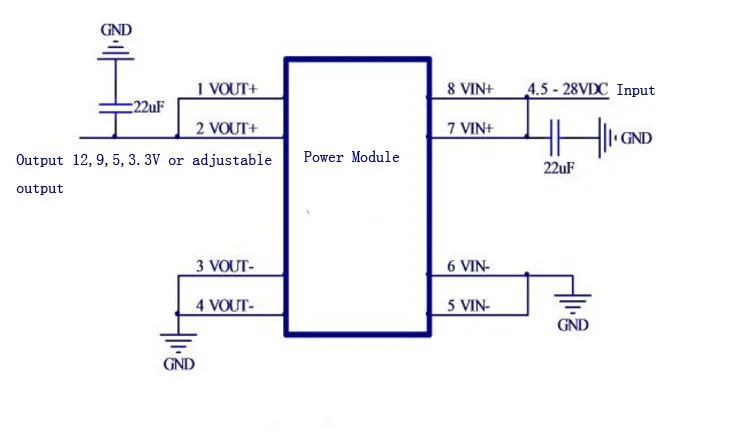

Pin Definition:


1,2:VOUT+:output power positive,fixed 5V output
3,4:VOUT-:output power negative,connect with VIN-
5,6:VIN-:input power negative,connect with VOUT-
7,8:VIN+:input power positive,input range 7-28V(input voltage must be higher than output voltage,input voltage must be more than 5V)

  • Unit Type: piece
  • Package Weight: 0.013kg (0.03lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
