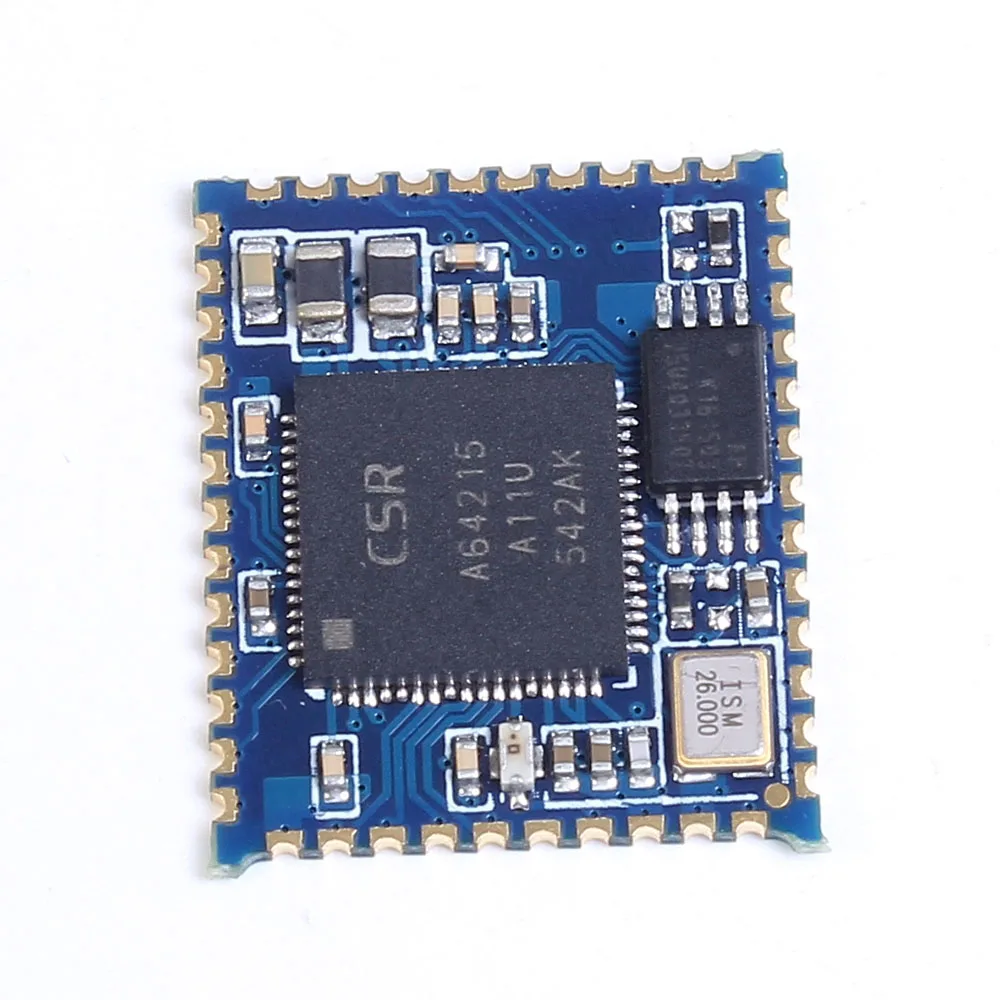

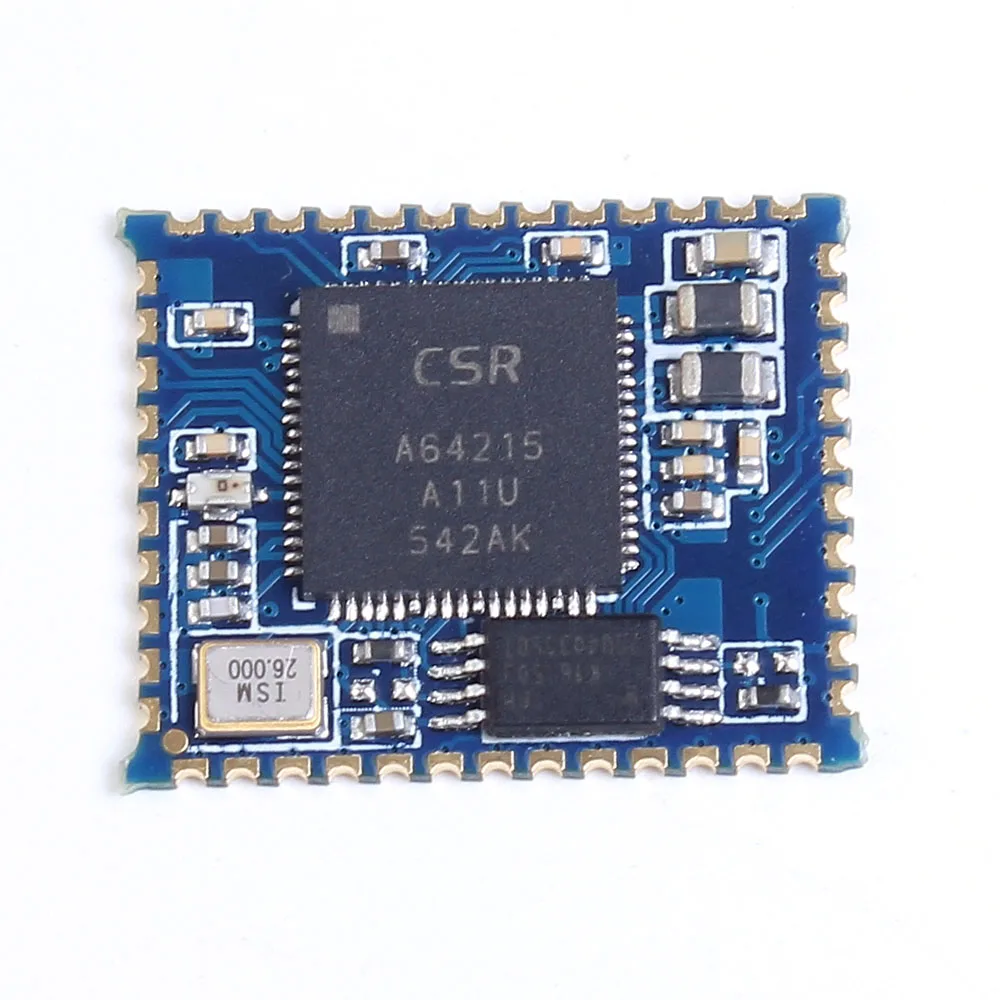

Monday Kids BTM625-B/CSRA64215 Stereo Bluetooth Audio Module 4.0/4.2 Bluetooth I2S/TWS For Industrial Control

$6.32
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Operating Temperature: 10~+70 Celsuis
  • Condition: New
  • Type: Logic ICs
  • Model Number: Bluetooth Audio Module
  • Supply Voltage: 2.8-4.2V
  • is_customized: Yes
  • Application: Bluetooth Audio Module
  • Bluetooth Standard: Bluetooth 4.2
  • Frequency Range: 2402~2480MHz

NOTE : we have documents of most of products in our store

If you need it , contact us :)

General Specifications:

1.Product Description:Bluetooth 4.2 Class2 Module

2.Bluetooth Standard:Bluetooth 4.2

3.Chipset:CSRA64215

4.Dimension:15*18*2.0mm

5.Operating Voltage:2.8-4.2V

6.Operating Temperature:-10 Celcius ~+70 Celcius

7.Storage Temperature:-40 Celcius ~+85 Celcius

8.Frequency Range:2402~2480MHz

9.Maximum RF Transmit Power:4dBm

10.DQPSK Receive Sensitivity:-92dBm

11.8DPSK Receive Sensitivity:-82dBm

Key Features:

1.Bluetooth Profiles

1)Bluetooth v4.2 specification support

2)A2DP v1.3

3)AVRCP v1.6

4)HFP v1.6

5)HSP v1.2

6)DI v1.3

2.Music Enhancements

1)aptX,aptX Low Latency,SBC and AAC

2)TrueWireless Stereo (TWS)

3)Configurable Signal Detection to trigger events

4)Up to 10 stages of Speaker Parametric EQ

5)Up to 6 banks of 5 stages of User Parametric EQ for music playback (user,rock,

pop, classical,jazz,etc)

6)MeloD Expansion 3D stereo widening and phase shifting effect

7)Volume Control

8)Compander to compress or expand the dynamic range of the audio

9)Post Mastering to improve DAC fidelity

10)Volume Boost

3.Additional Functionality

1)Support for multi-language programmable audio prompts

2)CSR's proximity pairing and CSR's proximity connection

3)Multipoint support for A2DP connection to 2 A2DP sources for music playback

4)Talk-time extension

5)Slim module with 28.5mm x 13mm x 2.0mm

Applications

1.Stereo Headsets

2.Wired Stereo headsets and headphones

3.Portable Bluetooth Stereo speakers

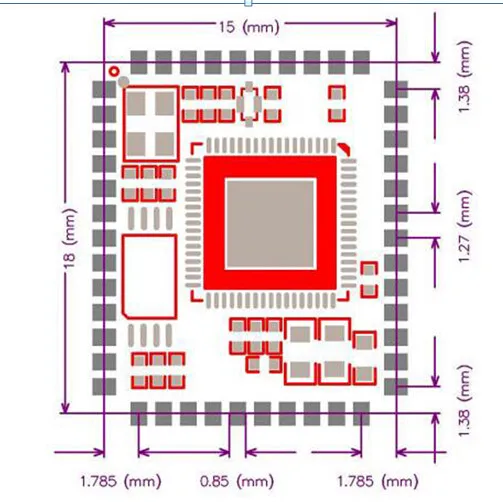

Size Picture:

Block Diagram:

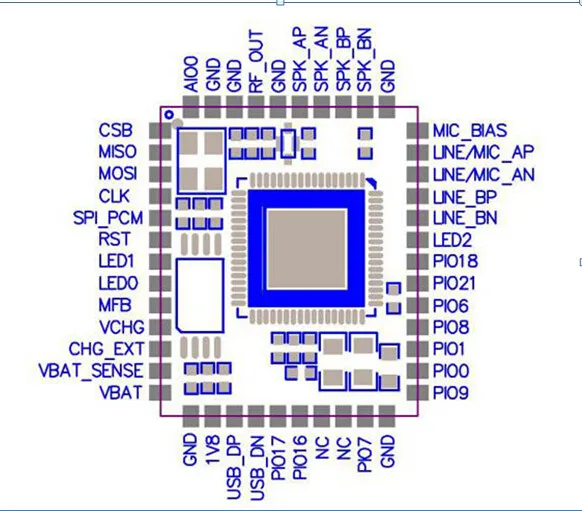

Pin Description:

  • Unit Type: piece
  • Package Weight: 0.012kg (0.03lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
