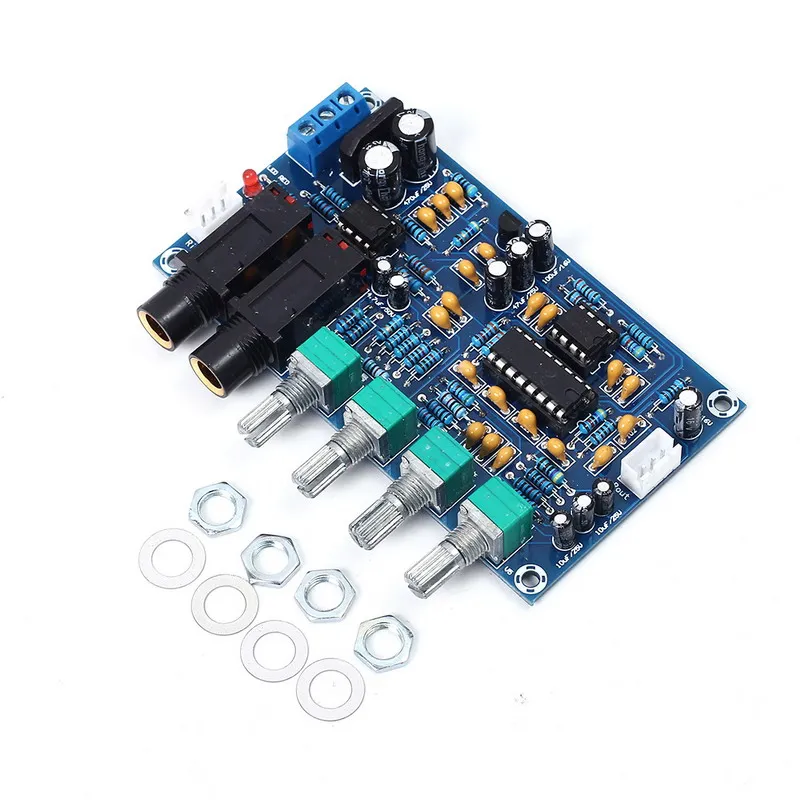

Monday Kids XH-M173 Microphone Amplifier Module PT2399 AC 12V Dual Power Supply Karaoke Reverberation Board

$7.99
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Application: Computer
  • Condition: New
  • Type: Logic ICs
  • Operating Temperature: none
  • Supply Voltage: none
  • Model Number: XH-M173
  • Dissipation Power: none
  • is_customized: Yes
  • Name : karaoke reverberation board
  • Output load : Post - level amplifier
  • Chip selection : dual power AC12V
  • Machine size : 100*57*17mm
  • Net weigh : 62g

1. Description:

This type of karaoke board adopts PT2399 chip, which plays the role of echo sound effects. PT2399 is a typical karaoke echo processing integrated circuit.It is widely used in CD, VCD, DVD, TV and karaoke machines.

The prime amplifier of the microphone used two classic dual-transport NE5532. It is used for audio signal amplification and effective processing. The board is with two-channel microphone input and audio hybrid technology.

You can enjoy the fun of karaoke.

2. Parameters:

No.

Parameter

Value

1

Model

XH-M173

2

Name

karaoke reverberation board

3

Output load

Post - level amplifier

4

Chip selection

dual power AC12V

5

Machine size

100*57*17mm

6

Net weigh

62g

3. Using attention:

1>. Power supply is with AC double 12V transformers.

2>. The audio output part of this board needs to be connected to the amplifier plate, not the stereo.

3>. As for the scream, now all of the k-song products, when the microphone is near the speakers, they will scream. So don't hold the microphone to the speakers.


  • Unit Type: piece
  • Package Weight: 0.14kg (0.31lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
