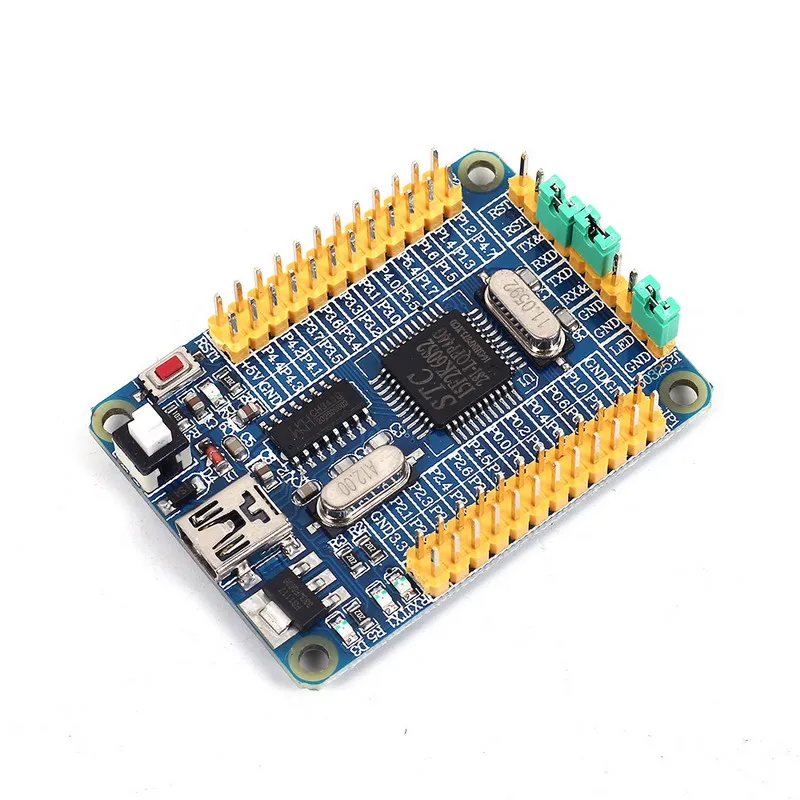

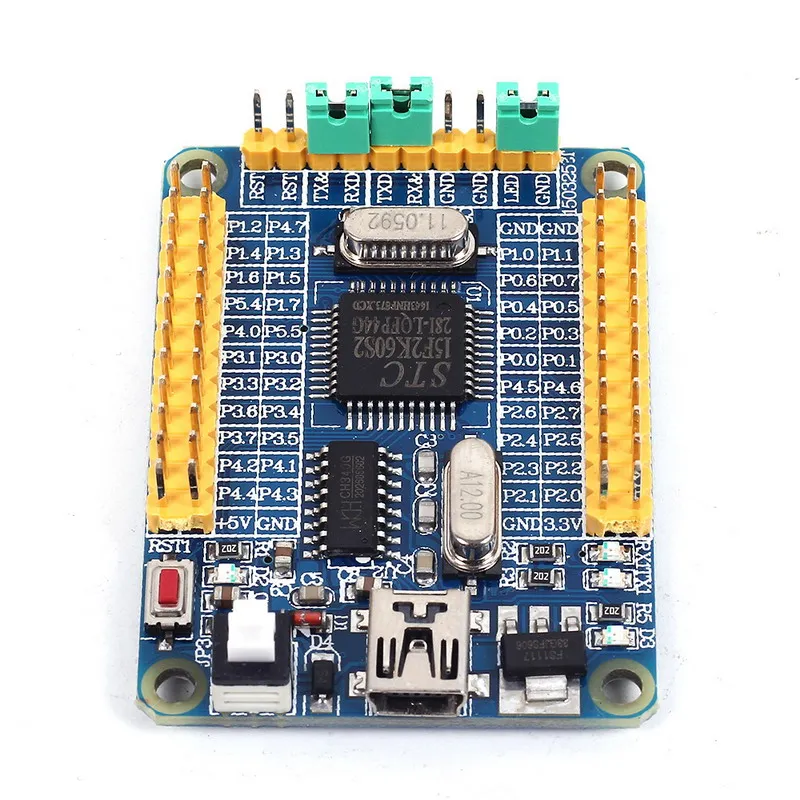

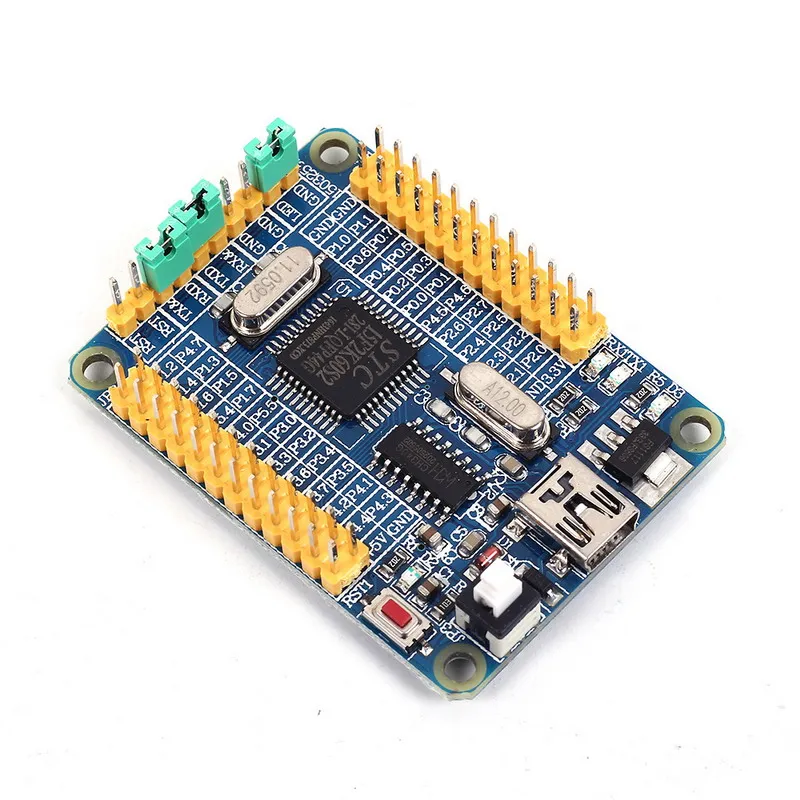

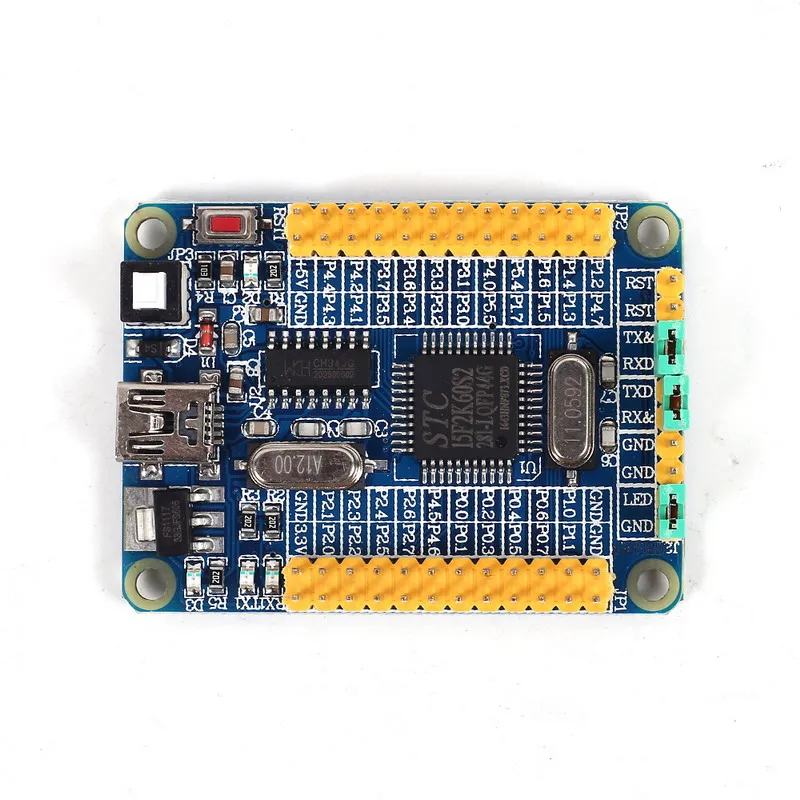

Monday Kids STC15F2K60S2 MCU System Board Development Board w/ CH340 3.3V or 5V External Power Supply Interface USB TTL Pin

Be the first to review this product

$4.99

Availability: In stock

SKU

EK629

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Application: Computer
Model Number: STC15F2K60S2
Condition: New
Type: Logic ICs
Operating Temperature: none
Dissipation Power: none
Supply Voltage: 3.3V or 5V external power supply interface
is_customized: Yes

Description:

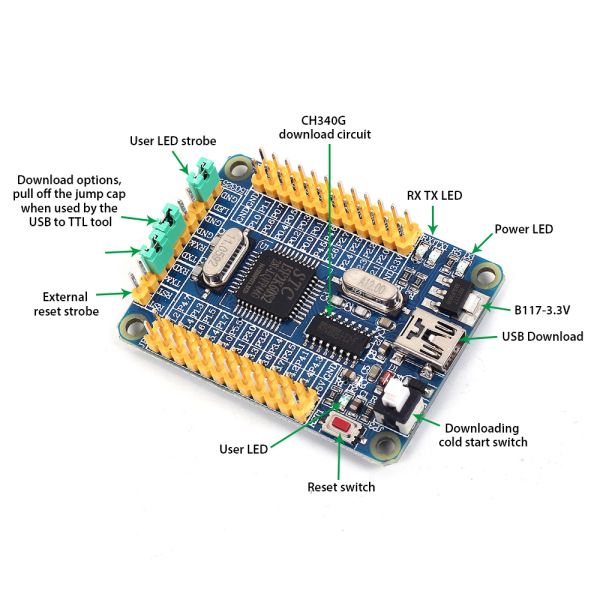

1>. The development board is integrated with USB to serial serial chip (CH340G), which can be downloaded to the development board by using the USB port of the computer. At the same time, you can use USB port to supply power for development board.
2>. The integrated USB turn serial port (TTL) can communicate with the external circuit TTL circuit separately as the USB turn TTL, and select the OUT end through the JP4 jump on the board.
3>. All IO leads to a USB to TTL pin (3PIN).
4>. A user LED lamp.
5>. Serial port and transceiver LED each.
6>. A serial port USB power supply LED.
7>. A CPU power supply LED.
8>. 3.3V or 5V external power supply interface.
9>. The USB TTL pin interface, can be used as USB to TTL.

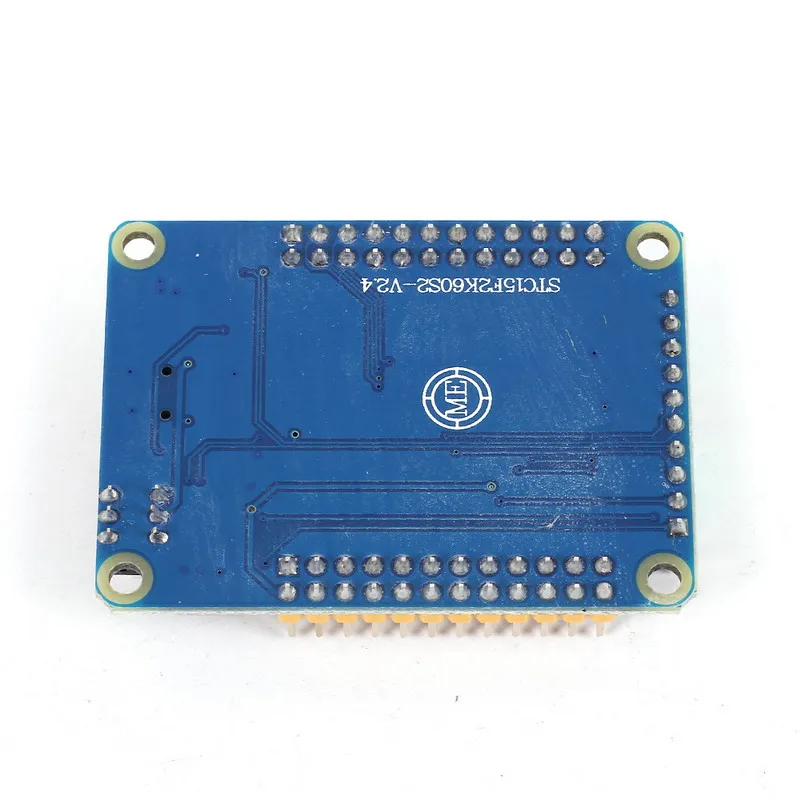

10>. 4 screw positioning holes, easy to locate and prevent circuit board short circuit.
11>. A cold start download button, but also a power switch.
