Monday Kids AC 220V 10A 2 Channel 2CH Power Time Sequence Board 0-10S Adjustable Sequential Controller Module Sequential Start Reverse Stop
$8.57
Availability:
In stock
SKU
BK-DG-36
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Package: SOP
- is_customized: Yes
- Model Number: Sequential Control Module
- Operating Temperature: -25~85 Celsius
- Supply Voltage: AC 110V~220V
- Application: Electric Toy
- Condition: New
- Type: Logic ICs
- Brand Name: Monday Kids
- Work Current: 50mA
- Work Power: <1W
- Stand-by Current: 3mA
- Delay Time: 0.5~10 Second
- Response Time: 20ms
- Output Voltage: Same to Input
- Feature: Sequential Control Module
AC 220V 10A 2 Channel 2CH Power Time Sequence Board 0-10S Adjustable Sequential Controller Module Sequential Start Reverse Stop
1.Description:

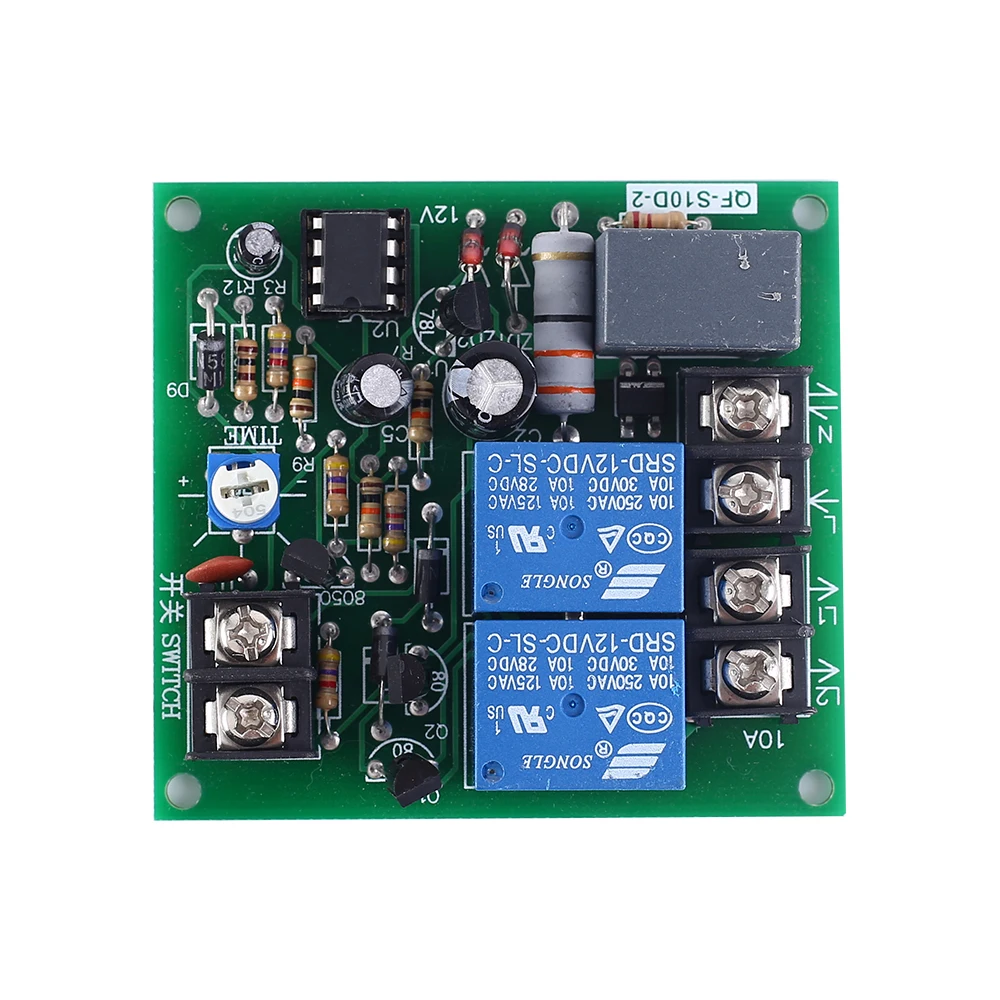

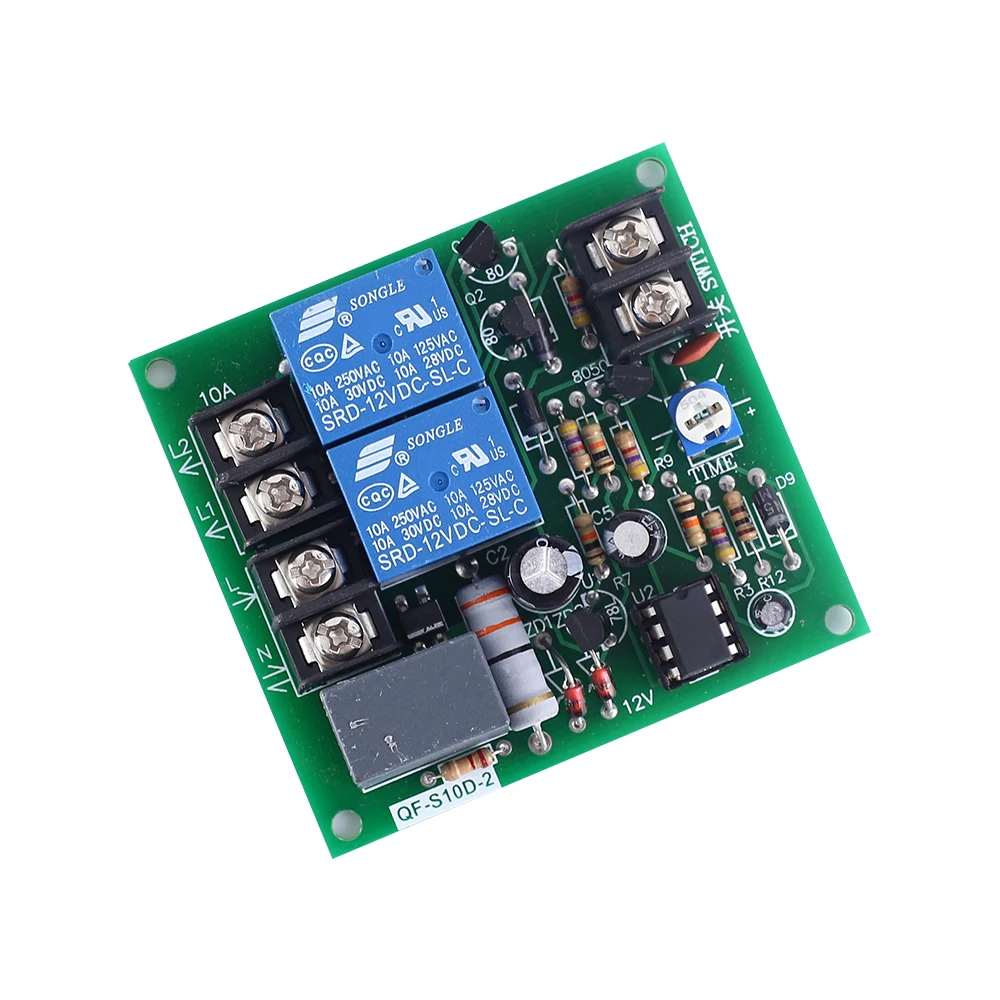

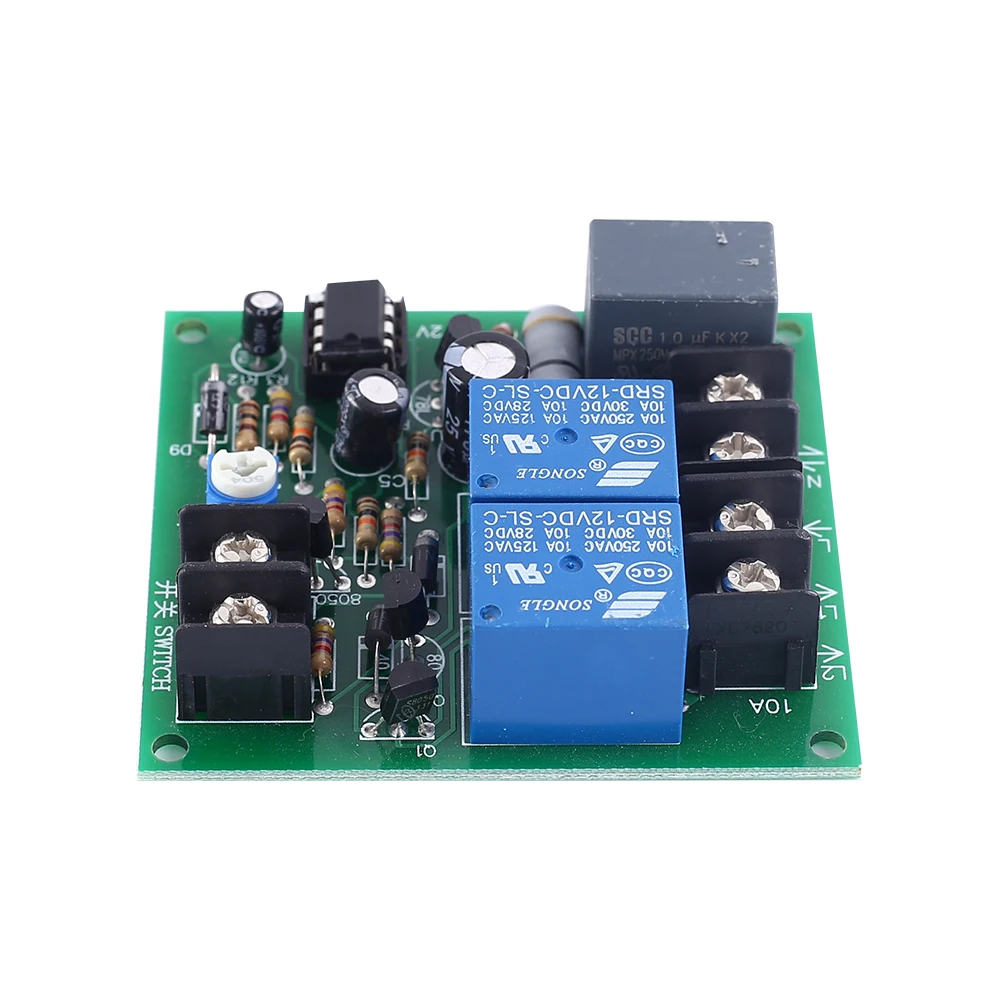

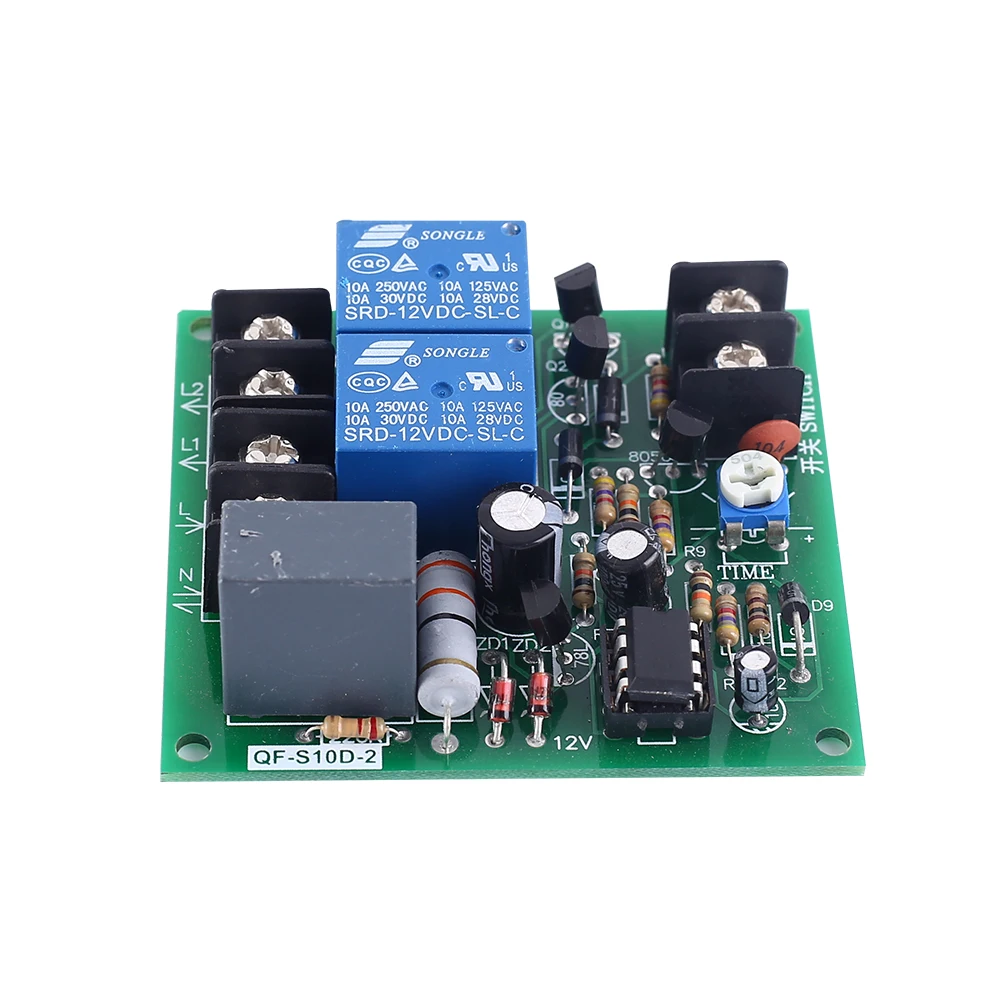

QF-S10D-2 is a trigger delay time sequence module.User can adjust delay time by potentiometer to meet require.
2.Feature:
1>.Low level trigger
2>.Delay time can be set
3>.Support high power load
3.Parameter:
1>.Model: QF-S10D-2
2>.Work Voltage:AC 110V~220V
3>.Work current:50mA
4>.Work power:<1W
5>.Stand-by current:3mA
6>.Delay time:0.5~10second
7>.Response time:20ms
8>.Output channel:2-Channel
9>.Output voltage:Same to input
10>.Work Temperature:-25~85
11>.Work Humidity:5%~95%RH

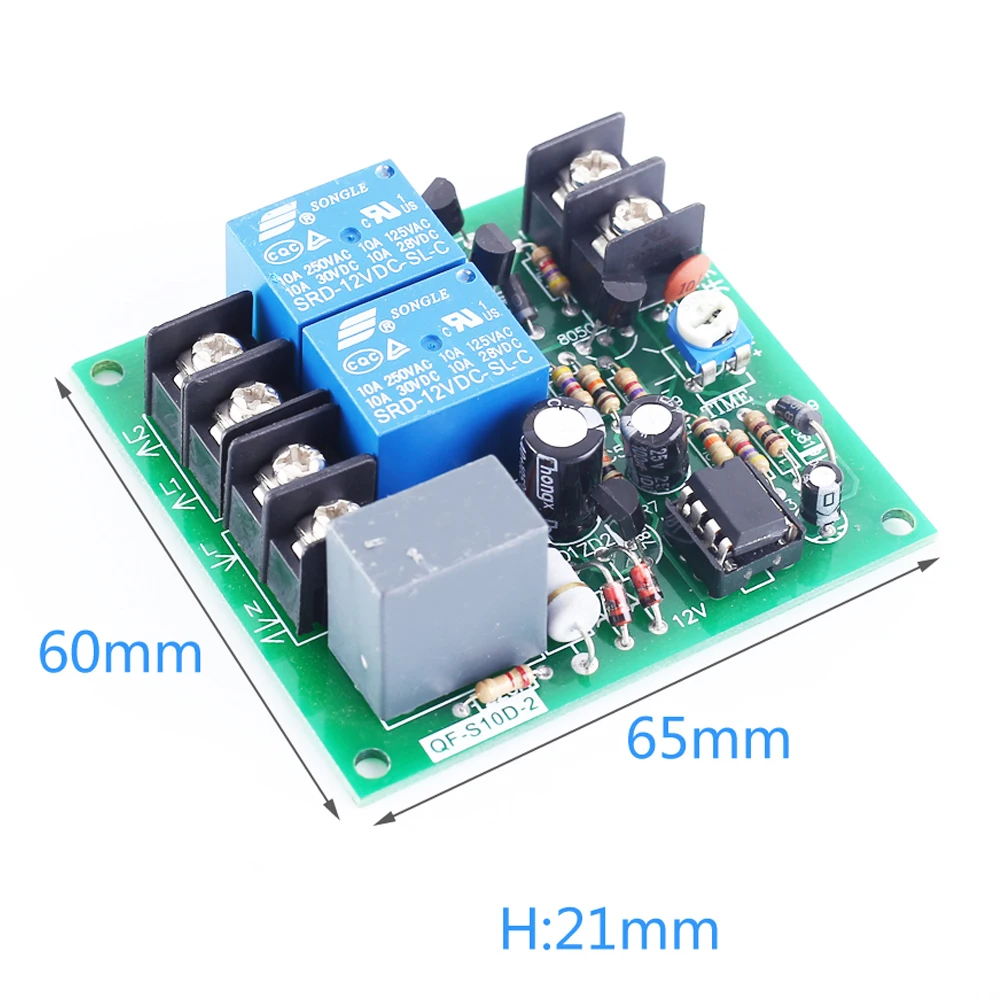

12>.Size:65*60*21mm

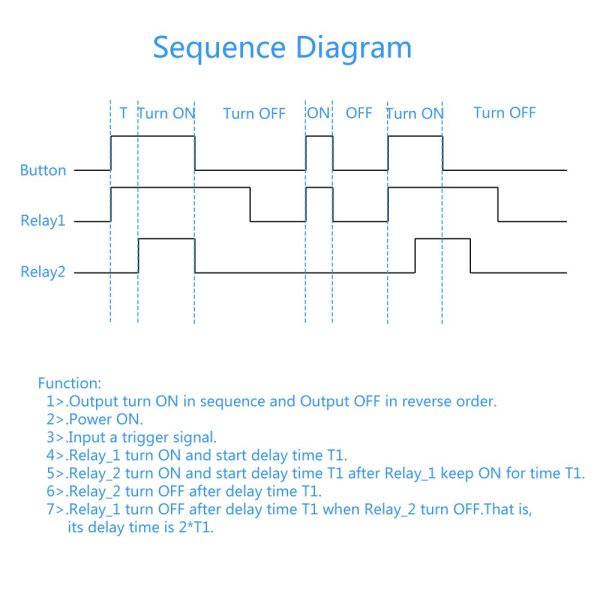

4.Function:
1>.Output turn ON in sequence and Output OFF in reverse order.
2>.Power ON.
3>.Input a trigger signal.
4>.Relay_1 turn ON and start delay time T1.
5>.Relay_2 turn ON and start delay time T1 after Relay_1 keep ON for time T1.
6>.Relay_2 turn OFF after delay time T1.
7>.Relay_1 turn OFF after delay time T1 when Relay_2 turn OFF.That is, its delay time is 2*T1.
