Monday Kids MCU Adjustable Display Pattern LED VU Meter Level Indicator Amplifier Audio 16 LED Dual Channel Green lamp light DC 8V to 12V
$4.92
Availability:
In stock
SKU
RY-ES-259
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Application: Computer
- Supply Voltage: DC 8V to 12V
- Condition: New
- Type: Voltage Regulator
- is_customized: Yes
MCU Adjustable Display Pattern LED VU Meter Level Indicator Amplifier Audio 16 LED Dual Channel Green lamp light DC 8V to 12V
Descriptions:

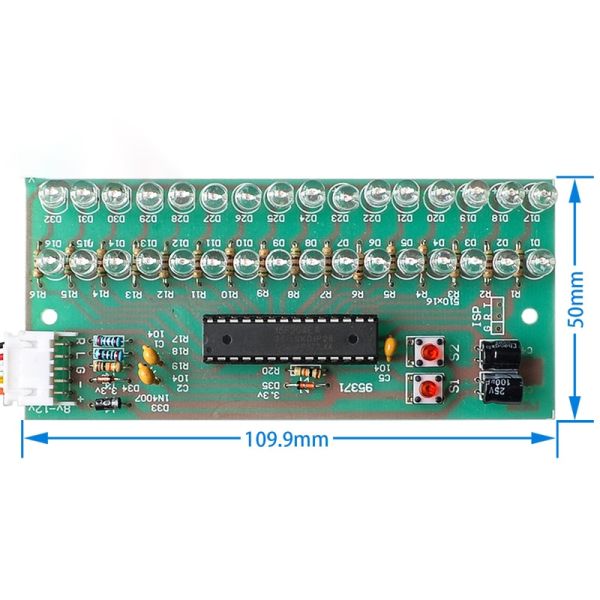

Size: 50 mmx110mm
Two fixed hole diameter :3 mm spacing :100 mm
Signal input range: minimum 300 mv. Max 5 v (don't take too strong signal)
Power supply voltage: DC 8 v to 12 v
maximum current: about 70 mA
Feature:
Two buttons S1 and S2,Long press (more than 1 second)and Short press (less than 1 second greater than 0.2 seconds).Keys function is quite simple.
S1 in normal display mode,Adjust the intensity of the input signal. the cycle by clicking reduce the number of input signals,According to in the end will automatically return to the beginning. S1 in brightness adjustment mode,press the incredse until the highest level og brightness.
S2 in normal display mode,Used to select the pattern of the display,the same one click conversion cycle,Automatic Return to the last first.S2 in brightness adjustment mode,press the lower level until the lowest brightness.S2 in normal display mode,Long press will enter the brightness adjustment mode,S2 in brightness adjustment mode,Long press will saved and return to normal brightness display mode.
For Wiring Precautions :
1,Can't use the AC power, don't take over the high voltage.
2,The Signal strength is not too high,The signal strength on the headphone jack on the general offer on it,don;t take the power amplifier output signal is too strong,it may demage the circuit.
3,Audio signal 3 lines is label R L G,it is Right channel signals, left channal signals,the signnal ground(that is the negative power supply circuit board)
Package include:
1 * MCU Adjustable Display
- Unit Type: piece
- Package Weight: 0.04kg (0.09lb.)
- Package Size: 12cm x 10cm x 3cm (4.72in x 3.94in x 1.18in)
