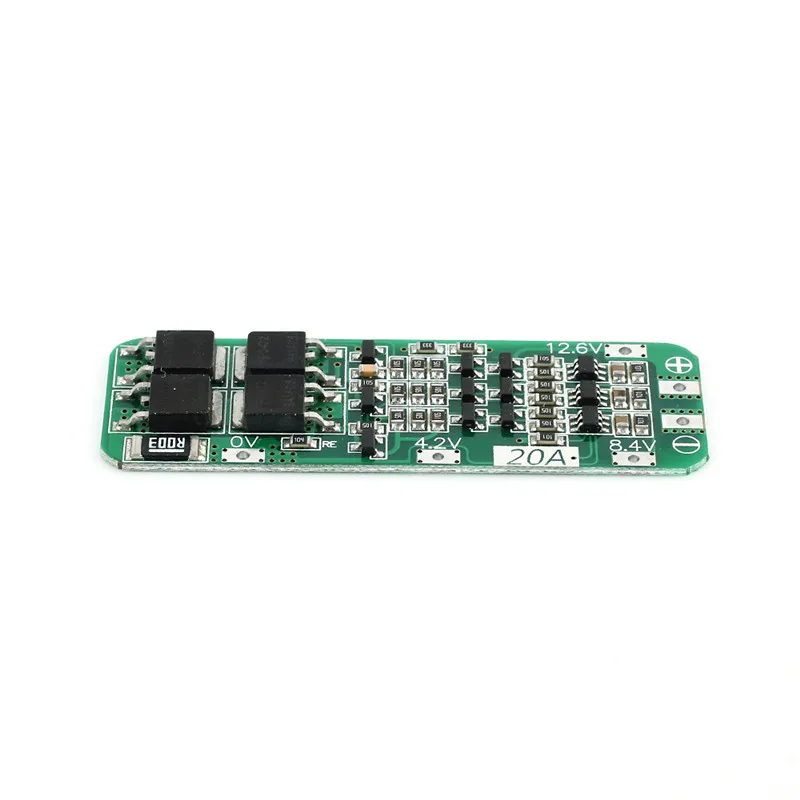

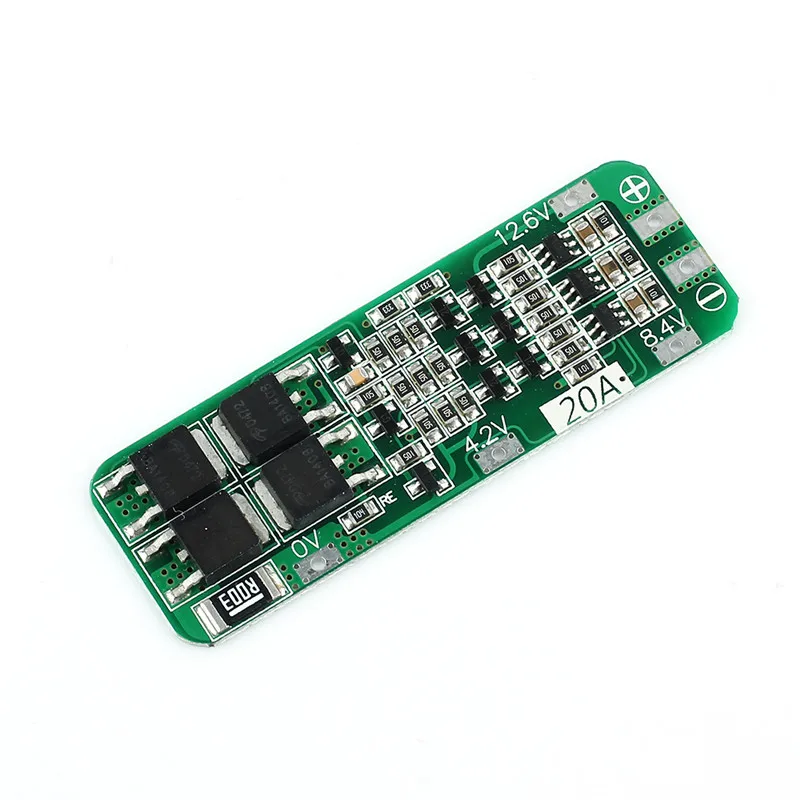

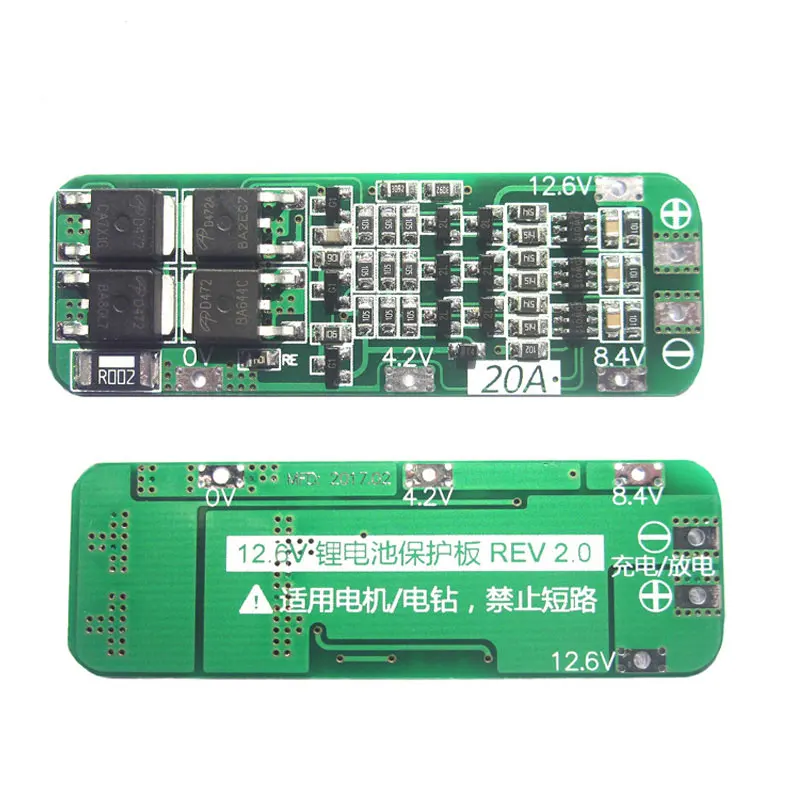

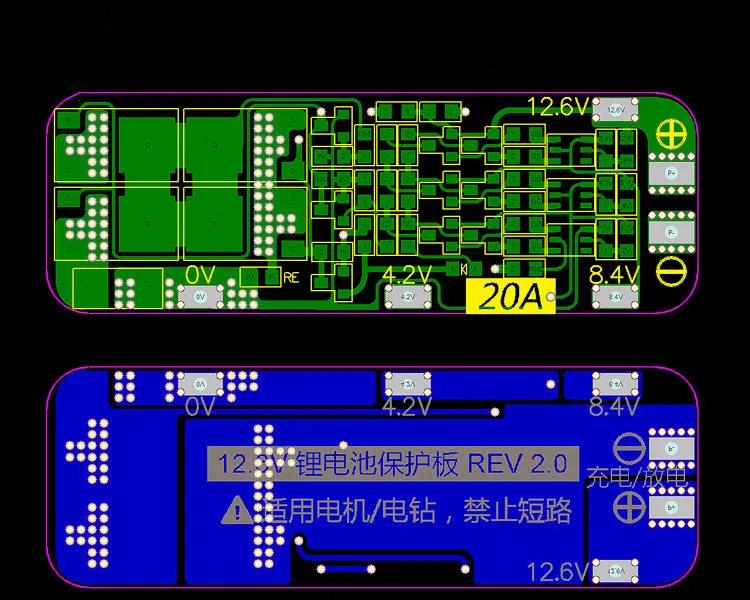

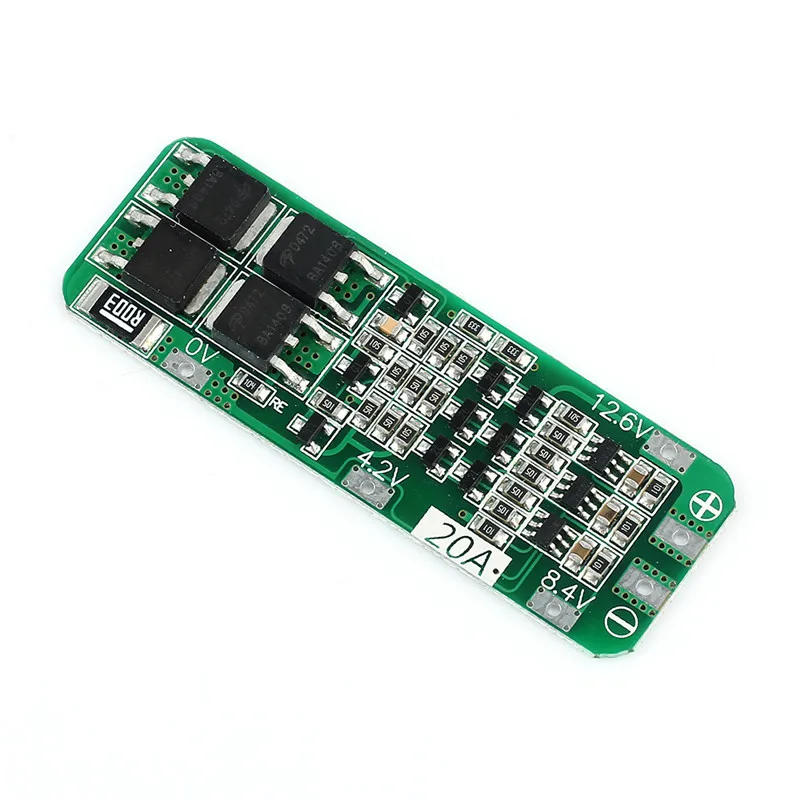

Monday Kids 3S 20A Li-ion 18650 Lithium Battery Protection Board Lipo Battery Charger Protect PCB BMS 12.6V Cell Module For Drill Motor

$1.40
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Condition: New
  • Resistance Tolerance: none
  • Color: Green
  • Operating Temperature: -30~85 celsius
  • Temperature Coefficient: none
  • is_customized: Yes
  • Rated Power: none
  • Model Number: Lithium Battery Protection Board
  • Technology: Lithium Battery Protection Board
  • Type: Lithium Battery Protection Board
  • Package Type: Lithium Battery Protection Board
  • Charging voltage: 12.6V - 13.0V
  • Scope: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650,
  • Continuous charge current (upper limit): 10A
  • Continuous discharge current upper limit: 20A (if the cooling environment is not good, please reduce the load

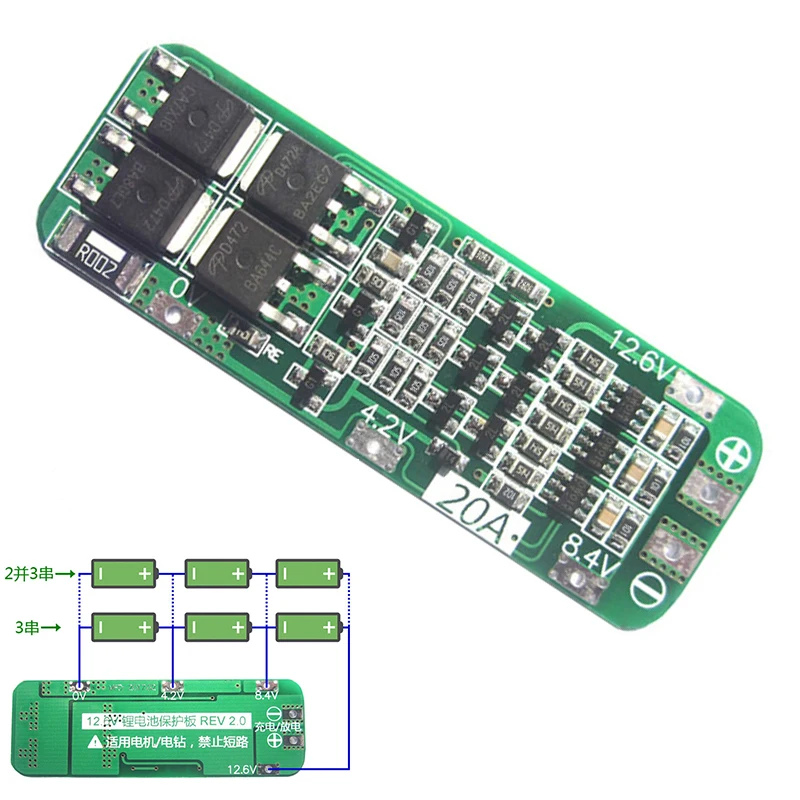

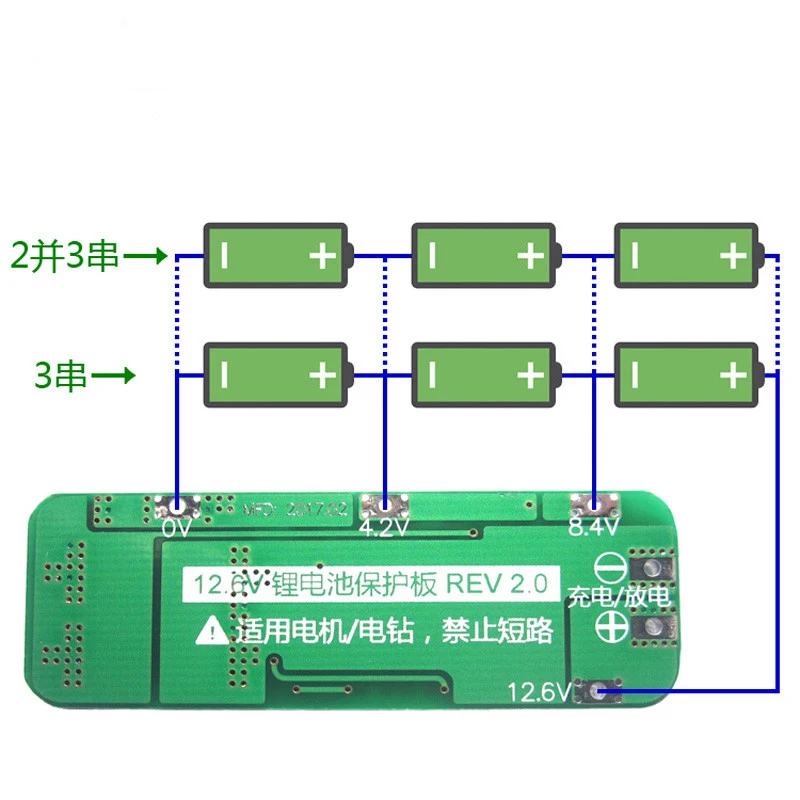

3S12.6V 20A lithium battery protection board (comes with recovery function-AUTO Recovery)

Scope: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, polymer lithium battery)

Product Size: 59 * 20 * 3.4mm

Product weight: 4.3g

Charging voltage: 12.6V - 13.0V

Continuous discharge current (upper limit): 20A (if the cooling environment is not good, please reduce the load current use)

Continuous charge current (upper limit): 10A

Standard Version : suitable for starting current below 40A, power 65W below the drill.

Enhanced Version : suitable for starting current below 60A, power 100W below the drill.

  • Unit Type: piece
  • Package Weight: 0.015kg (0.03lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
