Monday Kids YX5100 Voice Module Wide Voltage Serial Port voice USB Burning Recorder Beyond WT588D
$4.29
Availability:
In stock
SKU
RY-ES-240
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Type: Voltage Regulator
- Condition: New
- Model Number: YX5100 voice module
- is_customized: Yes
Description:
FLASH:8M
The main chip: YX5100
Size: 36mmX30mmX15mm
Working voltage: 5V~40V
Function characteristics:
-

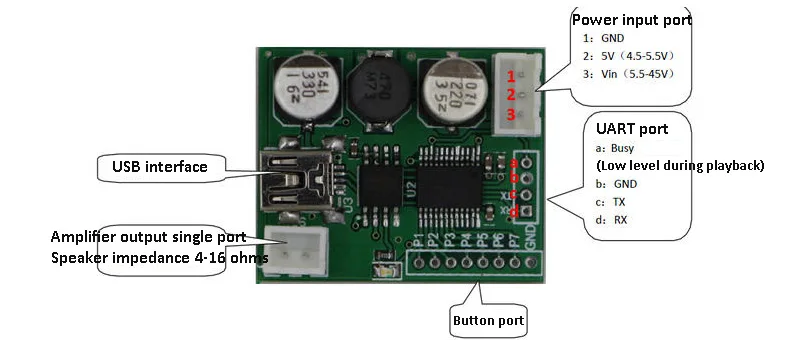

The module supports USB2.0 interface , built-in drive directly insert into the computer USB port to download and replace the audio file ,no need additional purchase downloader, convenient and practical. support WIN2000 , WINXP , WIN7 , WIN8
-
Wide input voltage range 5V ~ 40V , voice module either through 5V ~ 40V DC power supply, can also through Mini USB port 5V power supply, multiple choice.
-
Supply 10 Road button trigger to play the voice , 7 road for button 1 to 1 to play voice , 3 road for key combination to play the voice .
-
Supports multiple sampling rates : 8KHz , 11.025KHz , 12KHz , 16KHz , 22.05KHz , 24KHz , 32KHz , 44.1KHz , 48KHz .
-
Supports all bit rates 11172-3 and ISO13813-3 layer3 audio decoding .
-
Support for a variety of capacities SPI_FLASH : 8M . According to their need to select the corresponding size of the storage capacity , storage capacity of different relative prices will be different.
-
Supports serial port play voice , 30 segment adjust the volume ,5 kinds of sound . under the serial mode maximum support 255 segment voice .
-
voice module built-in Class D amplifier , external speakers to play the sound directly . High efficiency heat small , suitable for continuous operation .
Electrical parameters :
Output power: MAX = 2.5W ( 4 Ω THD ≤ 10% ) , 1.5W ( 8 ΩTHD ≤ 10% )
Distortion THD + N : 0.3% ( 8 Ω 0.5W )
Frequency response: 100Hz ~ 15 KHz
Noise voltage : ≤ 50mV
SNR : ≥ 82db
DAC Digits: 24
Working temperature : -20 ~ 65 centigrade
Operating humidity : 30% ~ 95%
Serial port baud rate : 9600
Capacity and voice Length:

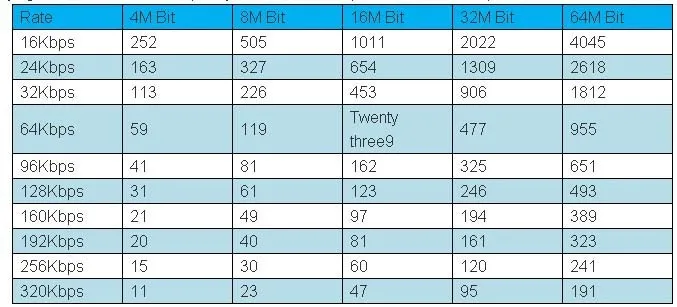

Playing time and SPI Flash capacity relational tables ( time unit "second" )
MP3 File size depends on the bit rate.
Voice broadcast recommends using 16Kbps-64Kbps
Music playback is recommended 32Kbps-96Kbps
Package Included:
1 * voice module
- Unit Type: piece
- Package Weight: 0.025kg (0.06lb.)
- Package Size: 2cm x 2cm x 3cm (0.79in x 0.79in x 1.18in)
