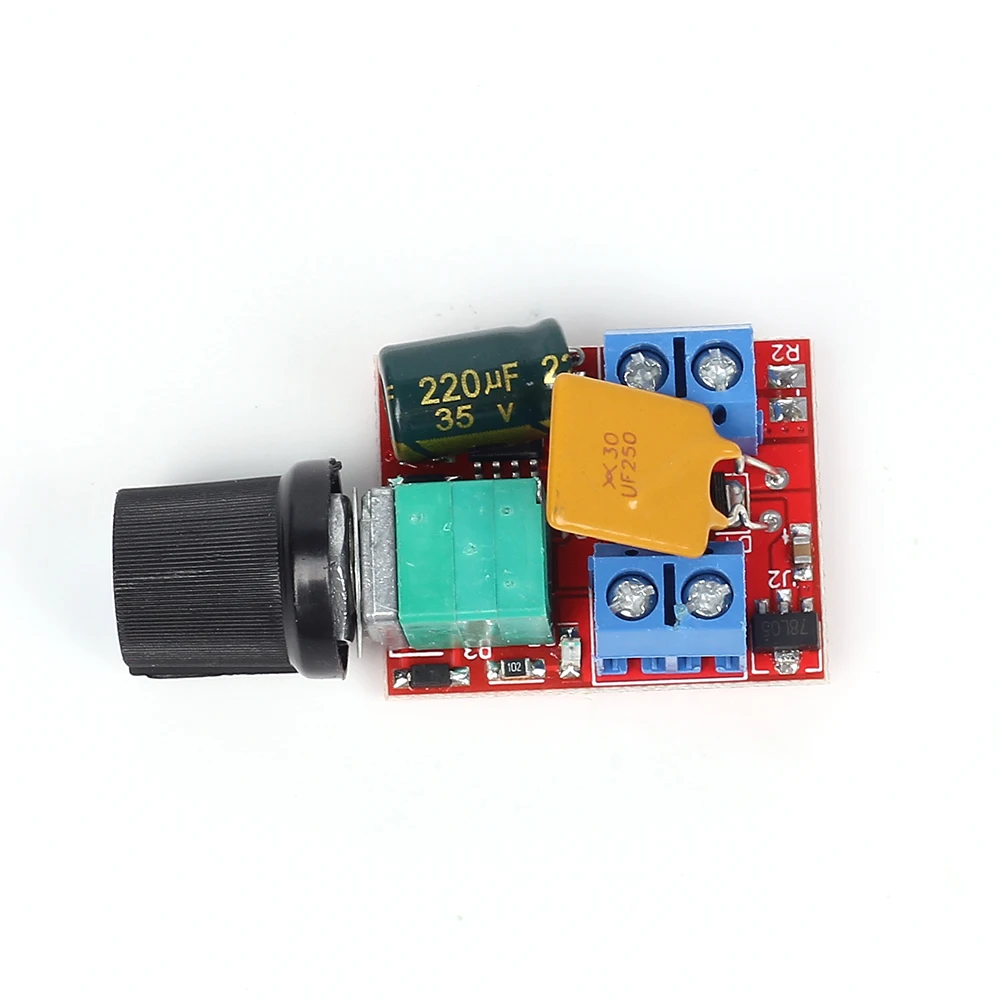

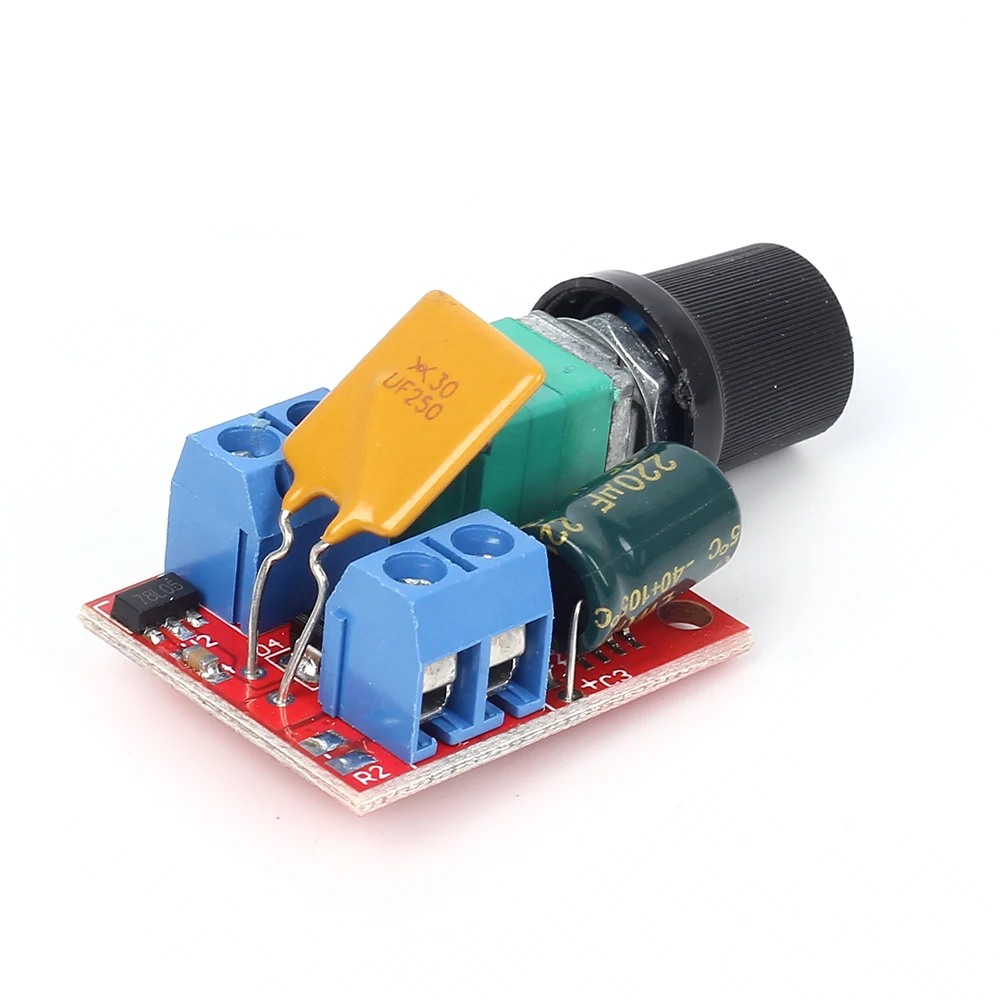

Monday Kids Mini DC-DC 5-30V 5A 90W Motor PWM Speed Controller Module Control Switch 10Khz LED Dimmer Adjustable Board Switch

Be the first to review this product

$1.25

Availability: In stock

SKU

EK311

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Condition: New
Type: Logic ICs
Operating Temperature: -40~85 Celsius
Supply Voltage: 5-30V
Dissipation Power: none
is_customized: Yes
Model Number: Motor PWM Speed Controller
Application: Motor PWM Speed Controller
Material: Semiconductor+RF-4
Size: 51*24*19mm
Weight: 14.43g
Input voltage: DC 5-30V
Load power: 90W(MAX)
Rated current: 5A(MAX)
PWM frequency: 10Khz
Knob inner diameter: 8mm
Size(without Knob): 30*24*19mm

1.Description:

DC Motor Speed Controller,The full name of pulse width modulation is Pulse Width Modulator.Abbreviation PWM.DC motor governor is a device for adjusting the speed of a DC motor.DC motor has the characteristics of low speed and large torque which can not be replaced by the AC motor.Therefore, the equipment that regulates the speed of the DC motor - DC governor can be widely used.It is often used in DC load circuits due to its special properties.Lamp dimming or DC motor speed regulation, HW-1020 governor are made by pulse width modulation (PWM) principle.Such as Motor governor and PWM governor.

Industrial DC motor speed regulation, industrial conveyor belt speed regulation, lighting and lighting mediation, computer power supply cooling, DC fan, etc., have been widely used.

2.Features:

1>.High frequency 10Khz, the purer the signal;

2>.PWM can be adjusted 1%-100%;

3>.Support high current;

4>.High quality knob;

5>.Knob integrated design;

6>.No polarity regulation.

3.Parameters:

1>.Input voltage: DC 5-30V;

2>.Load power: 90W(MAX);

3>.Rated current: 5A(MAX);

4>.Speed range: 1%-100%;

5>.PWM frequency: 10Khz;

6>.Potentiometer: resistance value 100K;

7>.Knob inner diameter:8mm;

8>.The output voltage is 0-100% of the input voltage;

9>.Standby current:0.015A;

10>.Size(without Knob): 30*24*19mm;

11>.Size:51*24*19mm.

4.Use steps:

1>.Turn the potentiometer counterclockwise until you hear the sound from potentiometer.

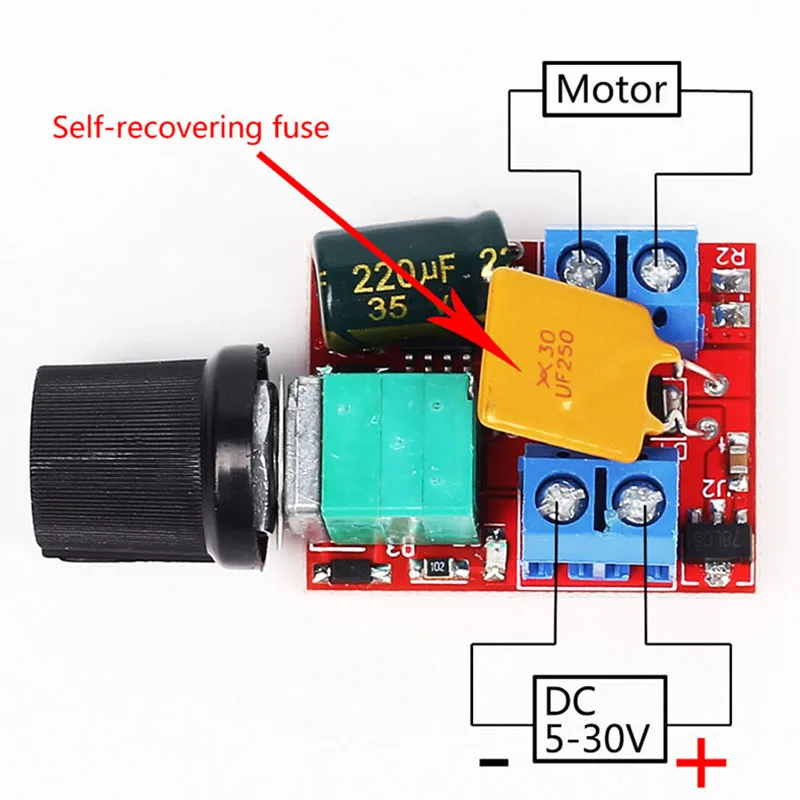

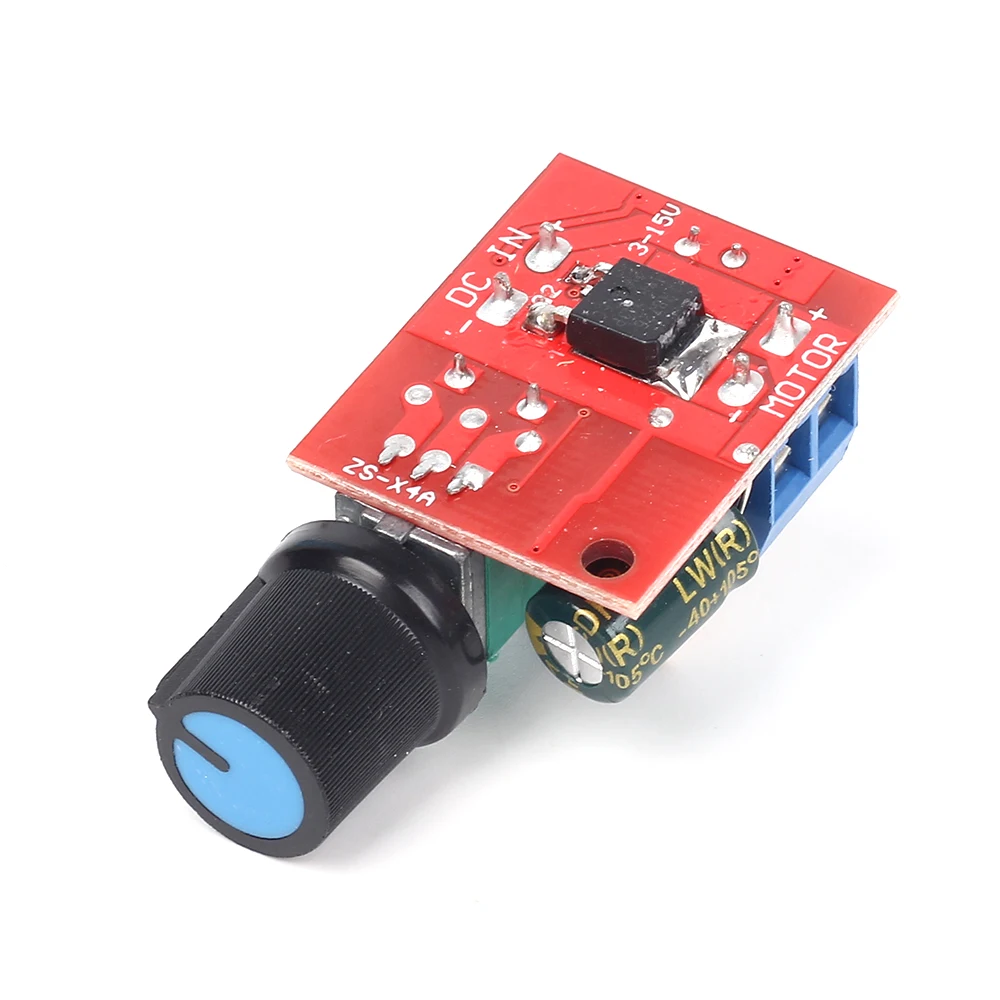

2>.Connect DC motor or lamp which meets the requirements at ‘MOTOR+’ and ‘MOTOR-’.

3>.Connect DC power supply at ‘DC IN+’ and ‘DC IN-’.

4>.Adjust knob to control speed for motor.

5>.If need to stop,you can turn the potentiometer counterclockwise until you hear the sound from potentiometer.

6>.Remove power supply before remove DC motor.

7>.Remove DC motor.

5.Application:

1>.Industrial DC motor speed regulation;

2>.Industrial conveyor belt speed regulation;

3>.Lighting and lighting mediation;

4>.Computer power supply cooling;

5>.DC fan.

6.Please Note:

1>.It is working for DC motor and just can connect to DC power supply.So please don’t connect AC 110V or 220V power supply!Otherwise it will damage the module!

2>.The positive and negative poles of the DC power supply can not be reversed, Otherwise the governor will damage.

3>.Motor can be divided into positive and negative, when the direction of operation and expectations are inconsistent, you can change the direction of the alignment.

4>.The potentiometer knob can change the output duty cycle of the governor, thus changing the speed of the motor.

5>.Please allow 1-3mm differs due to manual measurement.

7.Package:

1>.1pcs MINI DC Motor Speed Controller
