Monday Kids XH-W1209 0.28 " inch Mini Digital LED Display Thermostat Temperature Controller Switch Micro Degree Control Board

$2.30
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Model Number: Thermostat Temperature Controller
  • Supply Voltage: DC 12V
  • Condition: New
  • Type: Logic ICs
  • Operating Temperature: -10 -60 Celsius
  • Dissipation Power: none
  • is_customized: Yes
  • Application: Thermostat Temperature Controller
  • Model: W1209
  • Accuracy: +/- 0.1 Celsuis
  • Control accuracy: 0.1 Celsuis
  • Backlash accuracy: 0.1 Celsuis
  • Refresh rate: 0.5S
  • Temperature range: -50-110 Celsuis
  • High-temperature protection: 0-110 Celsuis
  • Measuring input: NTC (10K0.5 %) Waterproof sensor
  • Input: one 10A relay

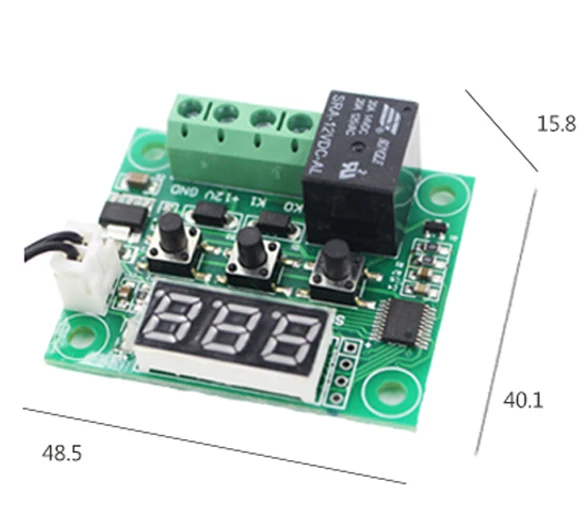

  • Size: 48.5mm * 40.1mm * 15.8mm

Description :

Model: WH-W1209
Accuracy: ± 0.1 ℃
Control accuracy: 0.1 ℃
Backlash accuracy: 0.1 ℃
Refresh rate: 0.5S
Temperature range: -50-110 ℃
High-temperature protection: 0-110 ℃
Input power: DC12V
Measuring input: NTC (10K0.5%) Waterproof sensor
Input: one 10A relay
Environmental requirements: -10 ℃ --60 ℃ humidity 20% - 85%
Size: 48.5mm * 40.1mm * 15.8mm
Hole size: 46 * 26.5mm
Power consumption: Static current ≦35MA pull current: ≦65MA
Net Weight: 22.3G
Display Type: 0.28 inch, three digital

  • Unit Type: piece
  • Package Weight: 0.03kg (0.07lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
