Monday Kids 1.54" 1.54 inch White OLED Display Module 128x64 SPI IIC I2C Interface OLED Screen Board 3.3-5V UART
$17.67
Availability:
In stock
SKU
EK871
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Model Number: OLED Display Module
- Condition: New
- Type: Logic ICs
- is_customized: Yes
- Operating Temperature: -30~85 Celsius
- Supply Voltage: 3.3V-5V
- Application: OLED Display Module
- Size: 1.54 inch
- Resolution: 128*64
- Light Color: White
NOTE : we have documents of most of products in our store If you need it , contact us :) | |
|
Product Introduction:
1.Size:1.54 inch
2.Resolution:128*64
3.Light Color:white
4.Driving IC:SSD1309; compatible with SSD1306
5.Voltage:3.3V-5V

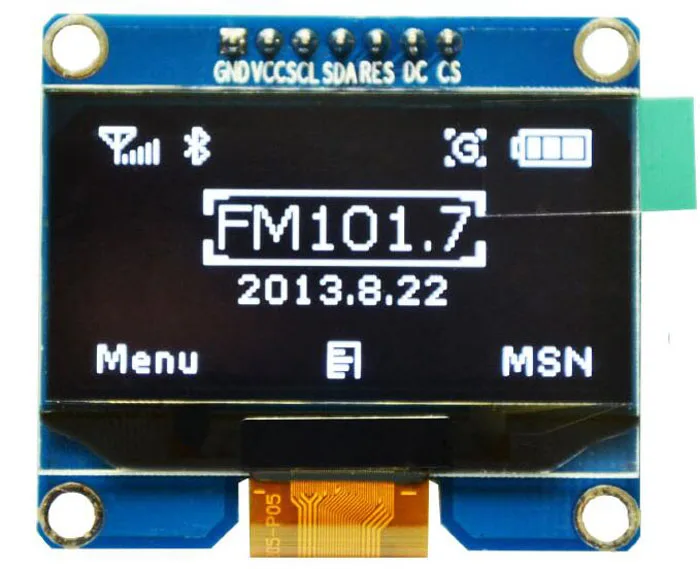

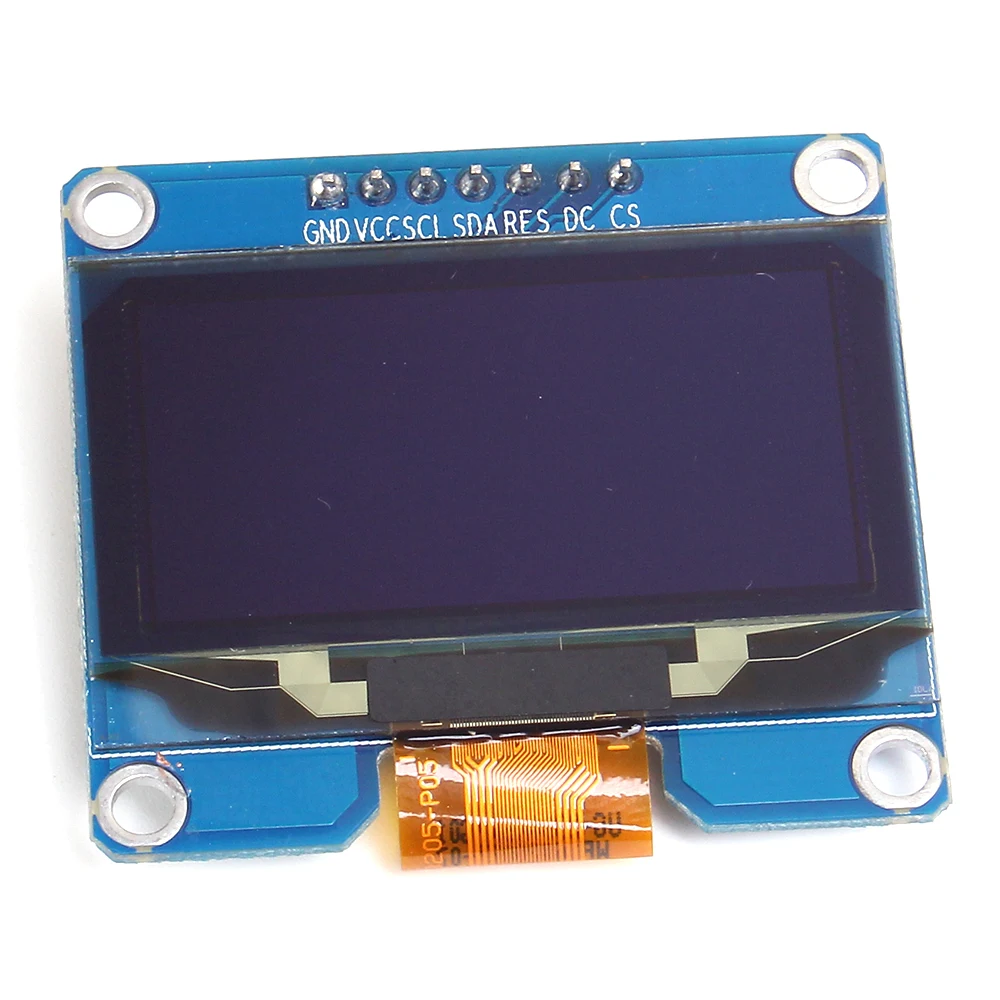

SPI Interface Definition:
1.GND:power ground
2.VCC:power positive
3.SCL:clock wire
4.SDA:data wire
5.RES:reset wire
6.DC:data/command
7.CS:chip selection (if not used,it can be directly connect with ground)
- Unit Type: piece
- Package Weight: 0.019kg (0.04lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
