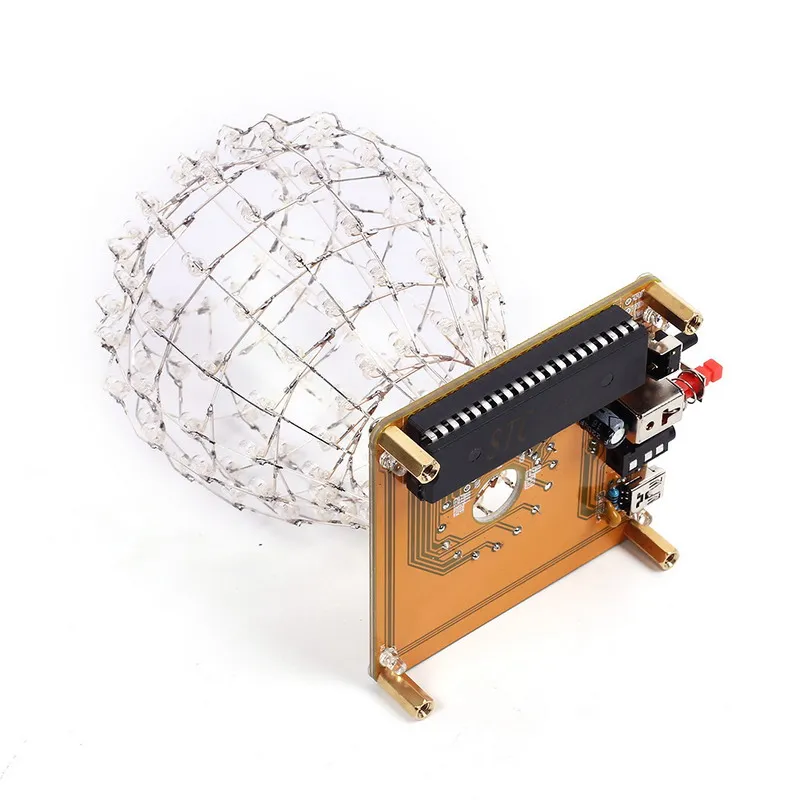

Monday Kids Colarful LED Cubic Ball DIY Kit 3mm RGB LED Light Cube Cubic Ball Creative Electronic Kit Remote Control Brain-training Toy

$17.99
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • is_customized: Yes
  • Supply Voltage: Power Supply Mini USB DC4.5-5.5V 100mA
  • Application: Computer
  • Operating Temperature: none
  • Model Number: DIY LED Cubic Ball Kit
  • Type: Logic ICs
  • Condition: New
  • Dissipation Power: none
  • Color: RGB
  • Weight: About 130g
  • Nature: DIY Kit
  • Power Type: Charger/Power Adapter/USB
  • Sound source: External Audio Input
  • Control model: Infrared Remote Control or Button Control

NTOE:

This DIY installation is more difficult to be installed, please be patient until the installation is complete!!!

It is strongly recommended to browse the installation manual before starting installation!!!

1. Introduction

New design concept, cool effect,Different light cube with a wonderful experience!

2. Parameter

NO.

Parameter

Value

1

Name

DIY LED Cubic Ball Kit

2

Size

About 90*90*130mm

3

Color

RGB

4

Weight

About 130g

5

Nature

DIY Kit

6

Power Supply

Mini USB DC4.5-5.5V 100mA

7

Power Type

Charger/Power Adapter/USB

8

Sound source

External Audio Input

9

Control model

Infrared Remote Control or Button Control

10

Basic function

>30 animation modes; >6 spectrum animation modes

3. Function

1>. 8*16 LED display

2>. Various modes can be switched as your wish:

1). Offline animation models (up to a dozen):Free display or Key control(just parts models can be control by button or remote control).

2). Music spectrum mode:The spectral mode needs to be connected with an input audio signal, so that the optical cube can beat the music spectrum rhythm.

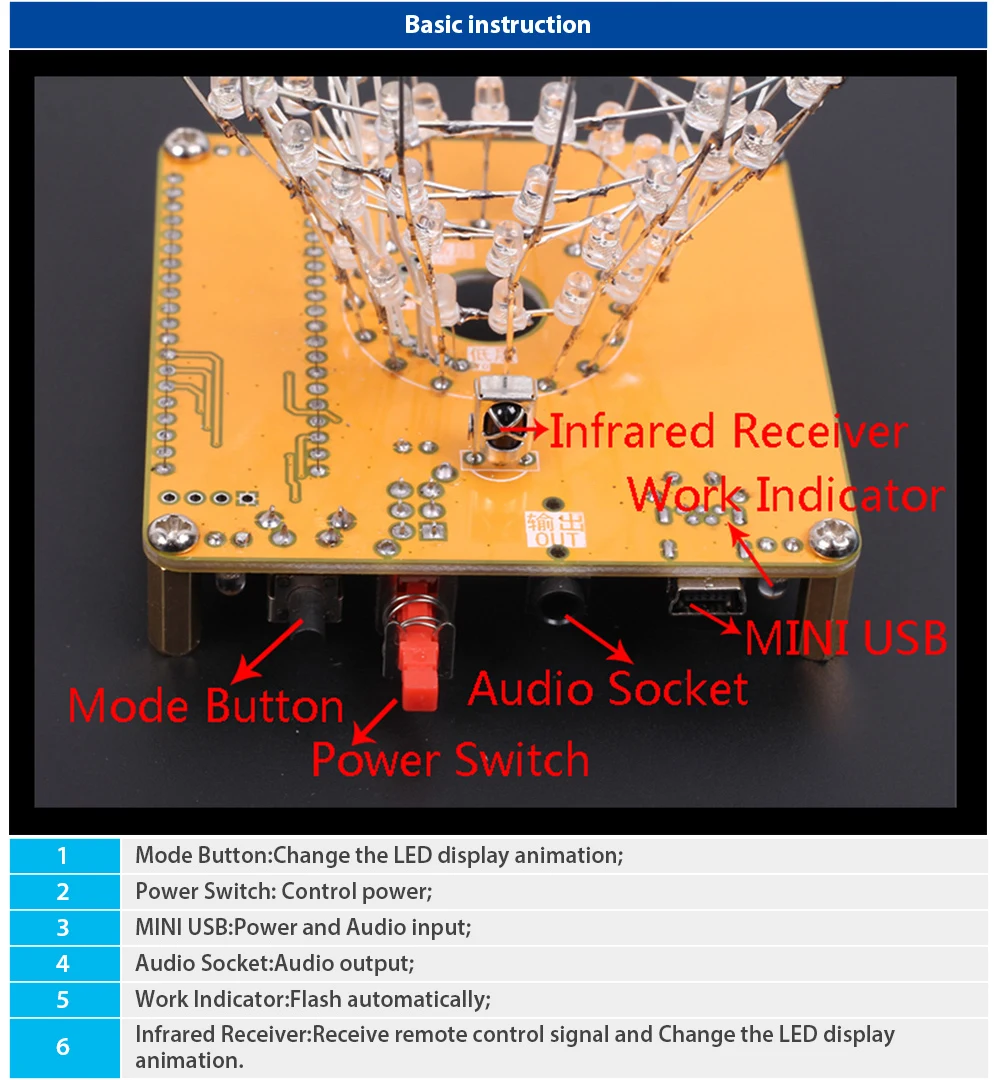

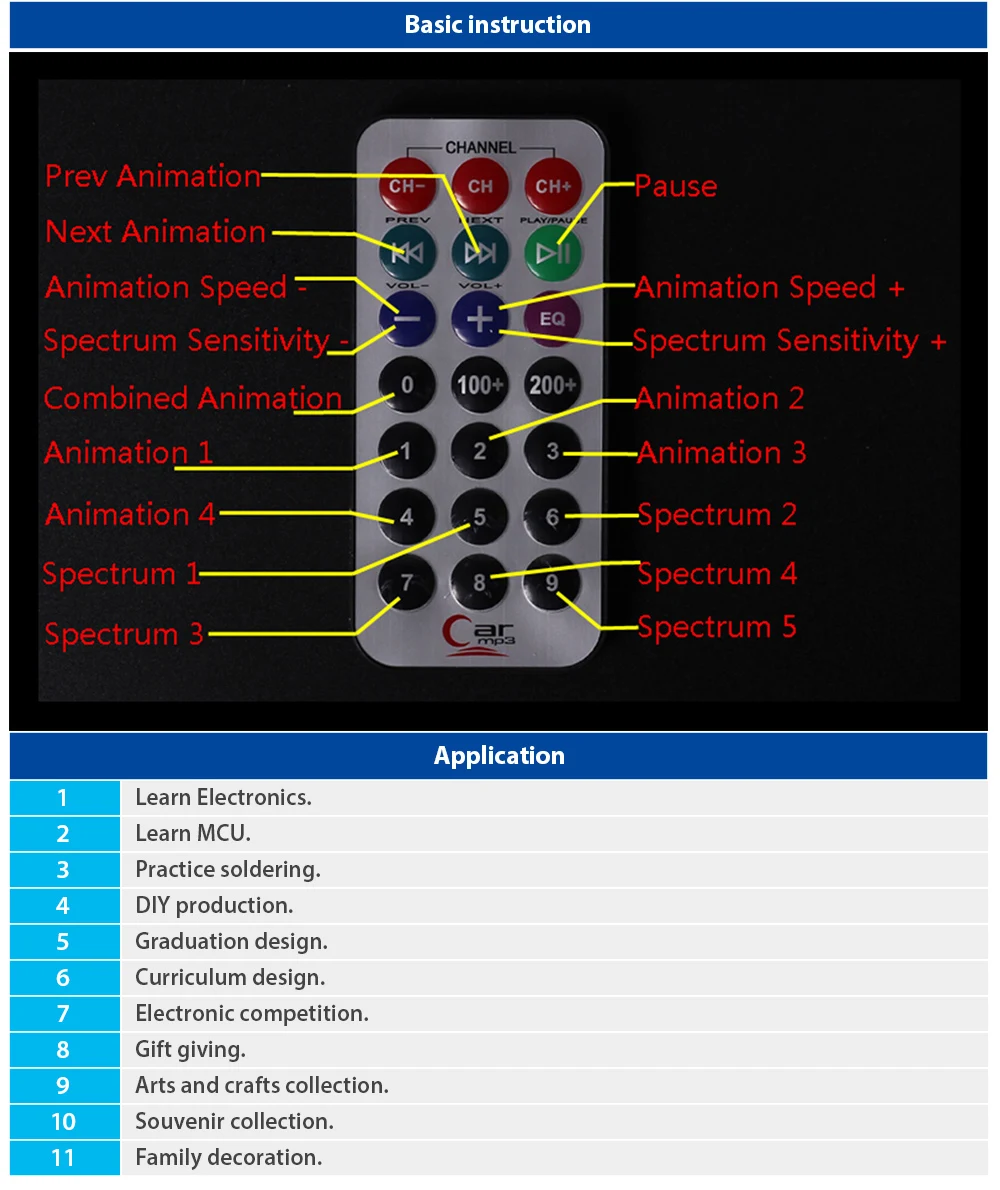

3>. Switch mode by remote control or button at any time mode.

4. Feature

1>. COOL FUN: The shape of innovation;

2>. MAGIC: At least 20 colorful animation, 4 spectrum animation;

3>. ABILITY: A full set of spare parts to develop practical ability;

4>. RECREATION: The elaborate and exquisite appearance can be considered as a gift.

5>. CRAFT COLLECTION: All handmade works of art that can be collected.

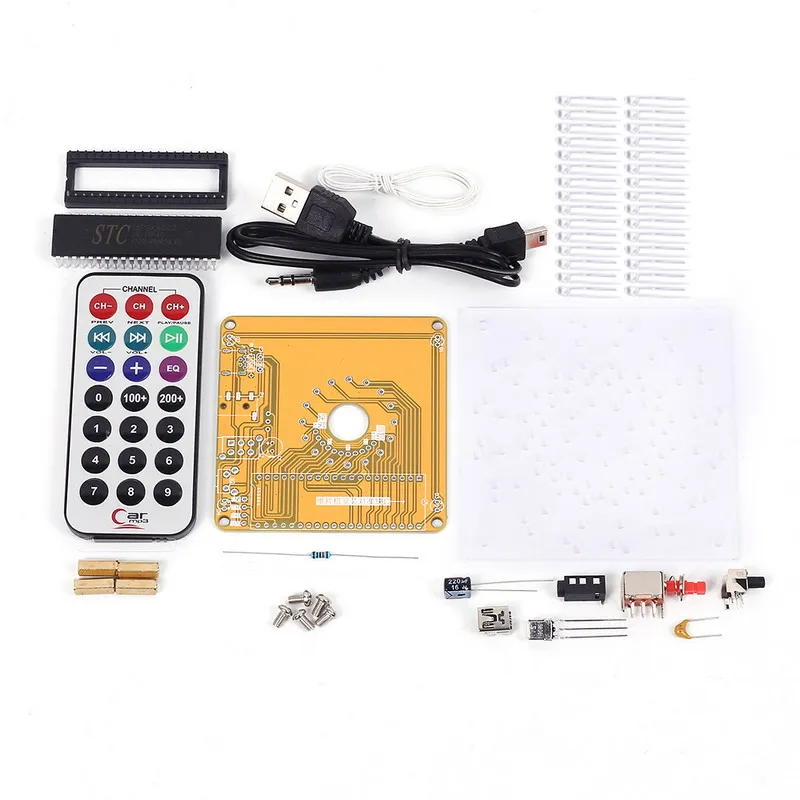

5. Component listing

NO.

Component Name

PCB Marker

Parameter

QTY

1

Metal Film Resistor

R1

100K

1

2

MINI USB Female Socket

J1

5P

1

3

IC Socket

U1

DIP-40

1

4

STM15F2K60S2

U1

DIP-40

1

5

Audio Socket

P1

3.5mm SMD

1

6

Monolithic Capacitor

C2

1uf 105

1

7

Power Switch

S1

Red Self-locking

1

8

Mode Button

S2

Black

1

9

Electrolytic Capacitor

C1

220uf 16V

1

10

Infrared Receiver

IR1

VS1838V

1

11

RGB LED

D1-D4

3mm

132

12

Copper Pillar

M3*12mm

4

13

Screw

M3*5mm

4

14

USB Audio Cable

About 45mm

1

15

White Cable

About 1M

1

16

Remote Control

85*40*6mm

1

17

Acrylic Welding Template

82*82mm

1

18

PCB

70*70mm

1

  • Unit Type: piece
  • Package Weight: 0.13kg (0.29lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
