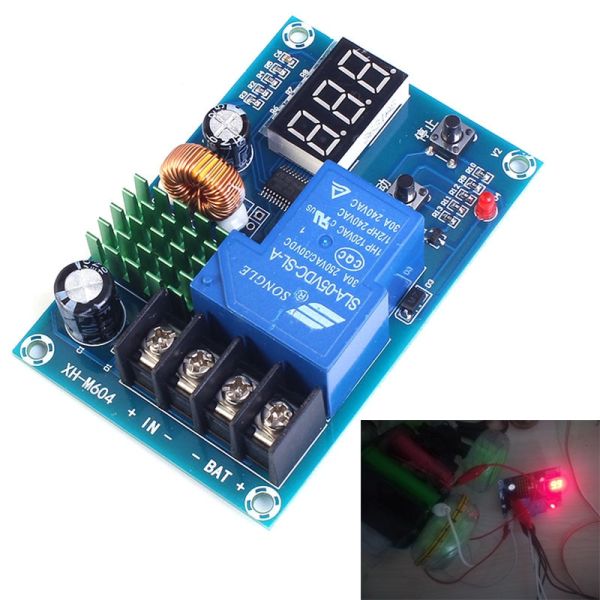

Monday Kids XH-M604 Battery Charger Control Module DC 6-60V Storage Lithium Battery Charging Control IC Switch Protection Board LED Display

Be the first to review this product

$5.00

Availability: In stock

SKU

EK531

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Supply Voltage: DC 6-60V (max 80V)
Operating Temperature: -30~85 Celsius
Condition: New
Type: Logic ICs
Dissipation Power: none
Model Number: XH-M604
is_customized: Yes
Application: Charge Control Module
Display Precision: 0.1V
Control Precision: 0.1V
Output Type: direct output
Voltage Tolerance: +/-0.1V
Application Fields: 6-60V storage battery
Size: 81*54*18mm
Use: battery control module

NOTE : we have documents of most of products in our store

If you need it , contact us :)

This product is suitable for 6-60V battery charging control, can be set free to start charging voltage and stop charging voltage! In the IN input charger 660V voltage, in the OUT terminal battery, for example, set 12V start 15V stop when the voltage is below 12V when the relay is closed to the charger charging voltage to the battery, when the charge voltage is greater than 15V Relay off to stop charging, can be used in household chargers, solar, wind turbines

Product Introduction:

1.Name:numerical control battery charging control module
2.Model:XH-M604
3.Input Voltage:DC 6-60V (max 80V)
4.Display Precision:0.1V
5.Control Precision:0.1V
6.Output Type:direct output
7.Voltage Tolerance:+/-0.1V
8.Application Fields:6-60V storage battery
9.Size:81*54*18mm

Using Method:

1.Set Starting Voltage:in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash;you can start or stop button to set starting up charge voltage value
2.Set Stop Voltage:in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stoping charge voltage value
3.Factory Reset:in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings
