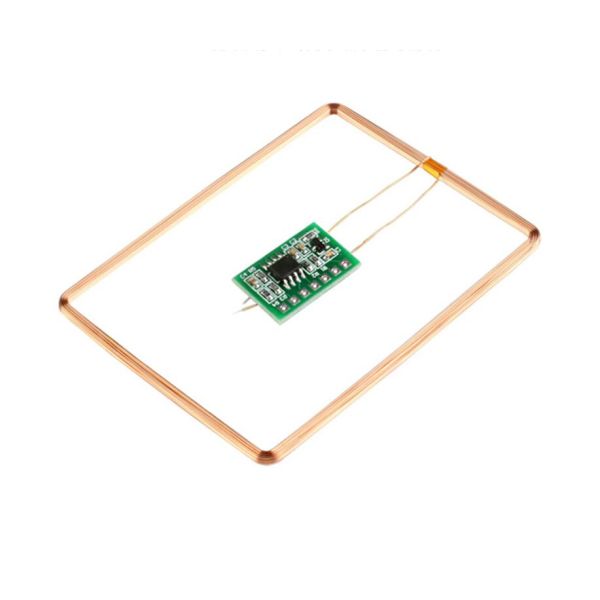

Monday Kids 3pcs RFID 125KHz EM4100 ID Reader Access Control System Reading Card Reader Rfid Module TTL Low Frequency Control de Acceso

$4.64
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Supply Voltage: 3.0V-5.0V
  • Model Number: Card Reader Module
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • is_customized: Yes
  • Operating Temperature: -30~85 celsius
  • Application: Reader Module
  • Working frequency: 125KHz
  • Working current: <25mA
  • Read distance: <7cm
  • Output type: TTL
  • Name: rfid 125khz module
  • Feature: rfid uart

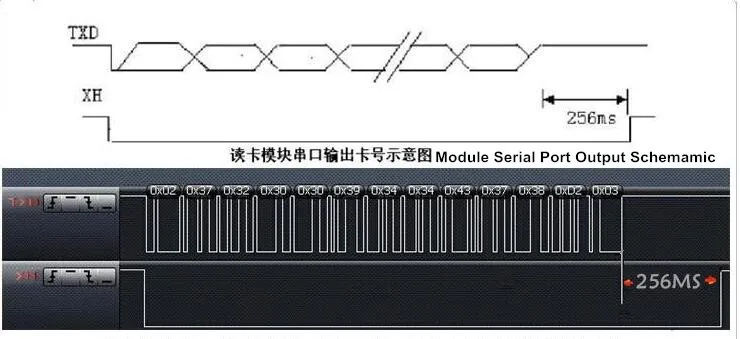

For the protocol instruction please kindly download from Google Drive below:
https://drive.google.com/file/d/1gSBHu7bdAiZ2_JEU_ycXahLNNQa9Kt_J/view

Description :


1. Working voltage:3.0V-5.0V ; <25mA
2. Working frequency:125KHz
3. Support card:EM4001/EM4012
4. Read distance:<7cm
5. Output type:TTL
6. Read speed:<100ms
7. Size:2*1.2cm

  • Unit Type: lot (3 pieces/lot)
  • Package Weight: 0.03kg (0.07lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
