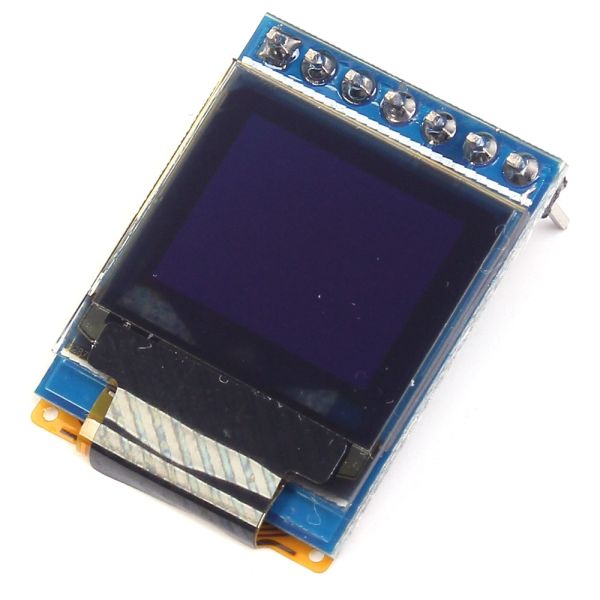

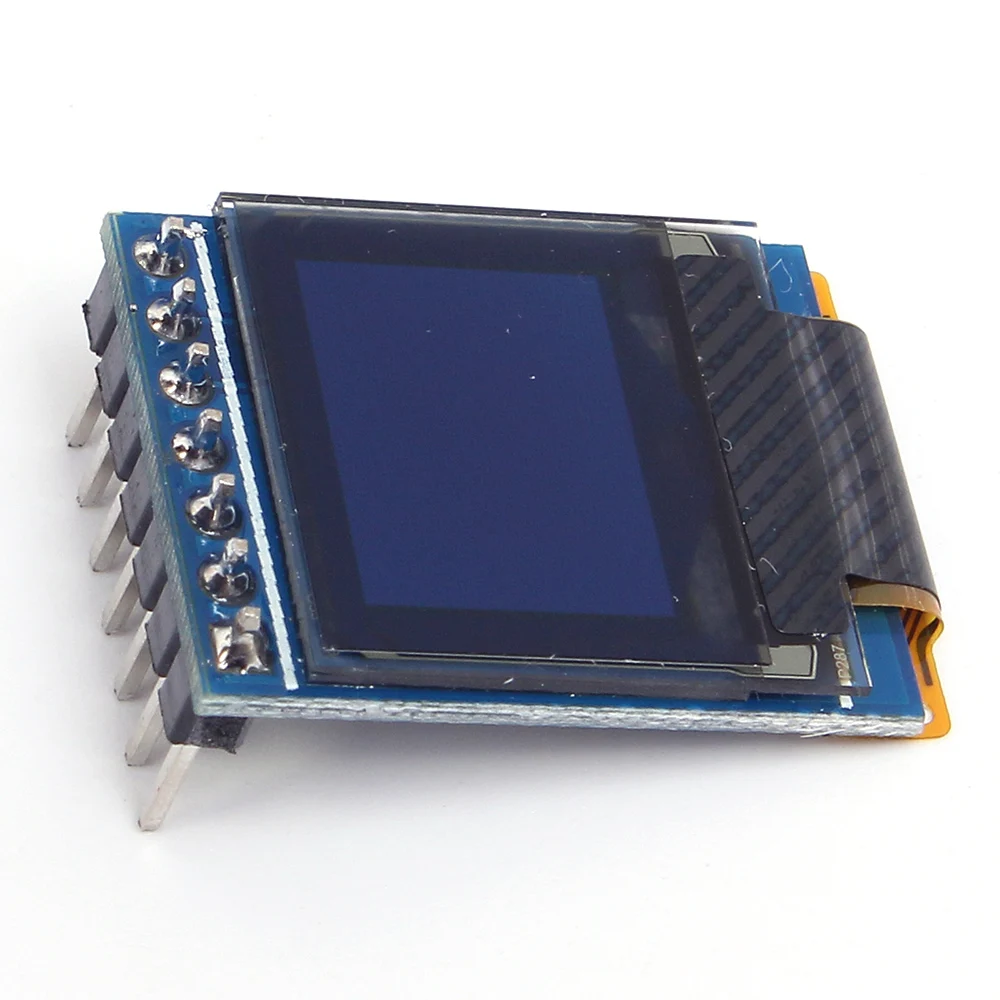

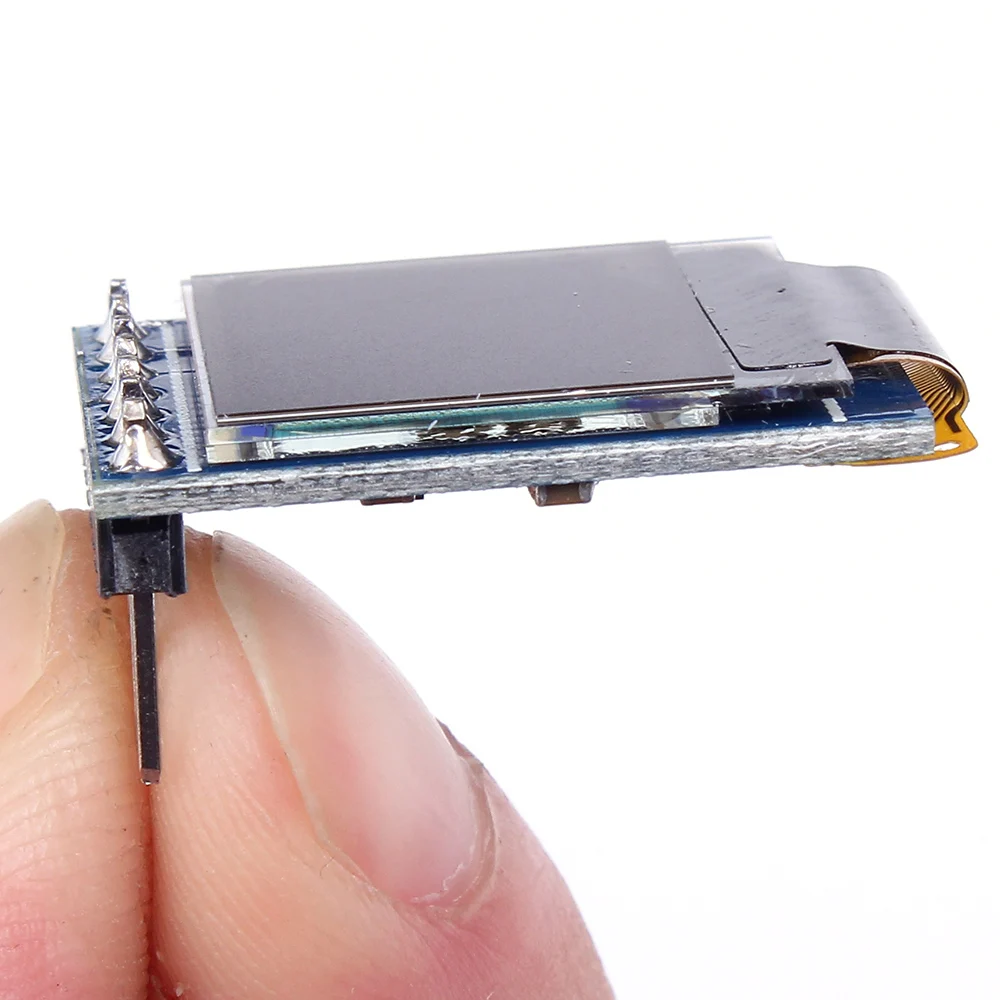

Monday Kids White 0.66 inch OLED Display Module 64x48 0.66" LCD Screen SPI for Arduino AVR STM32
$3.74
Availability:
In stock
SKU
EK837
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Model Number: OLED Display Module
- is_customized: Yes
- Type: OLED Display Module
- Driving Chip: SSD1306
- Size: 0.66 inch
- Interface: SPI
 |
Product Introduction:
1.Specification:0.66 inch
2.Resolution:64*48
3.Interface :SPI
4.Driving Chip:SSD1306
5.Light Color:white

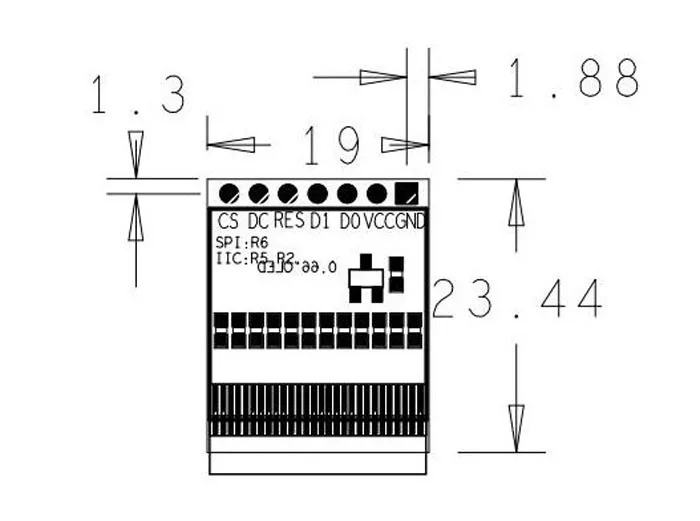

Pin Definition:
1.GND:power ground
2.VCC:power positive (3.3-5V)
3.D0:IIC clock wire
4.D1:IIC data wire
5.RES:reset wire
6.DC:data/command wire
7.CS:chip selection wire
- Unit Type: piece
- Package Weight: 0.015kg (0.03lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
