- Brand Name: Monday Kids
- Model Number: DC-DC Step-down Module
- Condition: New
- Type: Voltage Regulator
- is_customized: Yes
- Operating Temperature: -45~ +85
- Supply Voltage: 0.8-20V

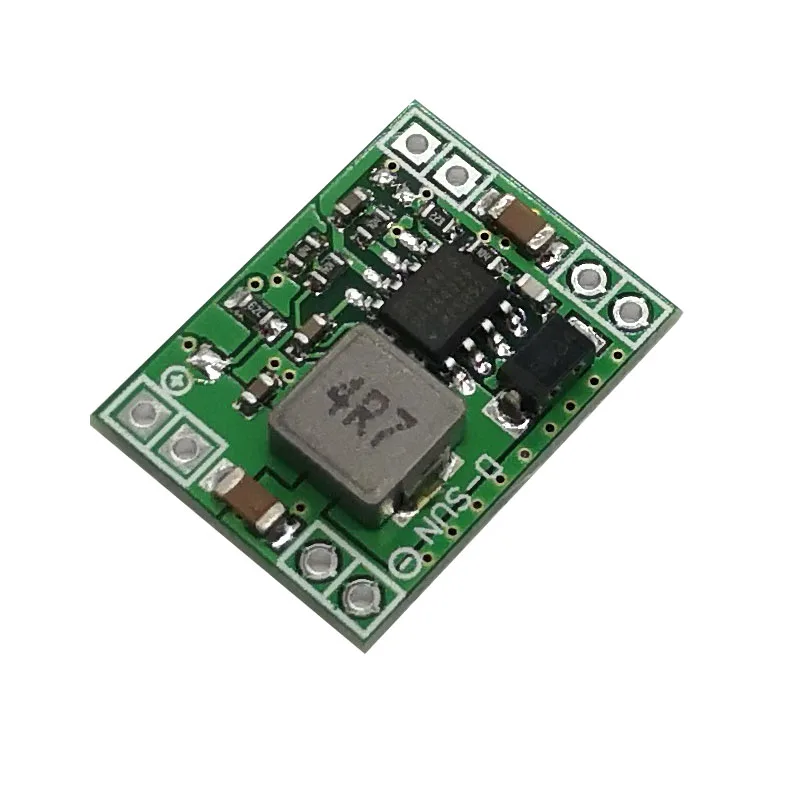

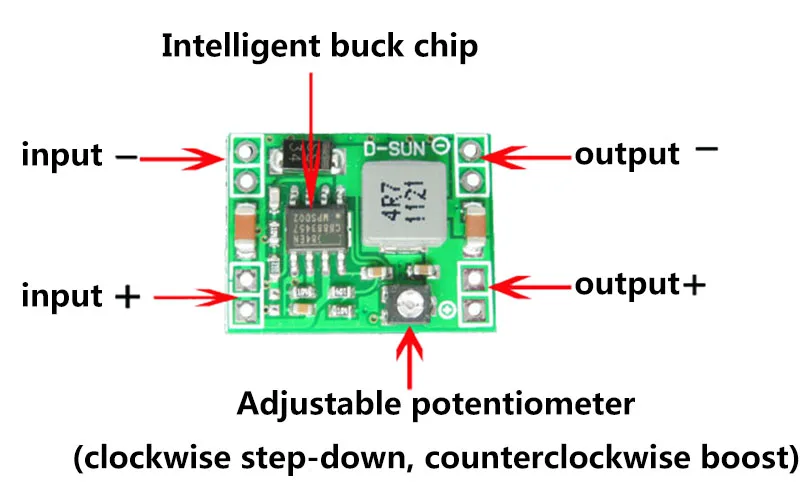

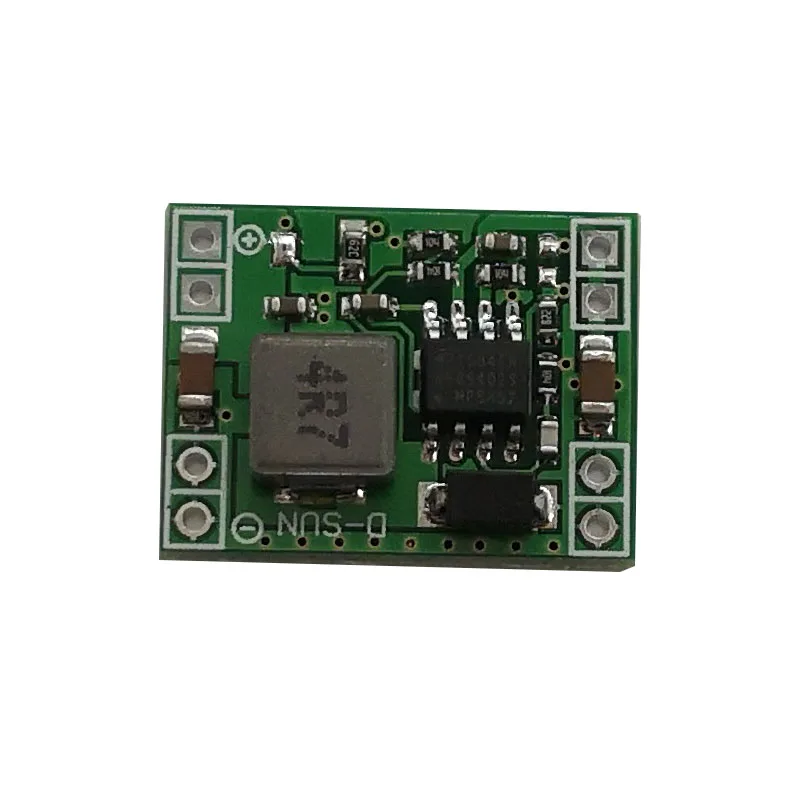

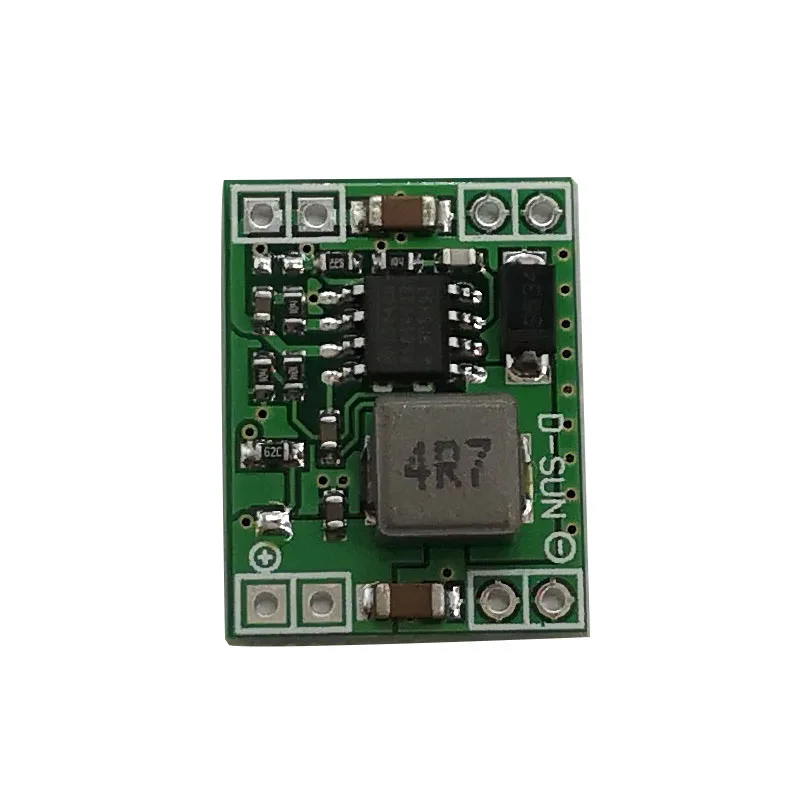

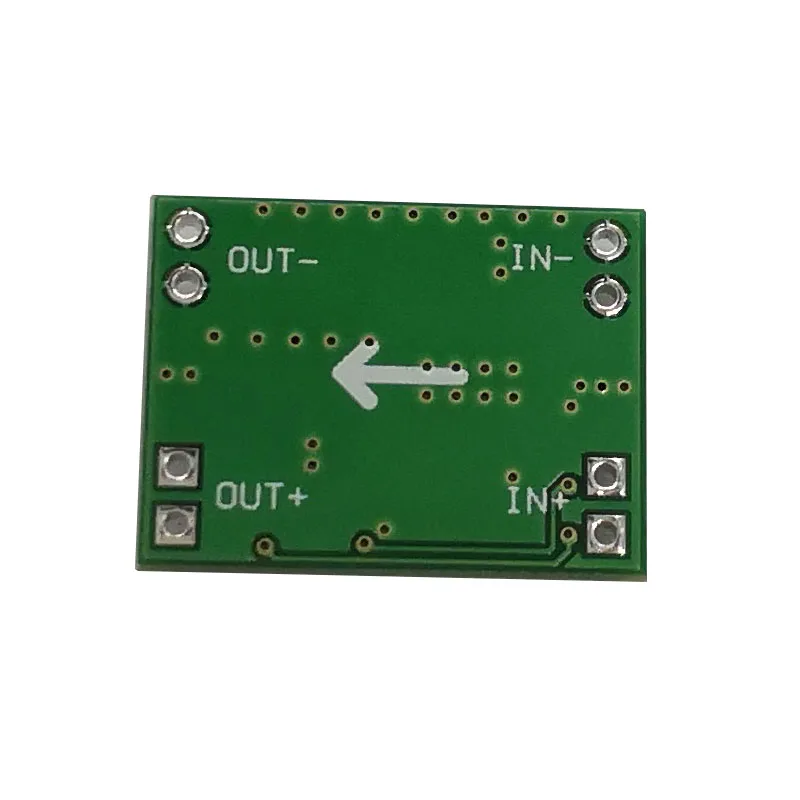

DC-DC Step-down Power Module 3A Adjustable Step-down Module Ultra-small Size Super LM2596
-
Input voltage :7V~28V
-
Output voltage :5V
-
Output current :3A (max)
-

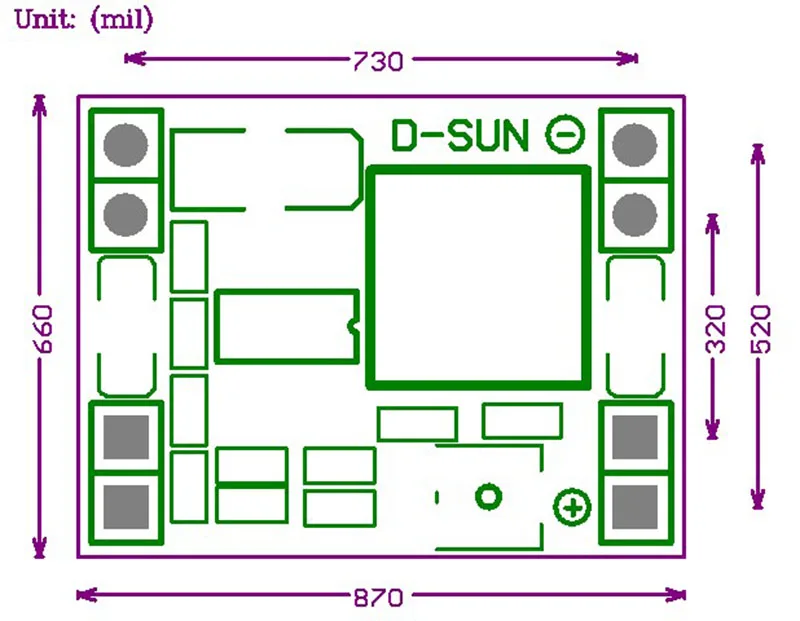

Size :22mm * 17mm * 4mm
-
Conversion efficiency :9 thousand and 600 (highest).
-
Output ripple :<30mV
-
Switching frequency :1.5MHz (maximum) typical 1MHz.
-
Working temperature : -45+85
Application area:
DIY mobile power supply, monitoring power supply, child car power supply, camera power supply, on-board power supply, communication equipment power supply, various requirements for volume and weight requirements (such as aviation model, etc.).
1*DC-DC Step-down Power Module
- Unit Type: piece
- Package Weight: 0.02kg (0.04lb.)
- Package Size: 12cm x 10cm x 3cm (4.72in x 3.94in x 1.18in)
