Monday Kids TDL-555 Touch Delay LED Light DIY Kit TOR Format DIY LED Kit Parts Light DC 5V

Be the first to review this product

$1.75

Availability: In stock

SKU

EK644

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Application: Computer
Condition: New
Type: Logic ICs
Operating Temperature: none
Model Number: TDL - 555
Dissipation Power: none
is_customized: Yes
Supply Voltage: DC 5V
Standby current: Less than 1mA
Standby indicator light: With
Triggered: Touch
Soldering difficulty Level: Easy
Working current: Less than 90mA
Delay time: Adjustable 3 seconds ~ 130 seconds.
Assembly instructions: TOR format

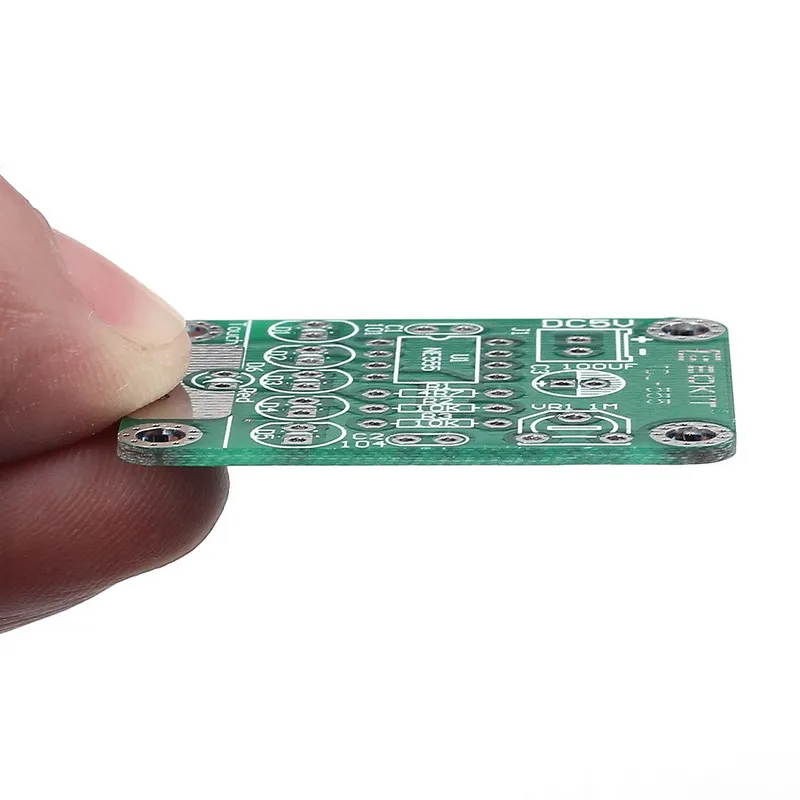

Circuit board size: Length 38mm X width 28.5mm.

1. Description:

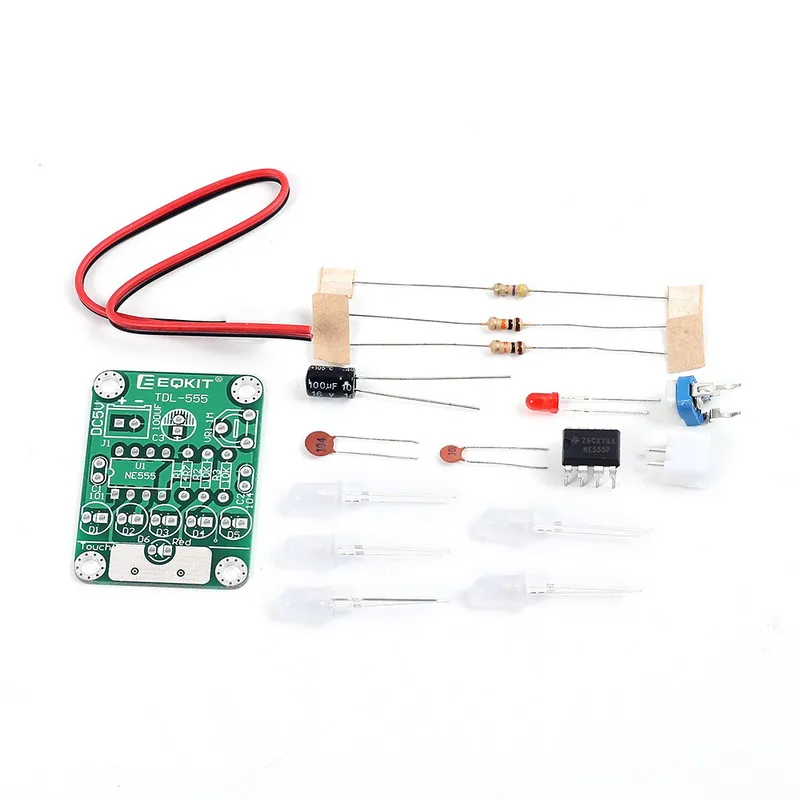

This is a DIY touch delay LED kit parts. You should solder it by yourself.

2. Install tools you need：

1>. Soldering iron

2>. Multimeter

3>. Solder wire

4>. Iron stand

5>. Diagonal cutting pliers

6>. The screwdriver

7>. Tweezers

8>. Long nose pliers

9>. Suction tin

10>. Cleaning sponge

11>. Screwdriver set

3. Parameters:

No.	Product name	Touch delay LED lights
1	Model	TDL - 555
2	Standby current	Less than 1mA
3	Standby indicator light	With
4	Triggered	Touch
5	Soldering difficulty Level	Easy
6	Working voltage	DC5V
7	Working current	Less than 90mA
8	Delay time	Adjustable 3 seconds ~ 130 seconds.
9	Assembly instructions	TOR format
10	Circuit board size	Length 38mm X width 28.5mm.

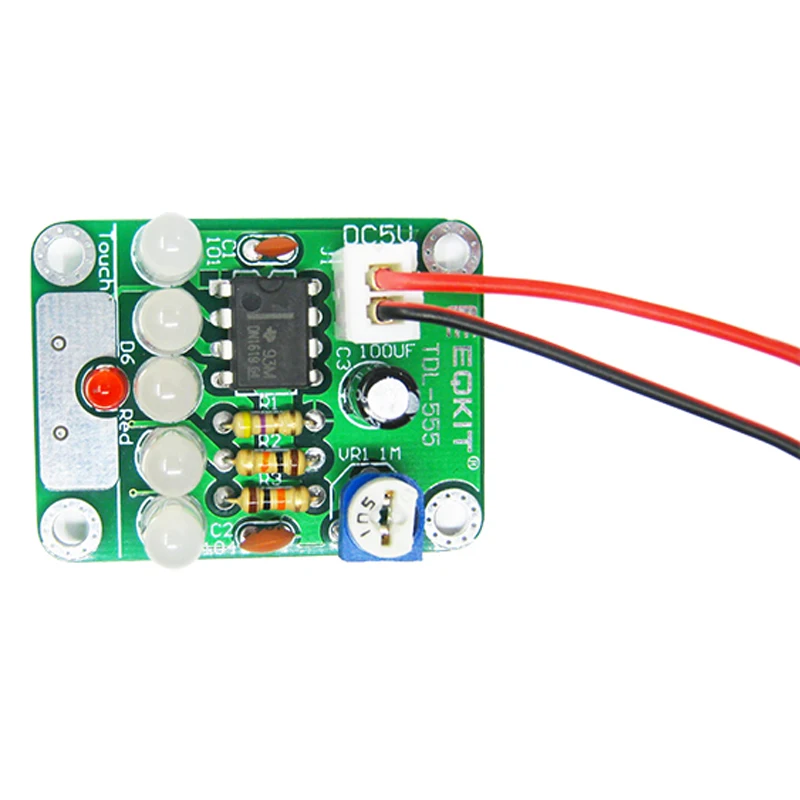

Note: the power supply voltage is strictly forbidden. If you need to change the power supply voltage, please change R1. The R1 resistance increases by 1 ohm each time the voltage is increased by 1 V.Maximum voltage 12V. When wiring, the red line is the positive pole, black line is the negative pole.
