Monday Kids Second Counter DIY Kit Precise Signal Generation Circuit Electronic Practical Training Part DIY Electronic Circuits

$2.78

Product name is Second Counter DIY Kit Precise Signal Generation Circuit Electronic Practical Training Part DIY Electronic Circuits...

Product origin name is Monday Kids Second Counter DIY Kit Precise Signal Generation Circuit Electronic Practical Training Part DIY Electronic Circuits

Availability: In stock
SKU
EK842

Payment Security

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

  • Brand Name: Monday Kids
  • Application: Computer
  • Condition: New
  • Type: Logic ICs
  • Operating Temperature: none
  • Supply Voltage: none
  • Dissipation Power: none
  • is_customized: Yes
  • Model Number: Second Counter DIY Kit
  • name: electronic diy kit


1. Description:

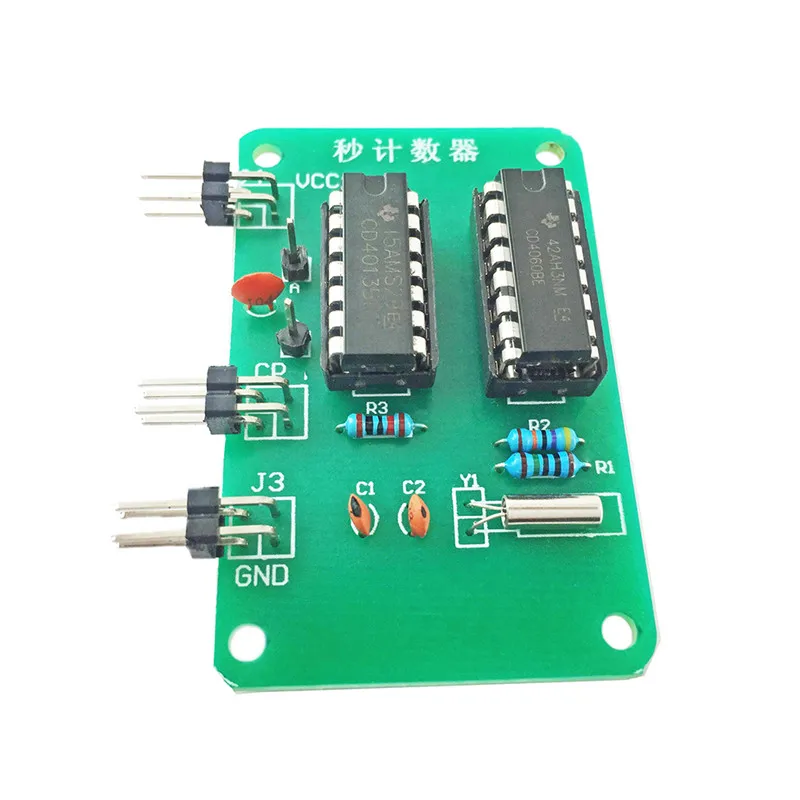

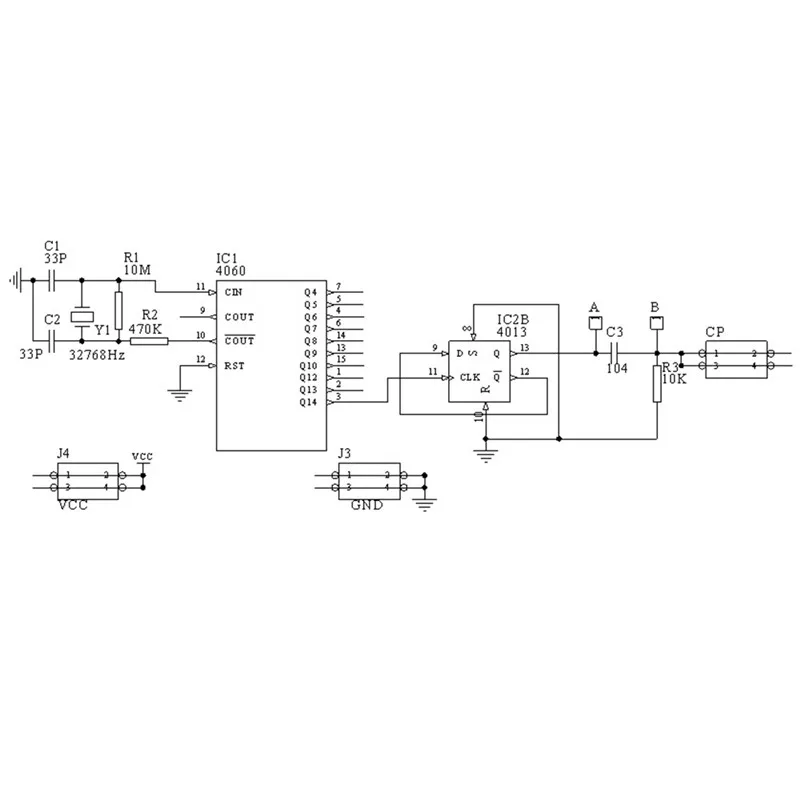

The signal generating part of the second counter is composed of an integrated circuit CD4060.

2. Principle:

CD4060 contains an oscillator, the oscillator circuit can be connected to RC or crystal oscillator, the circuit is connected to a 32768Hz crystal oscillator, the use of crystal oscillator can get stable oscillation signal is very accurate, oscillating signal after 14 frequency divider circuit output of all internal CD4060 different frequency signal, after 14 minutes after the frequency, from Q14 (3 feet) the output frequency is 2Hz square wave signal. Integrated circuit CD4013 is composed of 2 frequency divider circuit, the output of the 2Hz signal processing, finally get the signal 1Hz seconds, you can get 1Hz square wave signal in the test point A in the test point is a sawtooth wave signal 1Hz.

3. Warm tips:

This is the delivery suite of parts, you need welding installation. SCM has written procedures, successfully tested.

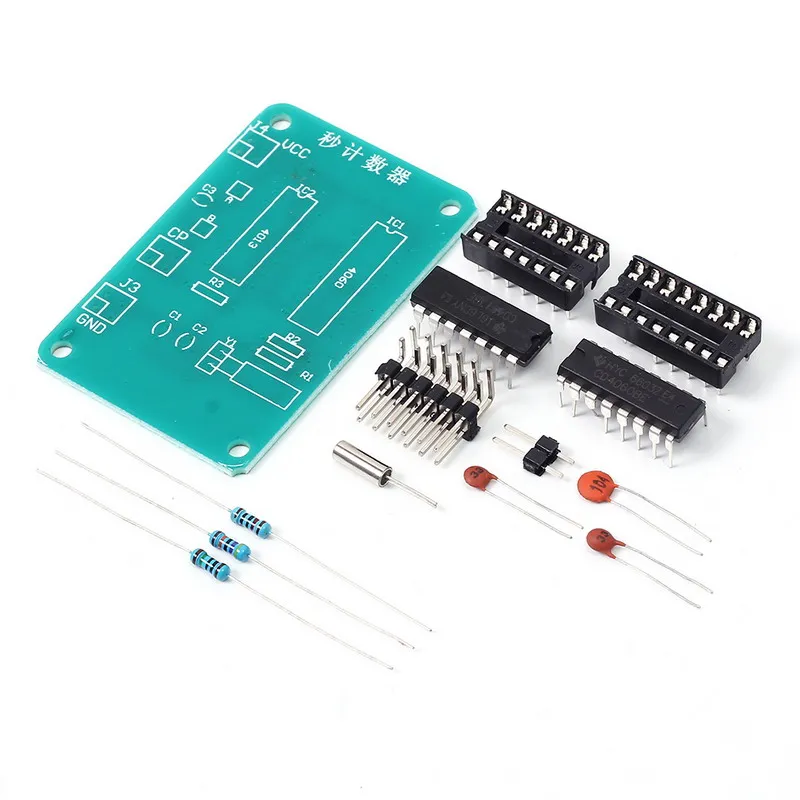

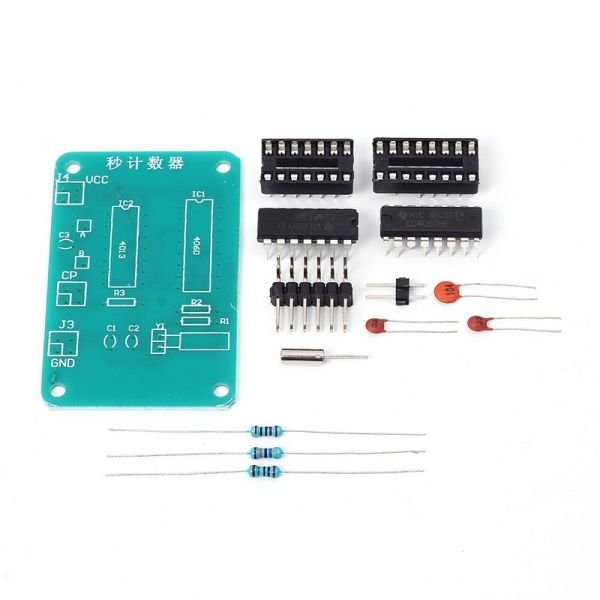

4.Component List:

NO.

Component Name

PCB Marker

Parameter

QTY

1

CD4060

IC1

DIP-16

1

2

CD4013

IC2

DIP-14

1

3

IC Socket

IC1

DIP-16

1

4

IC Socket

IC2

DIP-14

1

5

Metal Film Resistor

R1

10M

1

6

Metal Film Resistor

R2

470K

1

7

Metal Film Resistor

R3

10K

1

8

Ceramic Capacitor

C1,C2

30pF

2

9

Ceramic Capacitor

C3

0.1uF 104

1

10

Crystal

Y1

32768Hz

1

11

Male Pin

J3,J4,CP

2x2P

3

12

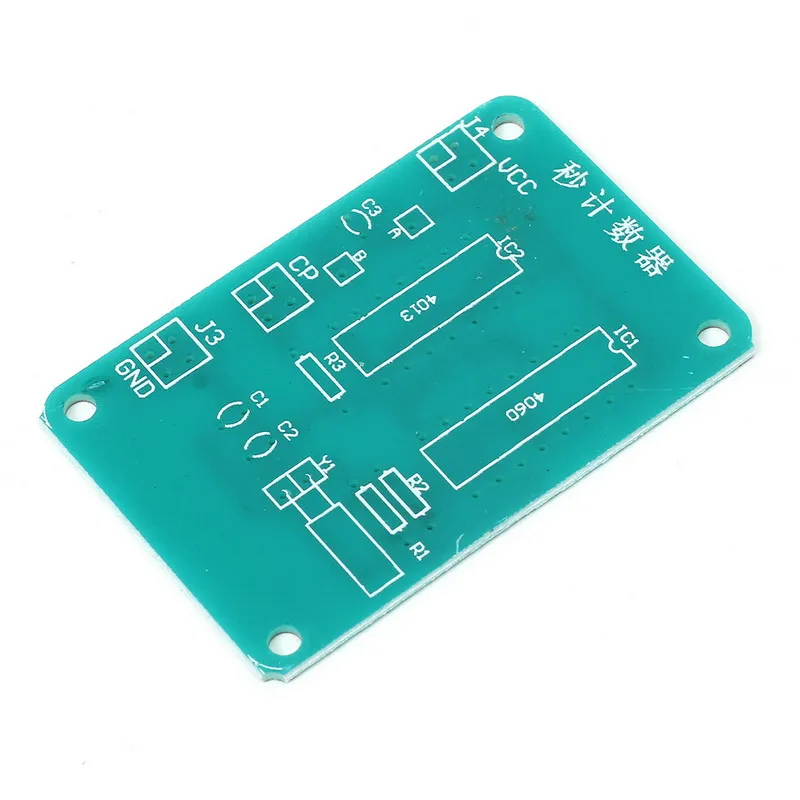

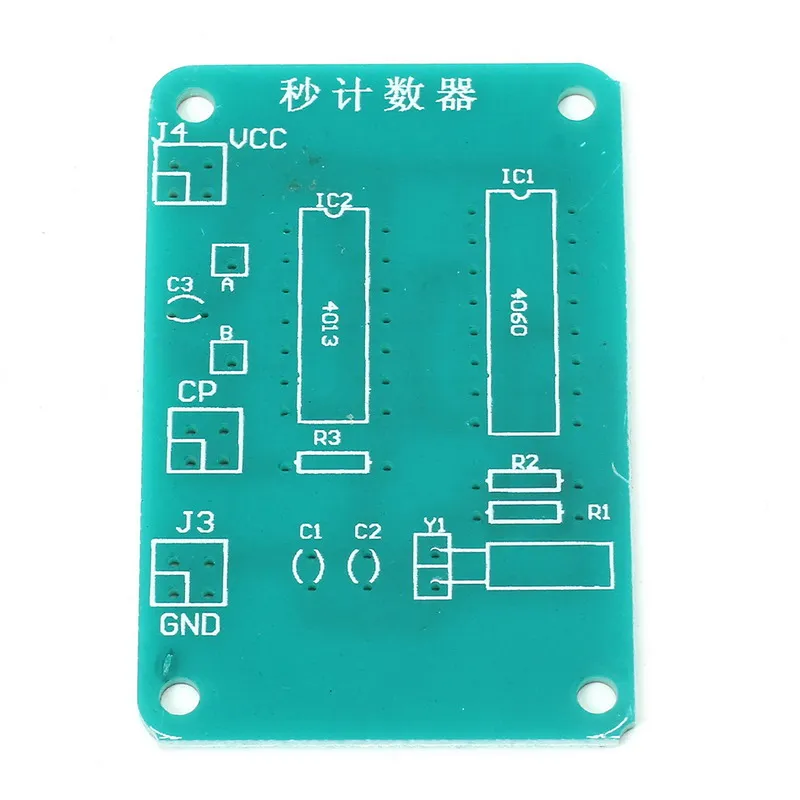

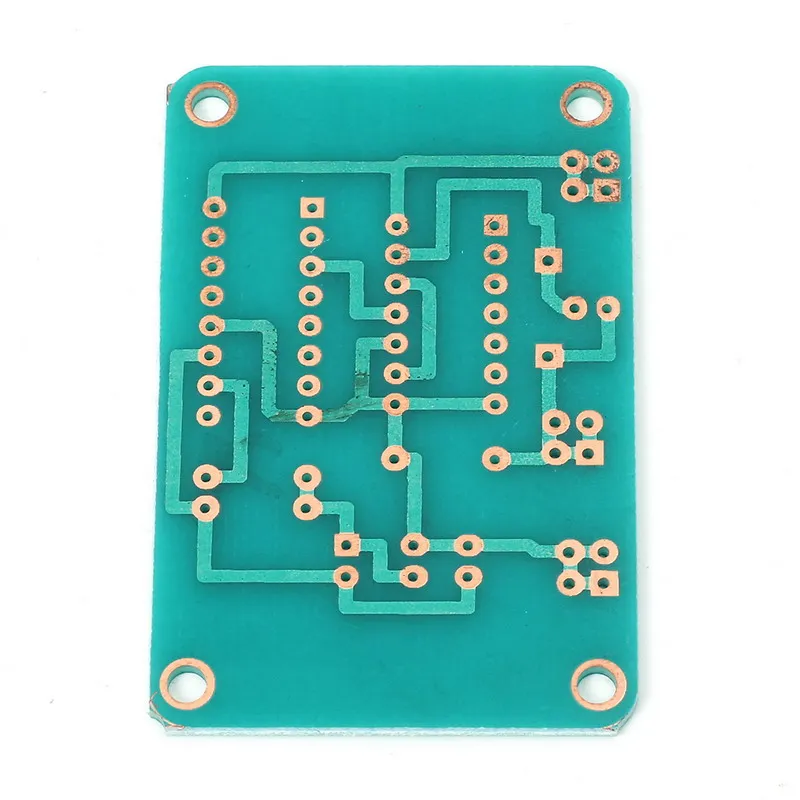

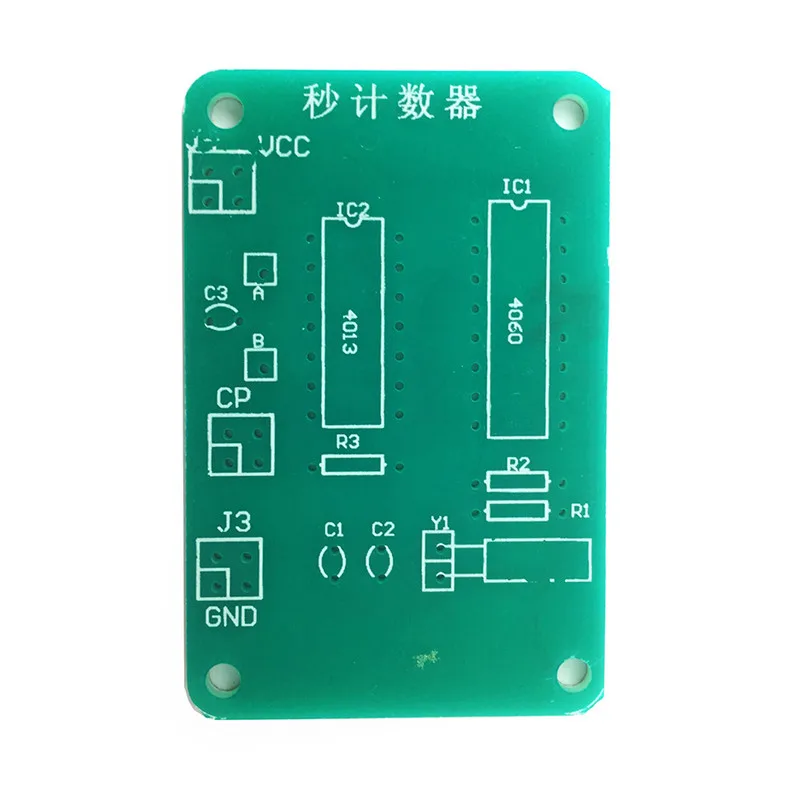

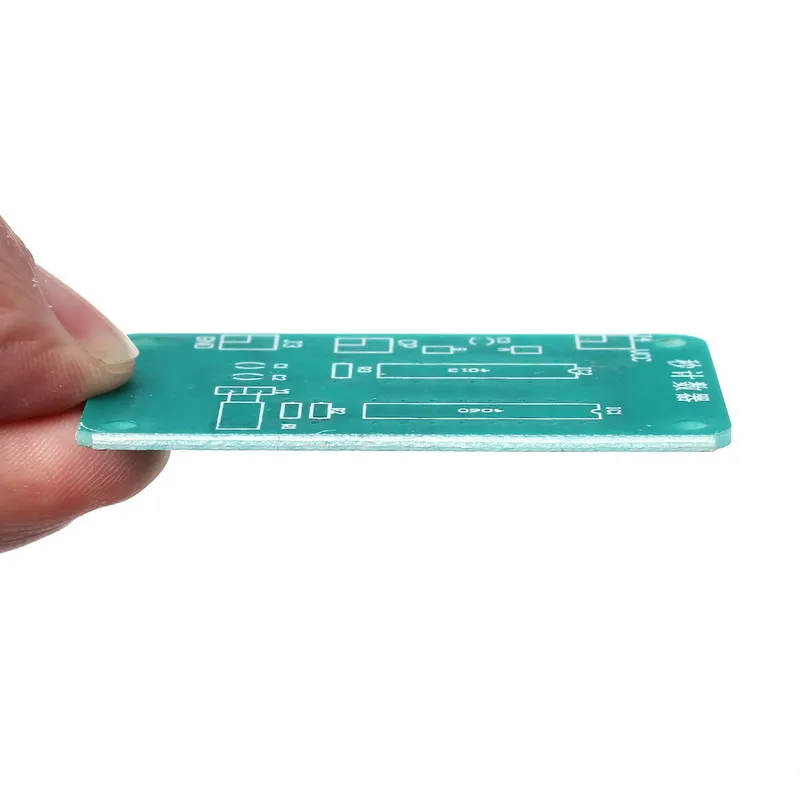

PCB

38*56mm

1

  • Unit Type: piece
  • Package Weight: 0.02kg (0.04lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
