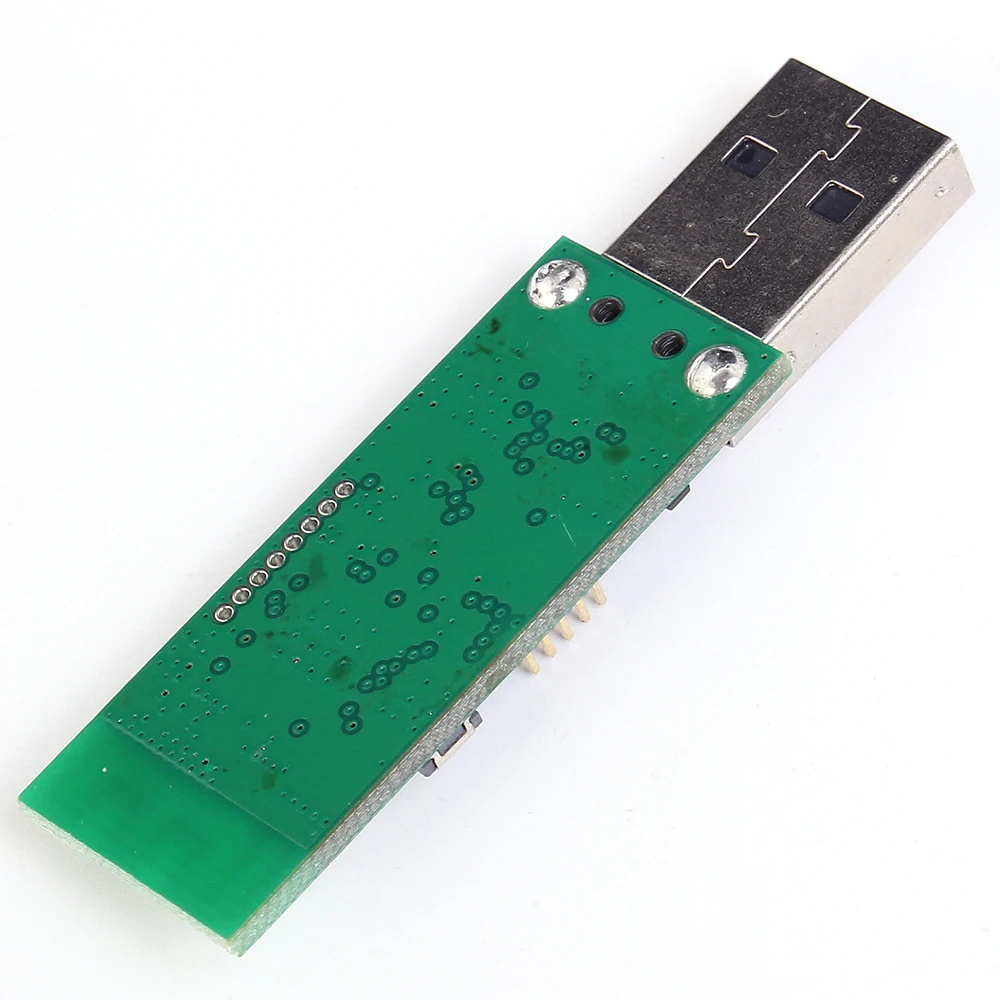

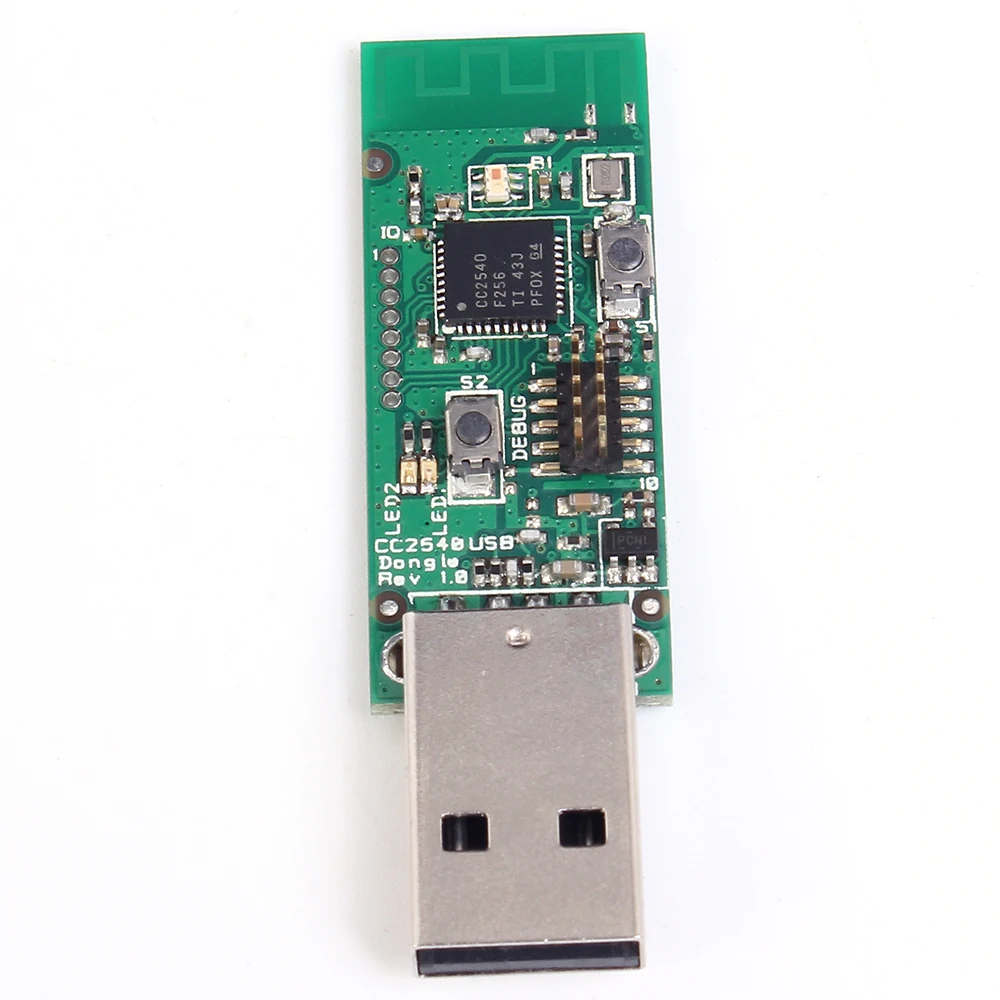

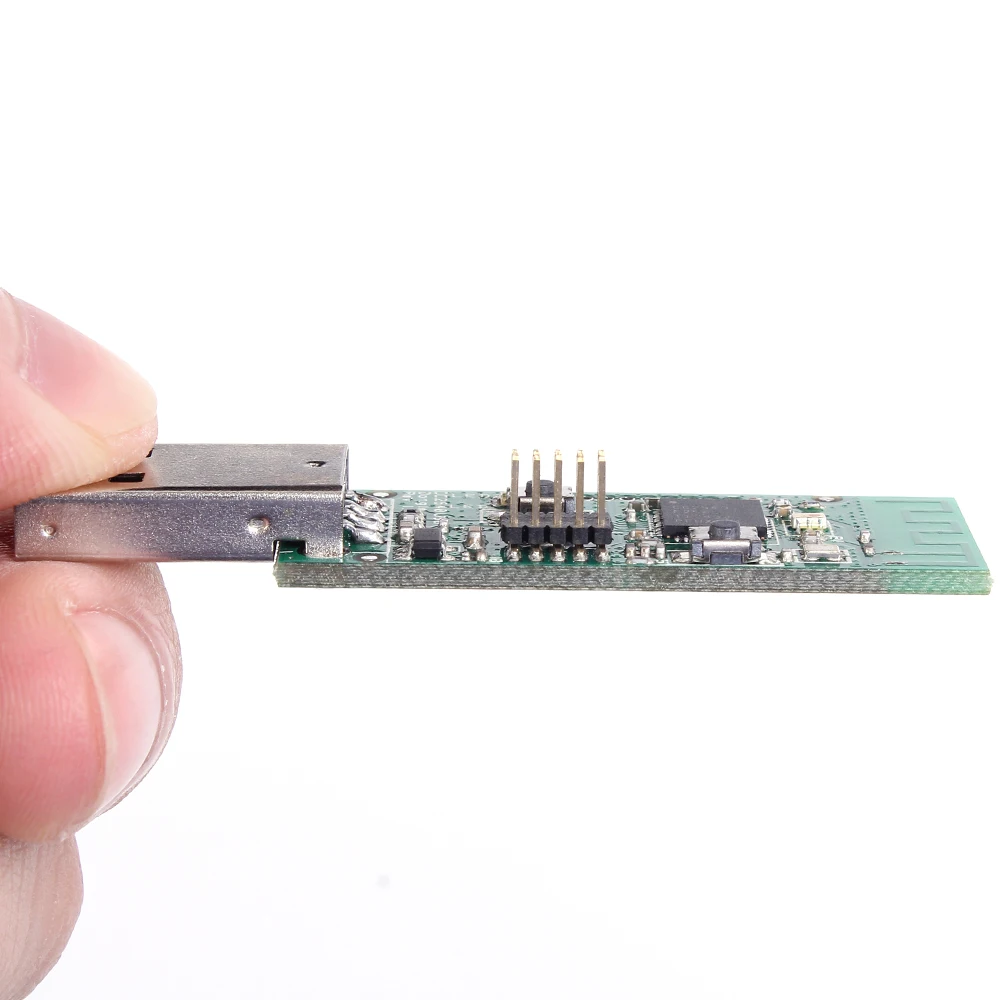

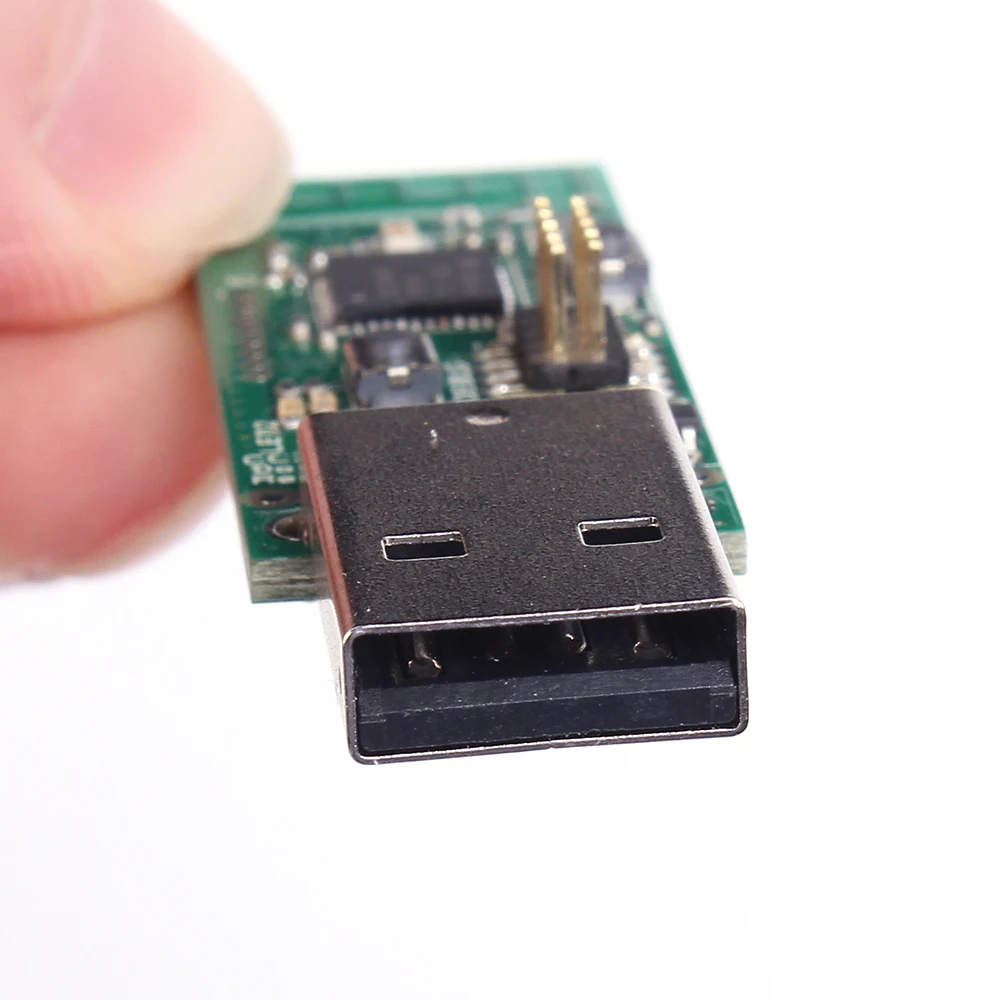

Monday Kids Bluetooth Board Ble Sniffer Bluetooth 4.0 BLE CC2540 USB Dongle Protocol Analysis BTool Packet Sniffer Board Debug Pin 1Mbps

Be the first to review this product

$8.98

Availability: In stock

SKU

EK838

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Supply Voltage: none
Application: Computer
Operating Temperature: none
Condition: New
Type: Logic ICs
Dissipation Power: none
is_customized: Yes
Model Number: cc2540 bluetooth ble module

Product Introduction:

1.Size:4.1*1.6cm

2.Board Thickness:1.6mm
3.Operating Frequency:2.405-2.485GHz
4.Wireless Transmission Speed Rate:1Mbps
5.Power Cosumption:<20mA (receiving);<25mA (transmission)

Features:

1.Lead Out 8 IO Ports
2.Debug Pin
3.Matching Different Firmware (Sniffer And BTool) To Achieve Bluetooth Adapter And Protocol Analyzer Function

4.The Dongle Can Be Used As Mini Bluetooth 4.0 Development Board

Note : Need the document , contact us :)

Use as follows:

The Packet Sniffer is installed on the computer and the software can be downloaded from the WWW.TI.COM website

1, after the installation is complete open the software, select BLUETOOTH LOW ENERGY,

2, click "start" to enter, insert CC2540 Sniffer USB dongle device, the software will recognize,

3, select, click on the triangle, began to catch the air

At this time we can carry out the agreement analysis.

Some customers will use CC2540 to do DONGLE use, this time the device will need to burn CC2540_USBdongle_HostTestRelease_All.hex, open BTOOL after use.
