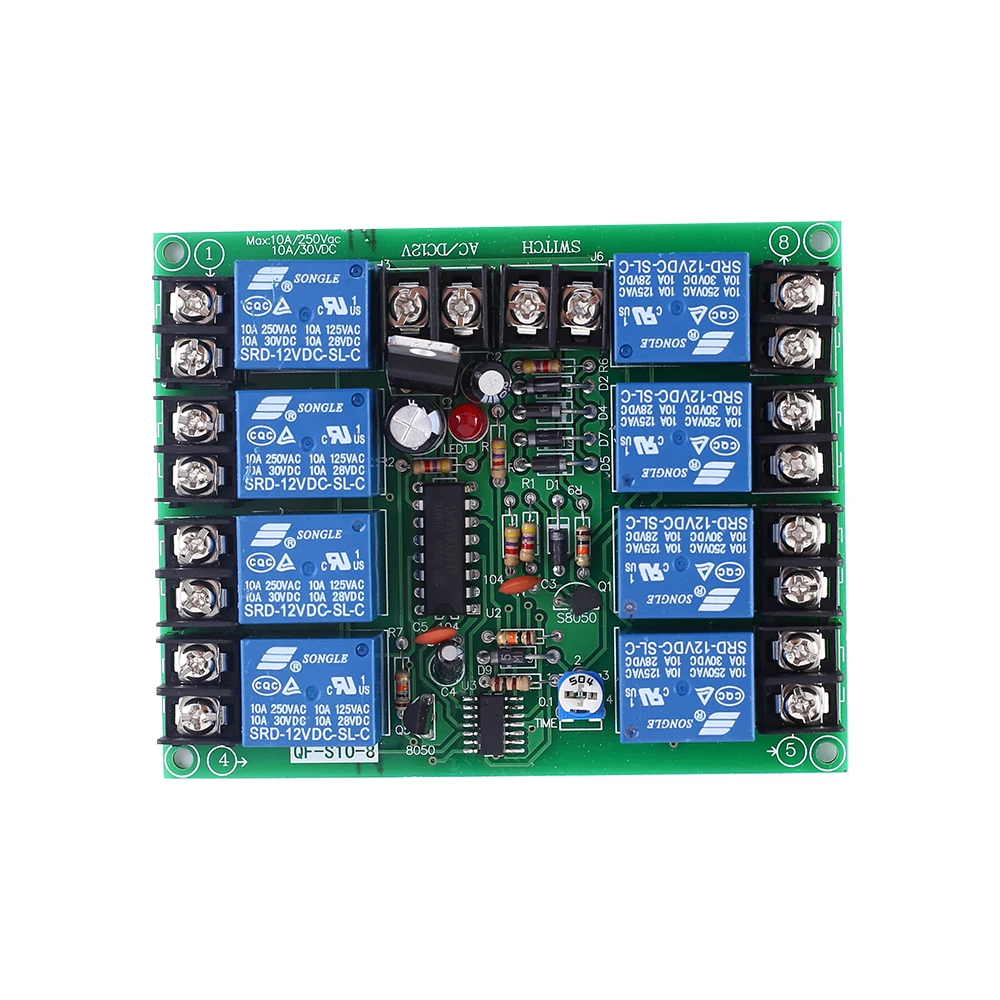

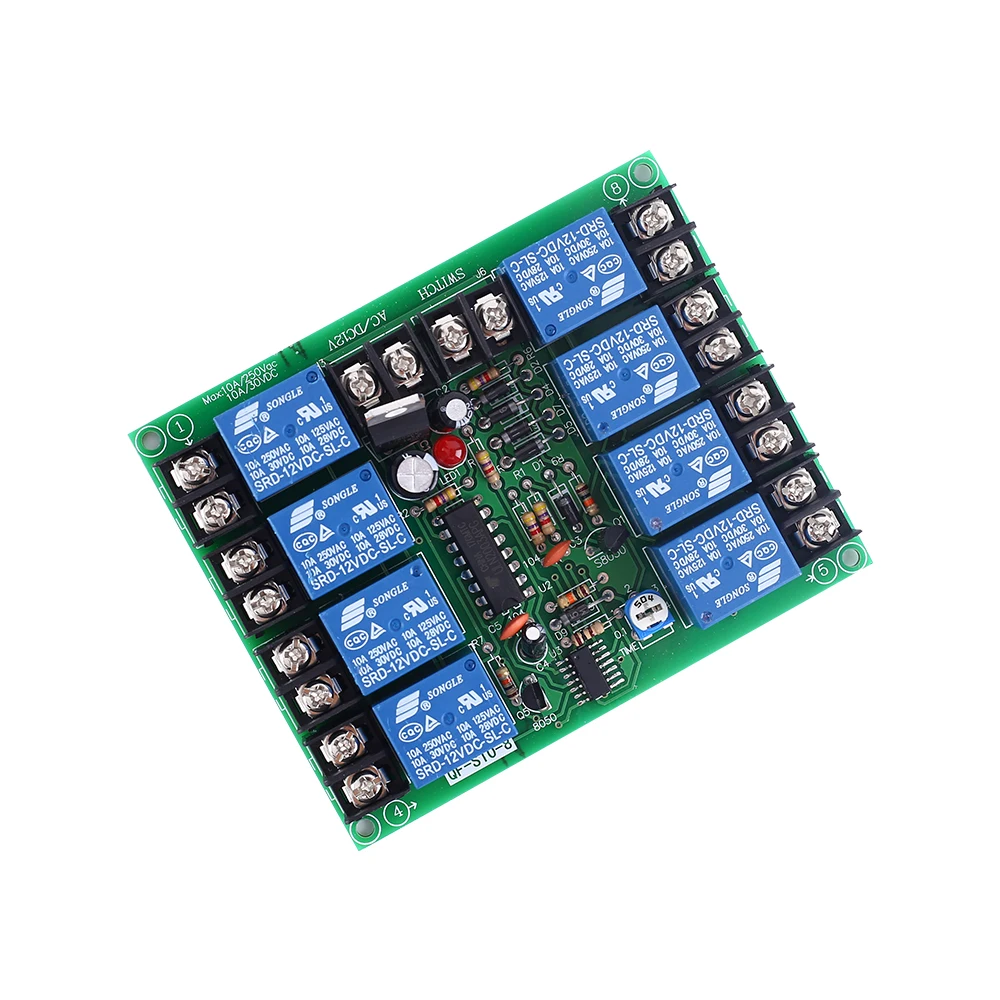

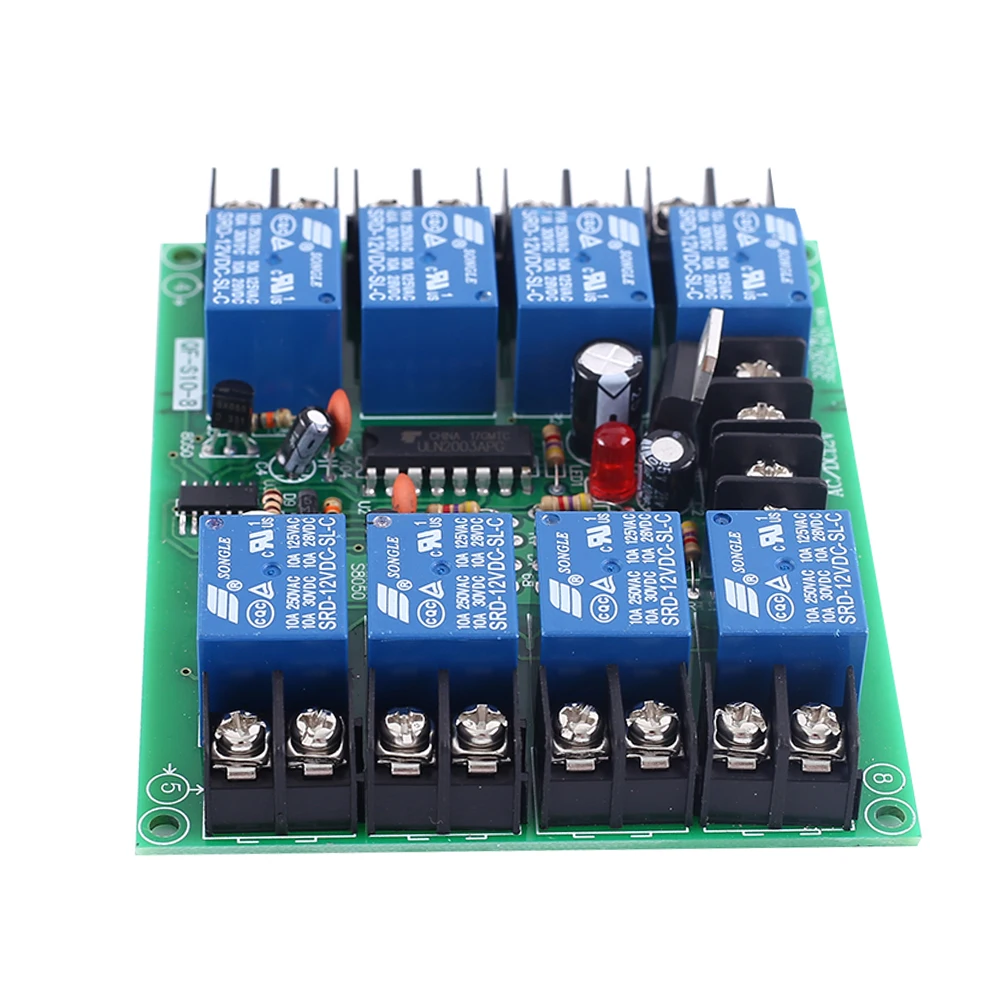

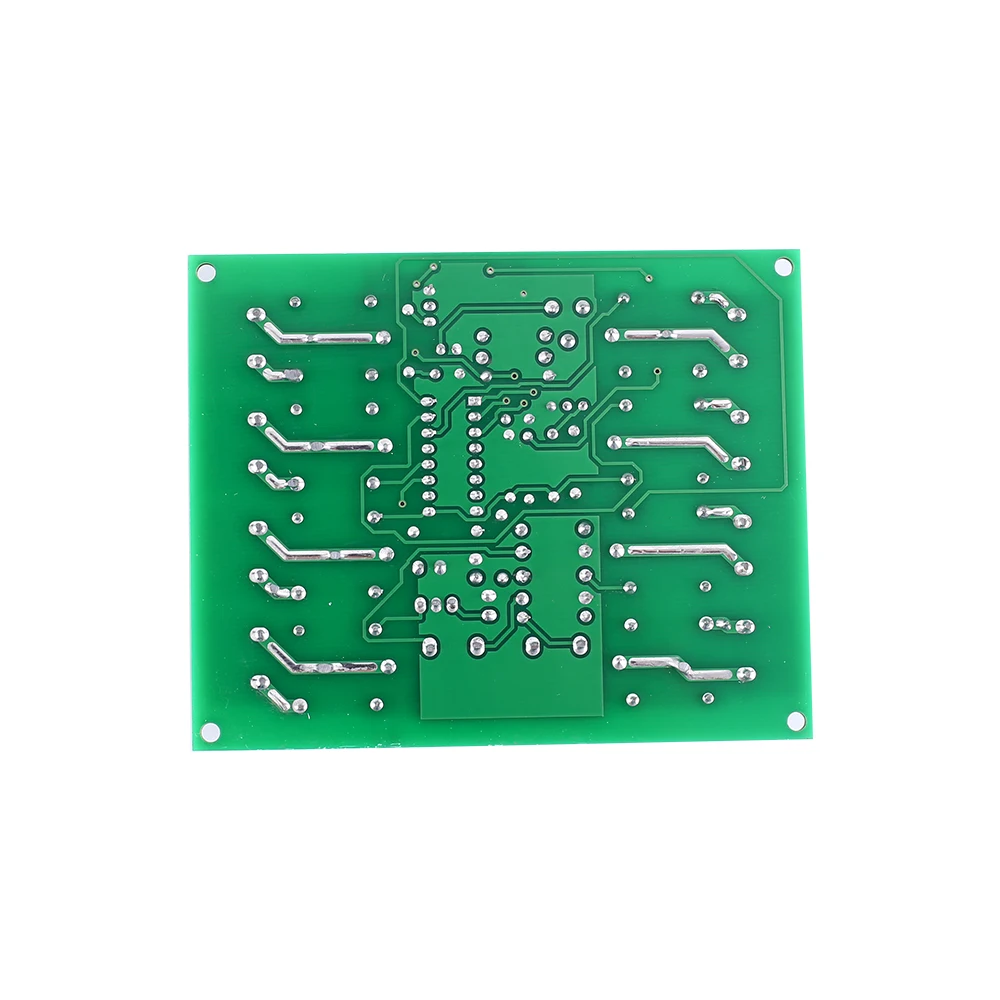

Monday Kids Power Time Sequence Board 0.2-4s Adjustable Sequential Controller Module AC DC 12V 10A 8-Channel 8CH For Audio KTV Stage Light
$19.64
Availability:
In stock
SKU
BK-DG-11
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Package: SOP
- is_customized: Yes
- Model Number: QF-S10-8
- Operating Temperature: -25~85 Celsius
- Dissipation Power: <1W
- Supply Voltage: AC/DC 10V-17V
- Application: Delay Relay Module
- Condition: New
- Type: Logic ICs
- Brand Name: Monday Kids
- Work Current: 50mA
- Output channel: 8-Channel
- Size: 100*80*19mm
1.Description:
QF-S10-8 is a trigger delay time sequence module.User can adjust delay time by potentiometer to meet require.
2.Feature:
1>.Low level trigger
2>.Delay time can be set
3>.Support high power load
3.Parameter:
1>.Model: QF-S10-8
2>.Work Voltage:AC/DC 10V-17V
3>.Work current:50mA
4>.Work power:<1W
5>.Stand-by current:3mA
6>.Delay time:0.2~4second
7>.Response time:20ms
8>.Output channel:8-Channel
9>.Load voltage:DC 30V or AC 250V
10>.Load current:10A(Max)
11>.Work Temperature:-25~85
12>.Work Humidity:5%~95%RH
13>.Size:100*80*19mm

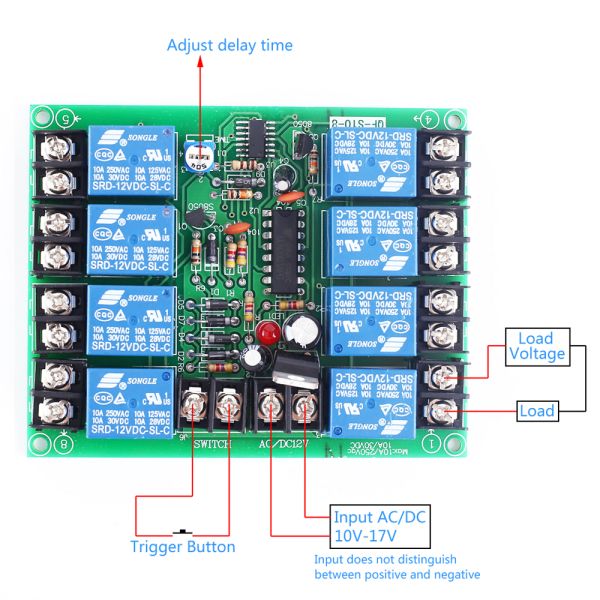

4.Function:
1>.Output turn ON in sequence and Output OFF in reverse order.
2>.Power ON.
3>.Input a trigger signal.
4>.Relay_1 turn ON and start delay time T1.
5>.Relay_2 turn ON and start delay time T1 after Relay_1 keep ON for time T1.
6>.Relay_3~Relay_8 turn ON following the last relay and after delay T1.
7>.Relay_8 turn OFF after it keep ON for delay time T1.
8>.Relay_7 turn OFF after Relay_8 turn OFF for delay time T1.That is, its delay time is 2*T1 for keep ON.
9>.Relay_2~Relay_6 turn OFF following the last relay and after delay T1.
10>.Relay_1 turn OFF after delay time T1 when Relay_2 turn OFF.That is, its delay time is 15*T1 for keep ON.
5.Package:
1>.1pcQF-S10-8 4s Trigger Delay Relay Module
