Monday Kids Mini 5V MP3 Decoder Board Bluetooth Call Decoding Module MP3 WAV U-Disk & TF Card USB With 2*3W Amplifier Remote Controller

Be the first to review this product

$4.99

Availability: In stock

SKU

EK340

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Supply Voltage: 3.6-5V
Condition: New
Type: Logic ICs
Model Number: MP3 Decoder Board
Dissipation Power: none
is_customized: Yes
Operating Temperature: -30~85 Celsius
Application: MP3 Decoder Board
Size: 75mmX27mmX34.5mm

Please NOTE：
MINI USB-IN can not be used directly if not connected to the battery.Must connect the battery at first, then use MINI USB IN.Otherwise it may damage the decoder board.

Product Introduction :

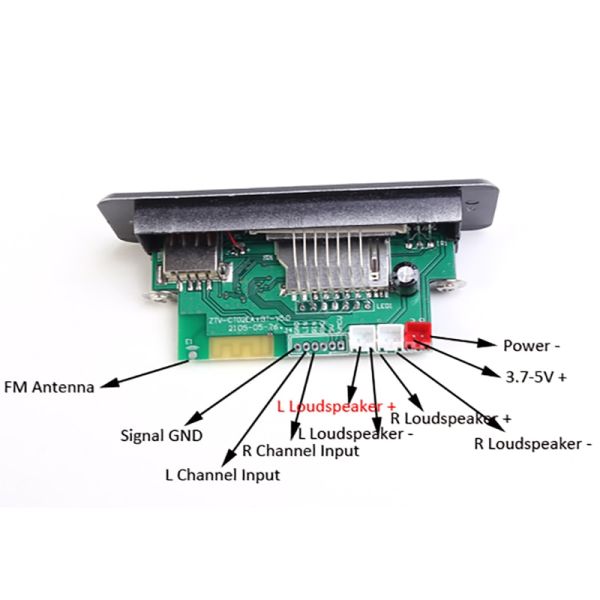

1.Power Supply Voltage:3.6-5V;3W stereo power amplifier output (BTL output,no common GND,cannot connect with other amplifiers for use)

2.Mul-function:bluetooth receive;hands-free call;fast forward/fast backward;insertation MP3 play;AUX function;radio function

3.Self-equipped with bluetooth audio receive module;after cellphone and bluetooth module has matched successfully,cellphone can play MP3 or bluetooth can send loseless APE file to bluetooth receive module to play;support hands-free call;support playing MP3 document in U-disk or SD card;support radio playing

75mmX27mmX34.5mm

Bluetooth Function Operation Method:

1.Press "MODE" key to switch state to "BLUE"

2.Open audio device with bluetooth function,search "ZTV-CT02EA" and connects with it

3.Volume can be controlled by external connection sound source device;or long press "PREV" and "NEXT" to adjust vlume

4.When there is call in,short press "Play/Pause"is for answering the phone and long press is for rejecting

5.When you want to call someone or in calling state,short press "Play/pause" is hanging up

6.Note:if current state is mute and there is call in,then it will release the mute state

Power On/off:

1.Power on:remove the power switch to "ON" position

2.Power off:remove the power switch to "OFF" position

MP3 Play:

1)When power on,plug the U-disk or SD card which copied MP3 songs,and the machine will automatically recognize and play

2)"PREV":short press will play the previous song;long press will decrease the volume

3)"Play/pause":press the first time will stop the current playing song;press again will restore to playing state

4)"NEXT":short press will play the next song;long press will increase the volume

5)"MODE":mode selection;switch SD card,U-disk,clock,FM,bluetooth,LINE mode

FM Mode:

1)When press "MODE" key to switch into FM state.PREV:short press will search radio station from up to down,long press will decrease the volume;"Play/pause":short press will automatically search and memory the radio station;"NEXT":short press will search the radio station from down to up,long press will increase the volume

Line Mode:

1)When press "MODE" key to switch into Line state,voice source is input by "Line/DC";and volume is controlled by external connection device.You can also adjust volume by pressing "PREV" or "NEXT" key

Clock Adjustment:

1)When press "MODE" key to switch into Clock state,press "Play/pause" key to select hour or minute;then the chosen part is flashing,if press "PREV" or "NEXT" again can achieve time adjustment

Bluetooth Mode:

1)When press "MODE" key to switch into Blue state,open the audio device with bluetooth function;search for "ZTV-CT02EA" and connect with it;volume is controlled by external connection device.You can also adjust volume by pressing "PREV" or "NEXT" key.When there is call in,short press "Play/pause" is for answering the phone,long press is for rejecting

2)If you want to call someone or in calling state,short press "Play/pause" is for hanging up

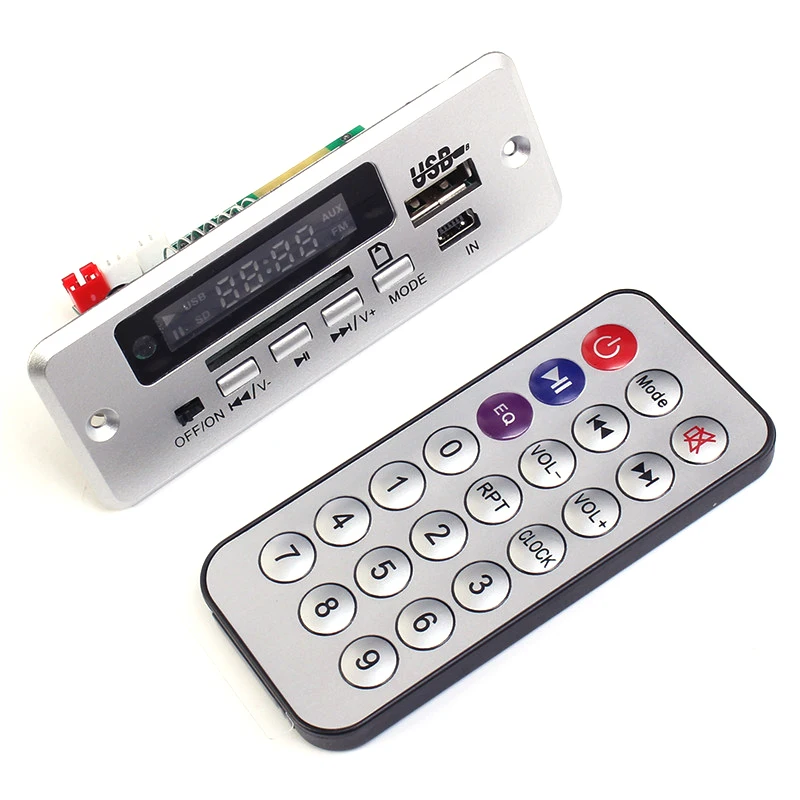

Remote Control Operation:

1)In bluetooth state

Power Switch:fake power off

Mode Switch:the same as MODE key,switch mode (bluetooth->MP3->FM->Clock->bluetooth)

Mute:press is for mute/unmute;please note that if the current state is mute and there is call in,then it will release the mute state

Play/pause:the same as PCBA board function

PREV:the same as PCBA board function

NEXT:the same as PCBA board function

Vol-:the same as PCBA board function

Vol+:the same as PCBA board function

Cycle:number repeat calling

MP3 State:

1)PREV:short press for previous song;long press is for fast backward

2)NEXT:short press for next song;long press is for fast forward

3)Cycle:switch single loop to list loop

Clock Adjustment:

1)When press "Time" to switch into "Clock" state,press "Time" key to choose hour or minute,then the chosen part is flashing;if press "PREV" or "NEXT" key again is for time adjustment
